StarTech.com Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Com
StarTech.com

Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Com

Model USB3SDOCKHDVEAN 6136005248438

60 specifications
  • ConnectivityWired
  • Weight295 g
  • ColourBlack
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
295 g
Colour
Black
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
USB3SDOCKHDV
Part number
USB3SDOCKHDV
EAN / UPC
6136005248438, 065030851299, 125915146626, 132017971964 +8 more
Also known as
StarTech.com Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Com

Specifications

60 specifications in 12 groups

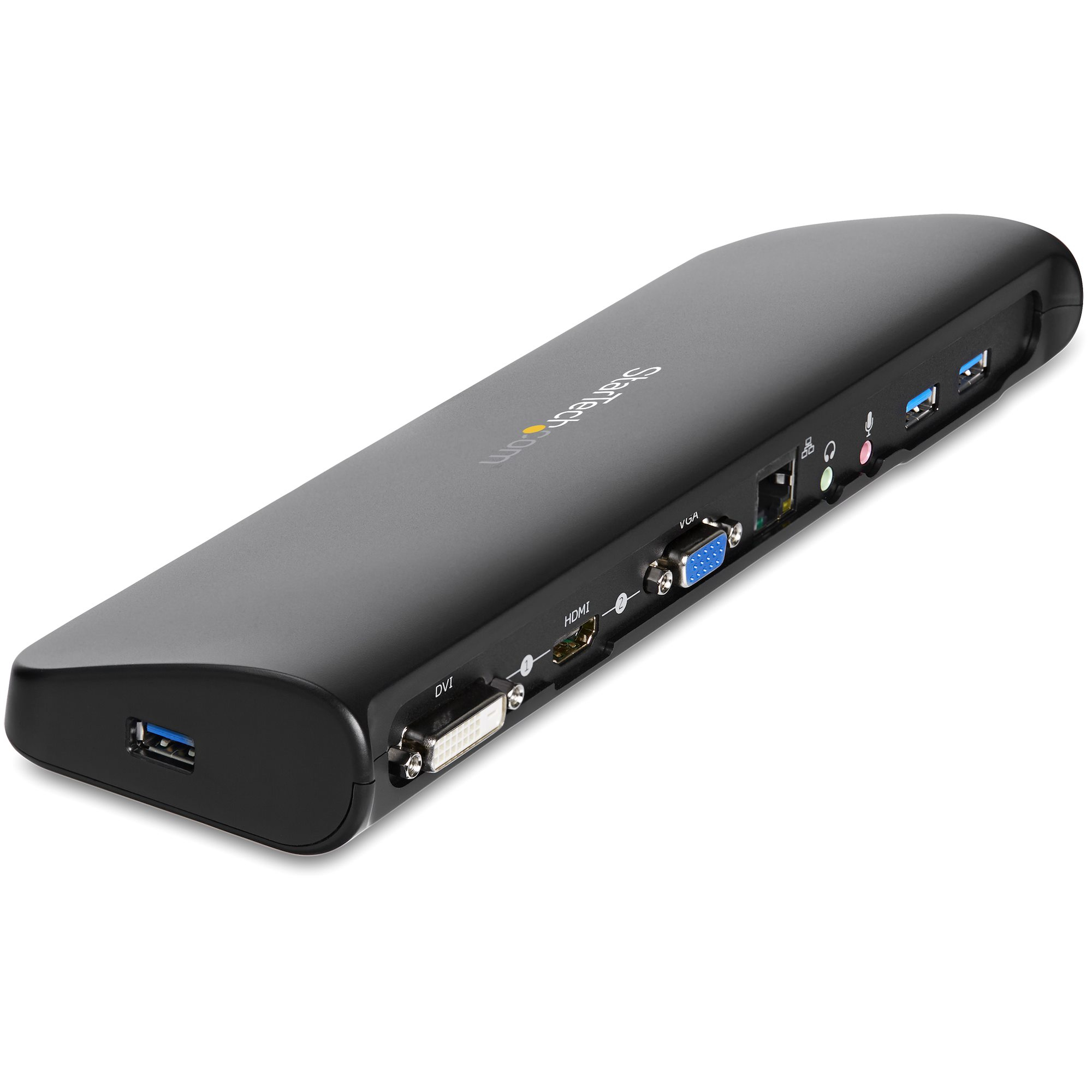

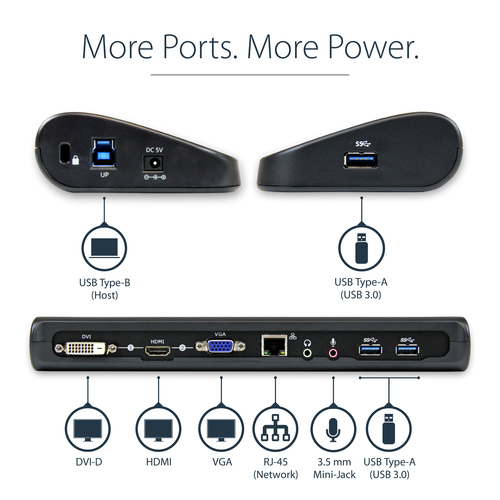

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Microphone inYes
Headphone outputs1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution1920 x 1200 pixels
Maximum analog resolution2048 x 1152 pixels
Cable lock slotYes
Cable lock slot typeKensington
Housing materialPlastic
CertificationFCC, CE, TAA, REACH

Power

AC input voltage100-240 V
Input current0.9 A
Output current4 A
Output voltage5 V
Power consumption (typical)20 W
Power plug typeType B
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpri
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width178 mm
Depth304 mm
Height44 mm
Weight295 g

Packaging data

Package width299 mm
Package depth195 mm
Package height69 mm
Package weight878 g

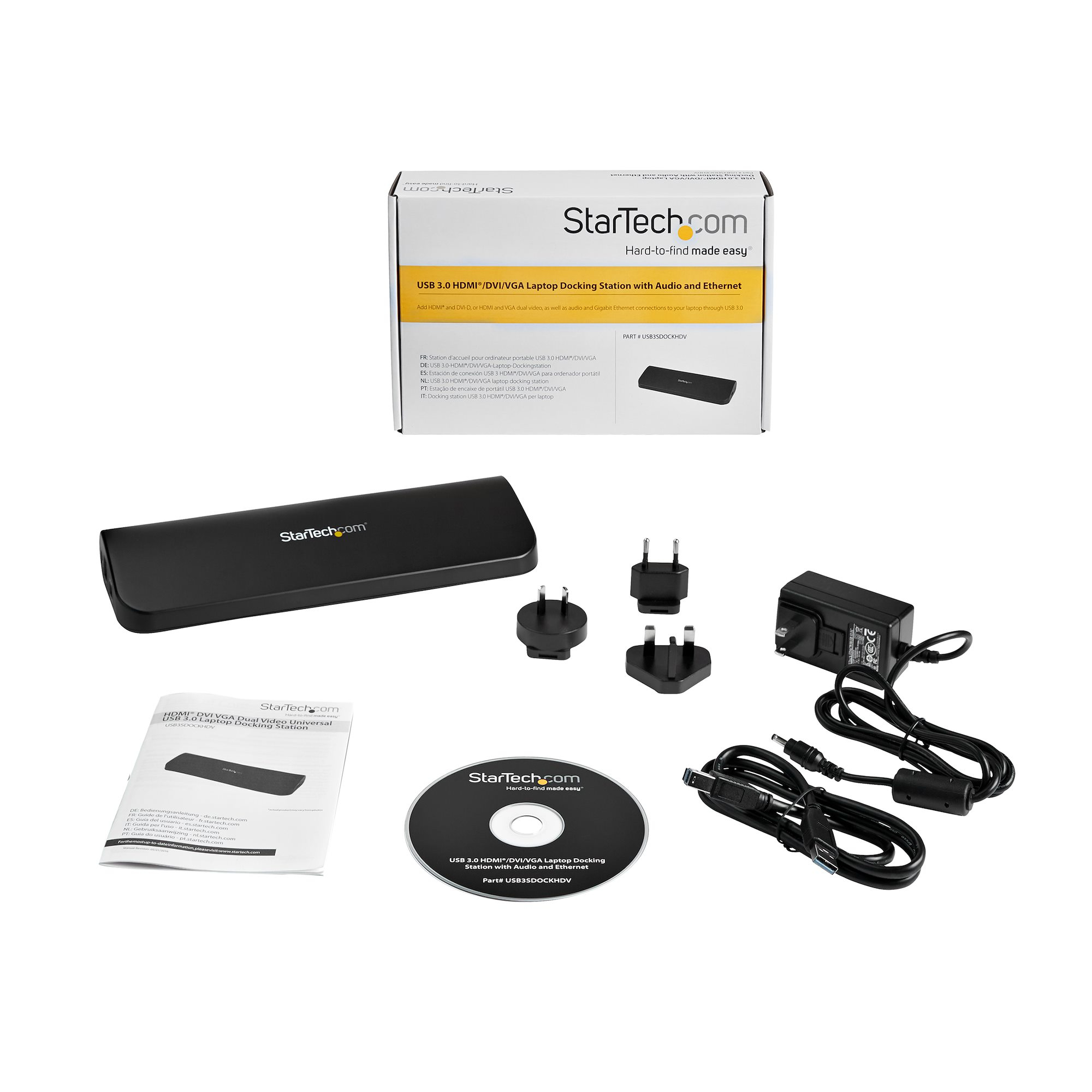

Packaging content

AC adapter includedYes
Cables includedUSB
Drivers includedYes
ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height355 mm
Master (outer) case length228 mm
Master (outer) case width445 mm
Products per master (outer) case6 pc(s)

Other features

ChipsetDisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
USB data transfer rates12,480,5000 Mbit/s
