StarTech.com Dual Monitor USB 3.0 Docking Station with HDMI - DVI - 6 x USB Ports~Dual Monitor USB 3.0 Laptop Docking Station with HDMI & DVI/VGA, 6x USB-A Hub,
StarTech.com

Dual Monitor USB 3.0 Docking Station with HDMI - DVI - 6 x USB Ports~Dual Monitor USB 3.0 Laptop Docking Station with HDMI & DVI/VGA, 6x USB-A Hub,

Model USB3SDOCKHDEAN 5704174275657

61 specifications
  • ConnectivityWired
  • Weight370 g
  • ColourBlack
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)10 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
370 g
Colour
Black
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
10 - 40 °C
Brand
StarTech.com
Model
USB3SDOCKHD
Part number
USB3SDOCKHD
EAN / UPC
5704174275657, 021111226509, 065030847674, 112840324052 +11 more
Also known as
StarTech.com Dual Monitor USB 3.0 Docking Station with HDMI - DVI - 6 x USB Ports~Dual Monitor USB 3.0 Laptop Docking Station with HDMI & DVI/VGA, 6x USB-A Hub,

Specifications

61 specifications in 12 groups

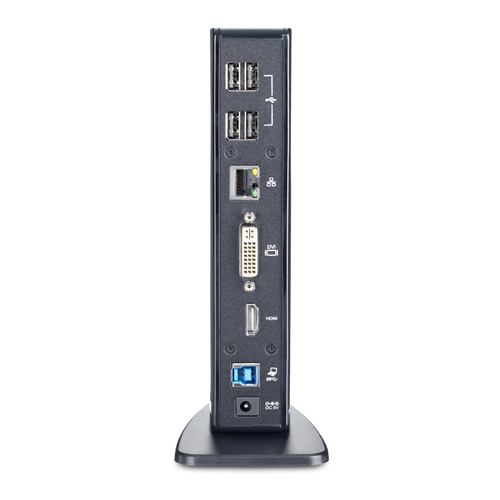

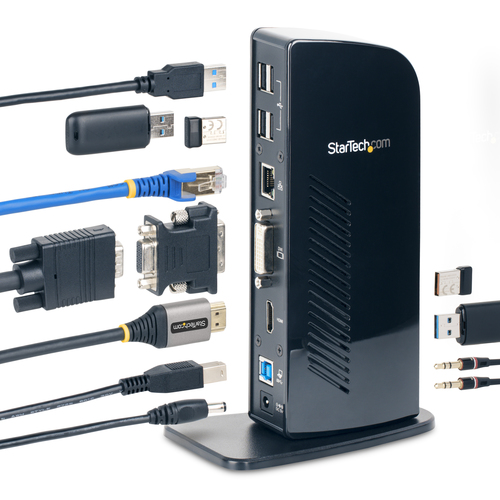

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity1
DVI-I ports quantity1
Microphone inYes
Combo headphone/mic portNo
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution1920 x 1200 pixels
Housing materialPlastic
LED indicatorsPower, USB
Brand compatibilityAny brand
CertificationCE, FCC

Power

AC input voltage100 - 240 V
Input current0.8 A
Output current4 A
Output voltage5 V
Power consumption (typical)20 W
Power plug typeType C
Compatible power plug typesAU, EU, JP, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpri
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)10 - 40 °C
Storage temperature (T-T)-10 - 80 °C

Weight & dimensions

Width70 mm
Depth125 mm
Height195 mm
Weight370 g

Packaging data

Package width190 mm
Package depth273 mm
Package height109 mm
Package weight900 g

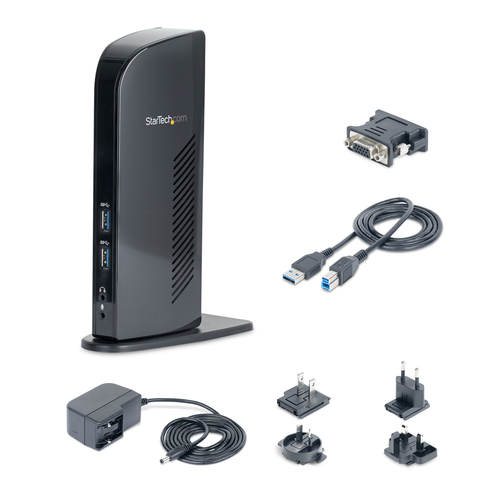

Packaging content

AC adapter includedYes
Cables includedUSB
Drivers includedYes
Interface adapters includedDVI-I male - VGA female
ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height360 mm
Master (outer) case length400 mm
Master (outer) case width300 mm
Products per master (outer) case6 pc(s)

Other features

ChipsetDisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
Minimum system requirementsCPU: i3 Dual core 2.8GHz + RAM: 2GB +
Number of microphone inputs1
