StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand
StarTech.com

Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand

Model USB3SDOCKDDEAN 7427457544537

67 specifications
  • ConnectivityWired
  • Weight285 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • Power source typeAC
  • Operating temperature (T-T)0 - 50 °C
See all specifications

Overview

Connectivity
Wired
Weight
285 g
Colour
Black, Silver
Ethernet LAN
Yes
Power source type
AC
Operating temperature (T-T)
0 - 50 °C
Brand
StarTech.com
Model
USB3SDOCKDD
Part number
USB3SDOCKDD
EAN / UPC
7427457544537, 065030858267, 493212510885, 650308582670 +4 more
Also known as
StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand

Specifications

67 specifications in 12 groups

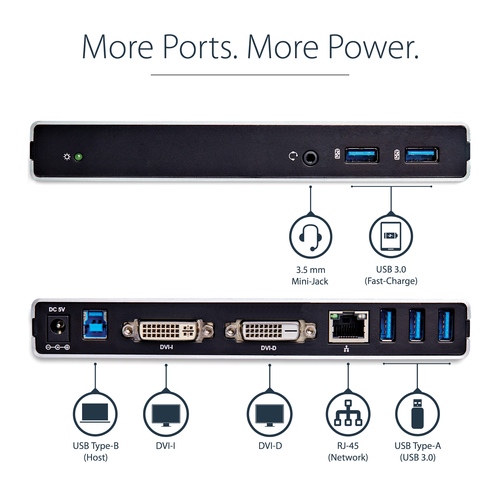

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
HDMI ports quantity0
DVI-I ports quantity1
DVI-D ports quantity1
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum analog resolution2048 x 1152 pixels
Charging functionYes
Housing materialAluminium, Plastic
LED indicatorsPower
Rubber feetYes
UASP supportYes
Brand compatibilityAny brand
CertificationCE, FCC, REACH

Power

Power source typeAC
AC input voltage100 - 240 V
Input current0.8 A
Output current4 A
Output voltage5 V
Power consumption (typical)20 W
Power plug typeType M
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 85%

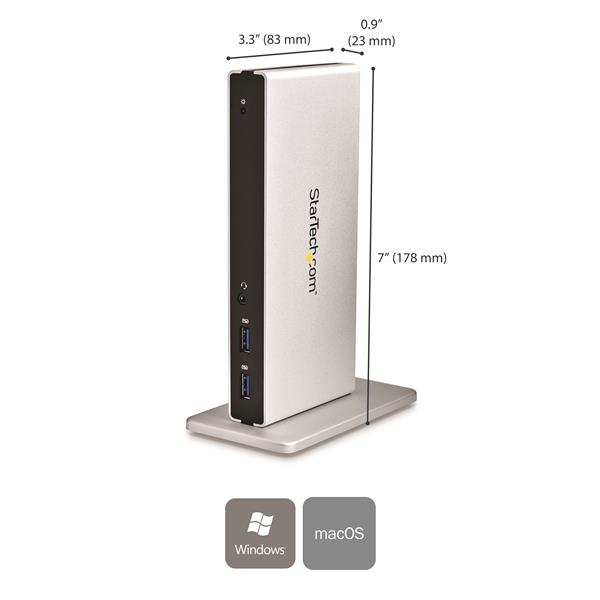

Weight & dimensions

Width23 mm
Depth83 mm
Height178 mm
Weight285 g

Packaging data

Package width255 mm
Package depth186 mm
Package height95 mm
Package weight1.02 kg

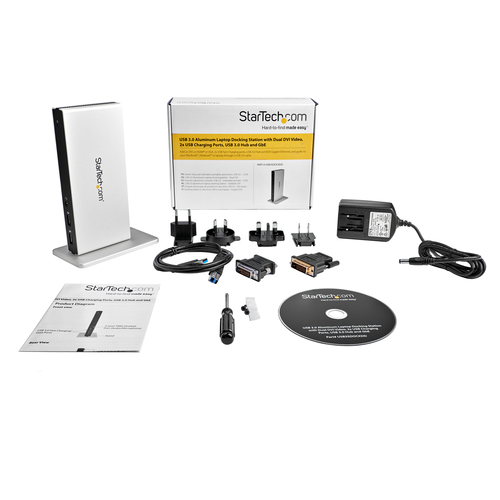

Packaging content

AC adapter includedYes
Cables includedUSB
Drivers includedYes
Interface adapters includedDVI-I male - HDMI female, DVI-I male - VGA female
ManualYes
Stand includedYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height251 mm
Master (outer) case length415 mm
Master (outer) case width357 mm
Products per master (outer) case10 pc(s)

Other features

Cable length1 m
ChipsetDisplayLink - DL-3900, Genesys Logic - GL3520
USB data transfer rates12,480,5000 Mbit/s
