StarTech.com Universal USB 3.0 Laptop Docking Station - DVI

StarTech.com Universal USB 3.0 Laptop Docking Station - DVI

Model USB3SDOCKDEAN 851975720451

52 specifications
  • ConnectivityWired
  • Weight364 g
  • ColourBlack
  • Ethernet LANYes
  • AC input voltage115-230 V
  • Operating temperature (T-T)10 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
364 g
Colour
Black
Ethernet LAN
Yes
AC input voltage
115-230 V
Operating temperature (T-T)
10 - 40 °C
Brand
StarTech.com
Model
USB3SDOCKD
Part number
USB3SDOCKD
EAN / UPC
851975720451, 012301417692, 065030847681, 132017853161 +4 more
Also known as
StarTech.com Universal USB 3.0 Laptop Docking Station - DVI

Specifications

52 specifications in 11 groups

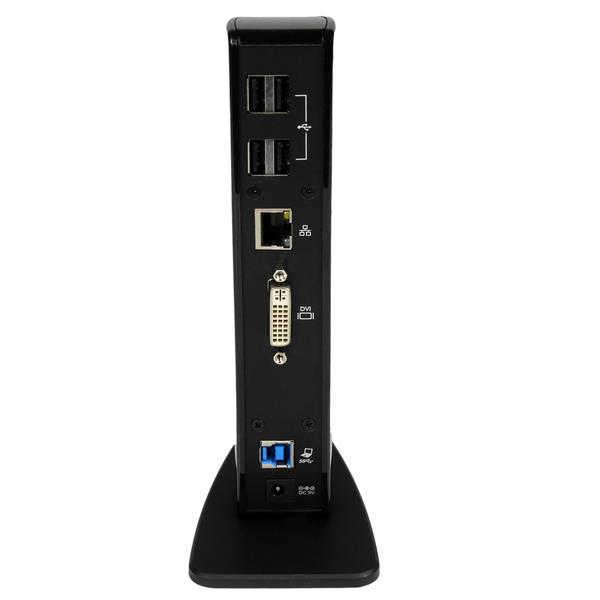

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity0
DVI-I ports quantity1
Microphone inYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack
Card reader integratedNo
Data transfer rate4.8 Gbit/s
Maximum digital resolution1920 x 1200 pixels
Housing materialPlastic
LED indicatorsPower, USB
CertificationCE, FCC

Power

AC input voltage115-230 V
Output current4 A
Output voltage5 V
Power consumption (typical)20 W
Compatible power plug typesEU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)10 - 40 °C
Storage temperature (T-T)-10 - 80 °C

Weight & dimensions

Width77 mm
Depth195.7 mm
Height126.3 mm
Weight364 g

Packaging data

Package width190 mm
Package depth275 mm
Package height110 mm
Package weight920 g

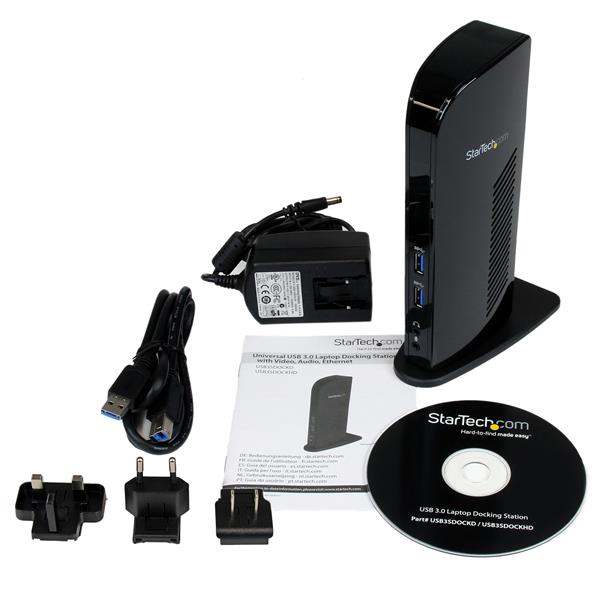

Packaging content

AC adapter includedYes
Cables includedUSB
Drivers includedYes
Interface adapters includedDVI-I male - VGA female
ManualYes

Technical details

Compliance certificatesRoHS

Other features

ChipsetDisplayLink - DL-3700, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
Minimum system requirementsCPU: i3 Dual core 2.8GHz + RAM: 2GB +
Number of microphone inputs1
USB data transfer rates12,480,5000 Mbit/s
