StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking
StarTech.com

USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking

Model USB3DOCKHDPCEAN 065030859233

64 specifications
  • ConnectivityWired
  • Weight277 g
  • ColourBlack
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
277 g
Colour
Black
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
USB3DOCKHDPC
Part number
USB3DOCKHDPC
EAN / UPC
065030859233, 650308592334, 5054629511183, 5704174389217
Also known as
StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking

Specifications

64 specifications in 12 groups

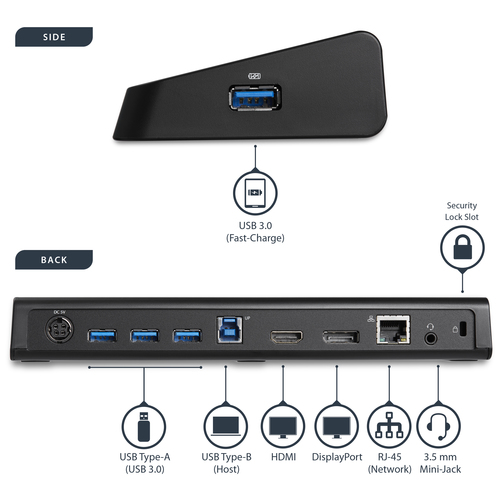

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution3840 x 2160 pixels
Cable lock slotYes
Charging functionYes
Housing materialPlastic, Steel
LED indicatorsActivity, Link
UASP supportYes
Brand compatibilityAny brand
CertificationCE, FCC, DisplayLink

Power

AC input voltage100-240 V
Input current1.5 A
Output current6.5 A
Output voltage5 V
Power consumption (typical)32.5 W
Compatible power plug typesAU, EU, UK, US
Wireless chargingNo

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)0 - 90%

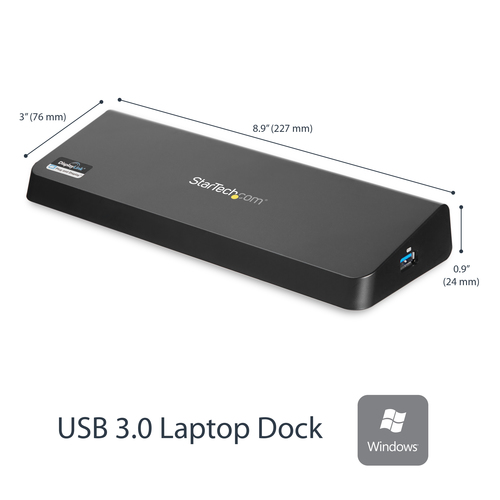

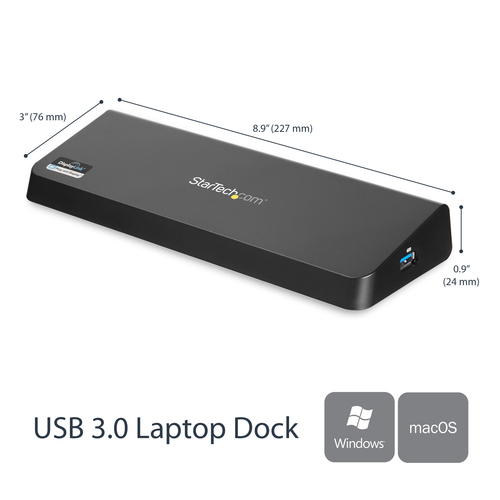

Weight & dimensions

Width76 mm
Depth227 mm
Height24 mm
Weight277 g

Packaging data

Package width251 mm
Package depth198 mm
Package height71 mm
Package weight1.1 kg

Packaging content

AC adapter includedYes
Cables includedAC, USB
Drivers includedYes
ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height302 mm
Master (outer) case length426 mm
Master (outer) case width390 mm
Products per master (outer) case10 pc(s)
Products per shipping (inner) case150 pc(s)

Other features

Cable length0.6 m
ChipsetDisplayLink - DL-5900, VLI - VL812
USB data transfer rates5000 Mbit/s
