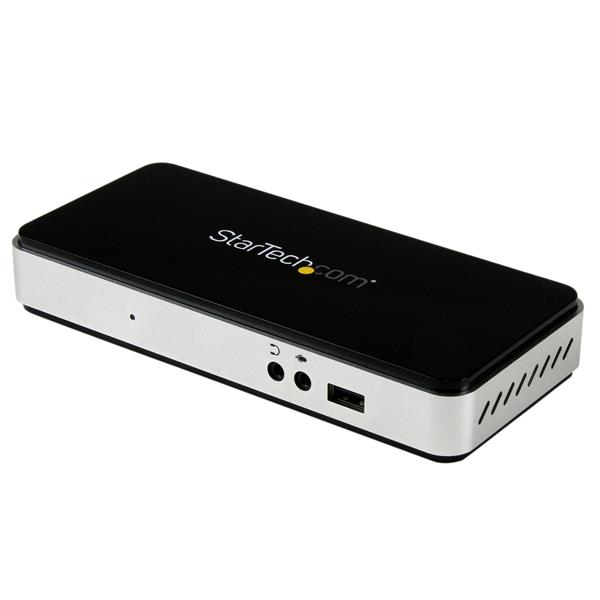

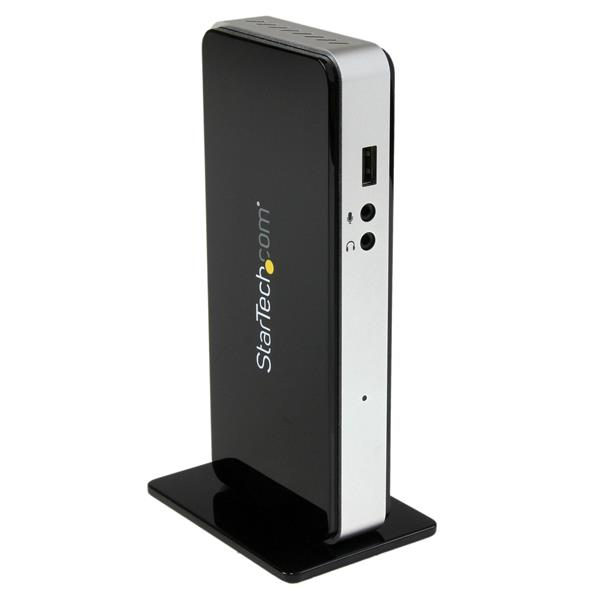

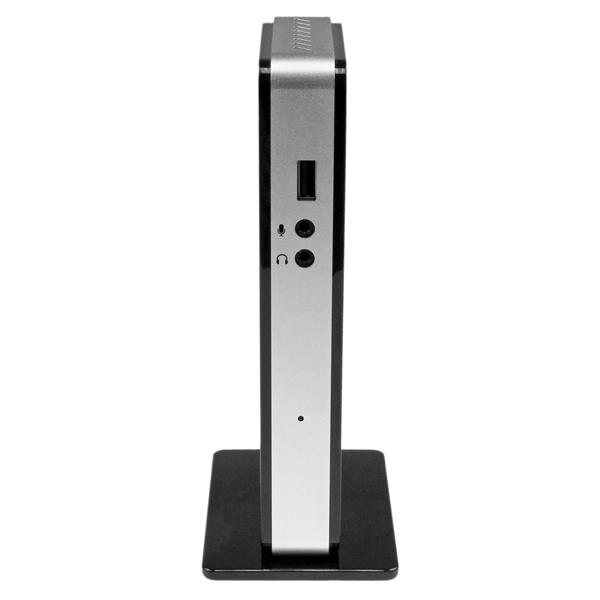

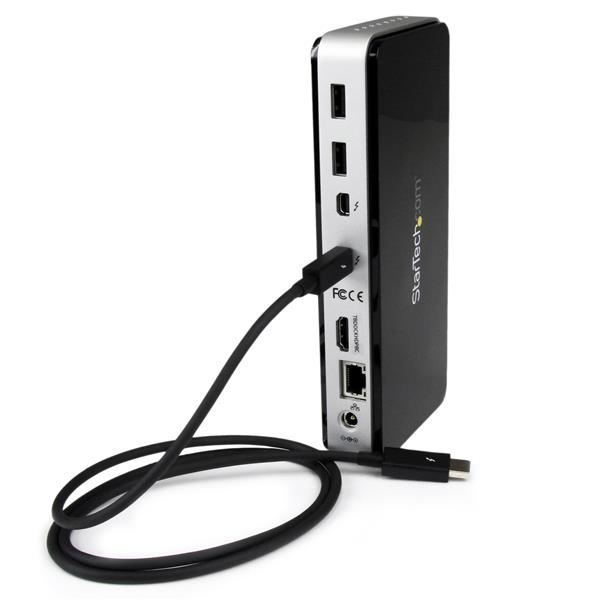

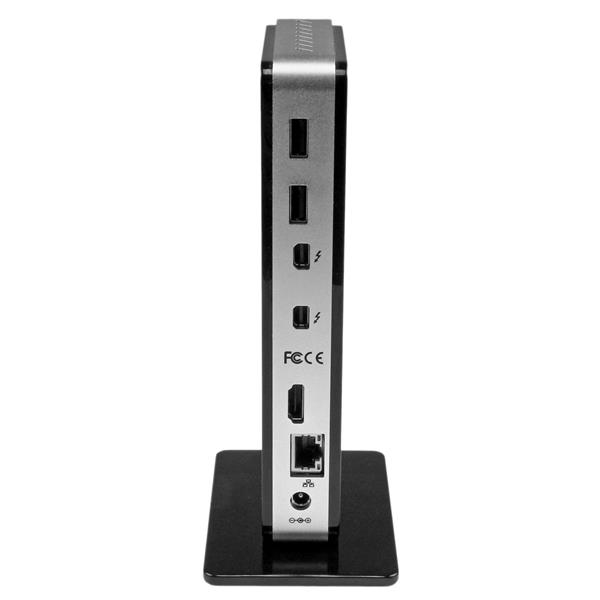

StarTech.com Thunderbolt Docking Station for Laptops - Includes TB Cable

StarTech.com Thunderbolt Docking Station for Laptops - Includes TB Cable

Model TBDOCKHDPBCEAN 7427457666666

51 specifications
  • ConnectivityWired
  • Weight411 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • Built-in HDDNo
  • AC input voltage100-240 V
See all specifications

Overview

Connectivity
Wired
Weight
411 g
Colour
Black, Silver
Ethernet LAN
Yes
Built-in HDD
No
AC input voltage
100-240 V
Brand
StarTech.com
Model
TBDOCKHDPBC
Part number
TBDOCKHDPBC
EAN / UPC
7427457666666, 058115315847, 065030853590, 617407486384 +5 more
Also known as
StarTech.com Thunderbolt Docking Station for Laptops - Includes TB Cable

Specifications

51 specifications in 12 groups

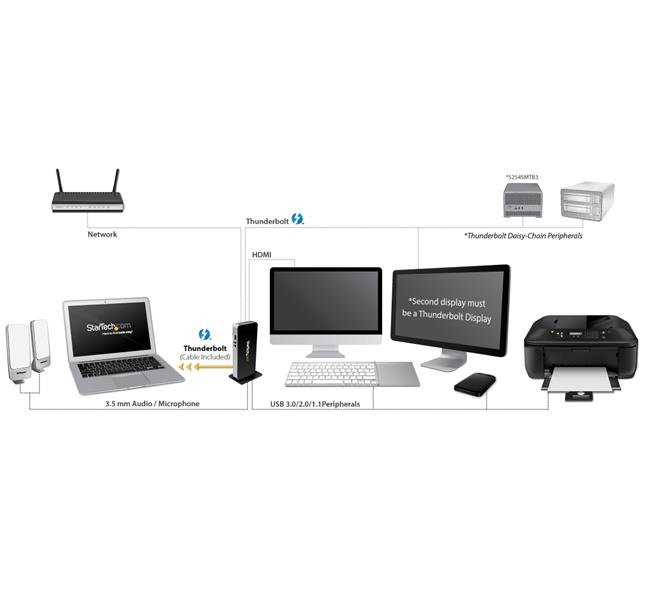

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
Thunderbolt ports quantity2
Microphone inYes
Headphone outputs1
Headphone connectivity3.5 mm
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate10 Gbit/s
Maximum digital resolution2560 x 1440 pixels
Housing materialAluminium, Plastic
LED indicatorsPower
Brand compatibilityApple
CertificationFCC, CE, Thunderbolt

Storage

Built-in HDDNo

Power

AC input voltage100-240 V
Input current1.5 A
Output current5 A
Output voltage12 V
Power plug typeType N
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width70 mm
Depth124 mm
Height189 mm
Weight411 g

Packaging data

Package width121 mm
Package depth170 mm
Package height205 mm
Package weight1.3 kg

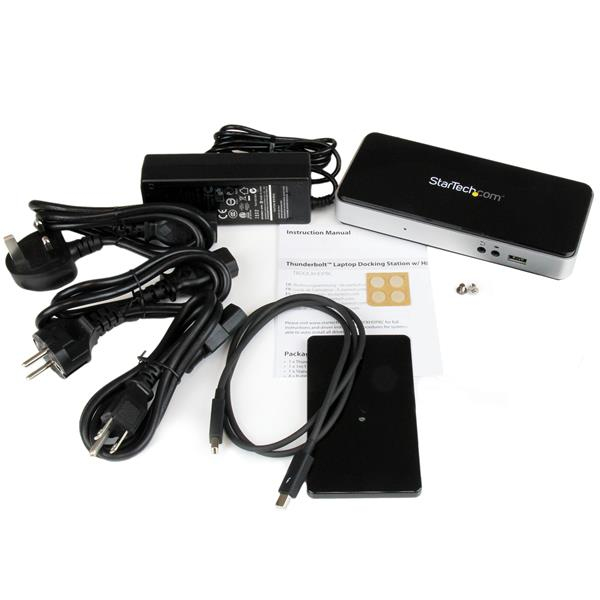

Packaging content

AC adapter includedYes
Cables includedThunderbolt
ManualYes
Stand includedYes

Technical details

Compliance certificatesRoHS

Other features

ChipsetIntel — CactusRidge_4C, Intel — WGI210AT, Fresco Logic — FL1100-EX, Parade Technologies — PS181, Parade Technologies — PS8339B, NXP — CBTL05023, Texas Instruments - PCM2912A
Number of microphone inputs1
