USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K
60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging
Model TB4CDOCKUEEAN 065030895064
52 specifications
- ConnectivityWired
- Weight1 kg
- ColourBlack, Grey
- Ethernet LANYes
- Compatible power plug typesEU
- Operating temperature (T-T)0 - 50 °C
Overview
- Connectivity
- Wired
- Weight
- 1 kg
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- Compatible power plug types
- EU
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- TB4CDOCKUE
- Part number
- TB4CDOCKUE
- EAN / UPC
- 065030895064
- Also known as
- StarTech.com USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K 60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging
Specifications
52 specifications in 12 groups

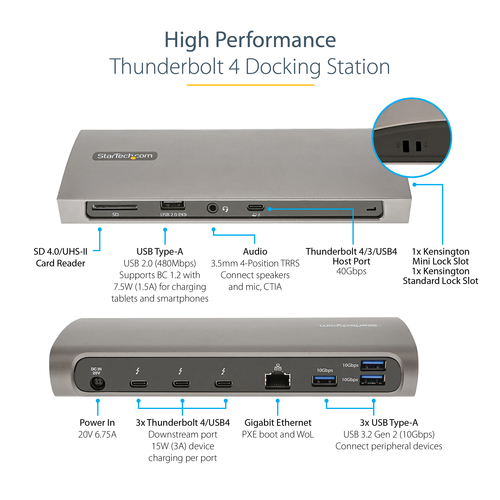

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| Thunderbolt 4 ports quantity | 3 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Housing material | Aluminium, Plastic |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Compatible power plug types | EU |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 194 mm |
| Depth | 84 mm |
| Height | 29 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 145 mm |
| Package height | 90 mm |
| Package weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 265 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case width | 380 mm |
| Products per master (outer) case | 8 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.8 m |
| Chipset | Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226 |
