StarTech.com USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K
StarTech.com

USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K

60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging

Model TB4CDOCKEAN 065030892551

56 specifications
  • ConnectivityWired
  • Weight1 kg
  • ColourBlack, Grey
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)0 - 50 °C
See all specifications

Overview

Connectivity
Wired
Weight
1 kg
Colour
Black, Grey
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 50 °C
Brand
StarTech.com
Model
TB4CDOCK
Part number
TB4CDOCK
EAN / UPC
065030892551
Also known as
StarTech.com USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K 60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging

Specifications

56 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 4
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB Power Delivery (USB PD)Yes
USB Power Delivery up to96 W
Thunderbolt 4 ports quantity3
Combo headphone/mic portYes
Headphone outputs1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Grey
Card reader integratedYes
Compatible memory cardsMMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type8K Ultra HD
Maximum refresh rate60 Hz
Number of displays supported2
Cable lock slotYes
Cable lock slot typeKensington
Housing materialAluminium, Plastic
LED indicatorsYes

Power

AC input voltage100 - 240 V
Input current2.5 A
Output current6.75 A
Output voltage20 V
Power consumption (max)135 W
Compatible power plug typesJP, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supportedMac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width194 mm
Depth84 mm
Height29 mm
Weight1 kg

Packaging data

Package width233 mm
Package depth147 mm
Package height91 mm
Package weight1.1 kg

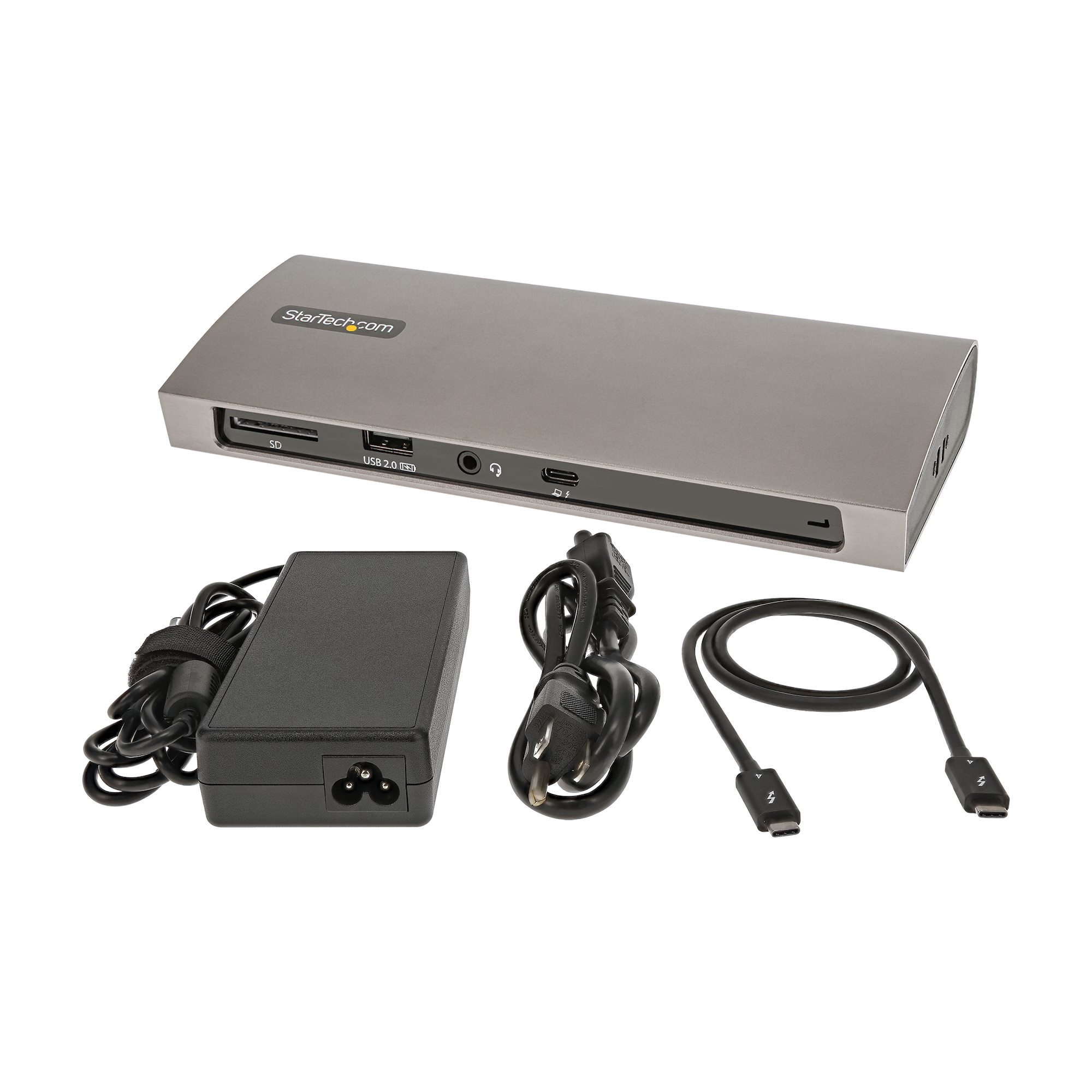

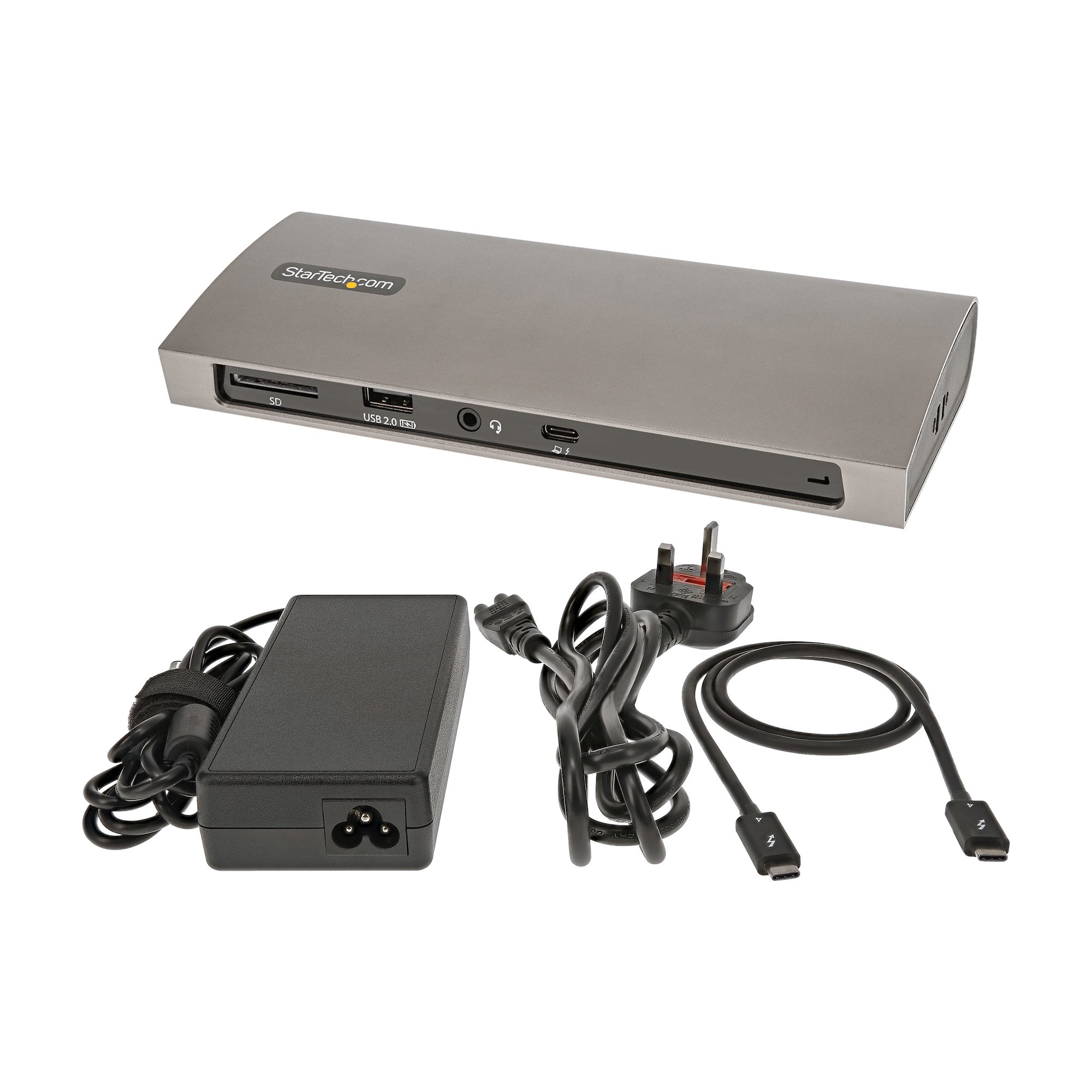

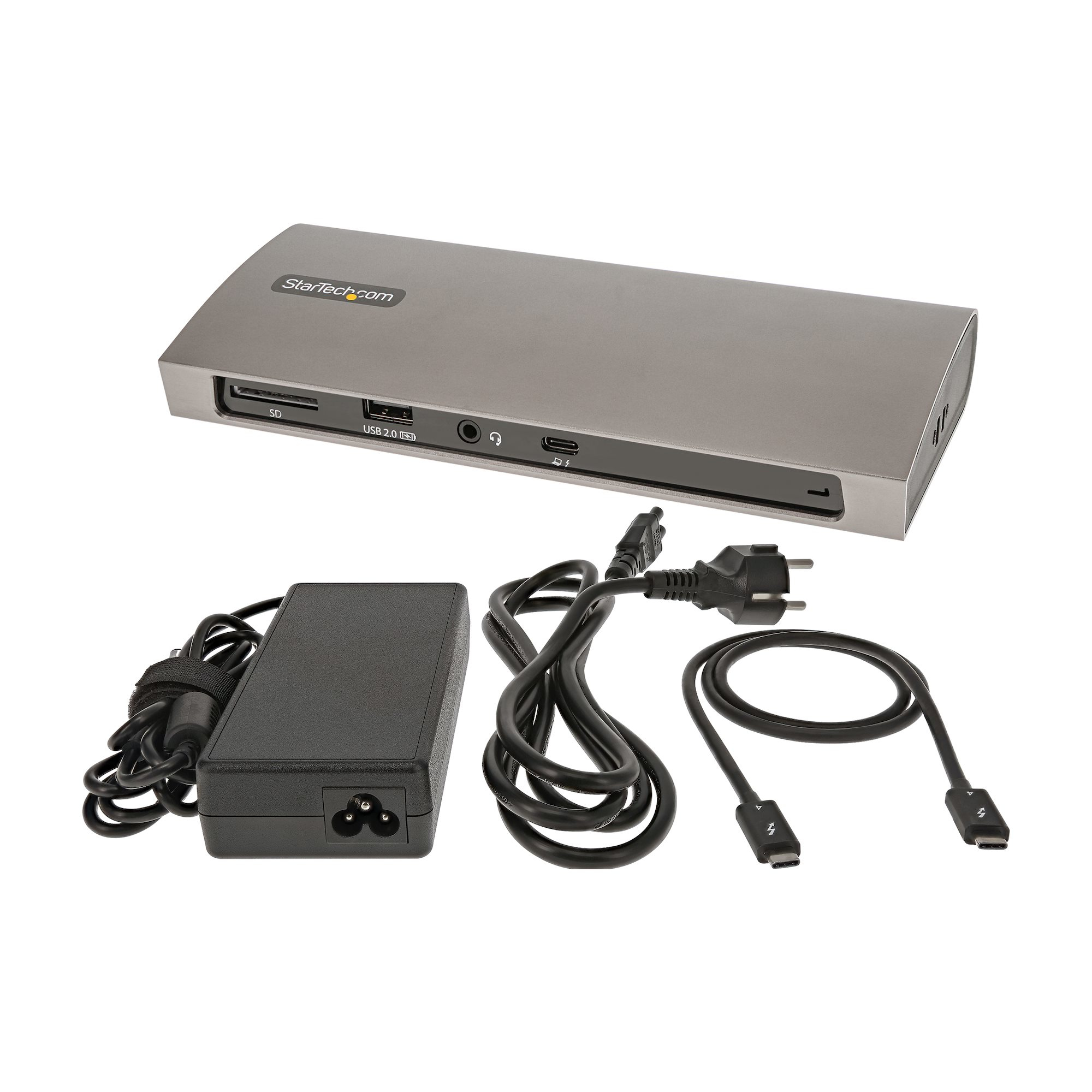

Packaging content

AC adapter includedYes
Cables includedThunderbolt
Quick start guideYes

Technical details

Compliance certificatesCE, RoHS

Logistics data

Master (outer) case height274 mm
Master (outer) case length310 mm
Master (outer) case width389 mm
Products per master (outer) case8 pc(s)

Other features

Cable length0.8 m
ChipsetIntel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226
