Thunderbolt 3 Dock - Dual Monitor 4K
60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, G
Model TB3DOCK2DPPUEAN 065030870726
55 specifications
- ConnectivityWired
- Weight489 g
- ColourBlack
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 489 g
- Colour
- Black
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- TB3DOCK2DPPU
- Part number
- TB3DOCK2DPPU
- EAN / UPC
- 065030870726
- Also known as
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, G
Specifications
55 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 5120 x 2880 pixels |
| Housing material | Aluminium |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 9 A |
| Output voltage | 20 V |
| Power consumption (standby) | 180 W |
| Power plug type | Type N |
| Compatible power plug types | EU, UK |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Wi |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |

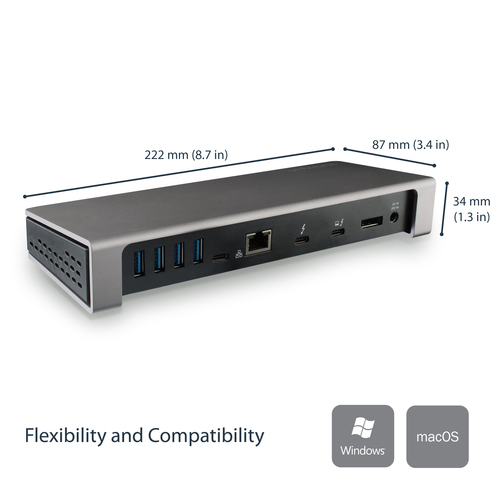

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87 mm |
| Depth | 222 mm |
| Height | 34 mm |
| Weight | 489 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 295 mm |
| Package height | 90 mm |
| Package weight | 1.5 kg |

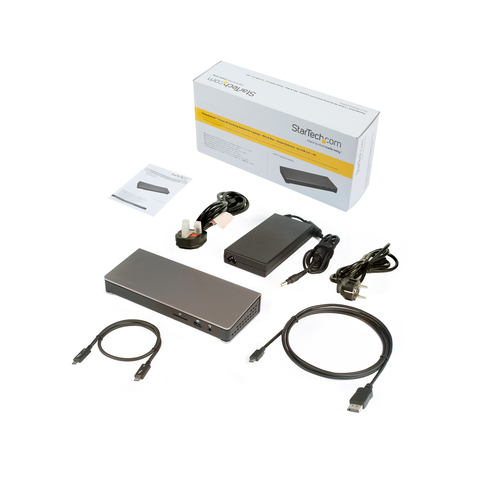

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, Thunderbolt, USB Type-C |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 314 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case width | 310 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226 |
