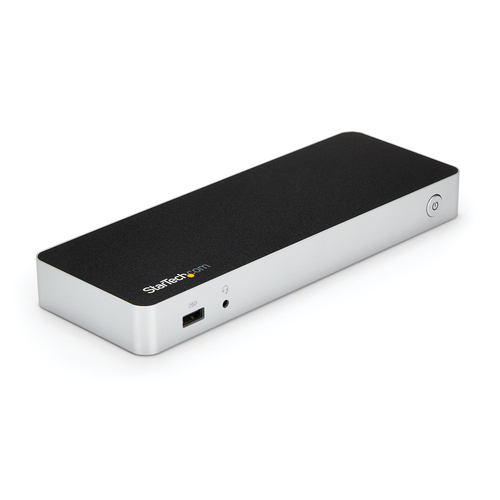

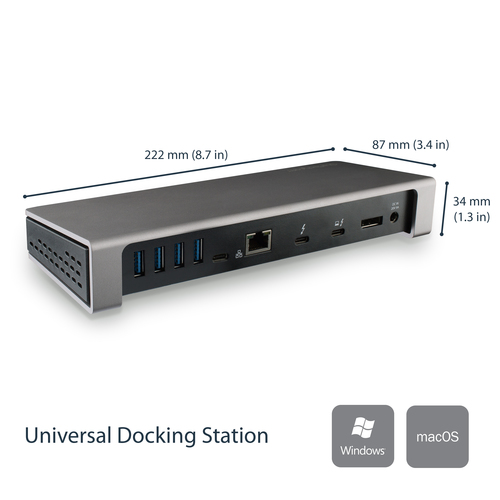

StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K

60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, G

Model TB3DOCK2DPPDEAN 065030863667

57 specifications

Overview

Brand: StarTech.com
Category: Laptop Docks & Port Replicators
Model: TB3DOCK2DPPD
Part number: TB3DOCK2DPPD
EAN / UPC: 065030863667
Also known as: StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, G

57 specifications in 12 groups

Specification	Value
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	0
DisplayPorts quantity	1
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm

Specification	Value
Product colour	Black
Card reader integrated	Yes
Compatible memory cards	MMC, MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate	40 Gbit/s
Maximum digital resolution	5120 x 2880 pixels
Housing material	Aluminium
UASP support	Yes
Certification	CE, FCC, REACH

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Wi
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Specification	Value
Compliance certificates	RoHS

Specification	Value
Master (outer) case height	320 mm
Master (outer) case length	480 mm
Master (outer) case width	318 mm
Products per master (outer) case	10 pc(s)

Specification	Value
Chipset	Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226
