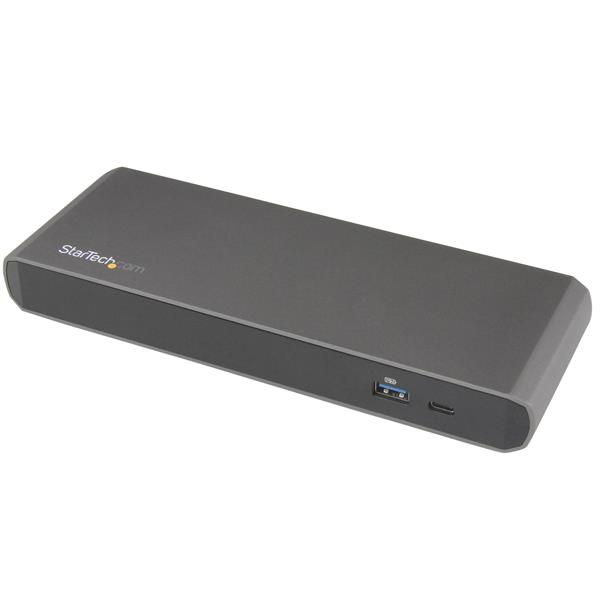

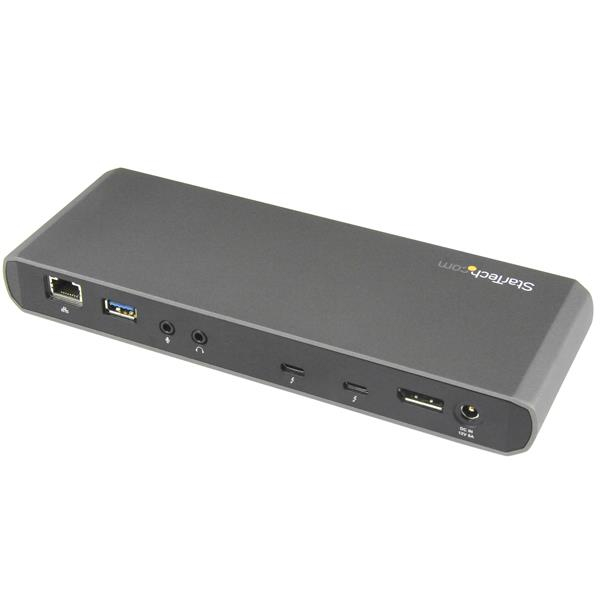

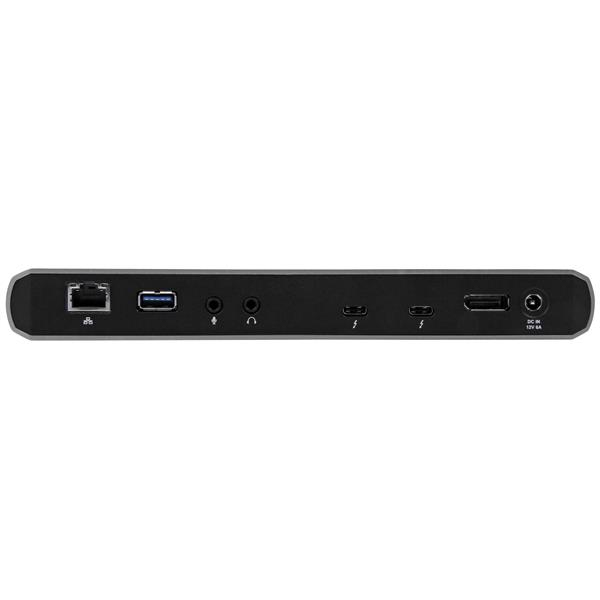

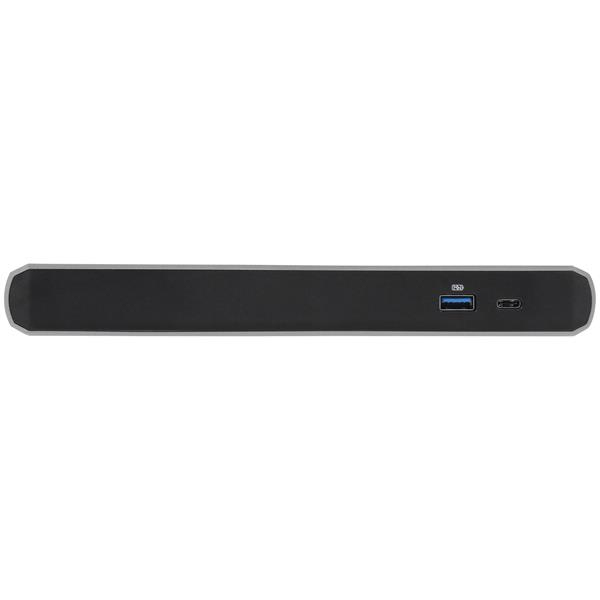

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - Thunderbolt 3 Dock for MacBook Pro

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - Thunderbolt 3 Dock for MacBook Pro

Model TB3DKDPMAWUEEAN 065030867665

57 specifications
  • ConnectivityWired
  • Weight452 g
  • ColourBlack, Grey
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating temperature (T-T)5 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
452 g
Colour
Black, Grey
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating temperature (T-T)
5 - 40 °C
Brand
StarTech.com
Model
TB3DKDPMAWUE
Part number
TB3DKDPMAWUE
EAN / UPC
065030867665, 5057454714323
Also known as
StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - Thunderbolt 3 Dock for MacBook Pro

Specifications

57 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity0
DisplayPorts quantity1
Thunderbolt 3 ports quantity2
Microphone inYes
Combo headphone/mic portNo
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Grey
Card reader integratedNo
Data transfer rate40 Gbit/s
Maximum digital resolution5120 x 2880 pixels
Housing materialAluminium, Plastic
UASP supportYes
CertificationCE, FCC

Power

AC input voltage100-240 V
Input current1.5 A
Power supply15 W
Power supply typeExternal
Output current6 A
Output voltage12 V
Power consumption (typical)72 W
Power plug typeType N
Compatible power plug typesEU, UK

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width80 mm
Depth220 mm
Height27 mm
Weight452 g

Packaging data

Package width127 mm
Package depth250 mm
Package height110 mm
Package weight1.34 kg

Packaging content

AC adapter includedYes
Cables includedAC, Thunderbolt
ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84733020

Other features

Cable length0.52 m
ChipsetIntel - Alpine Ridge DSL6540, Fresco - FL1100EX,Texas Instruments - PCM2912A, Intel - WGI210AT, Texas Instruments - TPS65983
