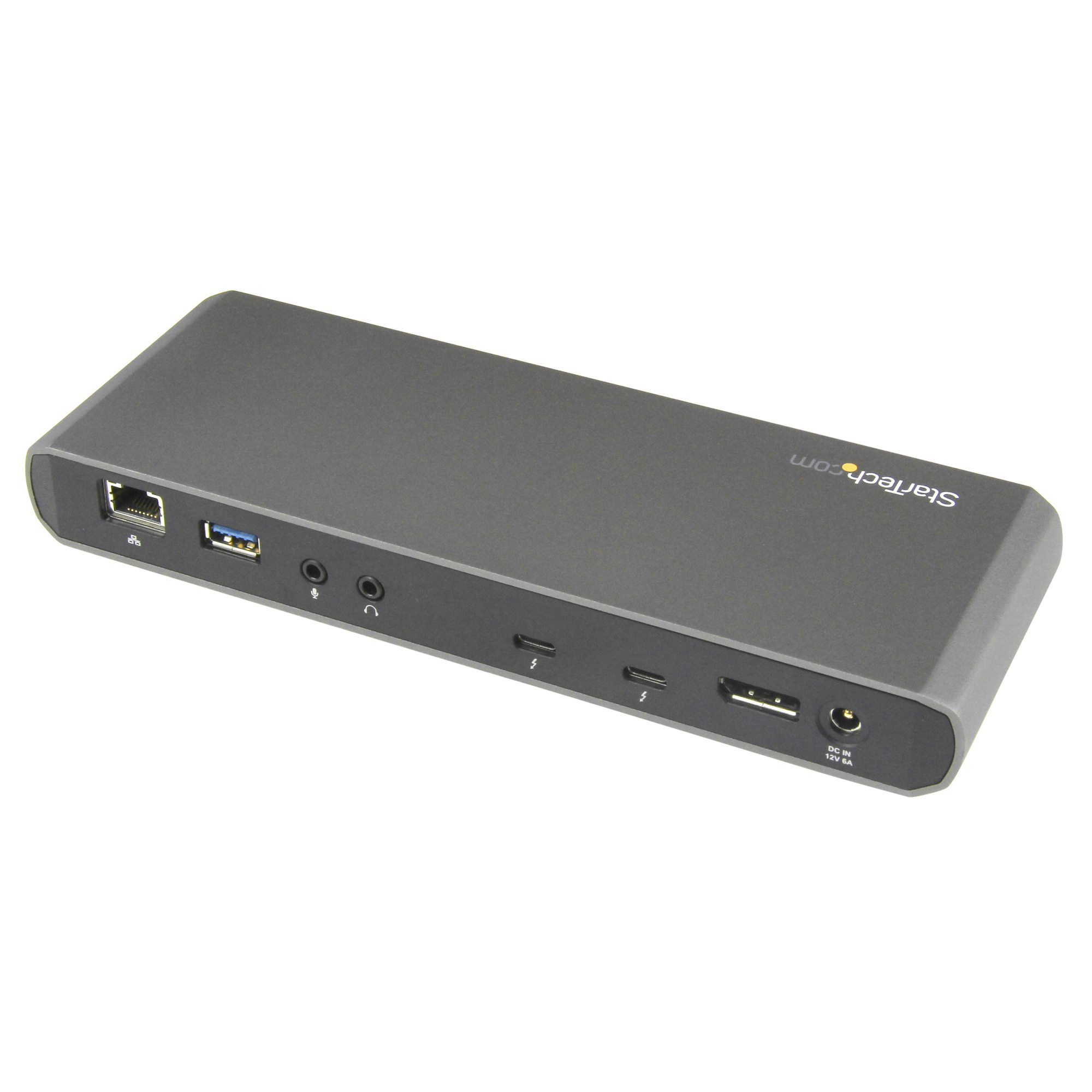

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only

StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only

Model TB3DK2DPWEAN 065030864893

60 specifications
  • ConnectivityWired
  • Weight442 g
  • ColourBlack, Grey
  • Ethernet LANYes
  • Power source typeAC
  • Mac operating systems supportedNo
See all specifications

Overview

Connectivity
Wired
Weight
442 g
Colour
Black, Grey
Ethernet LAN
Yes
Power source type
AC
Mac operating systems supported
No
Brand
StarTech.com
Model
TB3DK2DPW
Part number
TB3DK2DPW
EAN / UPC
065030864893
Also known as
StarTech.com Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only

Specifications

60 specifications in 12 groups

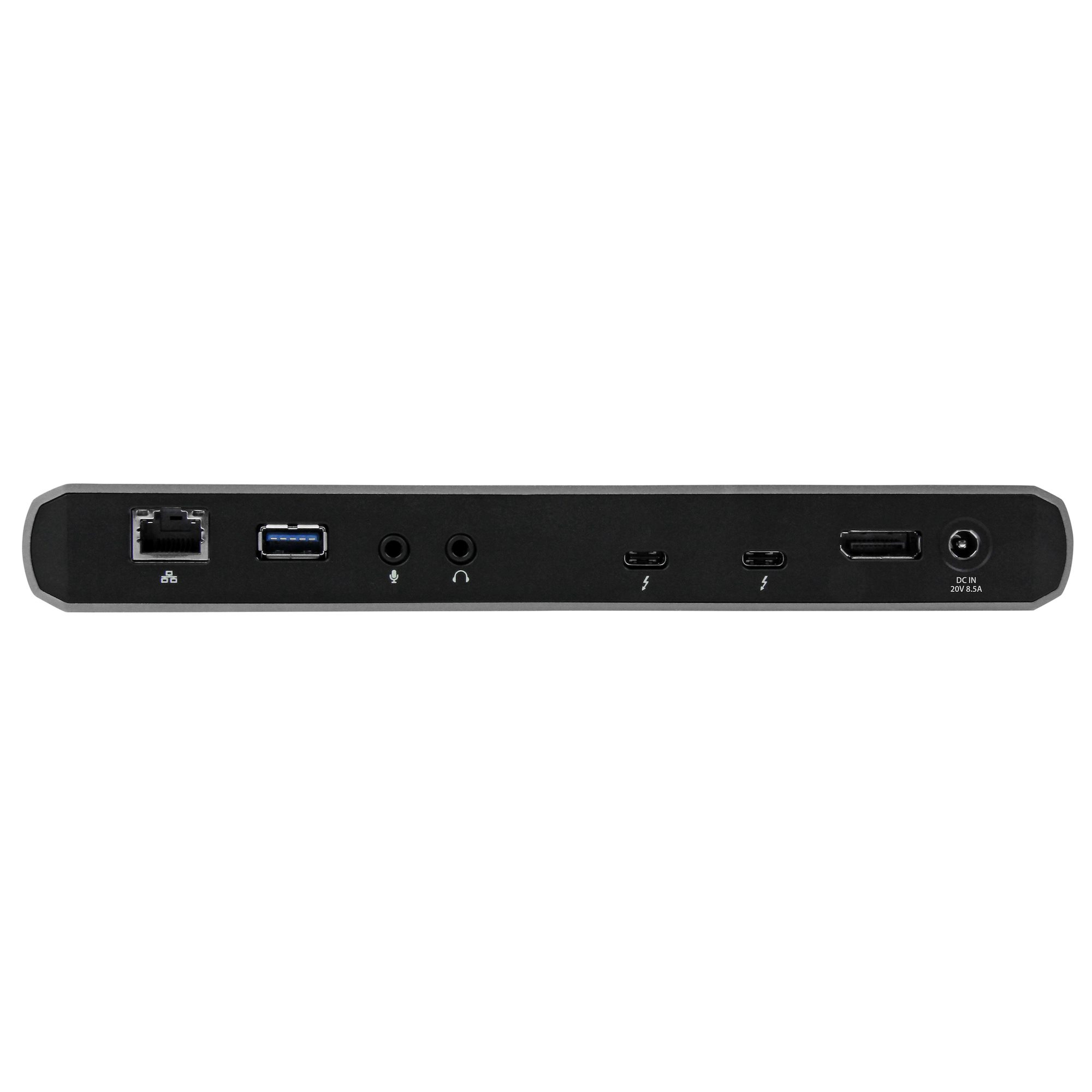

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity0
DisplayPorts quantity1
Thunderbolt 3 ports quantity2
Microphone inYes
Headphone outputs1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Grey
Card reader integratedNo
Data transfer rate40 Gbit/s
Maximum digital resolution4096 x 2160 pixels
Charging functionYes
Housing materialAluminium, Plastic
LED indicatorsPower
UASP supportYes
Brand compatibilityAny brand
CertificationCE, FCC, Thunderbolt

Power

Power source typeAC
AC input voltage100-240 V
Input current1.5 A
Output current6 A
Output voltage12 V
Power consumption (typical)72 W
Power plug typeType N
Compatible power plug typesUS

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Wi
Mac operating systems supportedNo

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width80 mm
Depth220 mm
Height27 mm
Weight442 g

Packaging data

Package width134 mm
Package depth250 mm
Package height114 mm
Package weight1.2 kg

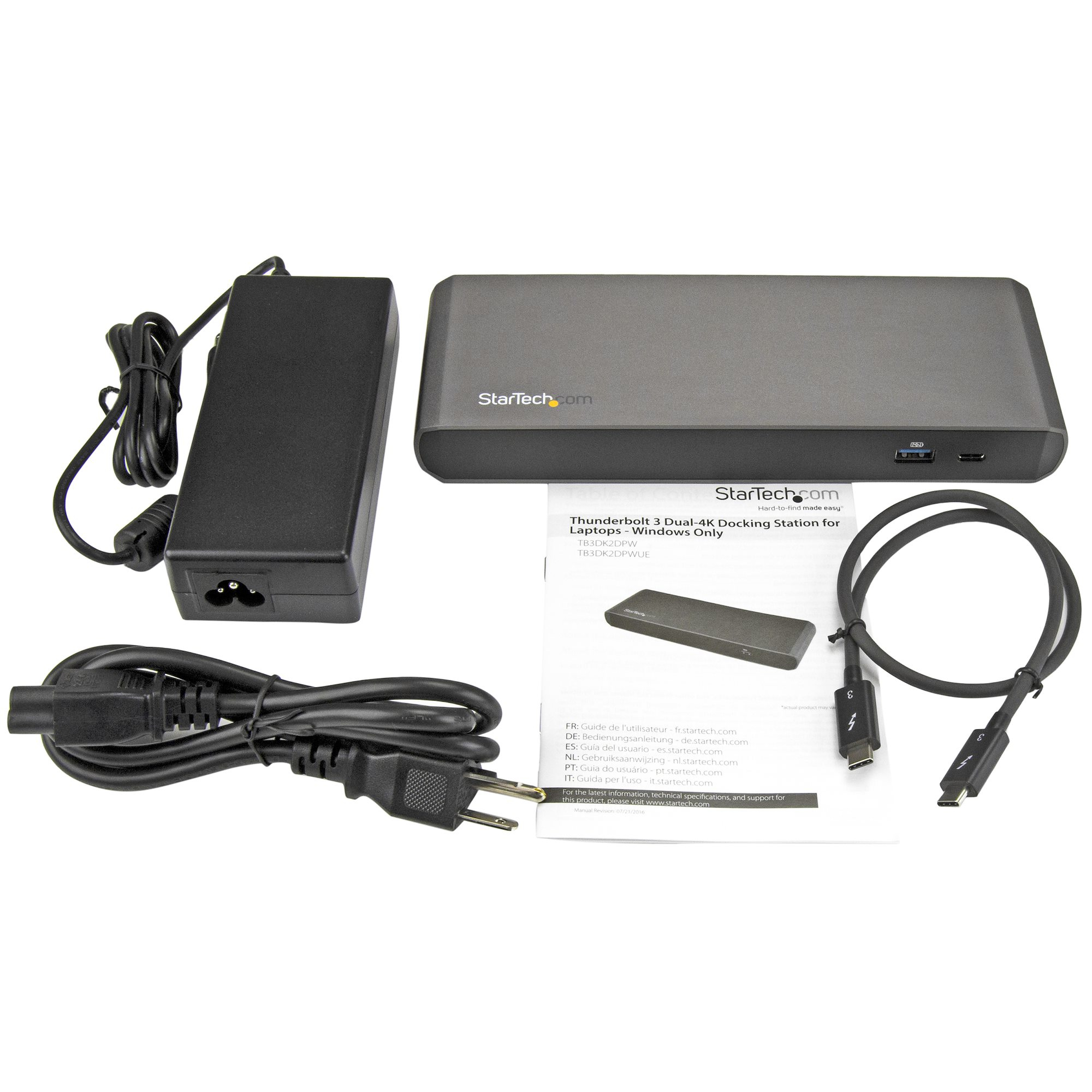

Packaging content

AC adapter includedYes
Cables includedAC, Thunderbolt
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case height265 mm
Master (outer) case length515 mm
Master (outer) case width420 mm
Products per master (outer) case12 pc(s)

Other features

ChipsetIntel - Alpine Ridge DSL6540, Fresco - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT, Texas Instruments - TPS65982
USB data transfer rates12,480,5000 Mbit/s
