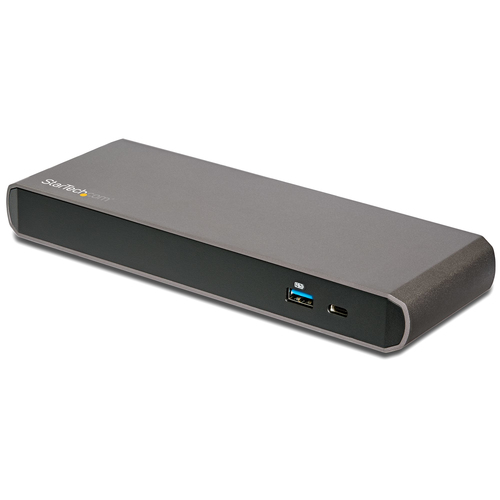

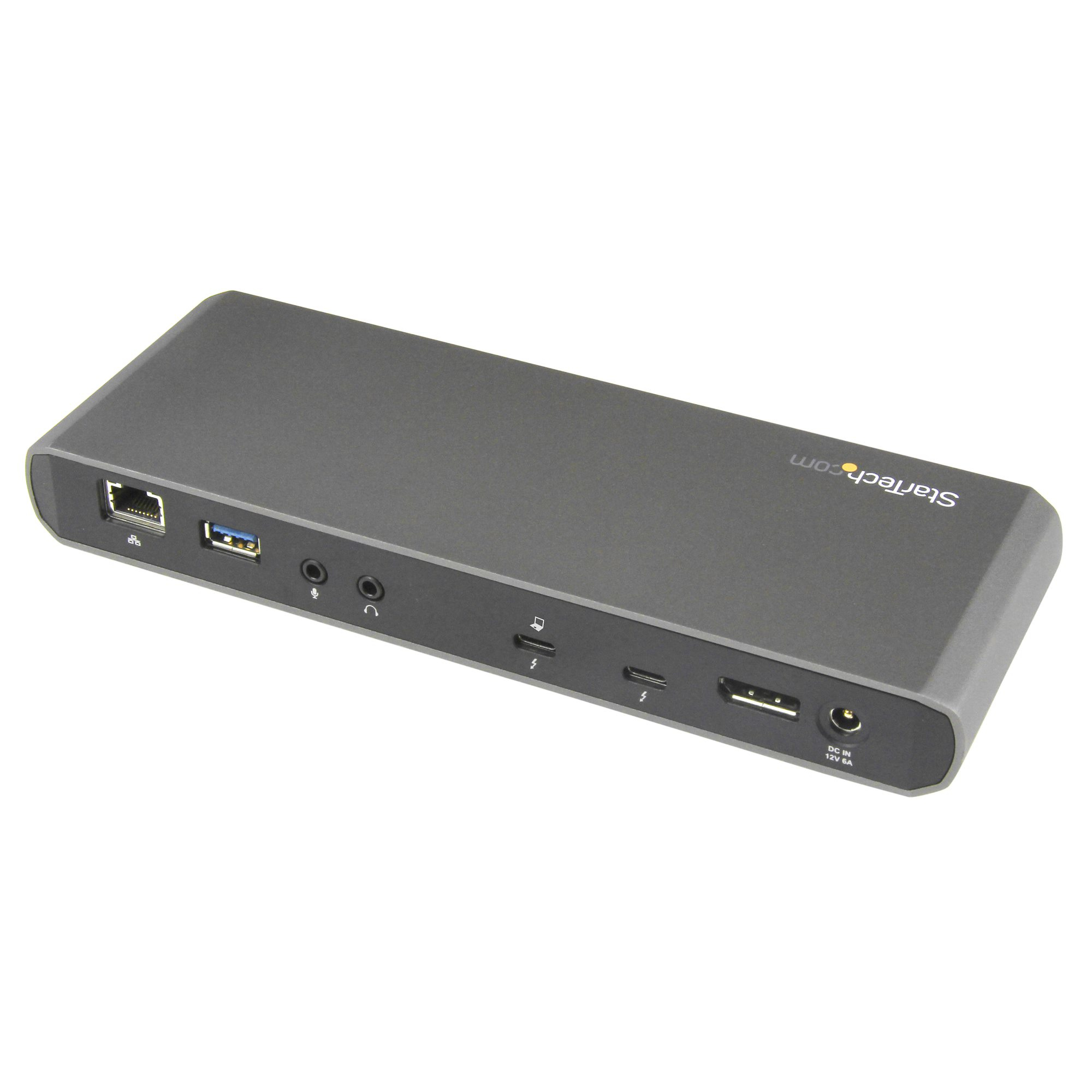

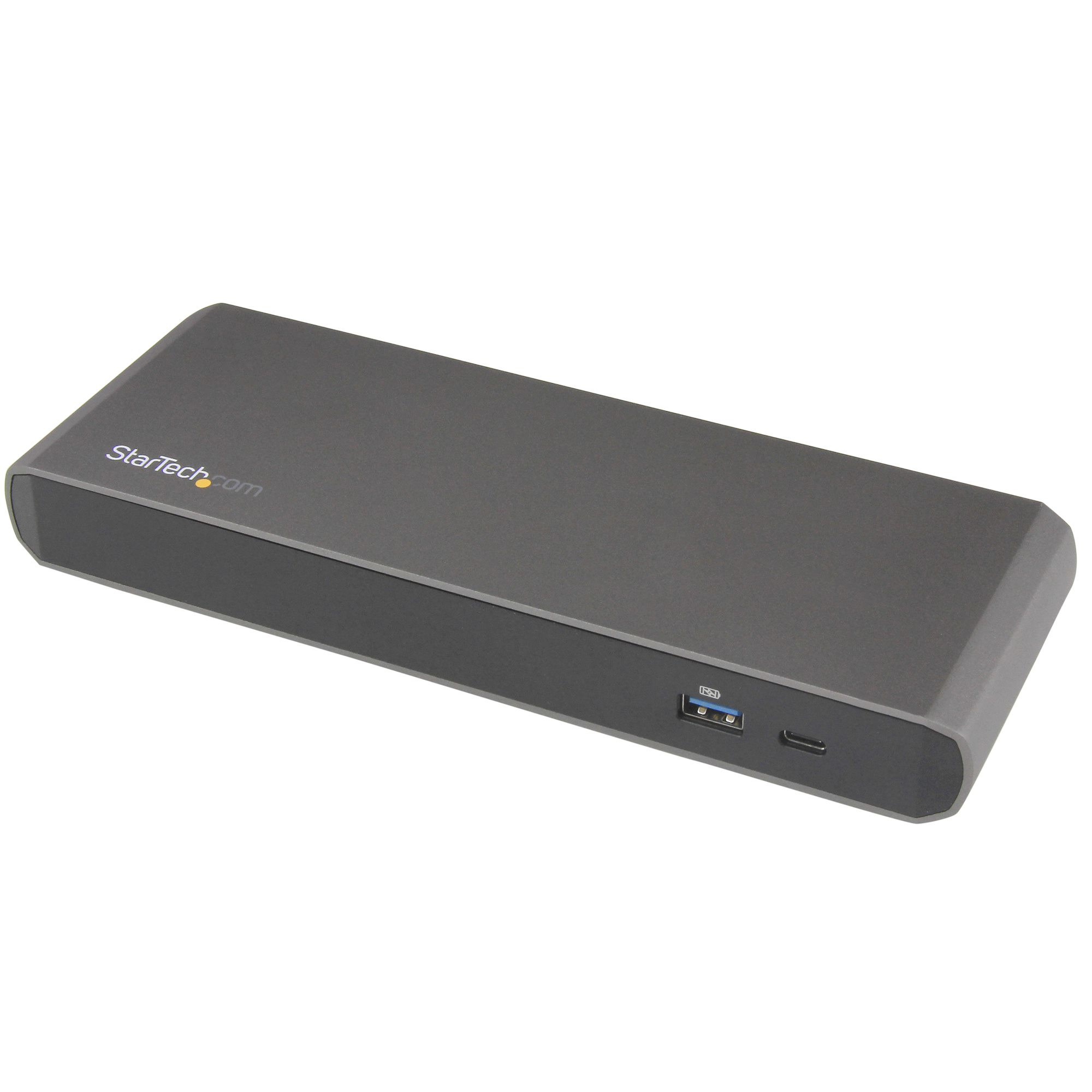

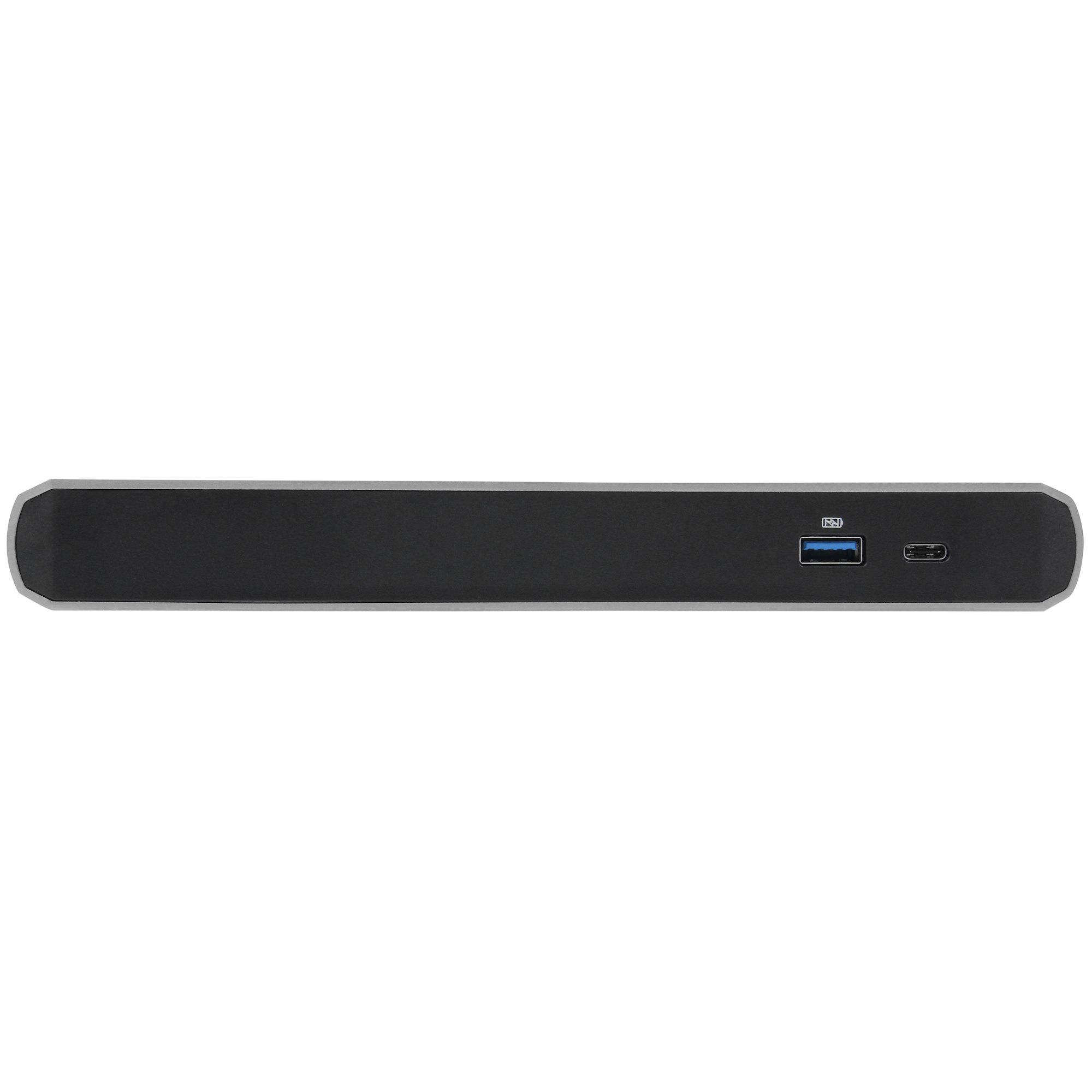

StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K
60Hz Laptop Docking Station with DisplayPort - 85W Power Delivery - 3-Port USB 3.0 Hub, Ethernet, Audio - TB3
Model TB3DK2DPPDUEEAN 065030868433
58 specifications
- ConnectivityWired
- Weight474 g
- ColourBlack, Grey
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)5 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 474 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- TB3DK2DPPDUE
- Part number
- TB3DK2DPPDUE
- EAN / UPC
- 065030868433
- Also known as
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz Laptop Docking Station with DisplayPort - 85W Power Delivery - 3-Port USB 3.0 Hub, Ethernet, Audio - TB3
Specifications
58 specifications in 12 groups

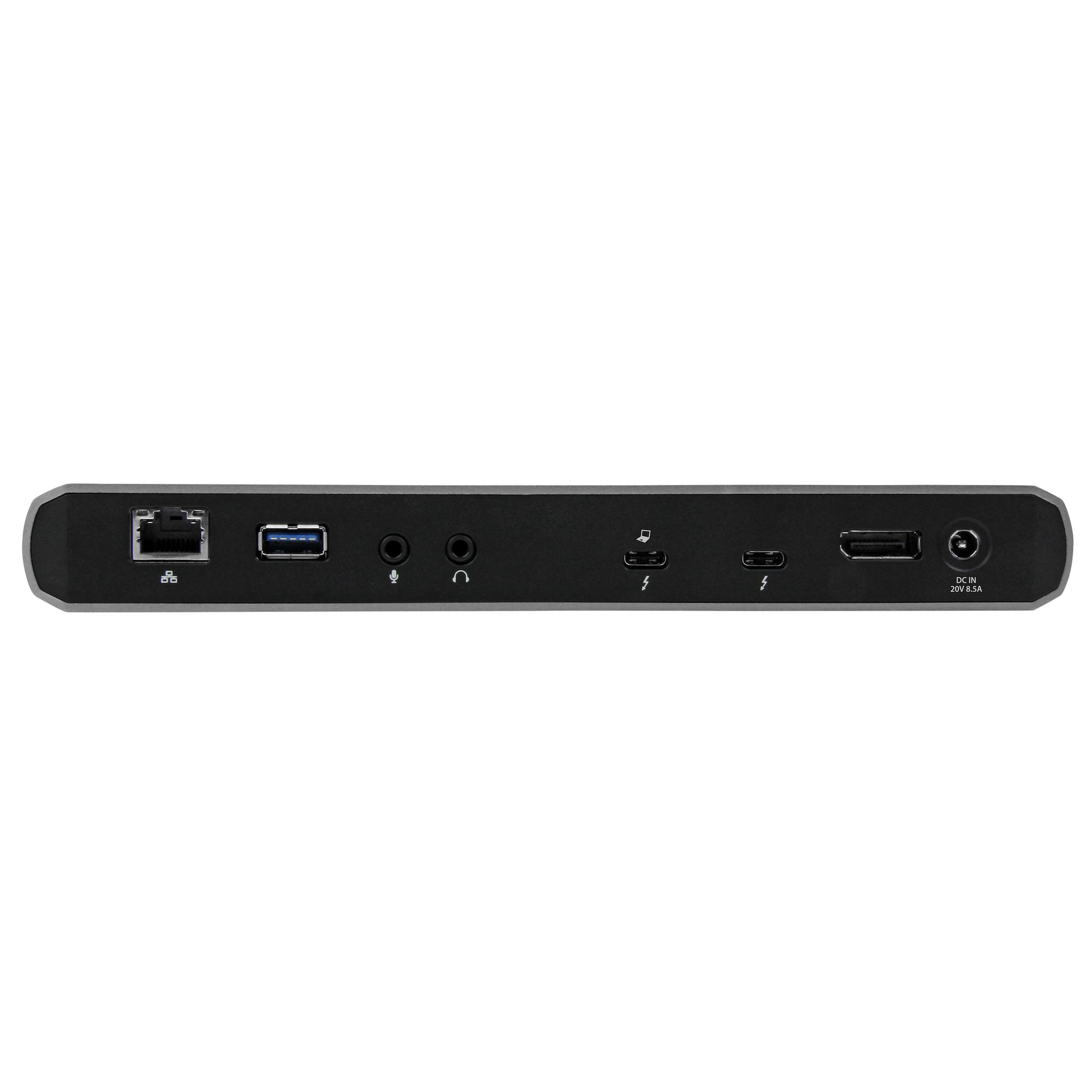

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Housing material | Aluminium, Plastic |
| UASP support | Yes |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 8.5 A |
| Output voltage | 20 V |
| Power consumption (typical) | 170 W |
| Compatible power plug types | EU, UK |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 220 mm |
| Height | 27 mm |
| Weight | 474 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 148 mm |
| Package depth | 248 mm |
| Package height | 176 mm |
| Package weight | 1.6 kg |

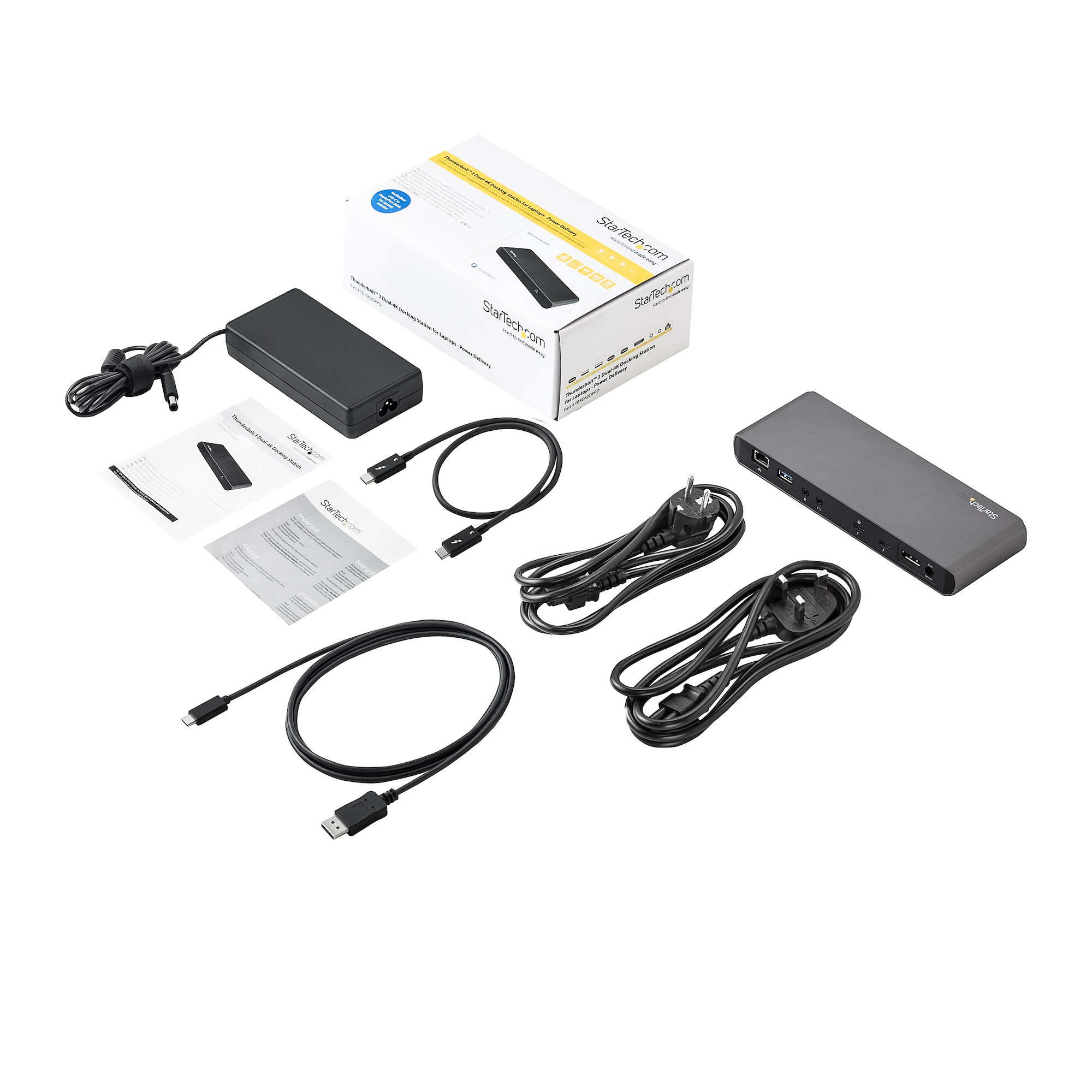

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, Thunderbolt, USB Type-C |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 188 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case width | 268 mm |
| Products per master (outer) case | 4 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.52 m |
| Chipset | Intel - Alpine Ridge DSL6540, Fresco Logic - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT, Texas Instruments - TPS65983 |
Reviews
No reviews of StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K yet. Have you used it? Tell others what you think.
Write a reviewCompare StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K
All laptop docks & port replicators comparisons- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com Thunderbolt 3 Dock, Dual Monitor 4KCompare specs
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPortCompare specs
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com USB C Multiport Adapter, Portable USB-C Dock to 4K HDMI, 2-pt USB 3.0 Hub, SD/SDHC, GbECompare specs
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com USB C Multiport Adapter - USB-C to DVI-D (Digital) Video Adapter withCompare specs
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsHypertec HYP-USBCPD-L laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C BlackCompare specs
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsHP Elite USB-C Dock G3Compare specs

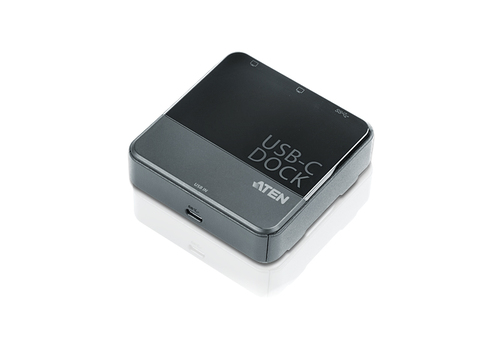

- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsATEN UH3231 Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C BlackCompare specs

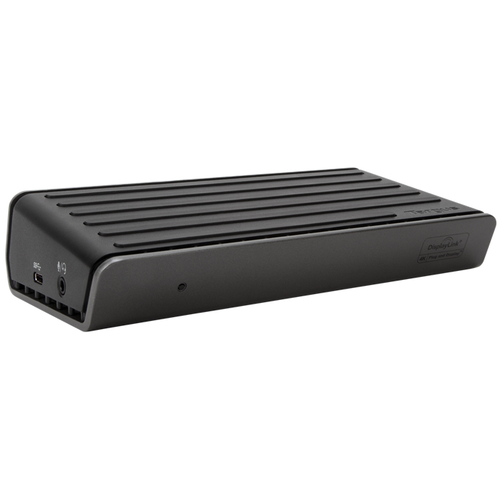

- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsTargus DOCK180USZ laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C BlackCompare specs
