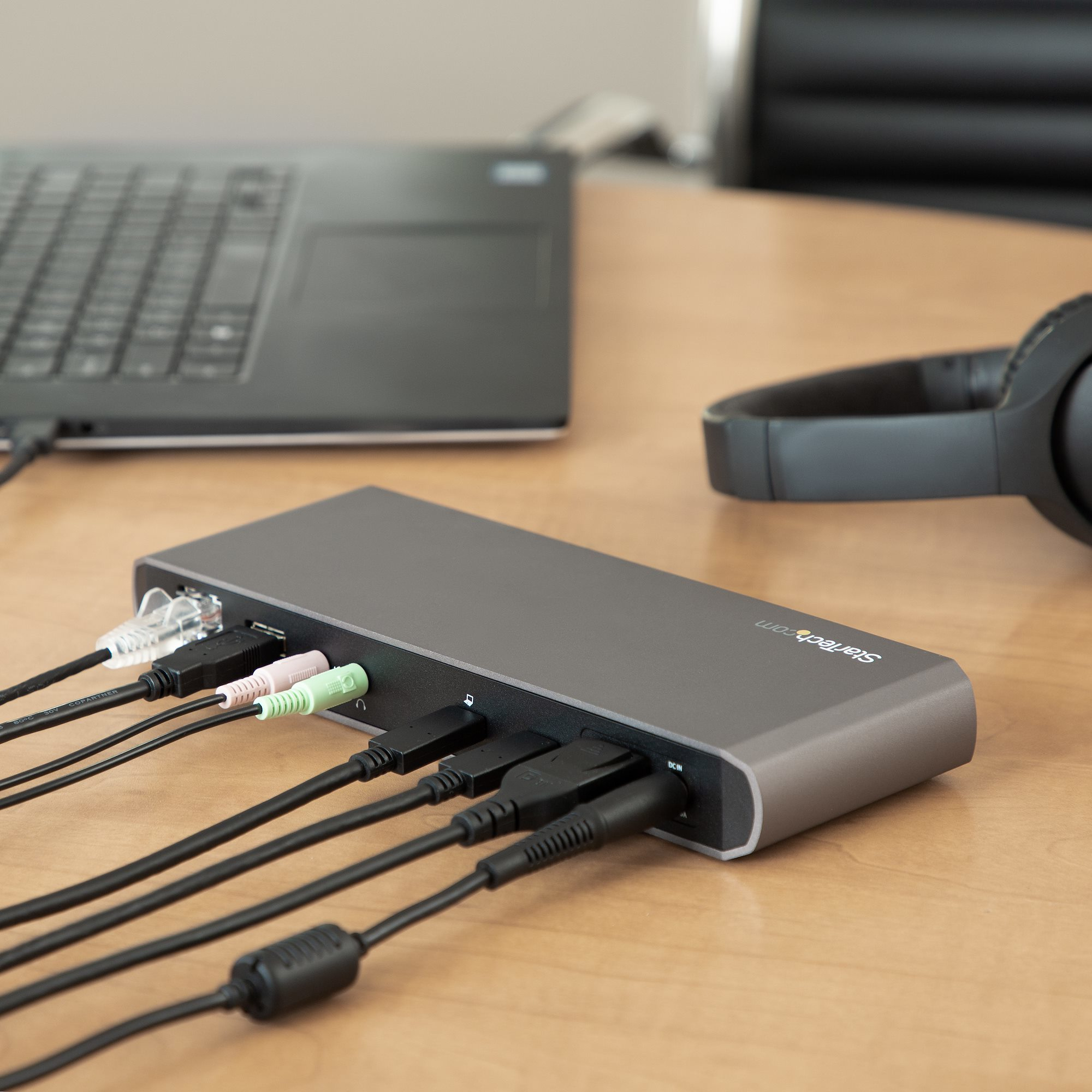

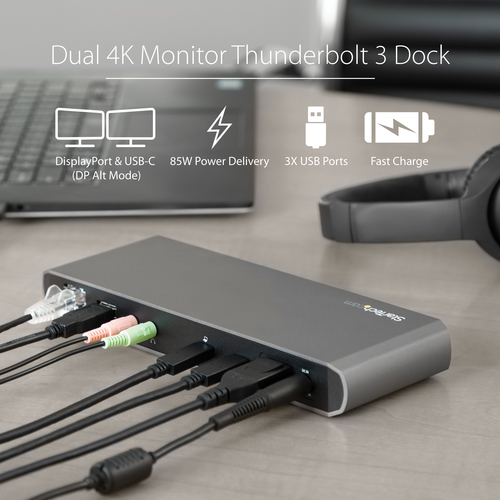

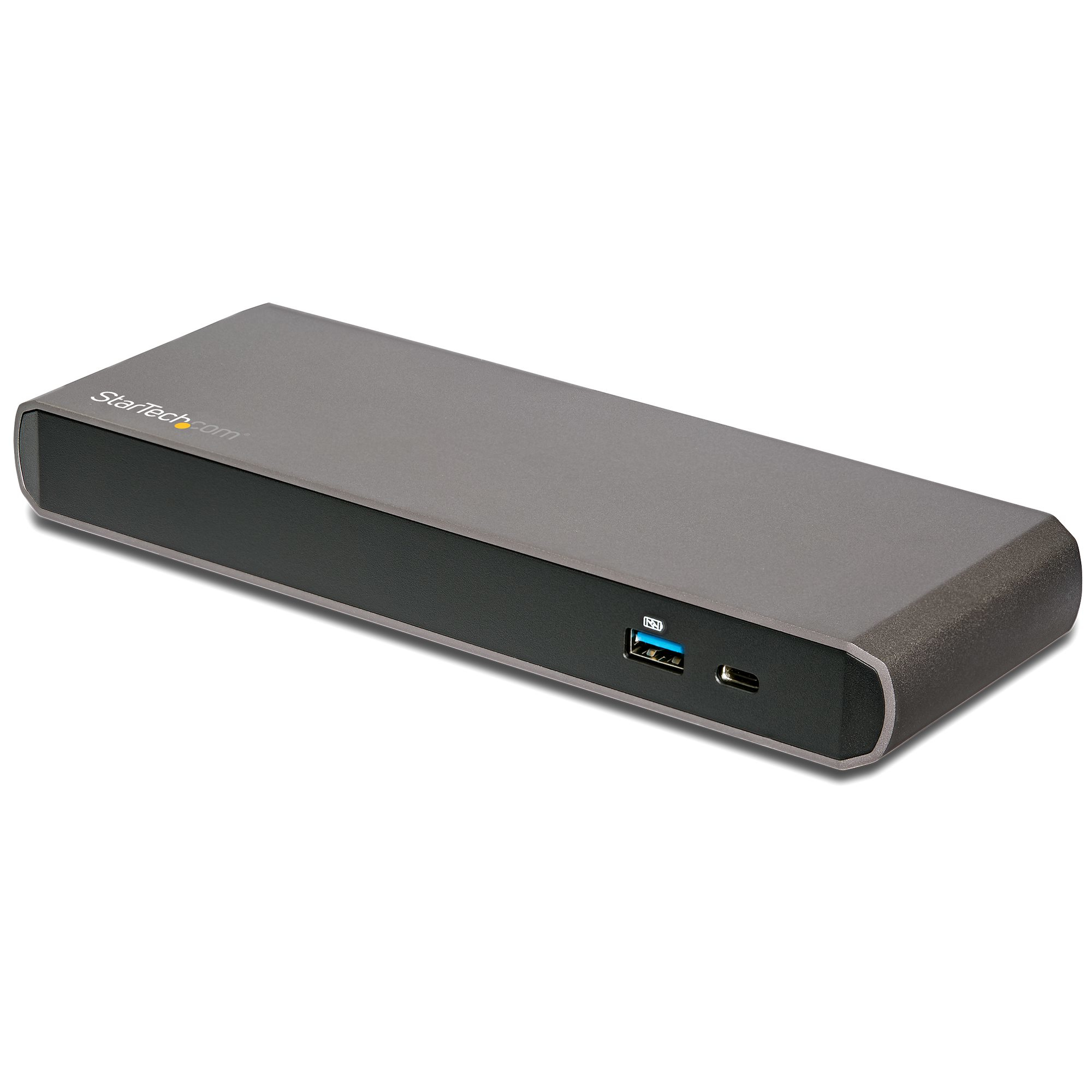

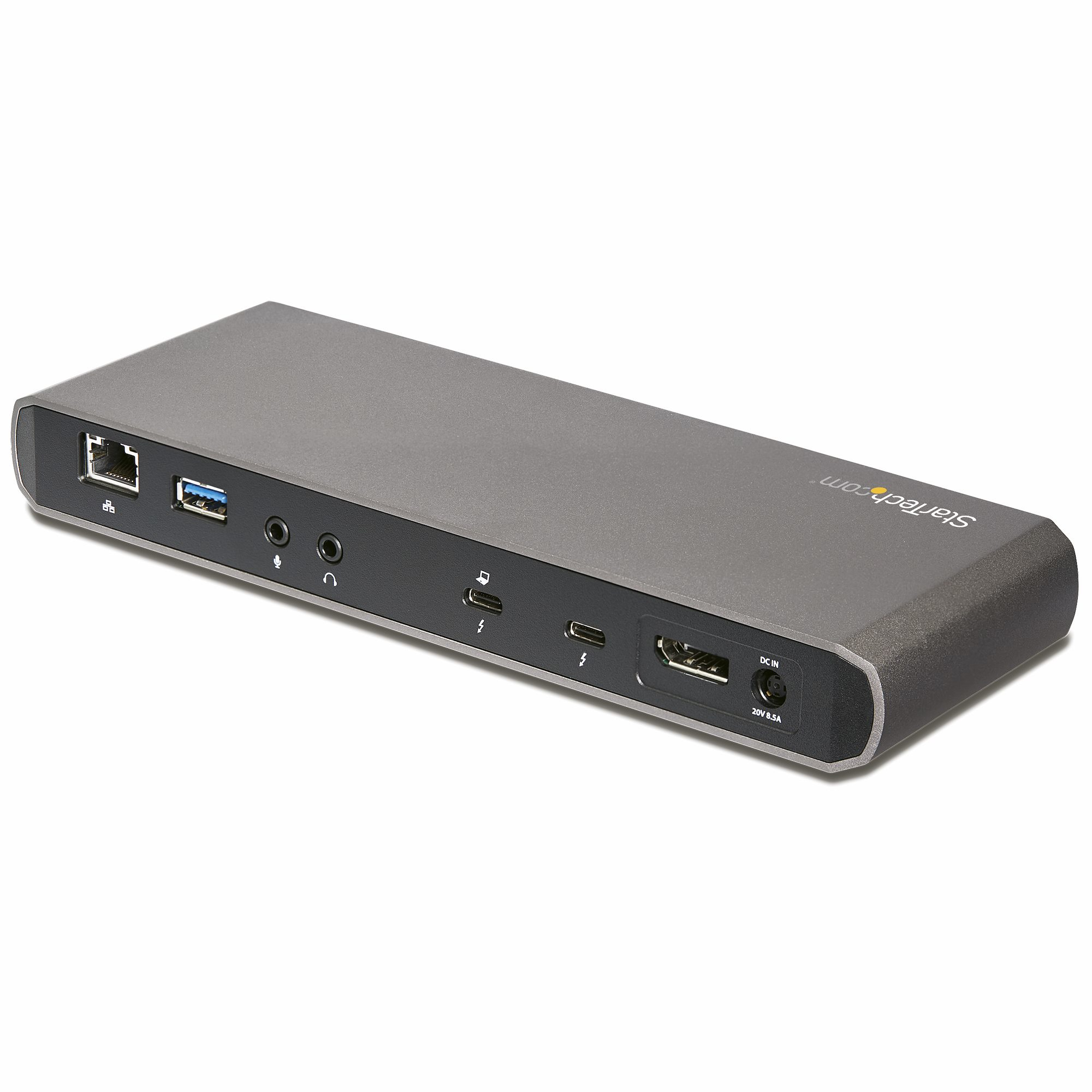

StarTech.com Thunderbolt 3 Dock, Dual Monitor 4K

60Hz TB3 Laptop Docking Station, DisplayPort, 85W PD, 3x USB, GbE - REPLACED BY TB3CDK2DH

Model TB3DK2DPPDEAN 065030868426

60 specifications

Overview

Brand: StarTech.com
Category: Laptop Docks & Port Replicators
Model: TB3DK2DPPD
Part number: TB3DK2DPPD
EAN / UPC: 065030868426
Also known as: StarTech.com Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station, DisplayPort, 85W PD, 3x USB, GbE - REPLACED BY TB3CDK2DH

60 specifications in 12 groups

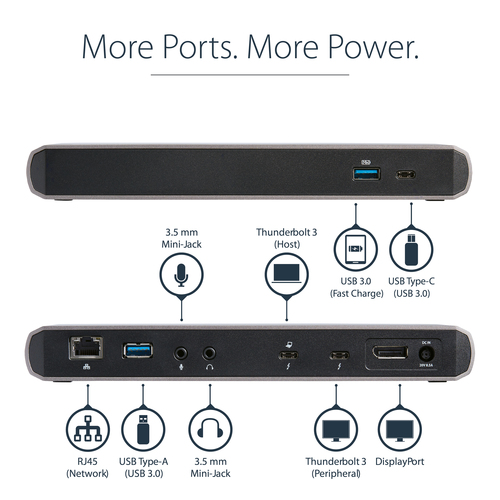

Specification	Value
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	0
DisplayPorts quantity	1
Thunderbolt 3 ports quantity	2
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes

Specification	Value
Product colour	Black, Grey
Card reader integrated	No
Data transfer rate	40 Gbit/s
Maximum digital resolution	4096 x 2160 pixels
Number of displays supported	2
Charging function	Yes
Housing material	Aluminium, Plastic
UASP support	Yes
Brand compatibility	Any brand
Certification	CE, FCC, REACH

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Compliance certificates	RoHS

Specification	Value
Master (outer) case height	175 mm
Master (outer) case length	355 mm
Master (outer) case width	250 mm
Products per master (outer) case	4 pc(s)

Specification	Value
Cable length	0.52 m
Chipset	Intel - Alpine Ridge DSL6540, Fresco - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT, Texas Instruments - TPS65983
USB data transfer rates	480,5000 Mbit/s
