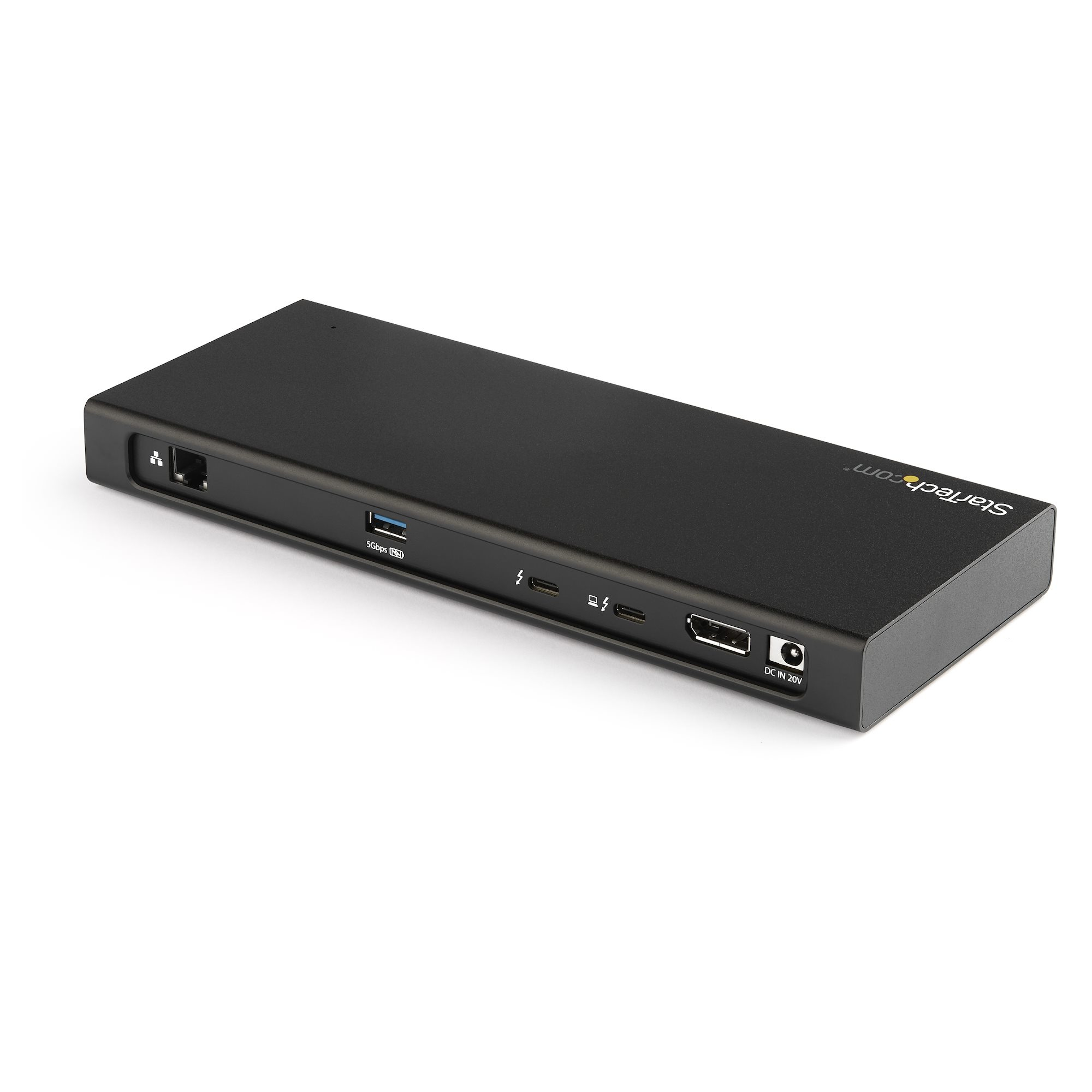

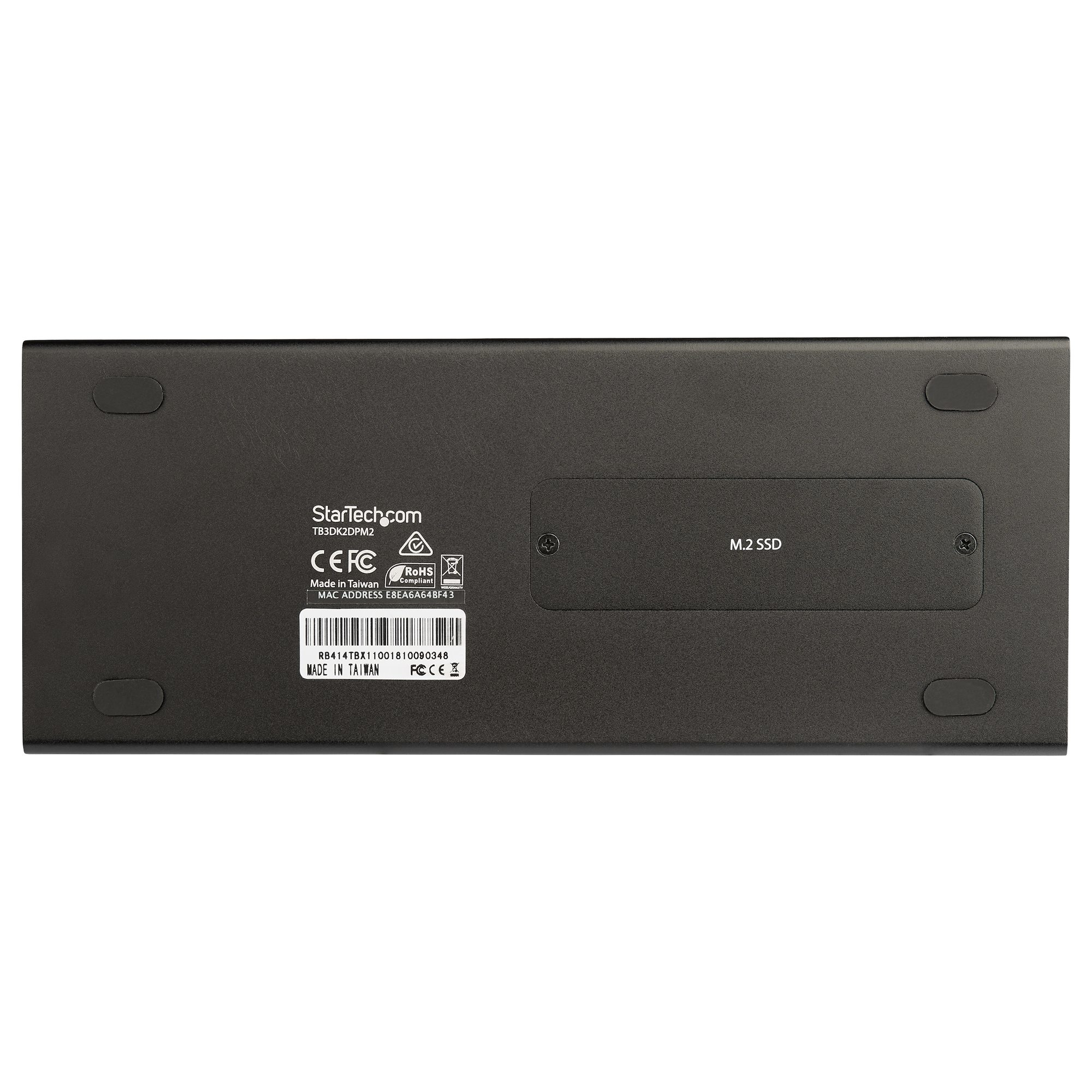

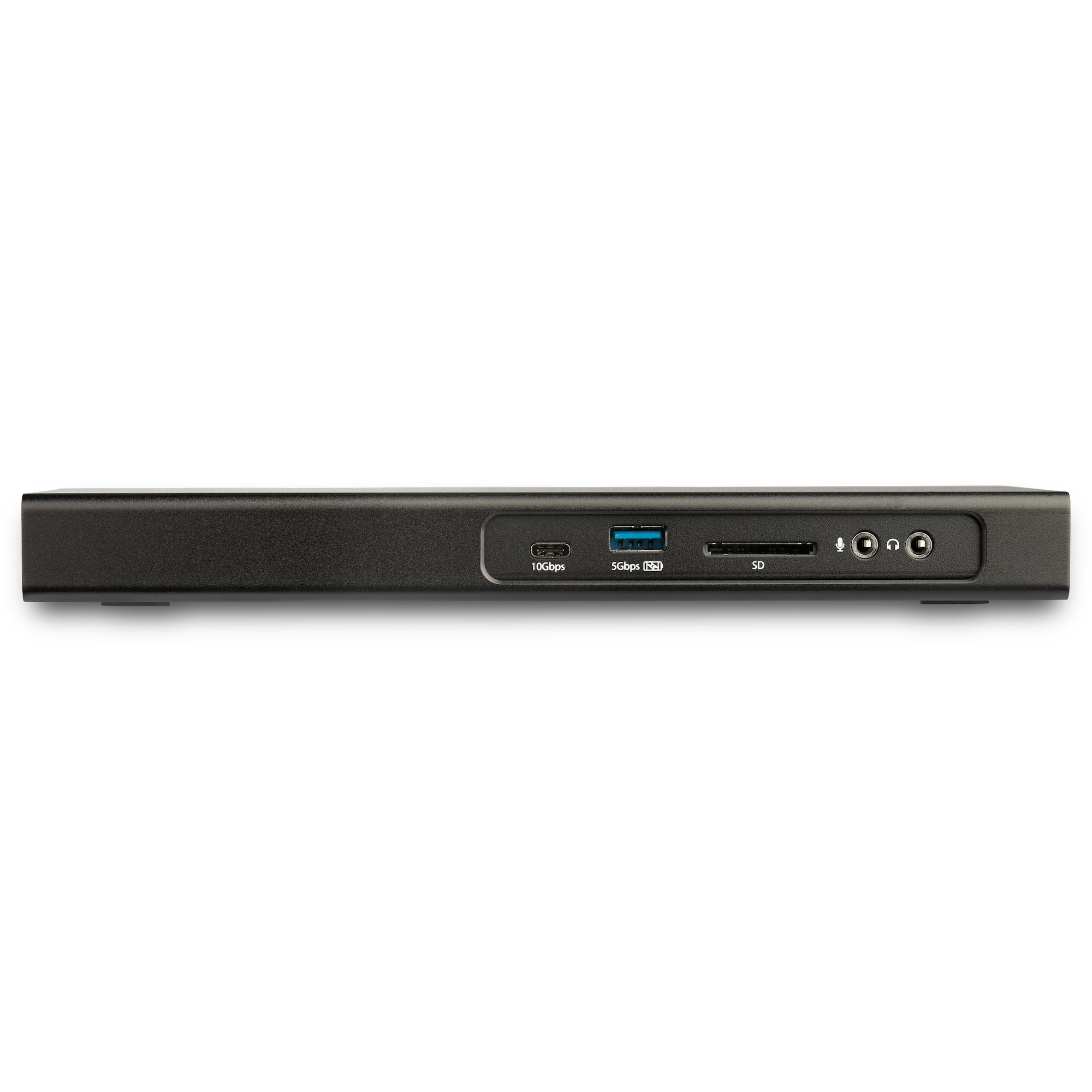

StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K
60Hz TB3 Laptop Docking Station with DisplayPort - PCIe M.2 NVMe SSD Enclosure - 85W Power Delivery - SD 4.0,
Model TB3DK2DPM2EAN 065030876254
59 specifications
- ConnectivityWired
- Weight780 g
- ColourBlack
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)5 - 35 °C
Overview
- Connectivity
- Wired
- Weight
- 780 g
- Colour
- Black
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- TB3DK2DPM2
- Part number
- TB3DK2DPM2
- EAN / UPC
- 065030876254
- Also known as
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - PCIe M.2 NVMe SSD Enclosure - 85W Power Delivery - SD 4.0,
Specifications
59 specifications in 12 groups

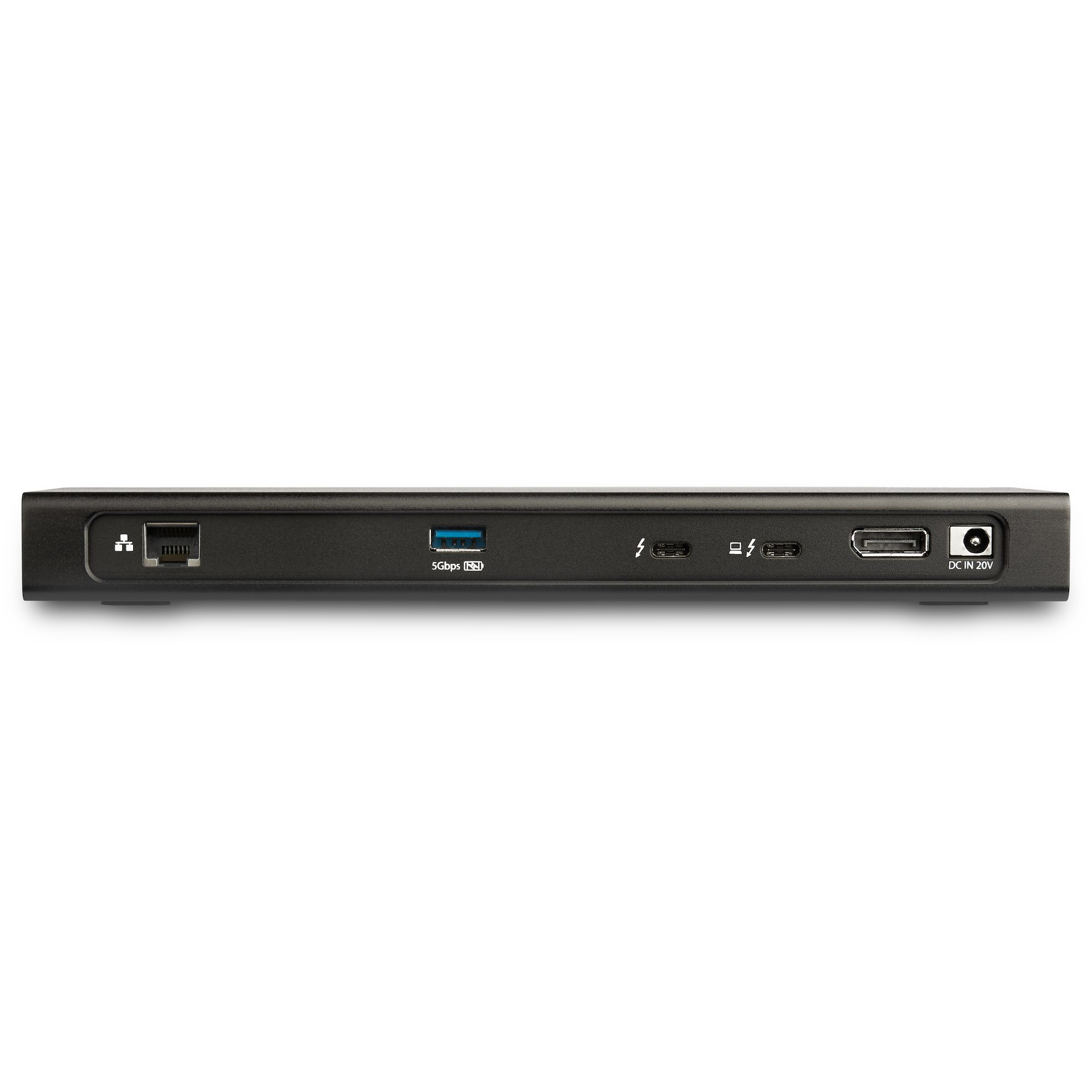

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |

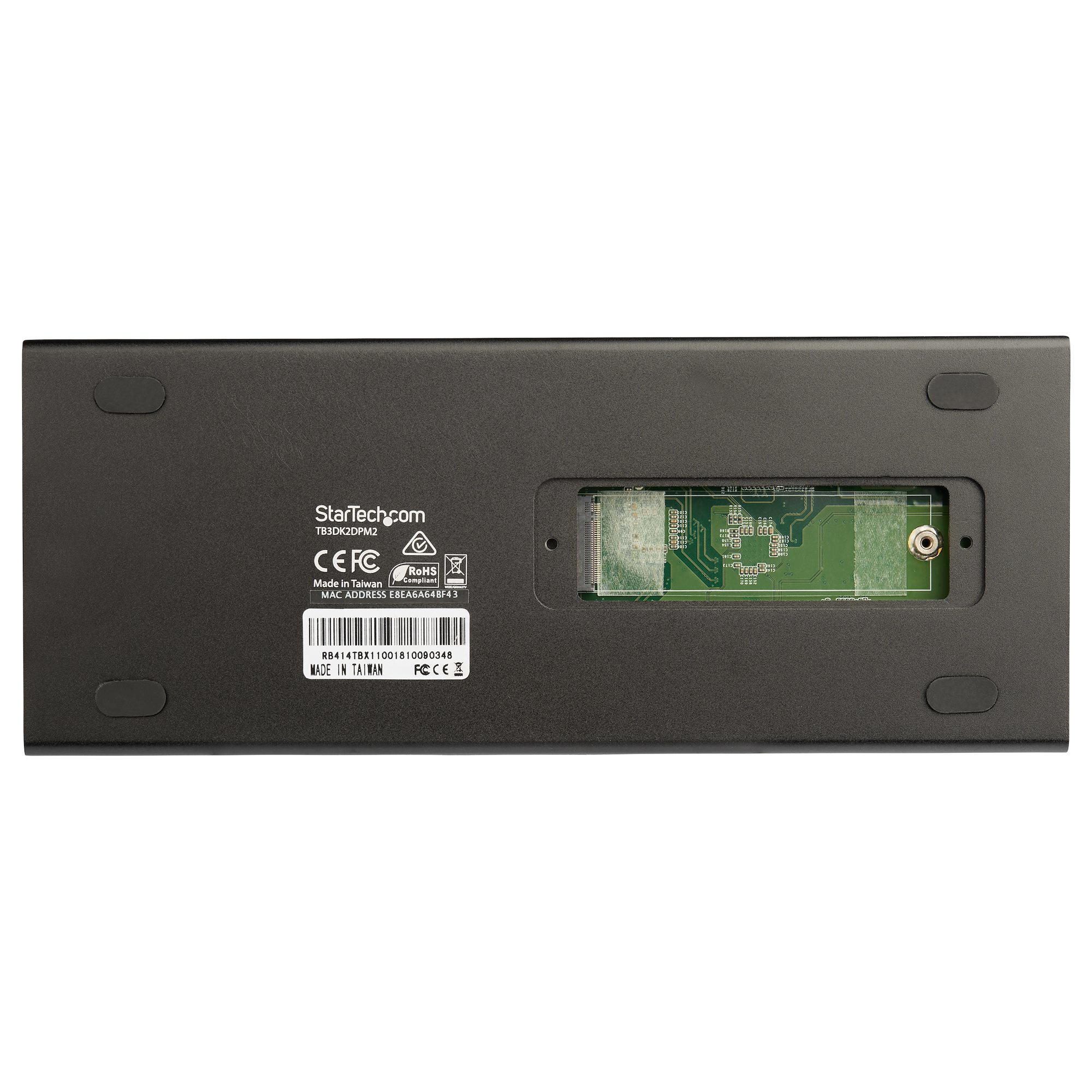

| Supported SSD sizes | M.2 |
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 5120 x 2880 pixels |
| Housing material | Aluminium |
| UASP support | Yes |
| Certification | FCC, CE, REACH |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.25 A |
| Output current | 7.5 A |
| Output voltage | 20 V |
| Power consumption (typical) | 170 W |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, JP, UK, US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Wi |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 239 mm |
| Depth | 95 mm |
| Height | 25 mm |
| Weight | 780 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 138 mm |
| Package depth | 288 mm |
| Package height | 125 mm |
| Package weight | 1.4 kg |

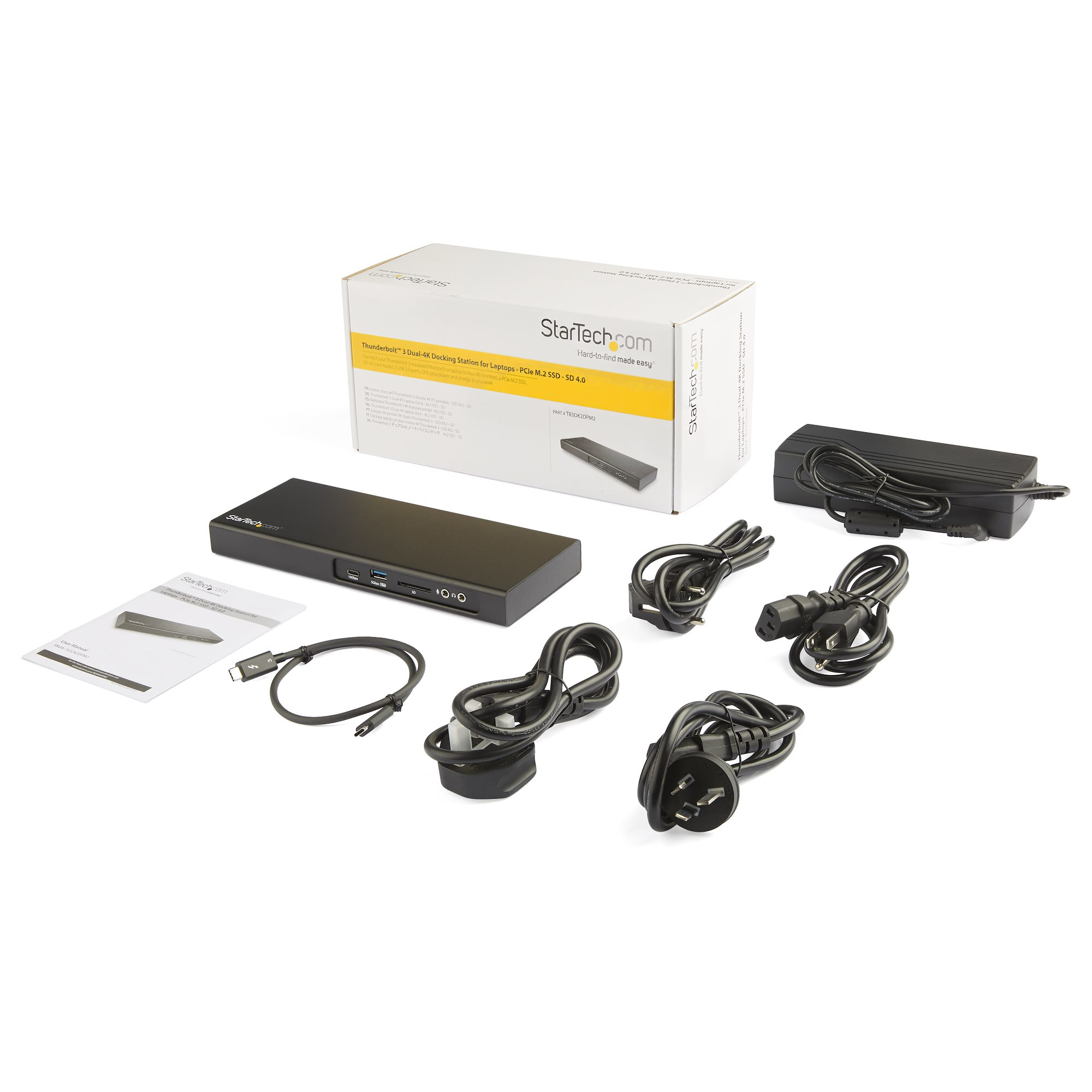

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 326 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case width | 270 mm |
| Products per master (outer) case | 4 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.5 m |
| Chipset | Intel - Alpine Ridge DP, ASMedia ASM1142, Realtek RTS5411, Realtek RTS5329, C-Media - CM6533, Intel i210AT |
| Number of microphone inputs | 1 |
Reviews
No reviews of StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K yet. Have you used it? Tell others what you think.
Write a reviewCompare StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K
All laptop docks & port replicators comparisons- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking StationCompare specs

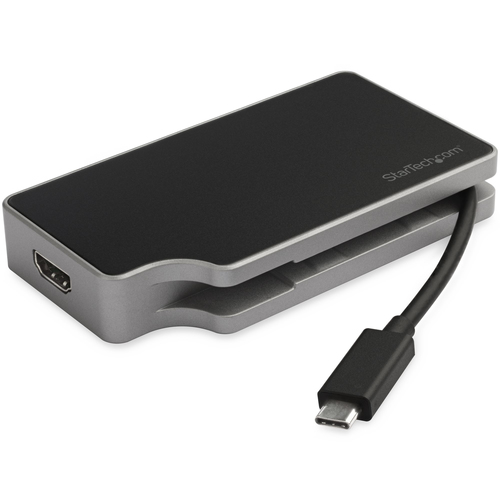

- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com USB C Multiport Adapter to 4K HDMI or 1080p VGA - USB Type C Travel Dock withCompare specs
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com USB C Multiport Adapter, Dual 4K Monitor, USB-C to Dual HDMI Adapter, 2x USB-A PortsCompare specs
- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsStarTech.com USB C Multiport Adapter - Portable USB-C Dock with 4K HDMICompare specs

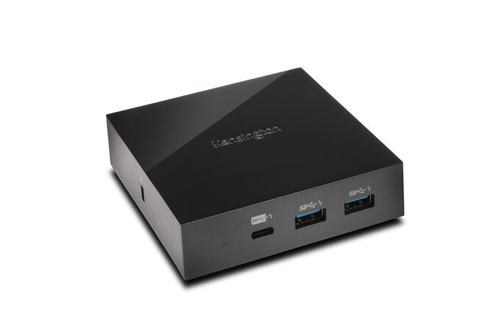

- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsKensington SD2000P USB-C 5Gbps Single 4K Nano DockCompare specs

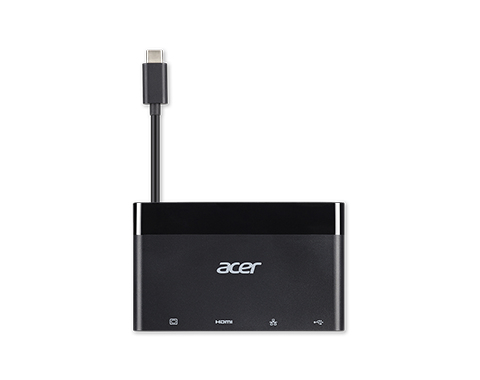

- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsAcer NP.CAB1A.023 laptop dock/port replicator USB 3.2 Gen 1 (3.1 Gen 1) Type-C BlackCompare specs

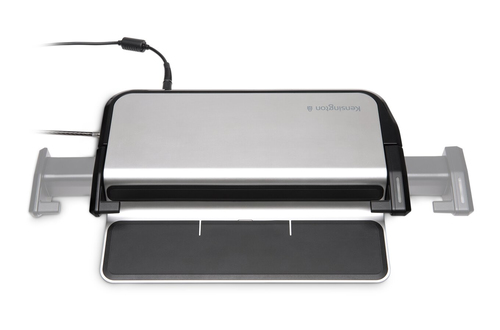

- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsKensington LD5400T Single-User Thunderbolt 3 40Gbps Dual 4K Dock w/ K-Fob™ Smart LockCompare specs

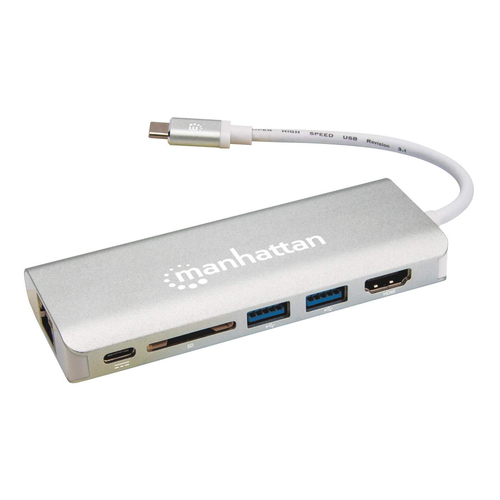

- StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K vsManhattan USB-C Dock/Hub with Card Reader, Ports (x5): Ethernet, HDMI, USB-A (x2) and USB-C, With Power Delivery (60W) to USB-C Port (Note additional USB-C wallCompare specs
