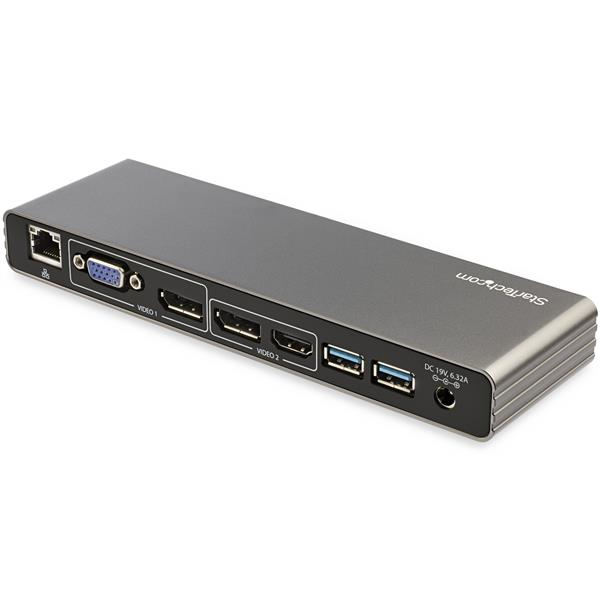

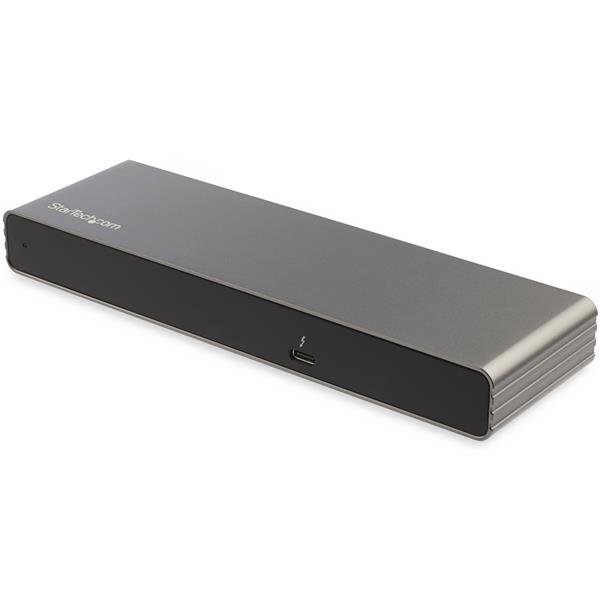

StarTech.com Thunderbolt 3 Dock - Dual 4K

StarTech.com Thunderbolt 3 Dock - Dual 4K

60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A,

Model TB3DK2DHVEAN 065030876230

59 specifications
  • ConnectivityWired
  • Weight340 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeAC
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
340 g
Colour
Grey
Ethernet LAN
Yes
Power source type
AC
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
TB3DK2DHV
Part number
TB3DK2DHV
EAN / UPC
065030876230
Also known as
StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A,

Specifications

59 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery up to85 W
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DisplayPorts quantity2
Microphone inNo
Headphone outputs0
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G supportNo
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate40 Gbit/s
Maximum digital resolution4096 x 2160 pixels
Housing materialAluminium
UASP supportYes
CertificationCE, FCC, REACH

Power

Power source typeAC
AC input voltage100 - 240 V
Input current1.8 A
Power supply typeExternal
Output current6.32 A
Output voltage19 V
Power consumption (typical)120 W
Power plug typeType N
Compatible power plug typesAU, JP, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width58.6 mm
Depth196 mm
Height24 mm
Weight340 g

Packaging data

Package width187 mm
Package depth254 mm
Package height65 mm
Package weight1.3 kg

Packaging content

AC adapter includedYes
Cables includedThunderbolt
ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case height280 mm
Master (outer) case length676 mm
Master (outer) case width390 mm
Products per master (outer) case20 pc(s)

Other features

Cable length0.5 m
ChipsetIntel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
