StarTech.com Universal Thunderbolt 3 Dock with USB-C Host Compatibility - Dual Monitor 4K
StarTech.com

Universal Thunderbolt 3 Dock with USB-C Host Compatibility - Dual Monitor 4K

60Hz DisplayPort TB3 Laptop Docking Station - 60W PD, GbE, 5-Port USB

Model TB3CDOCKDPEAN 065030883665

52 specifications
  • ConnectivityWired
  • Weight416 g
  • ColourGrey
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)-40 - 65 °C
See all specifications

Overview

Connectivity
Wired
Weight
416 g
Colour
Grey
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
-40 - 65 °C
Brand
StarTech.com
Model
TB3CDOCKDP
Part number
TB3CDOCKDP
EAN / UPC
065030883665
Also known as
StarTech.com Universal Thunderbolt 3 Dock with USB-C Host Compatibility - Dual Monitor 4K 60Hz DisplayPort TB3 Laptop Docking Station - 60W PD, GbE, 5-Port USB

Specifications

52 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery up to60 W
HDMI ports quantity0
DisplayPorts quantity2
DisplayPort version1.2a
Combo headphone/mic portYes
Headphone outputs1
DC-in jackYes
HDCPYes
HDCP version1.4/2.2

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate40 Gbit/s
HD type4K Ultra HD
Maximum digital resolution4096 x 2160 pixels
Number of displays supported2
Cable lock slotYes
Cable lock slot typeKensington
Housing materialPlastic

Power

AC input voltage100 - 240 V
Input current0.5 A
Output current3 A
Output voltage5 V
Compatible power plug typesAU, JP, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterpris
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Storage temperature (T-T)0 - 35 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width220 mm
Depth80 mm
Height30 mm
Weight416 g

Packaging data

Package width272 mm
Package depth160 mm
Package height110 mm
Package weight1.5 kg

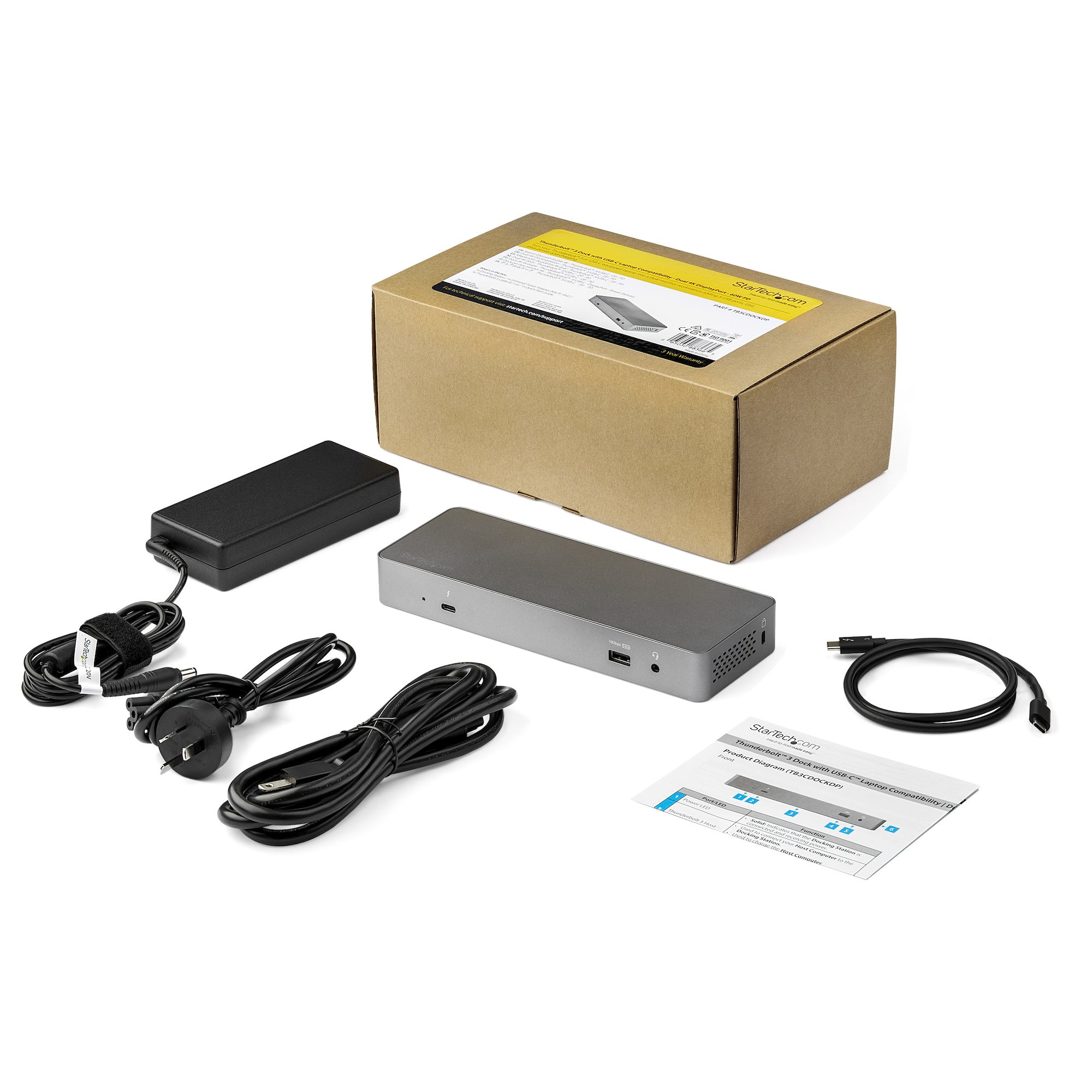

Packaging content

Cables includedThunderbolt
Quick start guideYes

Technical details

Compliance certificatesCE, RoHS

Logistics data

Master (outer) case height248 mm
Master (outer) case length500 mm
Master (outer) case width290 mm
Products per master (outer) case6 pc(s)

Other features

Cable length0.7 m
