Thunderbolt™ 3 Dock w/ USB-C Compatibility - Dual Monitor 4K60Hz DisplayPort Laptop Docking Station
60W PD, GbE, 5x USB Hub - TB3 / USB 3.1 Gen 2
Model TB3CDK2DPEAN 065030880275
51 specifications
- ConnectivityWired
- Weight400 g
- ColourBlack, Grey
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 65 °C
Overview
- Connectivity
- Wired
- Weight
- 400 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 65 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- TB3CDK2DP
- Part number
- TB3CDK2DP
- EAN / UPC
- 065030880275
- Also known as
- StarTech.com Thunderbolt™ 3 Dock w/ USB-C Compatibility - Dual Monitor 4K60Hz DisplayPort Laptop Docking Station - 60W PD, GbE, 5x USB Hub - TB3 / USB 3.1 Gen 2
Specifications
51 specifications in 12 groups

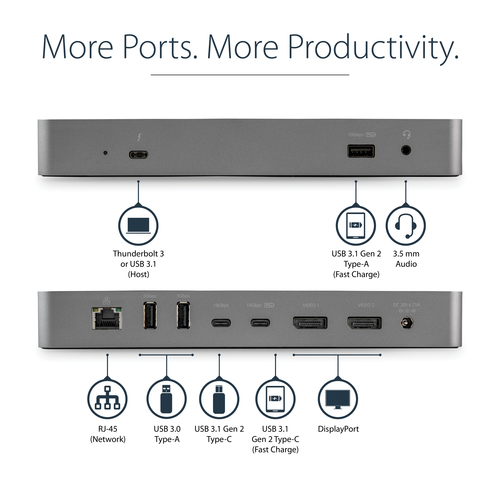

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2a |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Housing material | Plastic |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 6.75 A |
| Output voltage | 20 V |
| Compatible power plug types | AU, JP, US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windo |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 272 mm |
| Package depth | 160 mm |
| Package height | 115 mm |
| Package weight | 1.5 kg |
Packaging content
| Specification | Value |
|---|---|

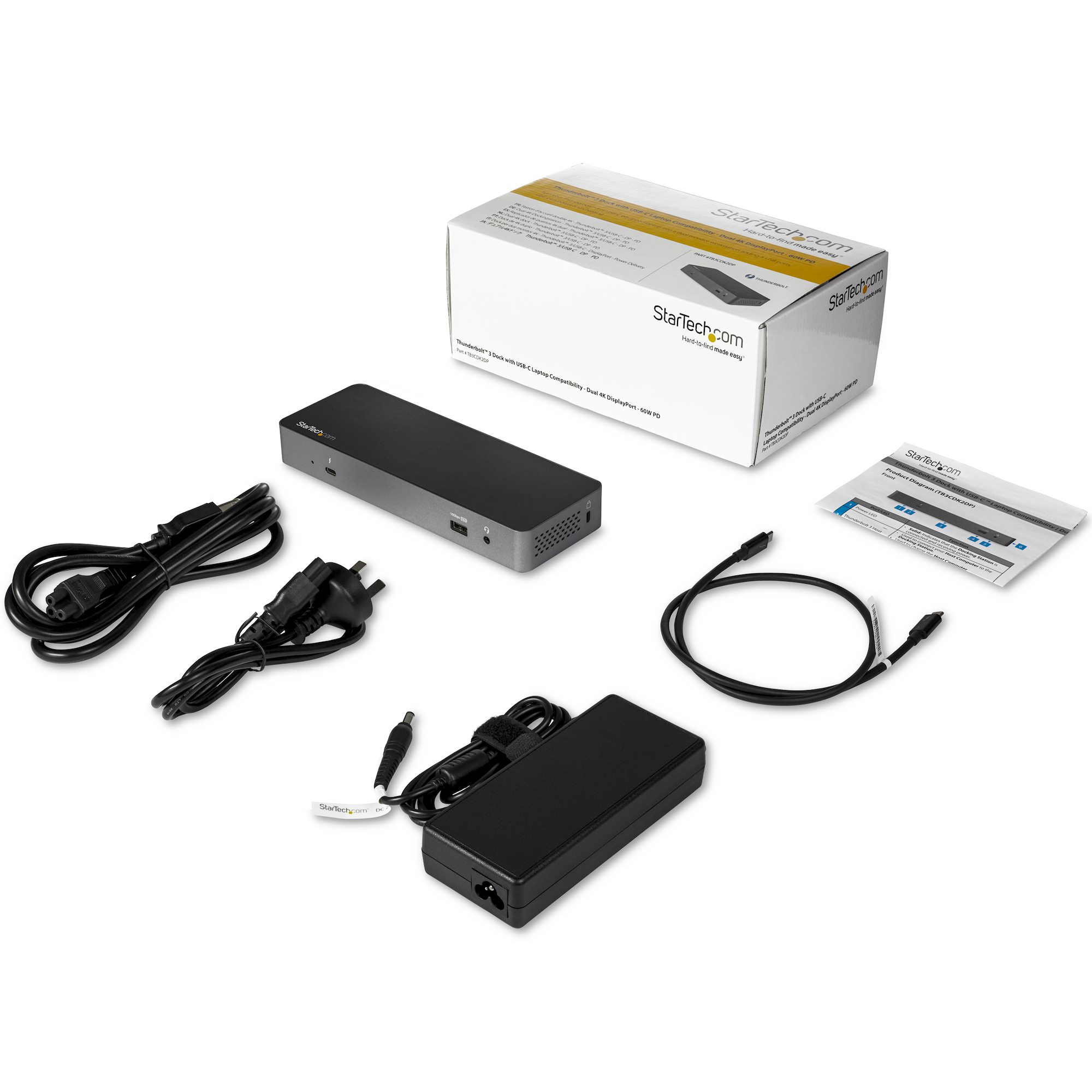

| Cables included | Thunderbolt |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 250 mm |
| Master (outer) case length | 505 mm |
| Master (outer) case width | 295 mm |
| Products per master (outer) case | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | Titan Ridge - JHL7440, Cyrpess - CCG5C, RealTek - RTL8153, Genesys Logic - GL3590, Genesys Logic - GL3523, C-Media - CM6533 |
