USB C Docking Station for Macbook Pro/Air-M1/M2/M3/M4, Thunderbolt Compatible, HDMI/DisplayPort, Dual 4K
60Hz/Single 8K, USB Type-C Laptop Dock, 96
Model TB3CDK2DHEAN 065030881005
55 specifications
- ConnectivityWired
- Weight250 g
- ColourBlack, Silver
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 35 °C
Overview
- Connectivity
- Wired
- Weight
- 250 g
- Colour
- Black, Silver
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 35 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- TB3CDK2DH
- Part number
- TB3CDK2DH
- EAN / UPC
- 065030881005
- Also known as
- StarTech.com USB C Docking Station for Macbook Pro/Air-M1/M2/M3/M4, Thunderbolt Compatible, HDMI/DisplayPort, Dual 4K 60Hz/Single 8K, USB Type-C Laptop Dock, 96
Specifications
55 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 8.5 A |
| Output voltage | 20 V |
| Power plug type | Type N |
| Compatible power plug types | AU, JP, US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterpris |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 250 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 305 mm |
| Package depth | 160 mm |
| Package height | 110 mm |
| Package weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|

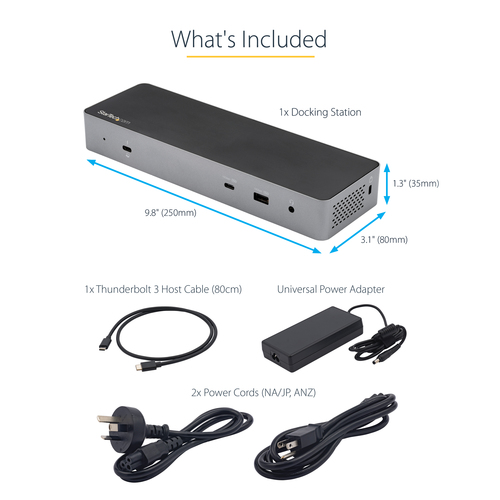

| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 248 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per shipping (inner) case | 40 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C |
