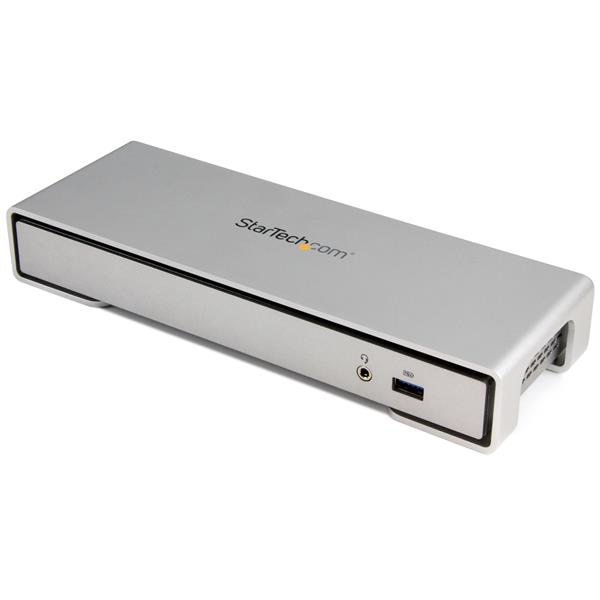

StarTech.com Thunderbolt 2 4K Docking Station for Laptops - Includes TB Cable

StarTech.com Thunderbolt 2 4K Docking Station for Laptops - Includes TB Cable

Model TB2DOCK4KDHCEAN 065030859189

58 specifications
  • ConnectivityWired
  • Weight500 g
  • ColourSilver
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
500 g
Colour
Silver
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
TB2DOCK4KDHC
Part number
TB2DOCK4KDHC
EAN / UPC
065030859189, 4058829199555, 5054629685624, 7426700759780
Also known as
StarTech.com Thunderbolt 2 4K Docking Station for Laptops - Includes TB Cable

Specifications

58 specifications in 11 groups

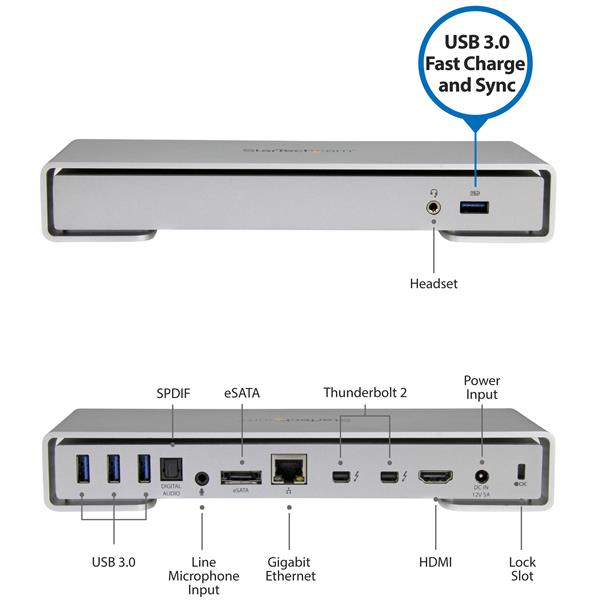

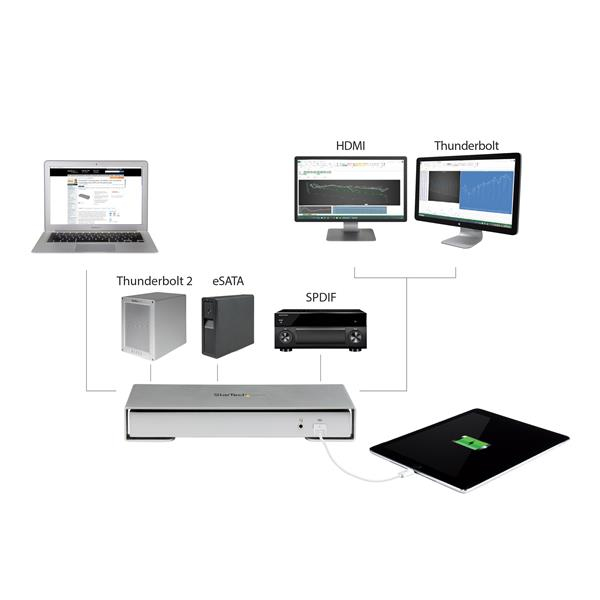

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 2
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
Thunderbolt 2 ports quantity2
Microphone inYes
Headphone outputs1
Headphone connectivity3.5 mm
S/PDIF out portYes
DC-in jackYes
USB connector typeUSB Type-A
eSATA ports quantity1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourSilver
Card reader integratedNo
Data transfer rate20 Gbit/s

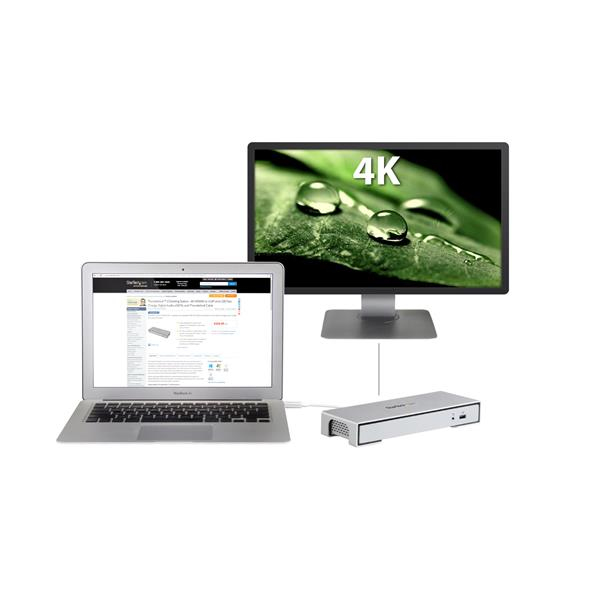

Maximum digital resolution3840 x 2160 pixels
Cable lock slotYes
Housing materialAluminium, Plastic
LED indicatorsActivity, Link
UASP supportYes
Brand compatibilityApple
CompatibilityMacBook
CertificationCE, FCC, Thunderbolt

Power

AC input voltage100-240 V
Input current2 A
Output current5 A
Output voltage12 V
Power consumption (typical)60 W
Power plug typeType M
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width82 mm
Depth234 mm
Height38 mm
Weight500 g

Packaging data

Package width273 mm
Package depth182 mm
Package height126 mm
Package weight1.71 kg

Packaging content

AC adapter includedYes
Cables includedAC, Thunderbolt
ManualYes

Technical details

Compliance certificatesRoHS

Other features

ChipsetIntel - Falcon Ridge DSL5520, ASMedia — ASM1042A, ASMedia — ASM1061, CMedia — CM6500, Texas Instruments — PCM2912A, Intel – WGI210AT
Number of microphone inputs1
USB data transfer rates12,480,5000 Mbit/s
