StarTech.com Laptop Docking Module for Conference Table Connectivity Box
StarTech.com

Laptop Docking Module for Conference Table Connectivity Box

Model MOD4DOCKACPDEAN 065030871075

55 specifications
  • ConnectivityWired
  • Weight588 g
  • ColourBlack
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Other operating systems supportedChromeOS
See all specifications

Overview

Connectivity
Wired
Weight
588 g
Colour
Black
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Other operating systems supported
ChromeOS
Brand
StarTech.com
Model
MOD4DOCKACPD
Part number
MOD4DOCKACPD
EAN / UPC
065030871075
Also known as
StarTech.com Laptop Docking Module for Conference Table Connectivity Box

Specifications

55 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity3
Microphone inYes
Combo headphone/mic portNo
Headphone outputs1
Headphone connectivity3.5 mm

Network

Ethernet LANYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution3840 x 2160 pixels
Housing materialAluminium, Plastic
LED indicatorsPower
UASP supportYes
CertificationCE, FCC, TAA, REACH

Power

AC input voltage100 - 240 V
Input current2 A
Output current6 A
Output voltage20 V
Power consumption (typical)60 W
Power plug typeType N
Compatible power plug typesEU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpri
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width94 mm
Depth12 mm
Height61 mm
Weight588 g

Packaging data

Package width211 mm
Package depth251 mm
Package height10 mm
Package weight2.1 kg

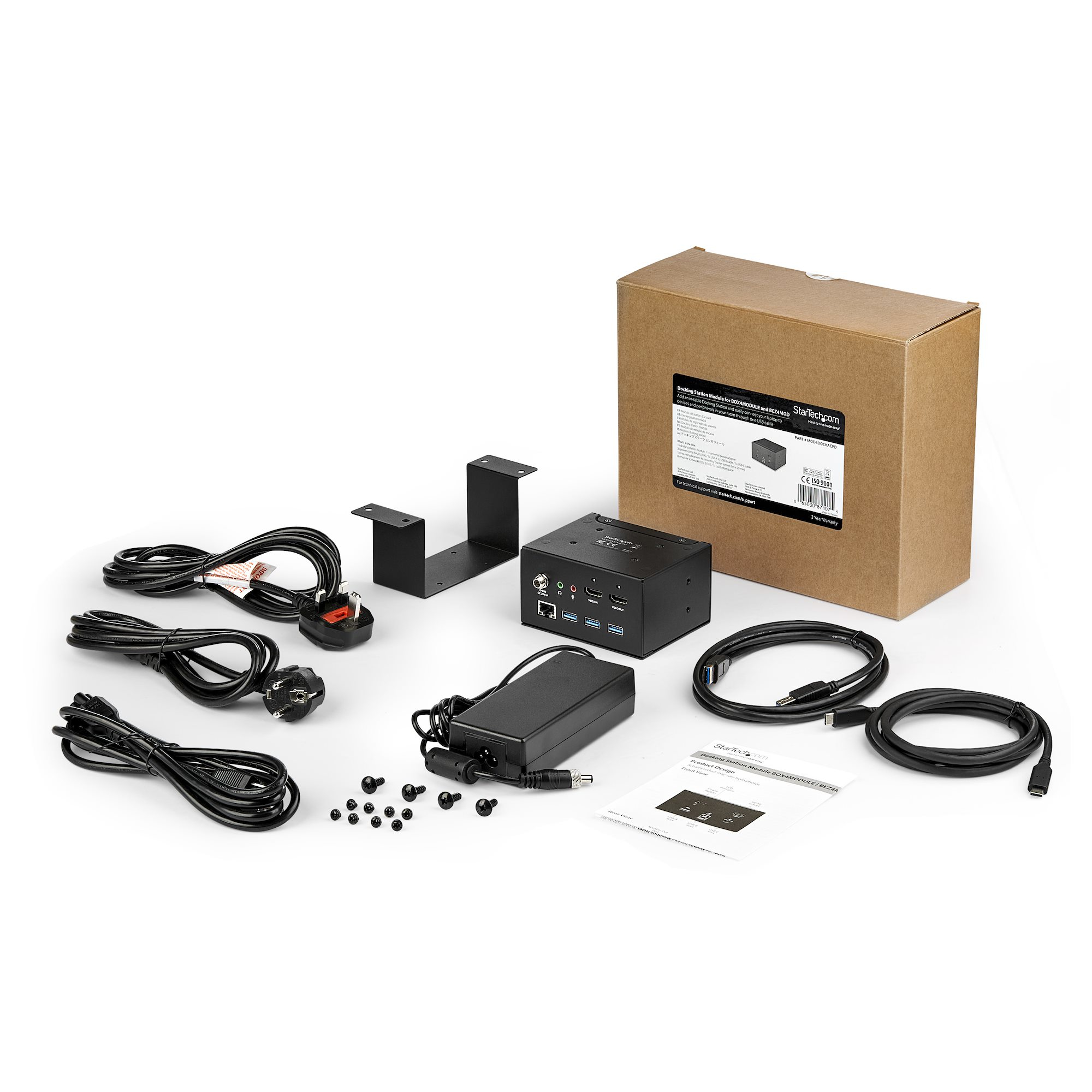

Packaging content

Mounting brackets includedYes
AC adapter includedYes
Cables includedUSB Type-A to USB Type-B, USB Type-C to USB Type-C
Number of screws12
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height246 mm
Master (outer) case length430 mm
Master (outer) case width273 mm
Products per master (outer) case4 pc(s)

Other features

ChipsetDisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153
