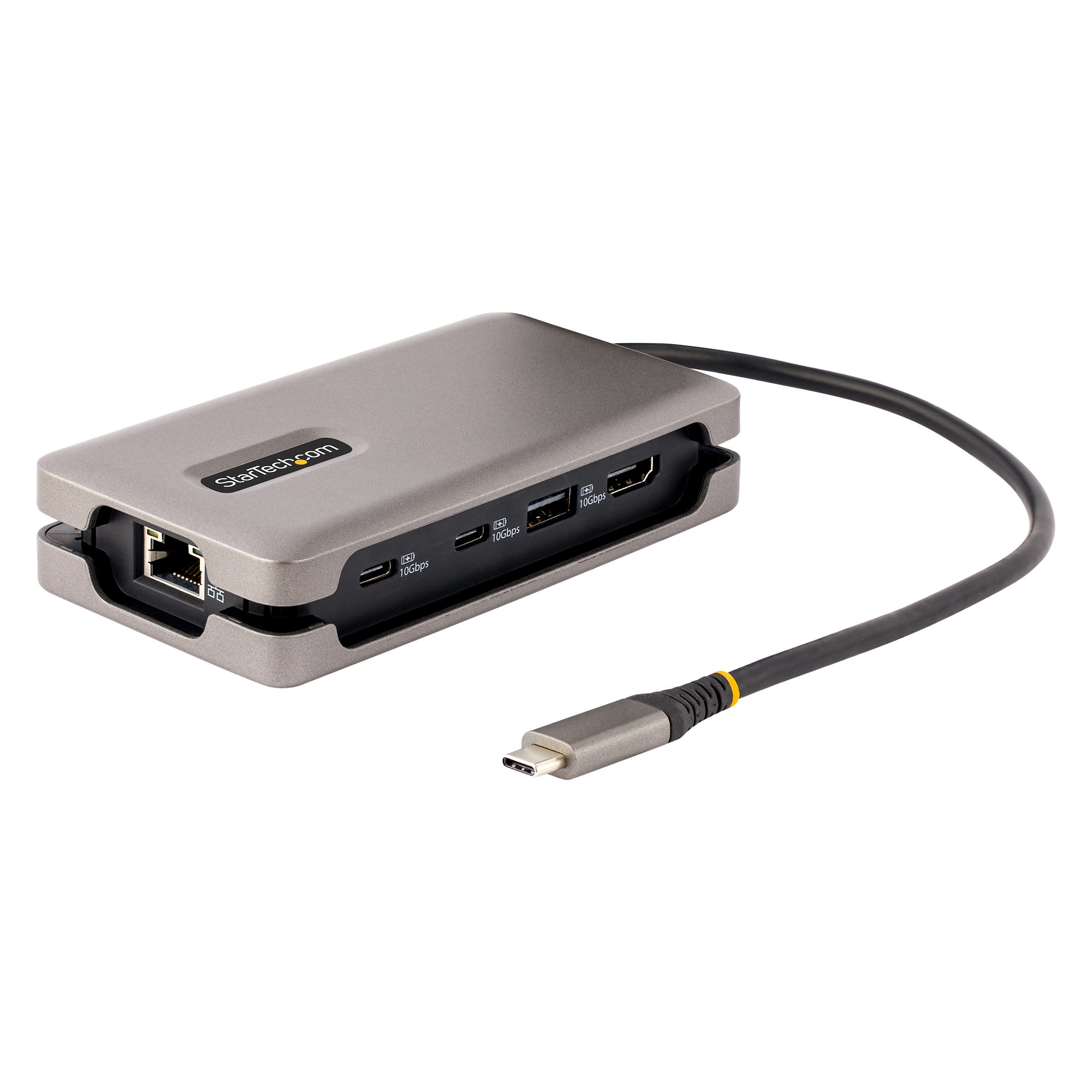

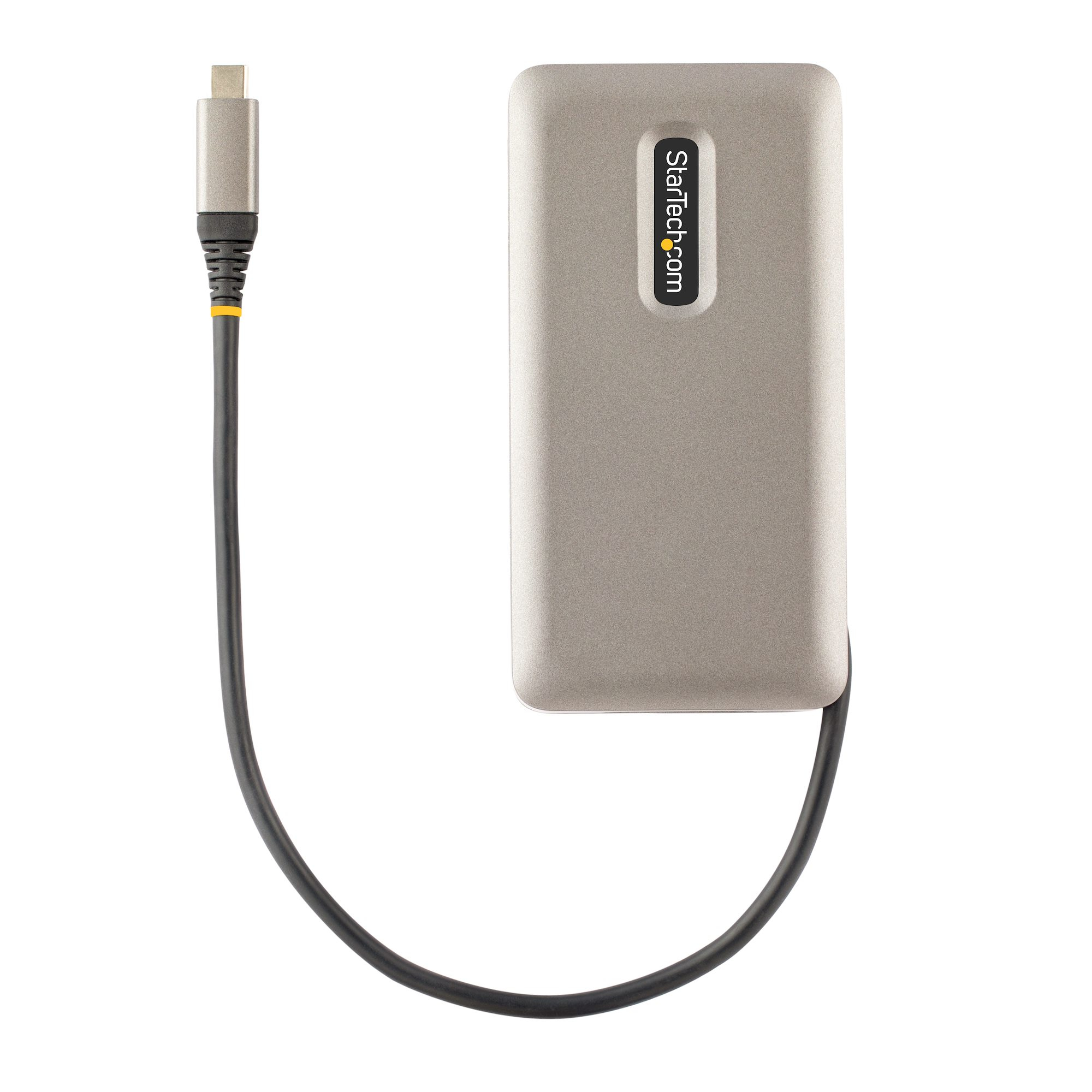

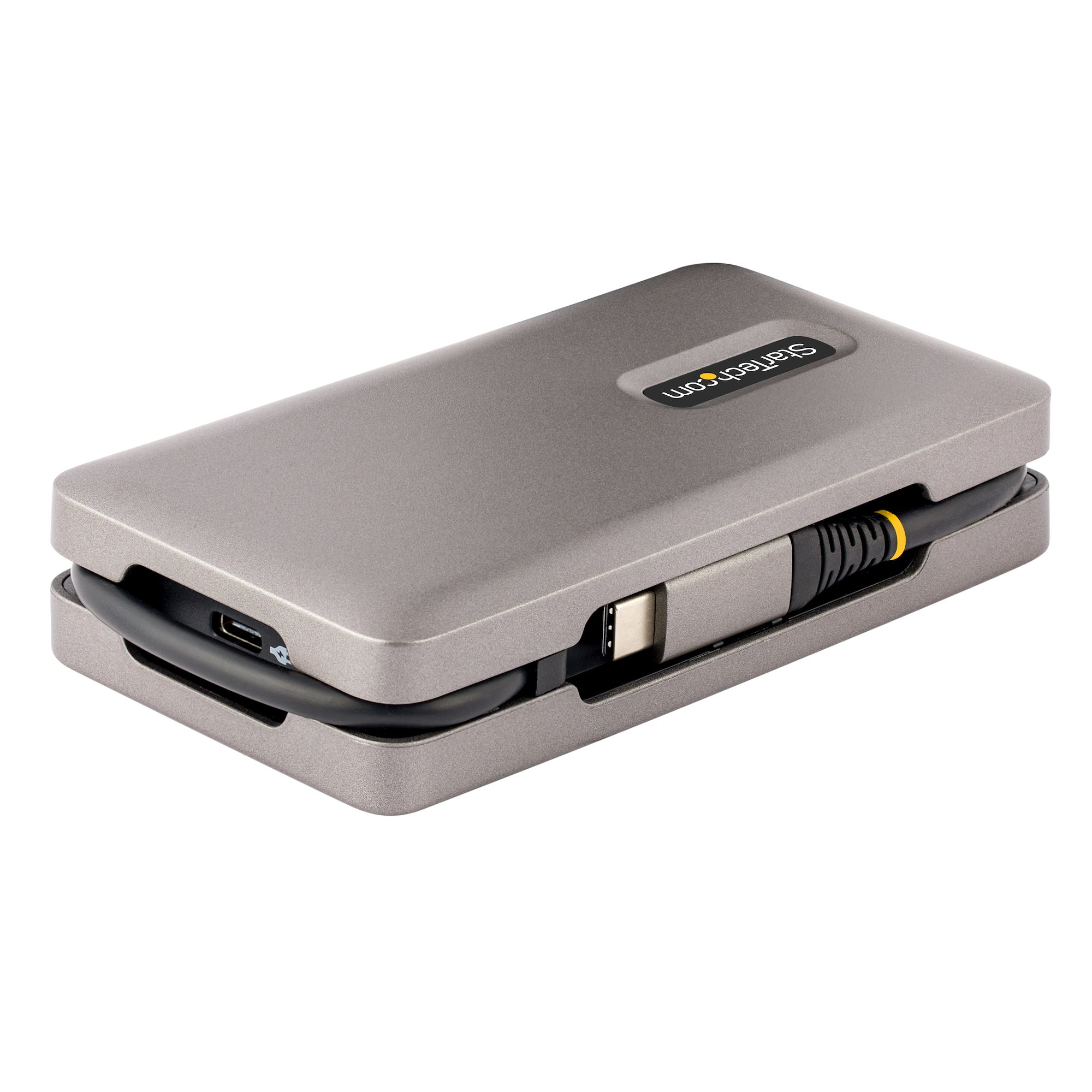

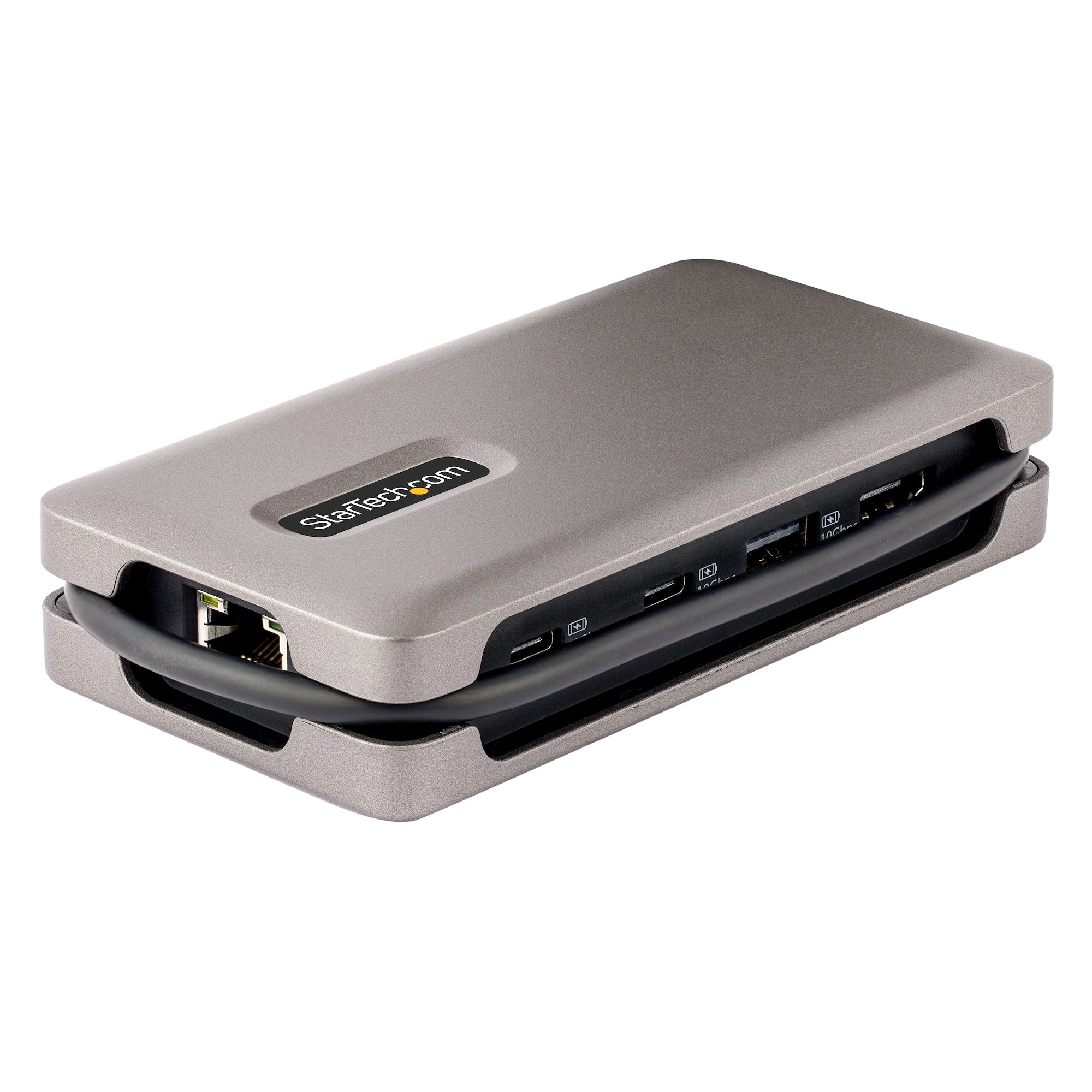

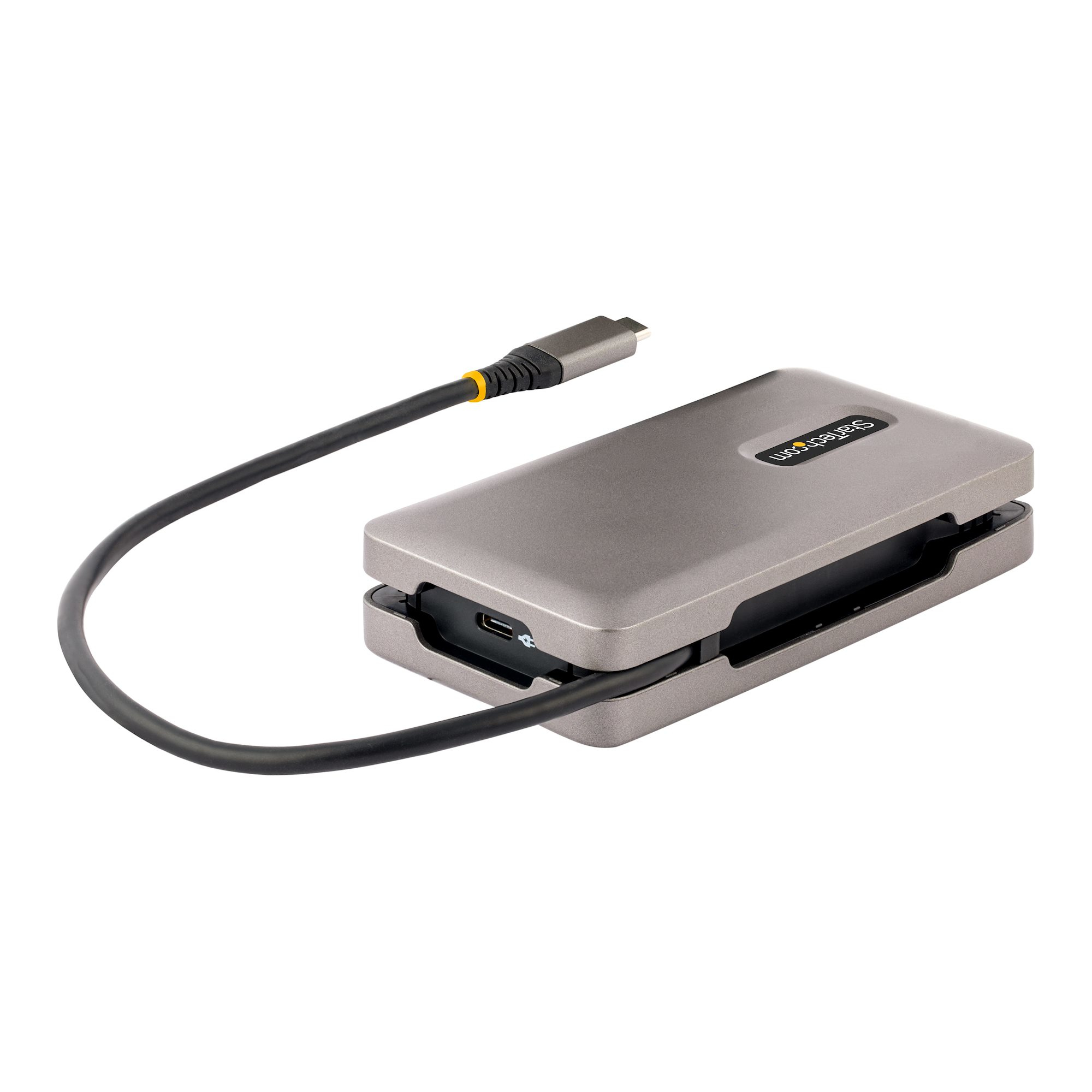

USB-C Multiport Adapter, 4K
60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cabl
Model DKT31CH2CPD3EAN 065030891981
57 specifications
- ConnectivityWired
- Weight93 g
- ColourGrey
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 50 °C
Overview
- Connectivity
- Wired
- Weight
- 93 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- DKT31CH2CPD3
- Part number
- DKT31CH2CPD3
- EAN / UPC
- 065030891981, 5715328304031
- Also known as
- StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cabl
Specifications
57 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

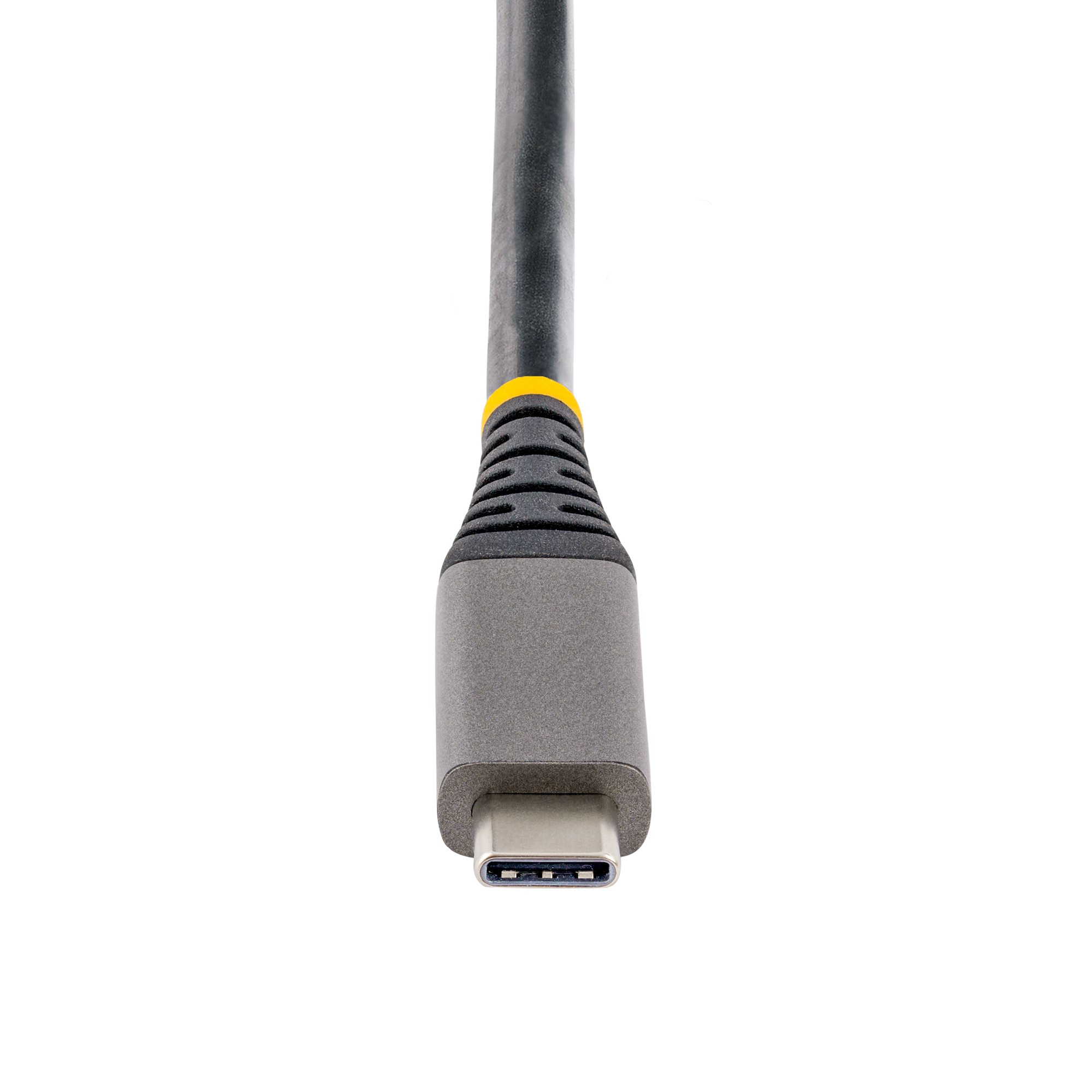

| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |

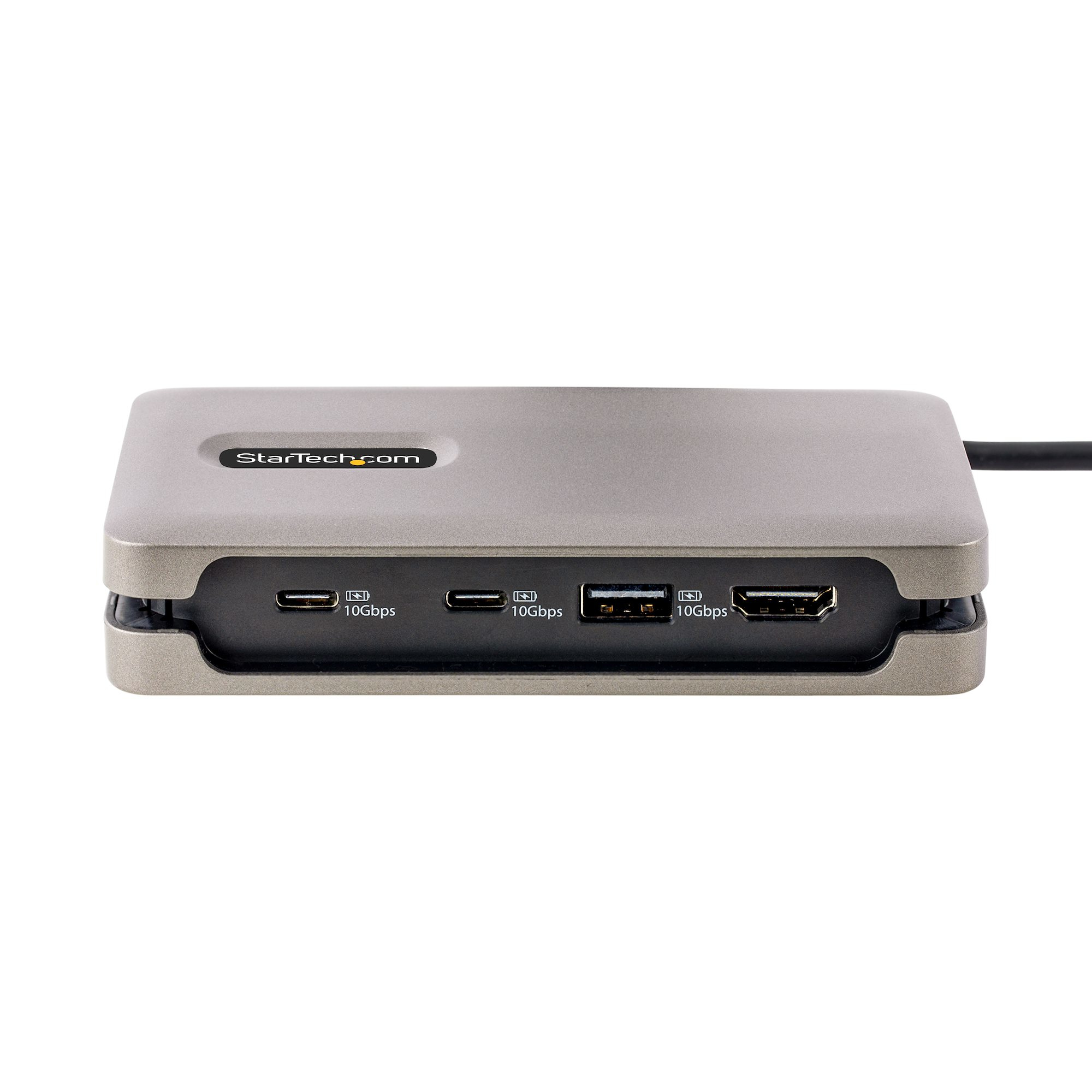

| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

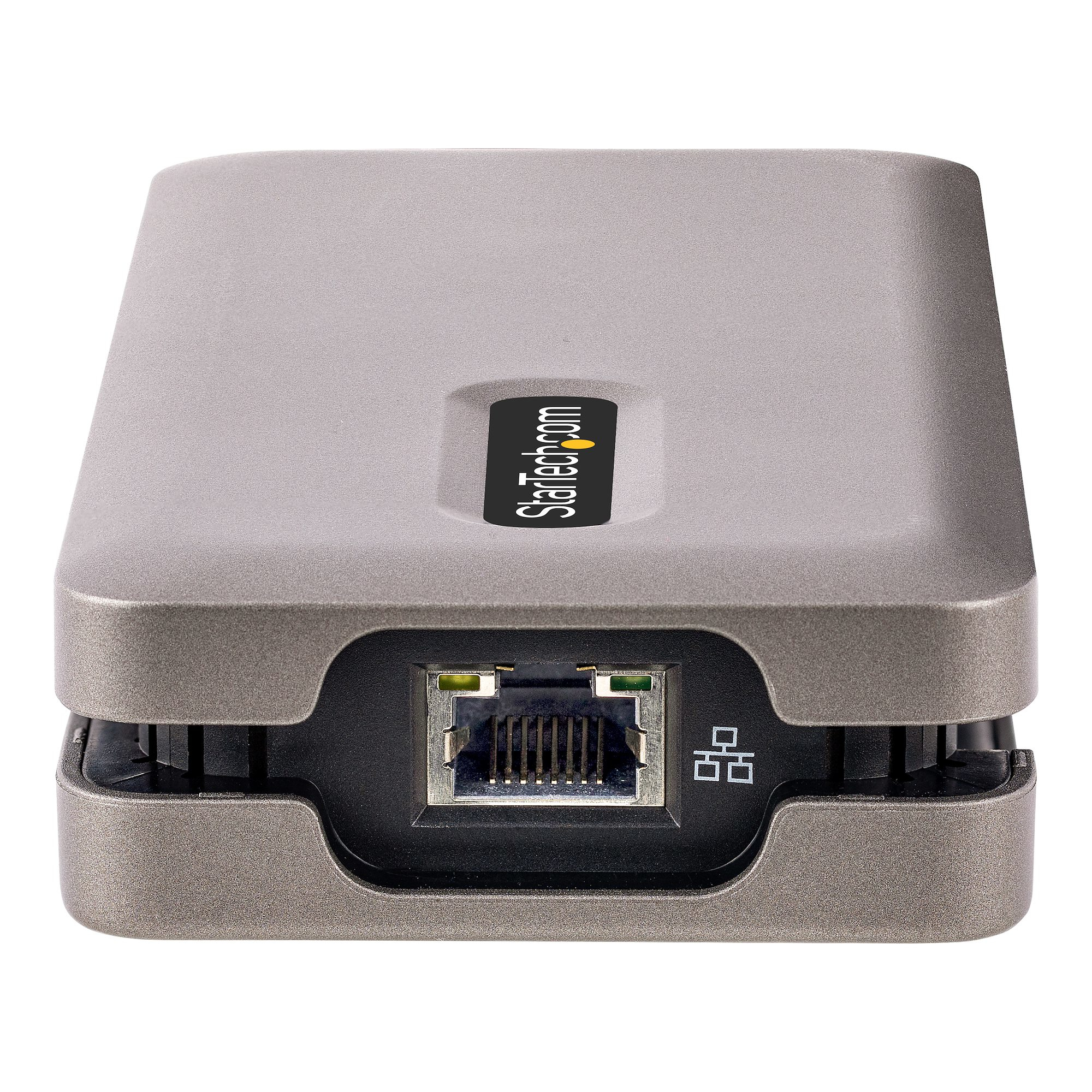

| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
| Housing material | Plastic |
| LED indicators | Yes |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 15 W |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android, iPadOS |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 64 mm |
| Depth | 124 mm |
| Height | 26 mm |
| Weight | 93 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 143 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 149 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 440 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case width | 465 mm |
| Products per master (outer) case | 70 pc(s) |
Other features
| Specification | Value |
|---|---|

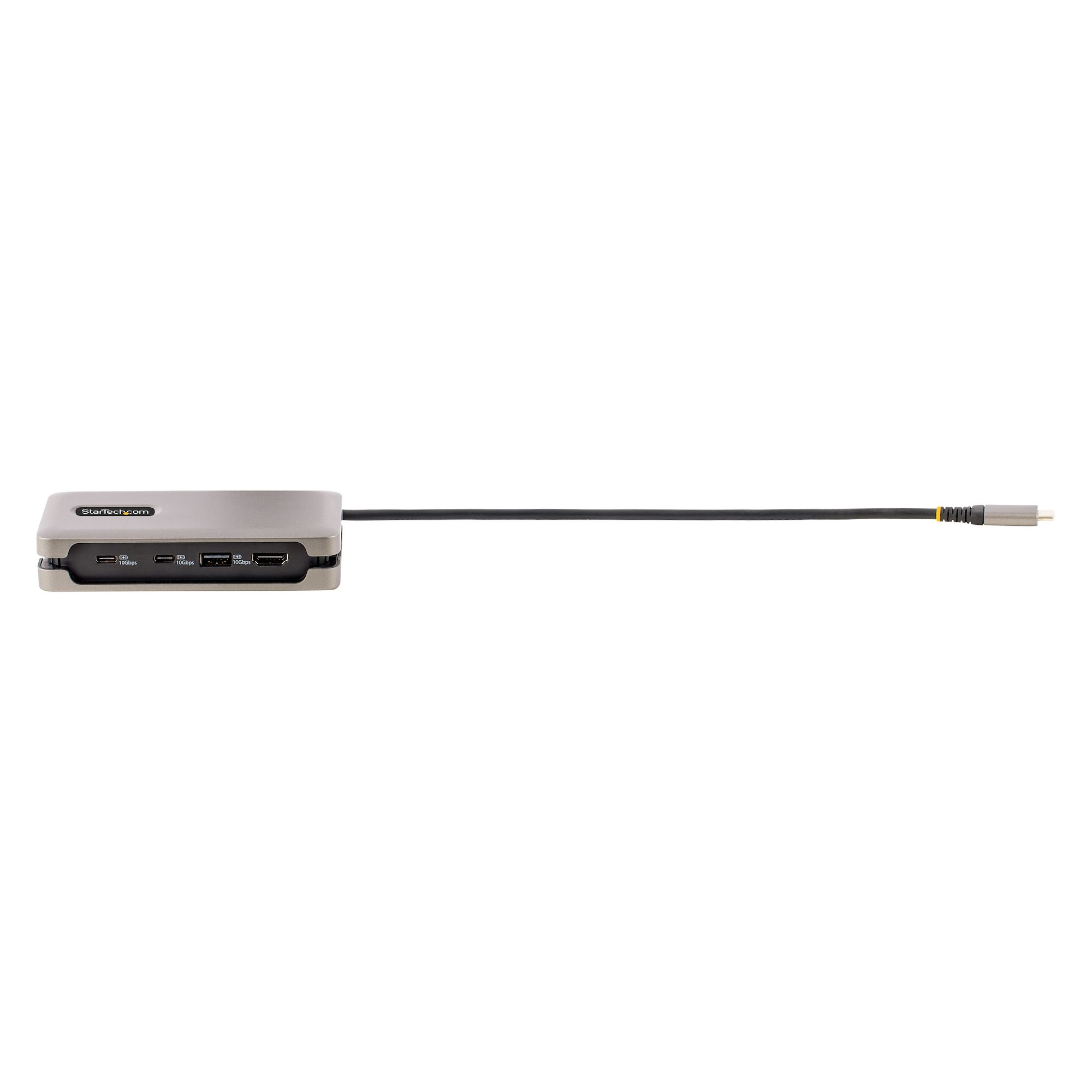

| Cable length | 0.3 m |
| Chipset | Realtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103 |
