USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video
60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit
Model DKT30CVAGPDEAN 065030879163
52 specifications
- ConnectivityWired
- Weight49 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 49 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- DKT30CVAGPD
- Part number
- DKT30CVAGPD
- EAN / UPC
- 065030879163
- Also known as
- StarTech.com USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit
Specifications
52 specifications in 12 groups

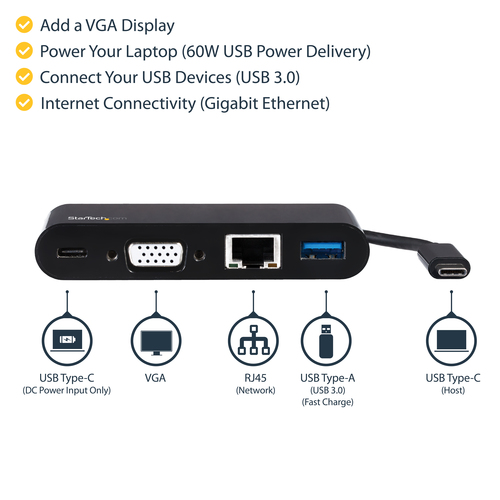

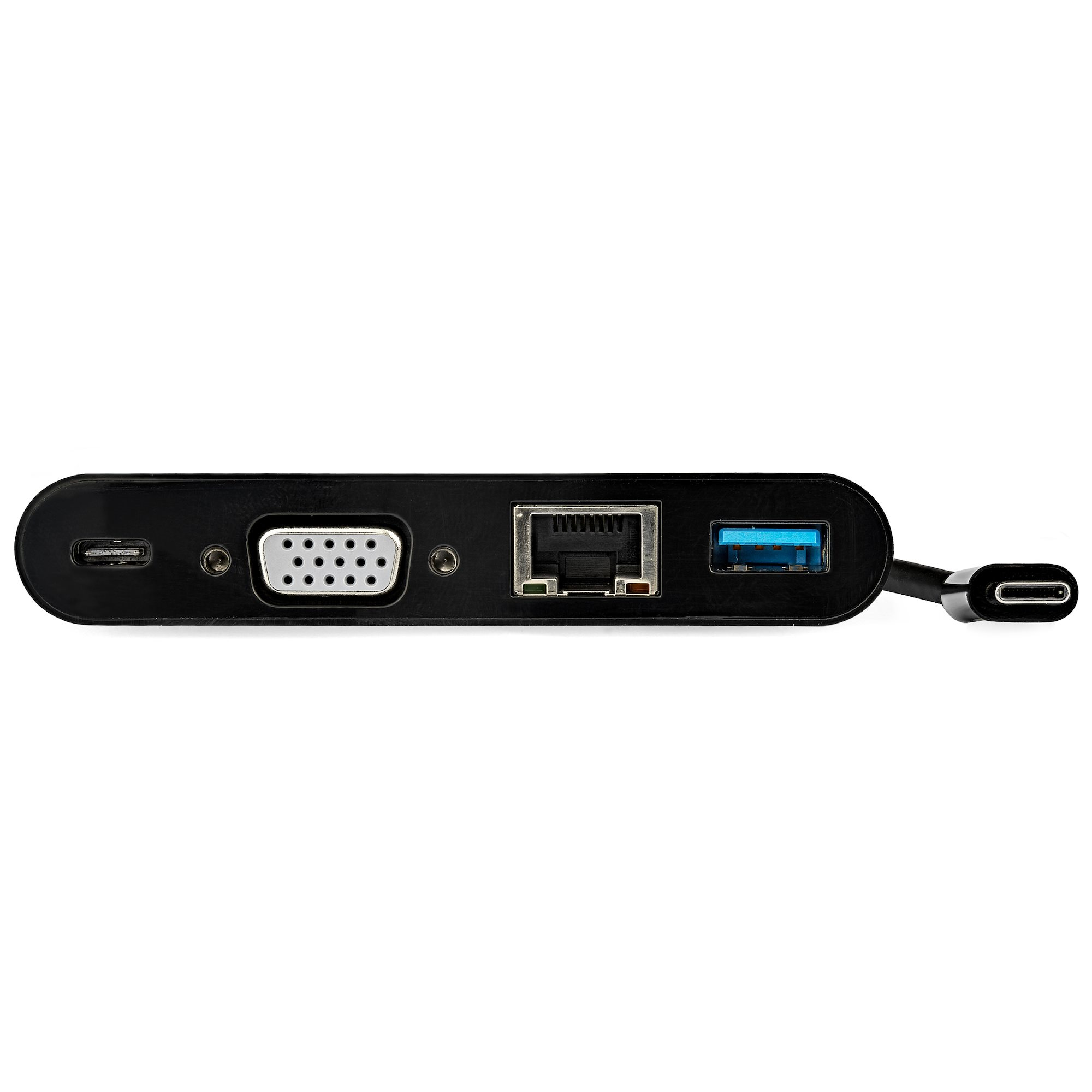

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 1920 x 1200 pixels |
| Housing material | Plastic |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpri |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |

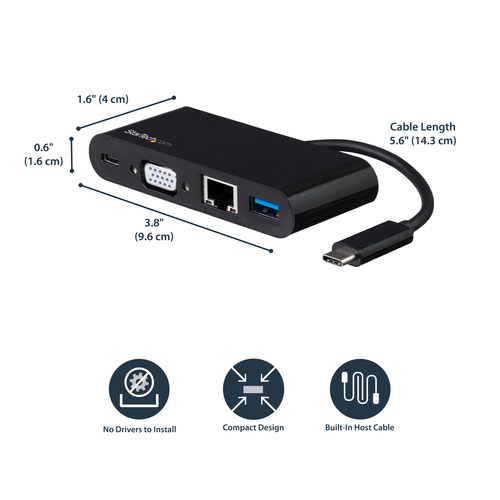

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 96 mm |
| Height | 16 mm |
| Weight | 49 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Package weight | 125 g |

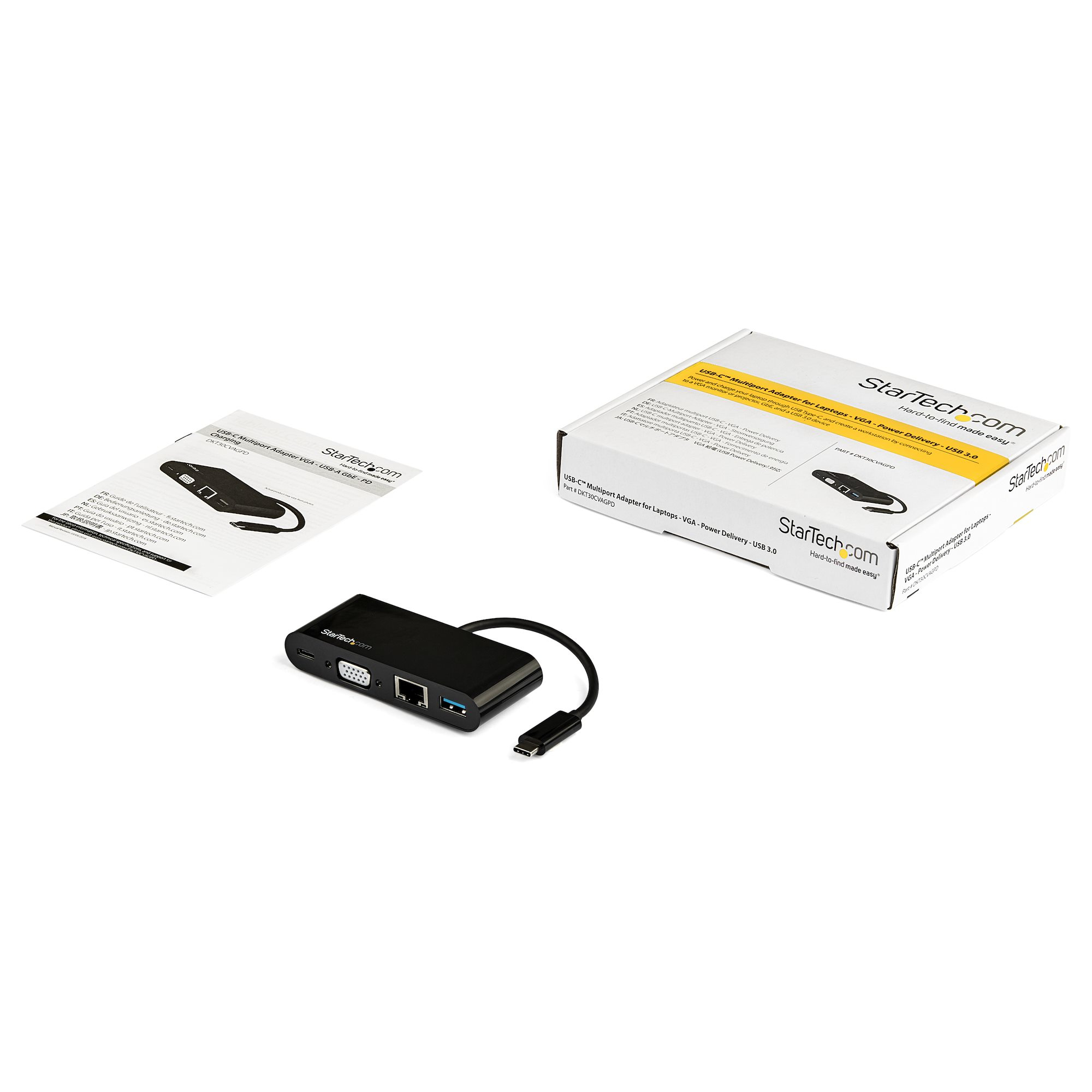

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 60 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.143 m |
| Chipset | VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153 |
