StarTech.com USB-C Multiport Adapter… DKT30CHVW Specs

Overview

Connectivity: Wired
Weight: 72 g
Colour: Silver, White
Ethernet LAN: Yes
Power source type: USB
Other operating systems supported: ChromeOS

Brand: StarTech.com
Category: Laptop Docks & Port Replicators
Model: DKT30CHVW
Part number: DKT30CHVW
EAN / UPC: 065030871044, 5704174328094
Also known as: StarTech.com USB-C Multiport Adapter - USB-C Travel Dock with 4K HDMI or 1080p VGA - Gigabit Ethernet, 5Gbps USB-A 3.0 - USB-C Digital AV Adapter - USB Type-C/T

Specifications

48 specifications in 12 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	No
Headphone outputs	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Specification	Value
Product colour	Silver, White
Card reader integrated	No
Data transfer rate	5000 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Maximum analog resolution	2048 x 1280 pixels
Housing material	Plastic
UASP support	Yes
Brand compatibility	Any brand
Certification	CE, FCC, REACH

Power

Specification	Value
Power source type	USB

Software

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%

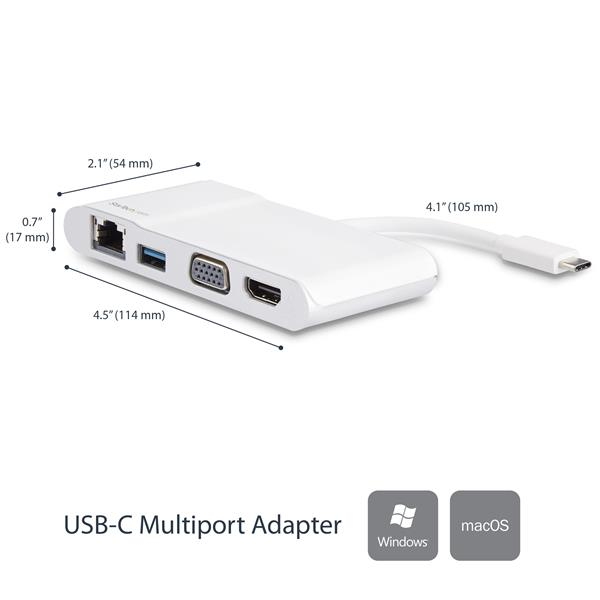

Weight & dimensions

Specification	Value
Width	54 mm
Depth	114 mm
Height	17 mm
Weight	72 g

Packaging data

Specification	Value
Package width	124 mm
Package depth	193 mm
Package height	32 mm
Package weight	152 g

Packaging content

Specification	Value
Manual	Yes

Technical details

Specification	Value
Compliance certificates	RoHS

Logistics data

Specification	Value
Master (outer) case height	304 mm
Master (outer) case length	411 mm
Master (outer) case width	276 mm
Products per master (outer) case	32 pc(s)

Other features

Specification	Value
Cable length	0.105 m
Chipset	Cypress - CYPD2122, Cypress - CYUSB3314, STMicroelectronics - STDP2650, Chrontel - CH7517, ASIX - AX88179
