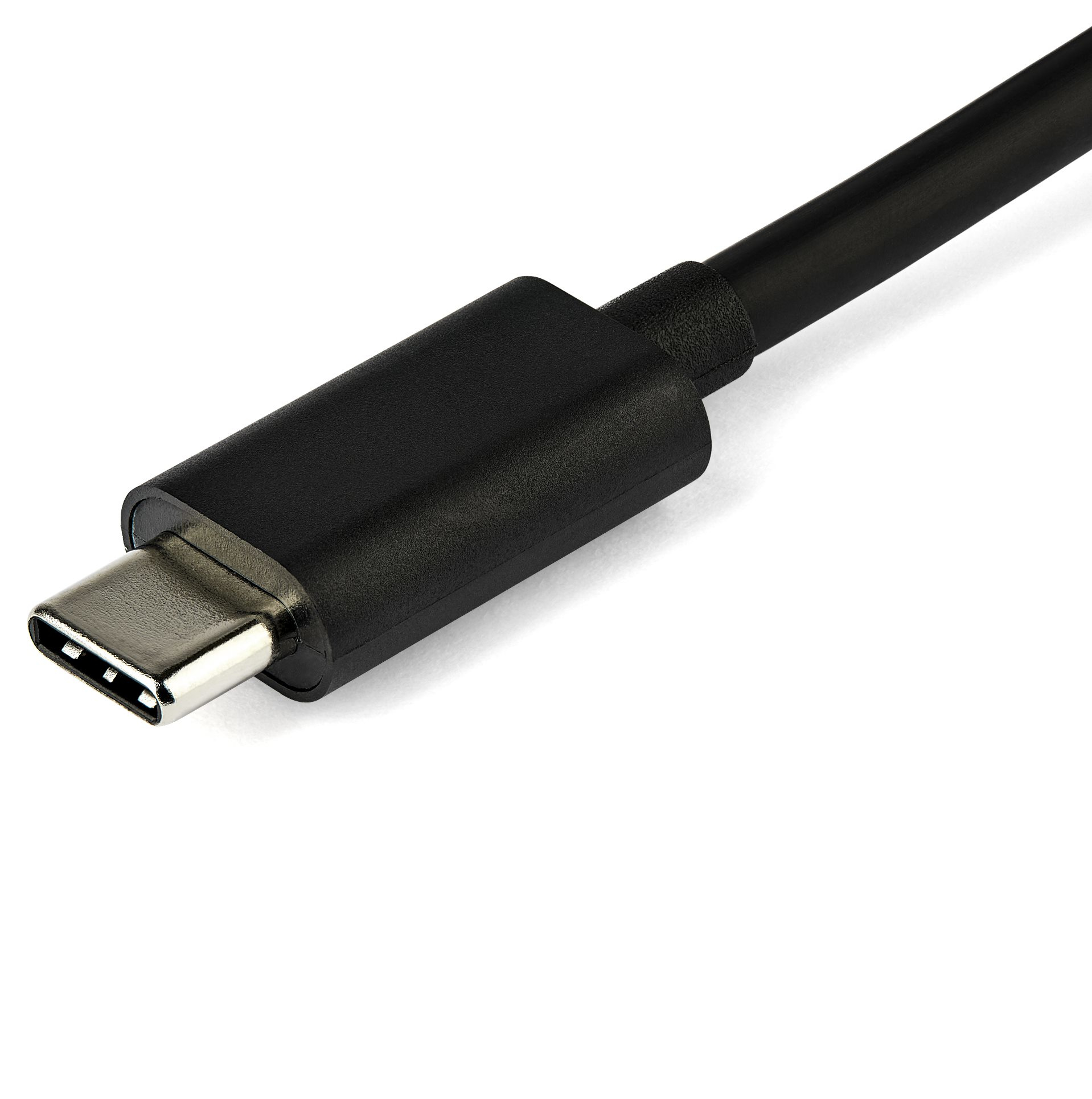

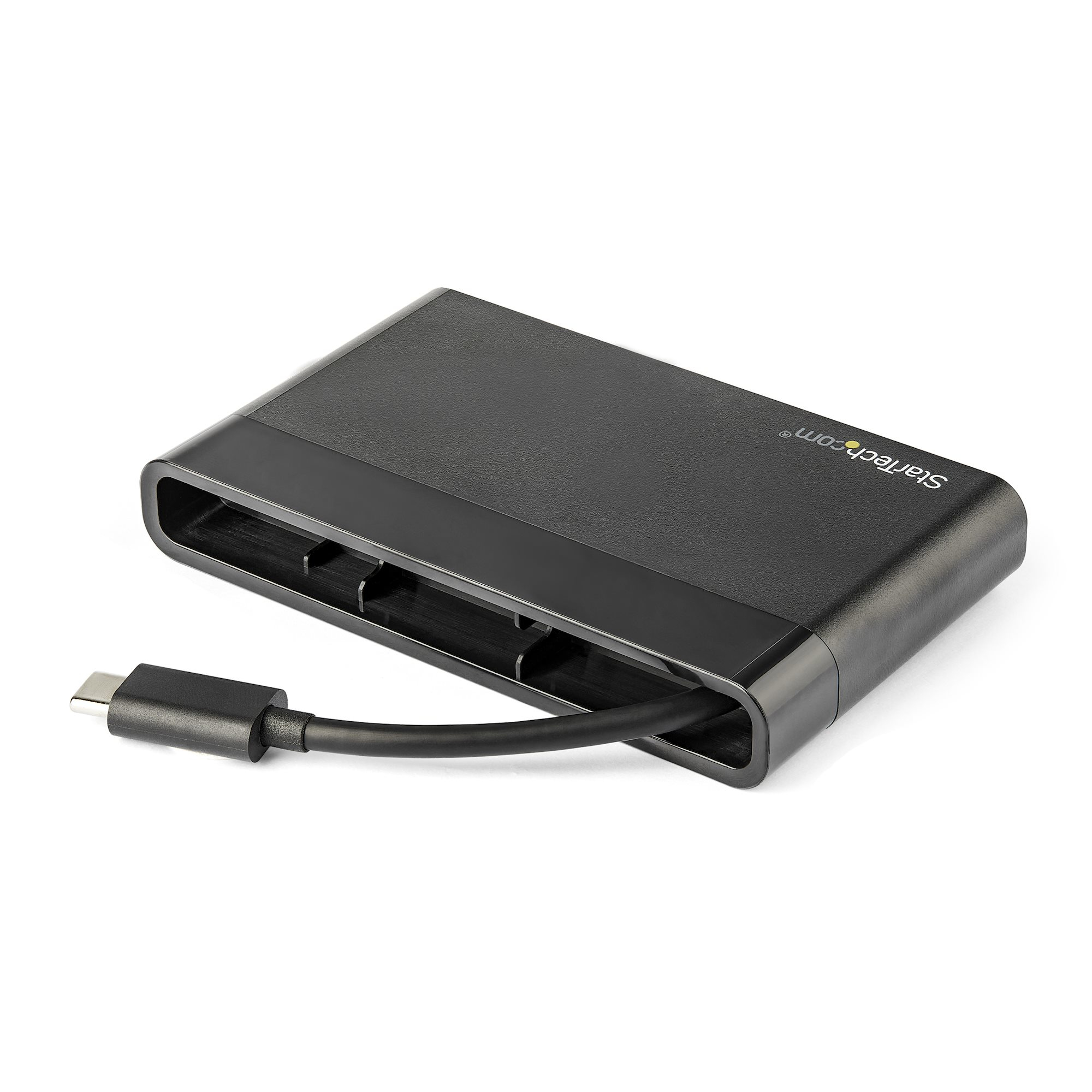

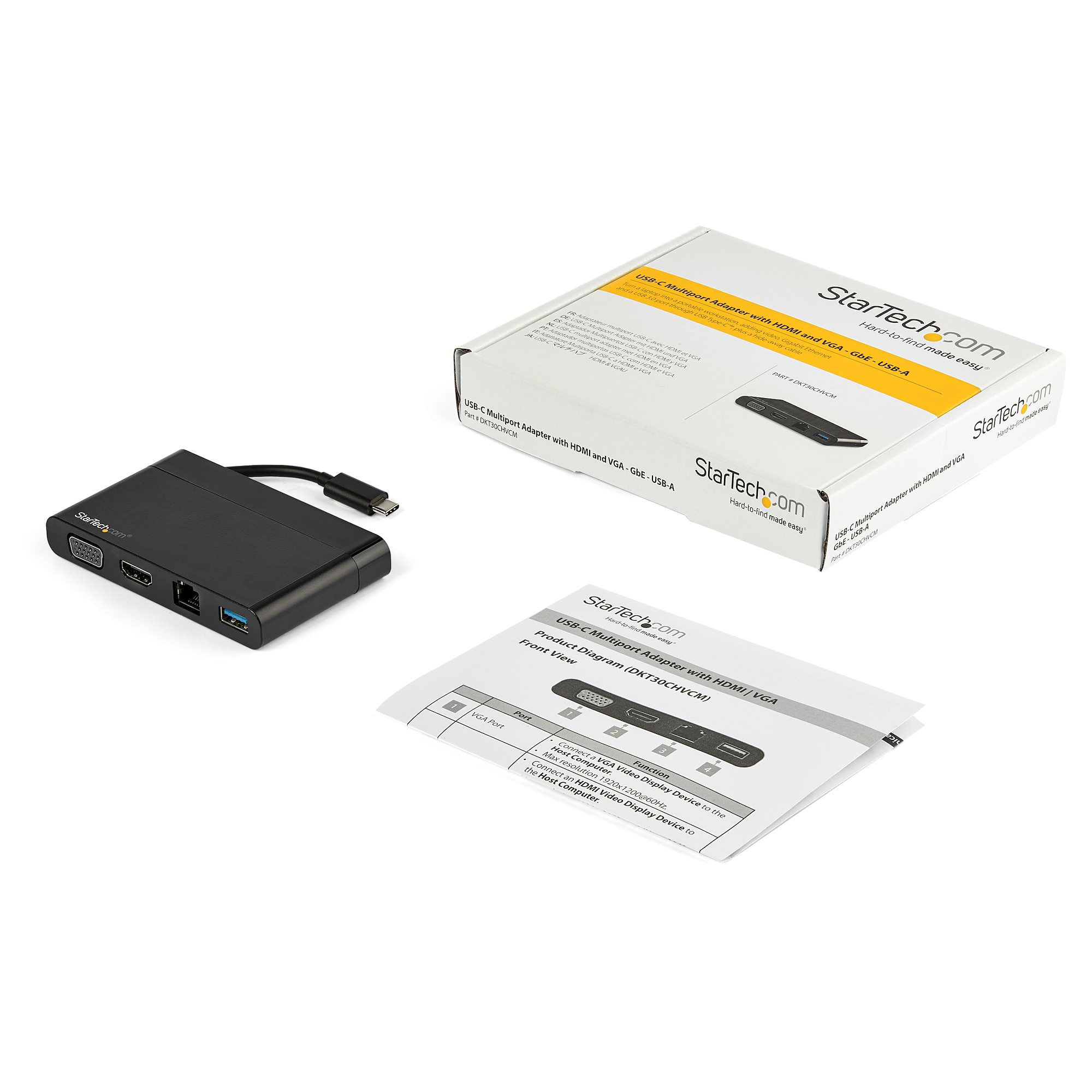

USB C Multiport Adapter with HDMI, VGA, Gigabit Ethernet & USB 3.0 - USB C to 4K HDMI or 1080p VGA Display Mini Dock Hub - USB Type-C Travel Dockin
Model DKT30CHVCMEAN 065030880152
49 specifications
- ConnectivityWired
- Weight82 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 82 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- DKT30CHVCM
- Part number
- DKT30CHVCM
- EAN / UPC
- 065030880152
- Also known as
- StarTech.com USB C Multiport Adapter with HDMI, VGA, Gigabit Ethernet & USB 3.0 - USB C to 4K HDMI or 1080p VGA Display Mini Dock Hub - USB Type-C Travel Dockin
Specifications
49 specifications in 12 groups

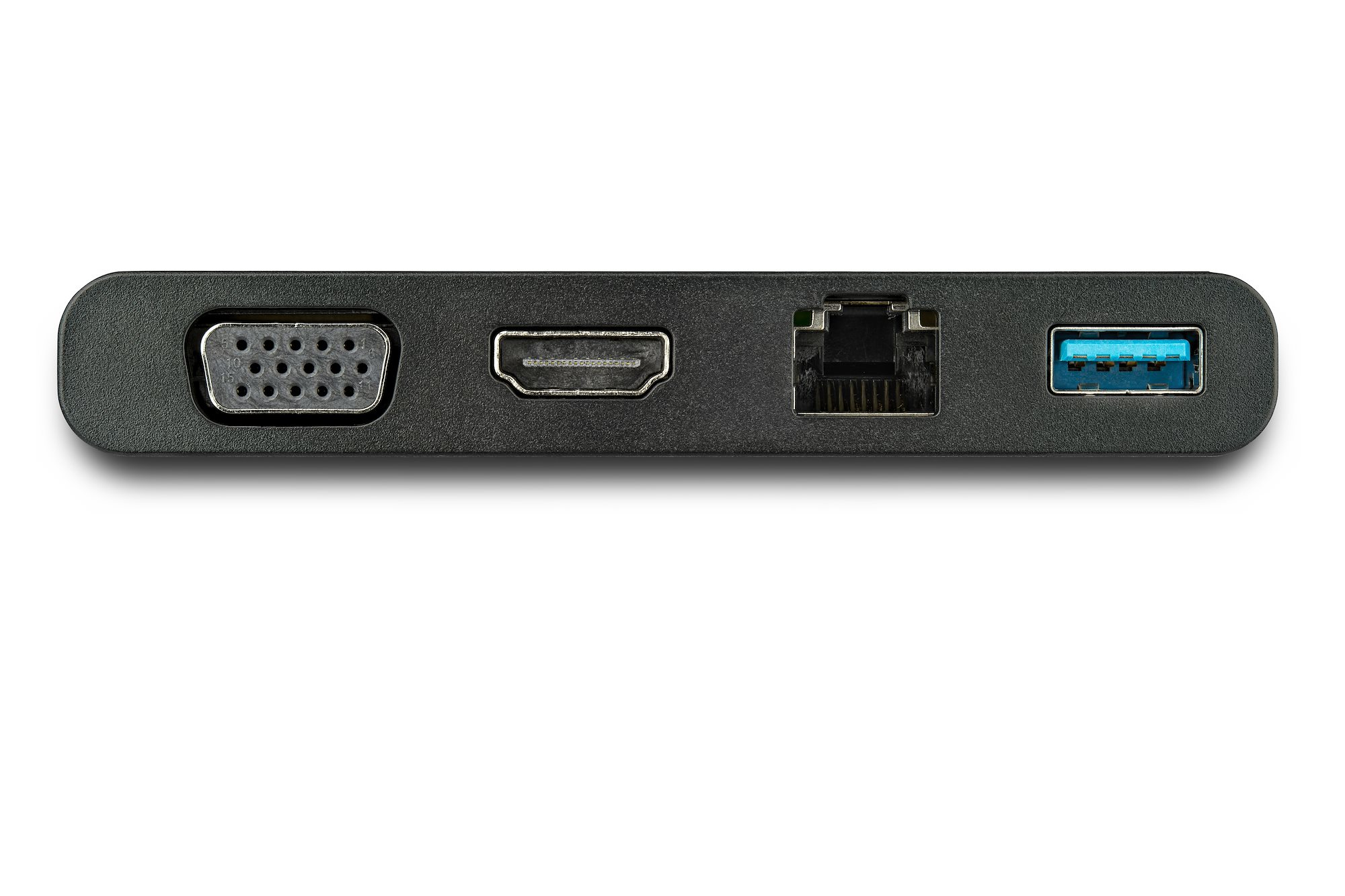

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
| USB connector type | USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Housing material | Plastic |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 105 mm |
| Height | 16 mm |
| Weight | 82 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 168 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 358 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 30 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.085 m |
| Chipset | Genesys Logic - GL3523, Realtek - RTL8153, Eton Technology - EJ899T, Parade Technologies - PS176, ITE - IT6516 |
