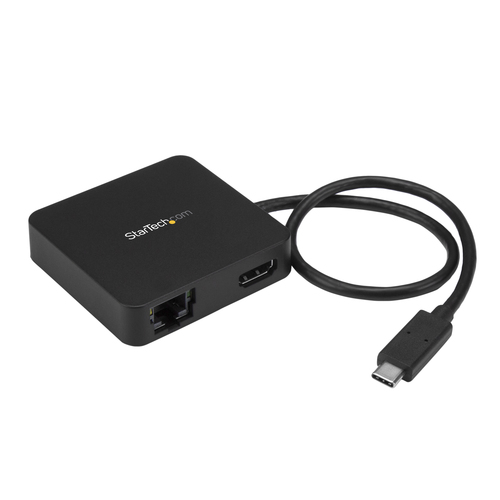

StarTech.com USB C Multiport Adapter… DKT30CHD Specs

Overview

Connectivity: Wired
Weight: 52 g
Colour: Black
Ethernet LAN: Yes
Power source type: USB
Operating temperature (T-T): 0 - 60 °C

Brand: StarTech.com
Category: Laptop Docks & Port Replicators
Model: DKT30CHD
Part number: DKT30CHD
EAN / UPC: 065030868266
Also known as: StarTech.com USB C Multiport Adapter - Portable USB-C Mini Dock 4K HDMI Video - Gigabit Ethernet, USB 3.0 Hub (1x USB-A 1x USB-C) - USB Type-C Multiport Adapter

Specifications

50 specifications in 12 groups

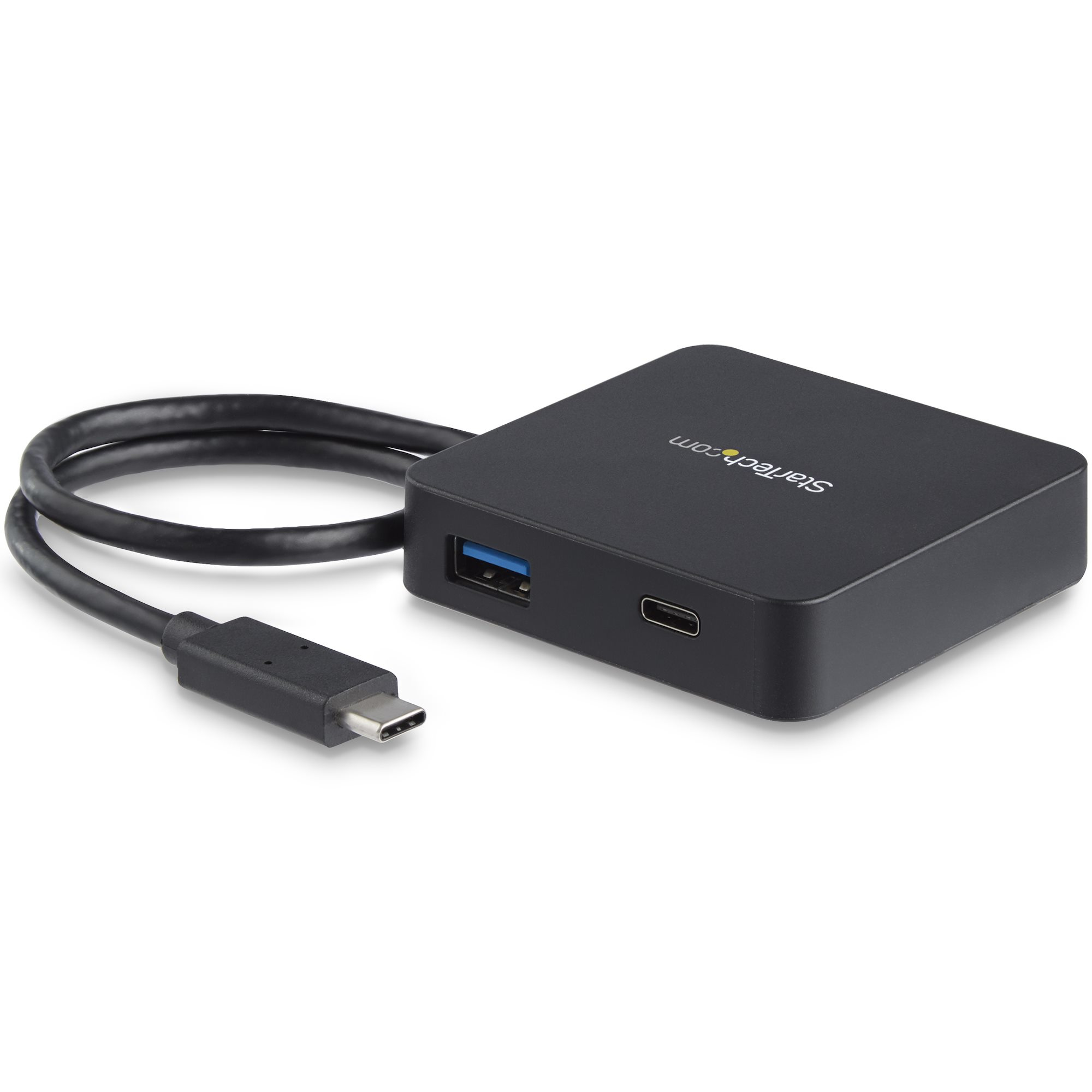

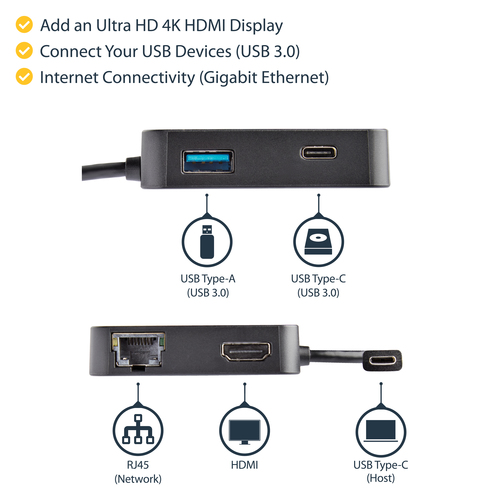

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
Microphone in	No
Headphone outputs	0
DC-in jack	No

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Specification	Value
Product colour	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	4096 x 2160 pixels
Housing material	Plastic
UASP support	Yes
Certification	CE, FCC, TAA, REACH

Power

Specification	Value
Power source type	USB
Wireless charging	No

Software

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 90%

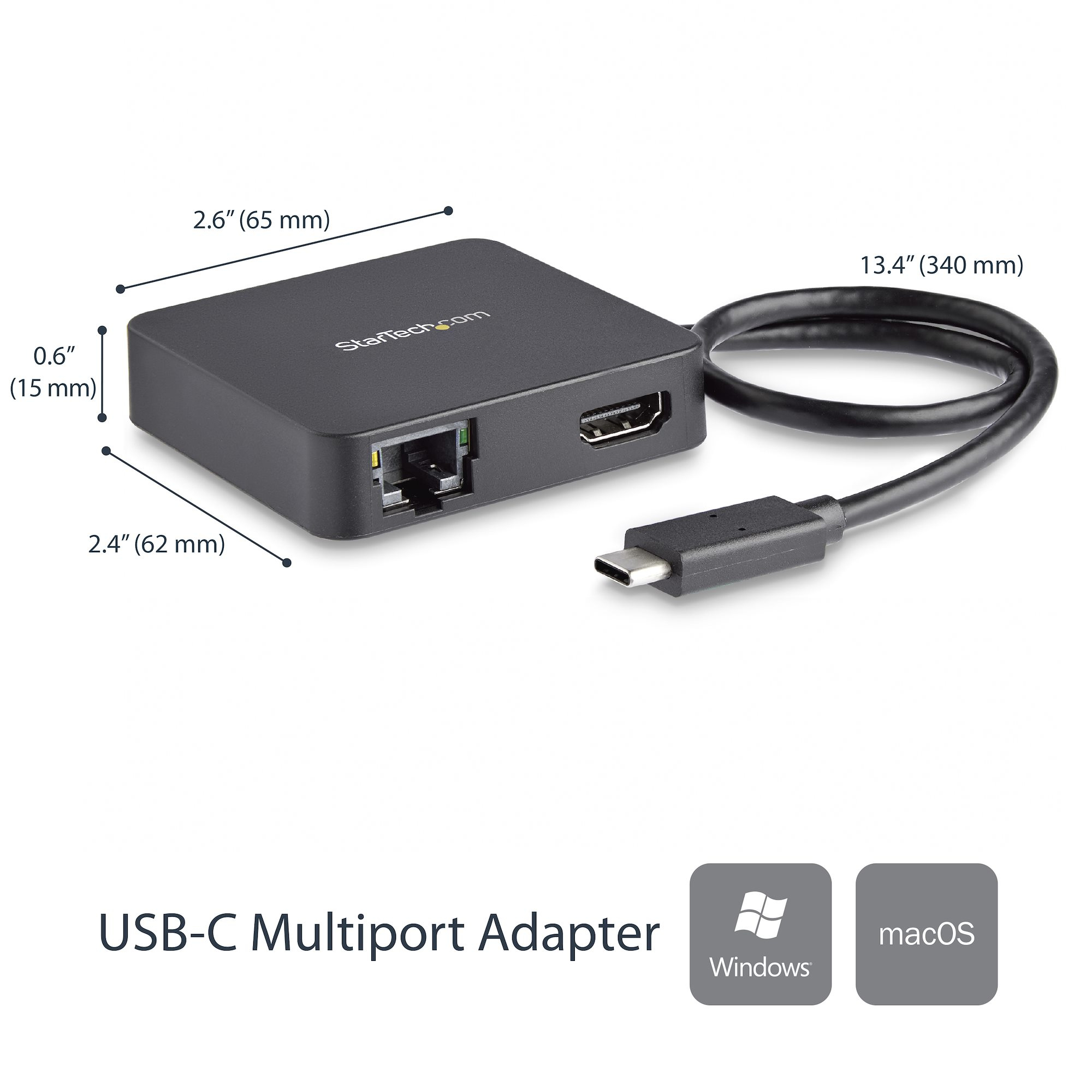

Weight & dimensions

Specification	Value
Width	62 mm
Depth	65 mm
Height	15 mm
Weight	52 g

Packaging data

Specification	Value
Package width	145 mm
Package depth	210 mm
Package height	40 mm
Package weight	200 g

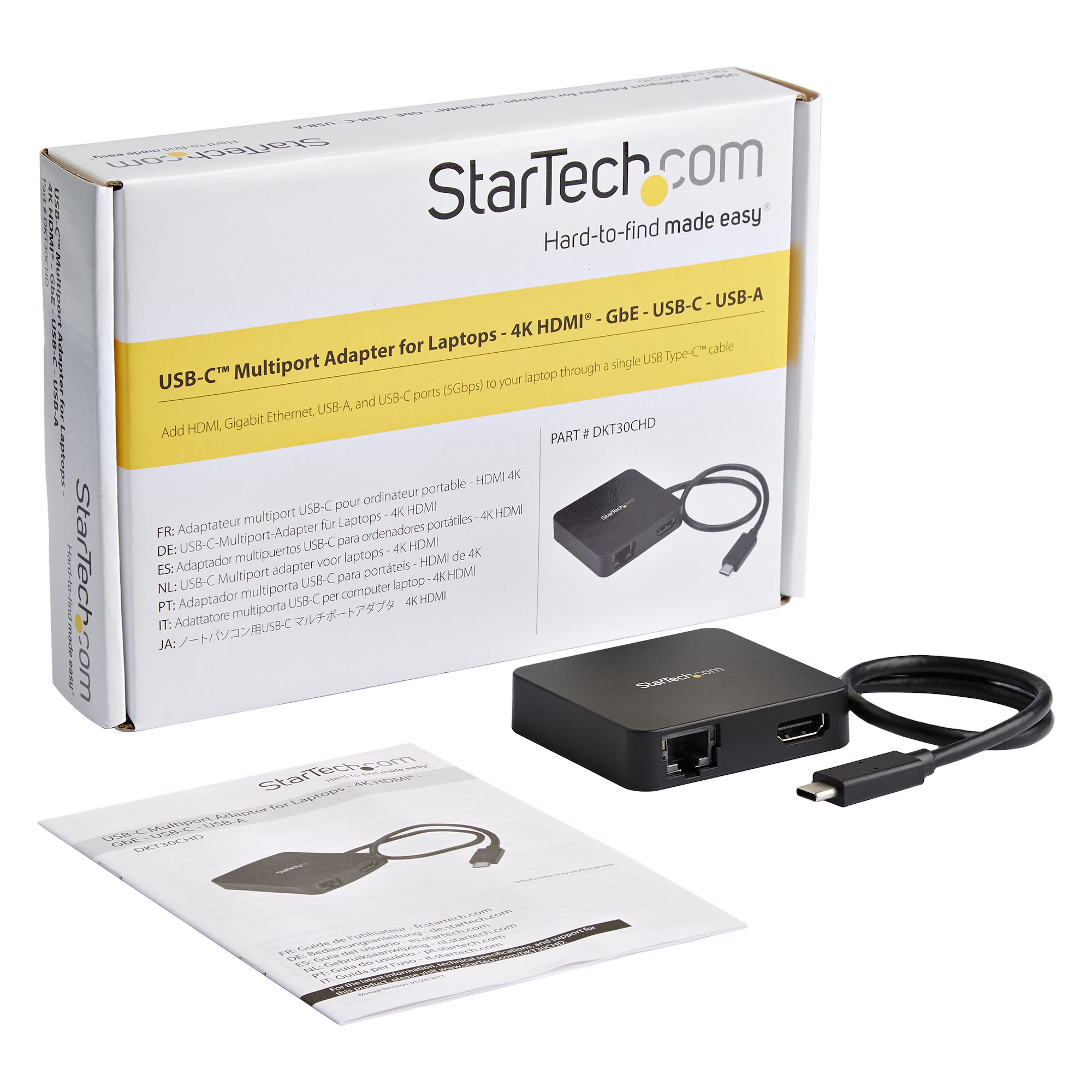

Packaging content

Specification	Value
Quick start guide	Yes

Technical details

Specification	Value
Compliance certificates	RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	84733020
Master (outer) case height	324 mm
Master (outer) case length	420 mm
Master (outer) case width	255 mm
Products per master (outer) case	20 pc(s)

Other features

Specification	Value
Cable length	0.34 m
Chipset	Genesys Logic - GL3523, Realtek - RTL8153, Parade - PS176
