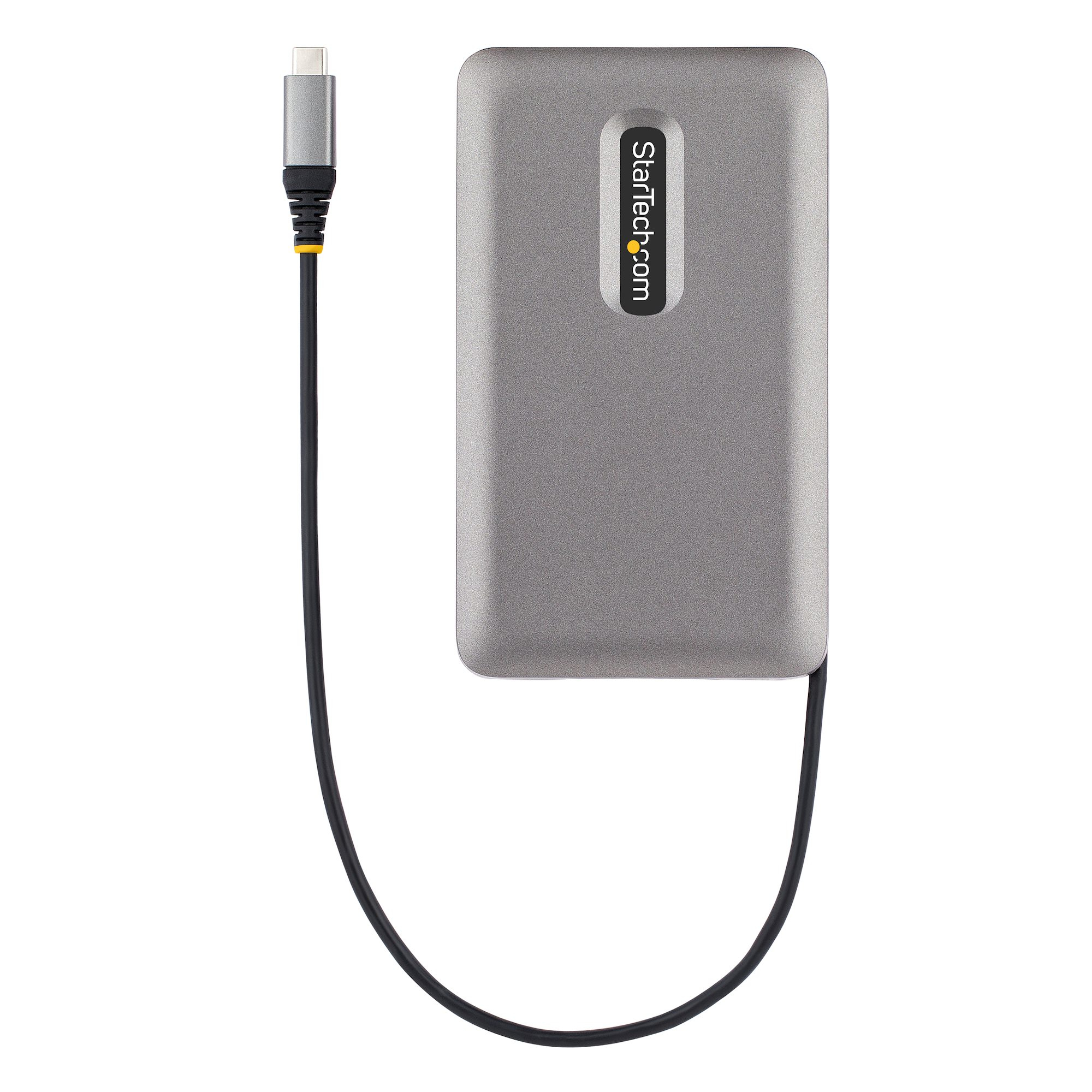

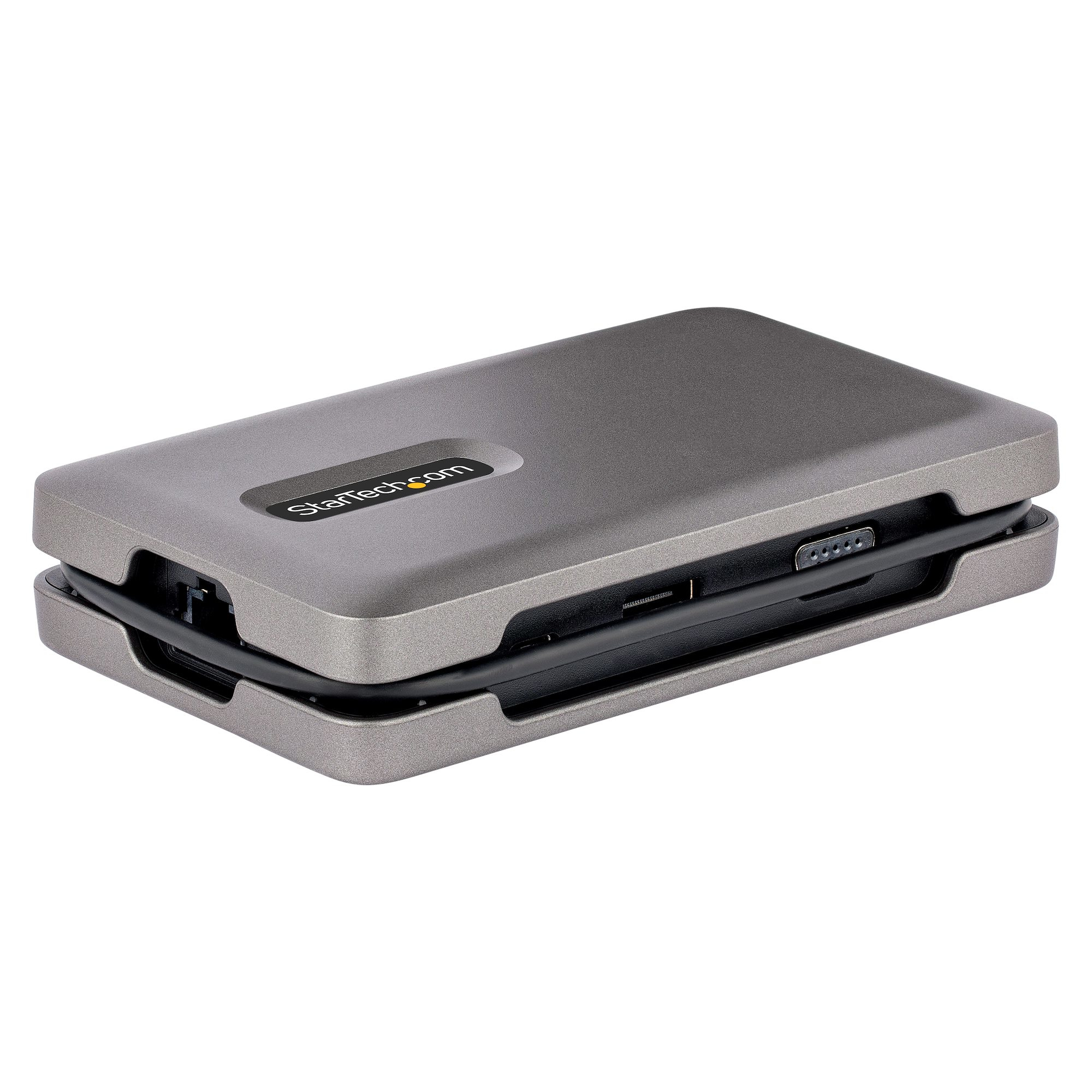

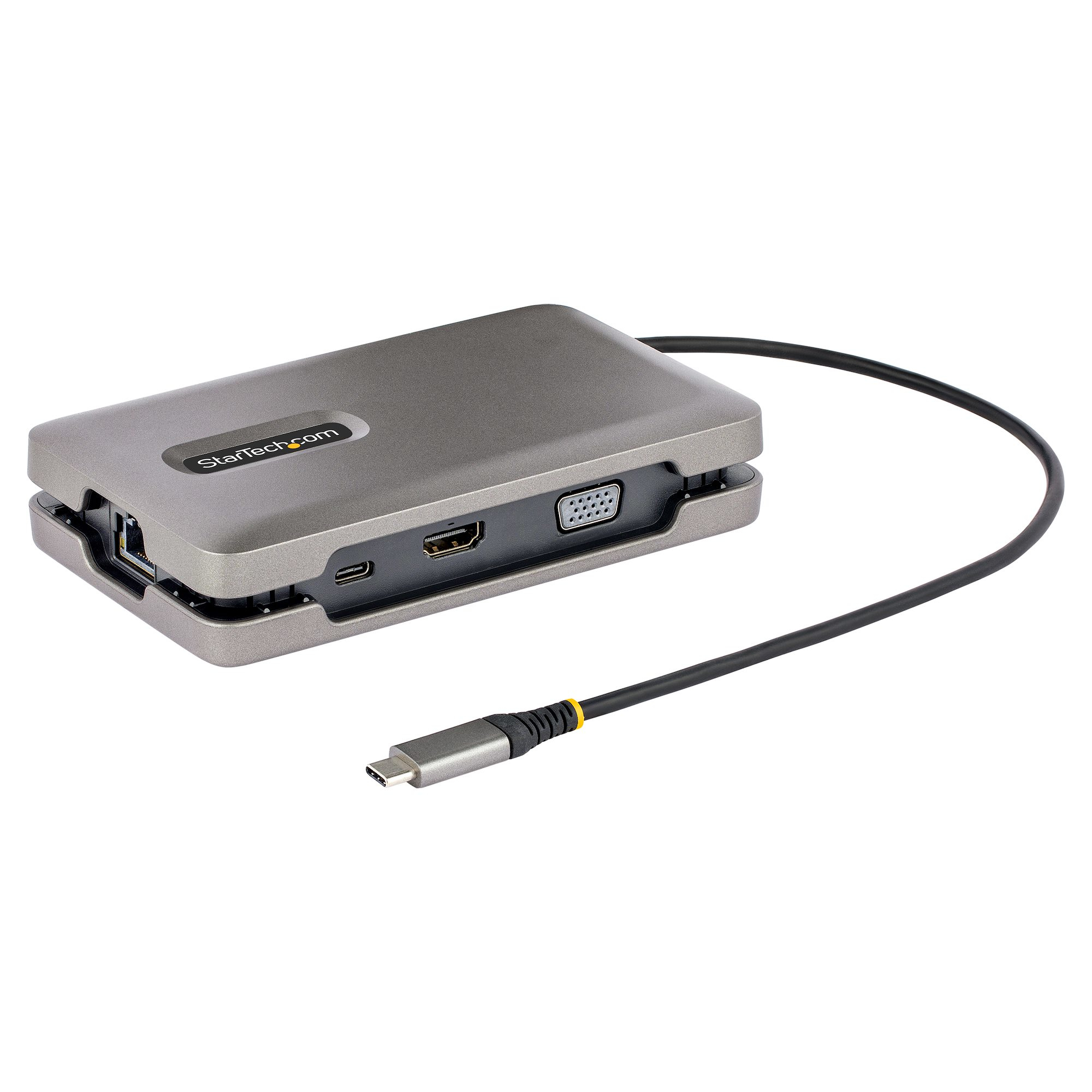

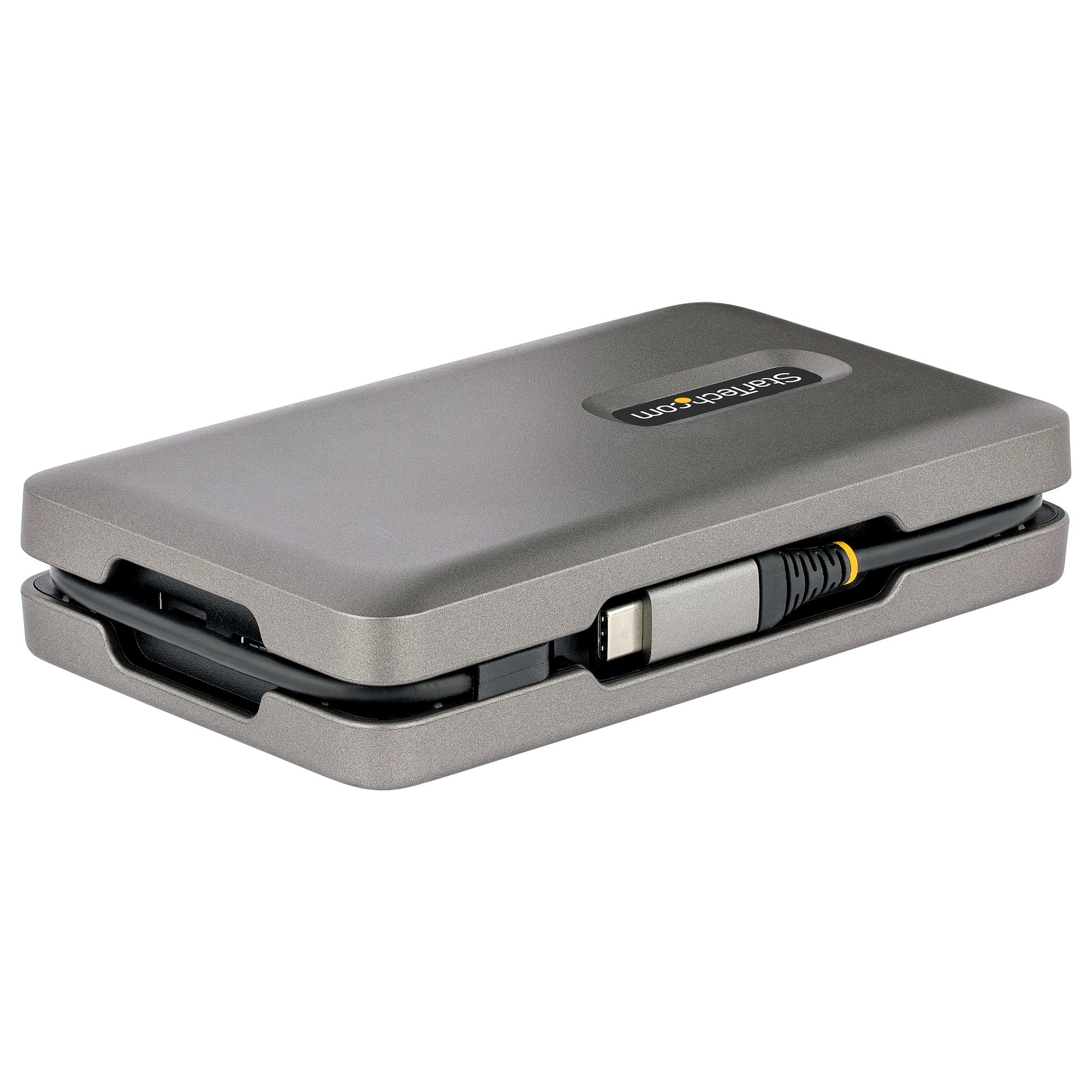

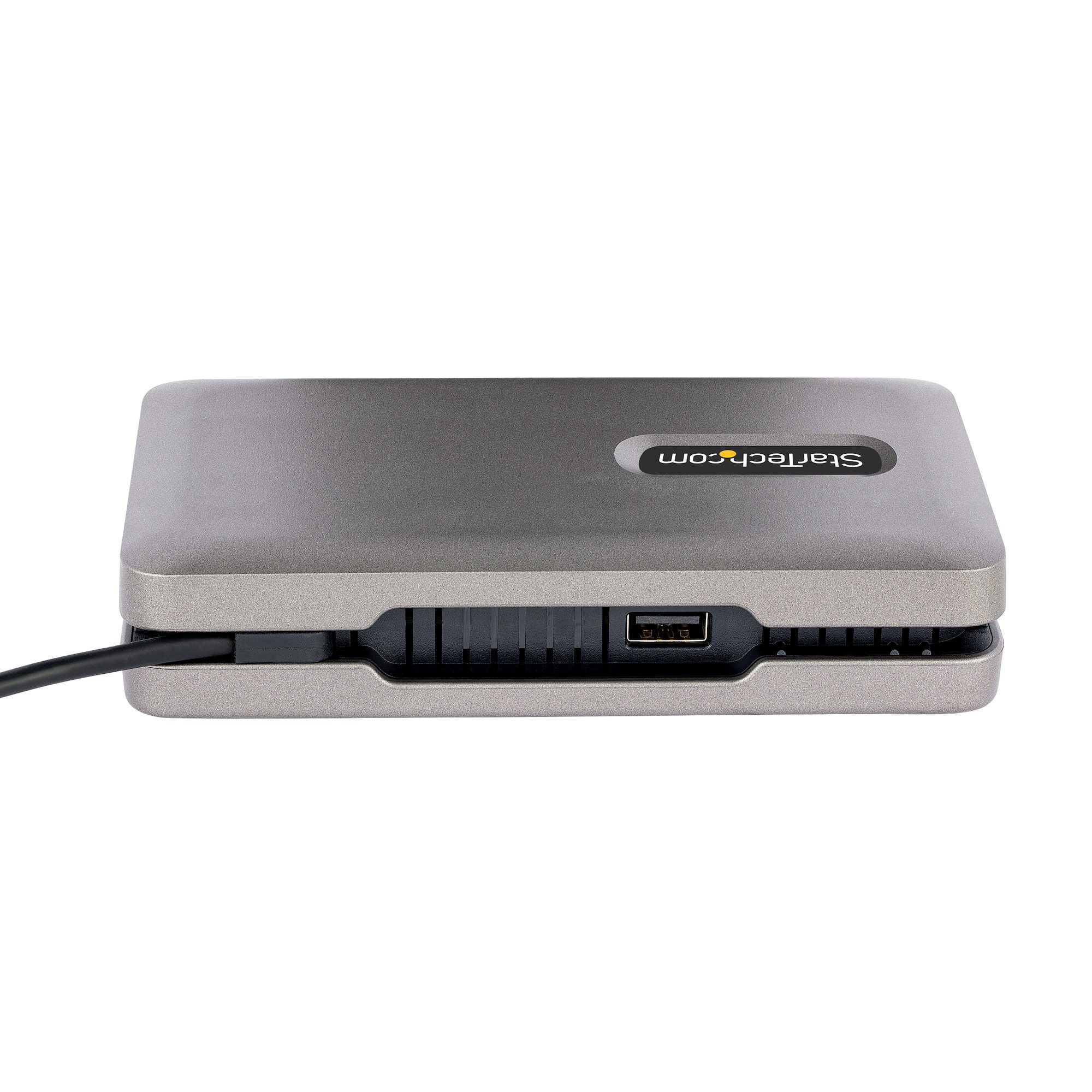

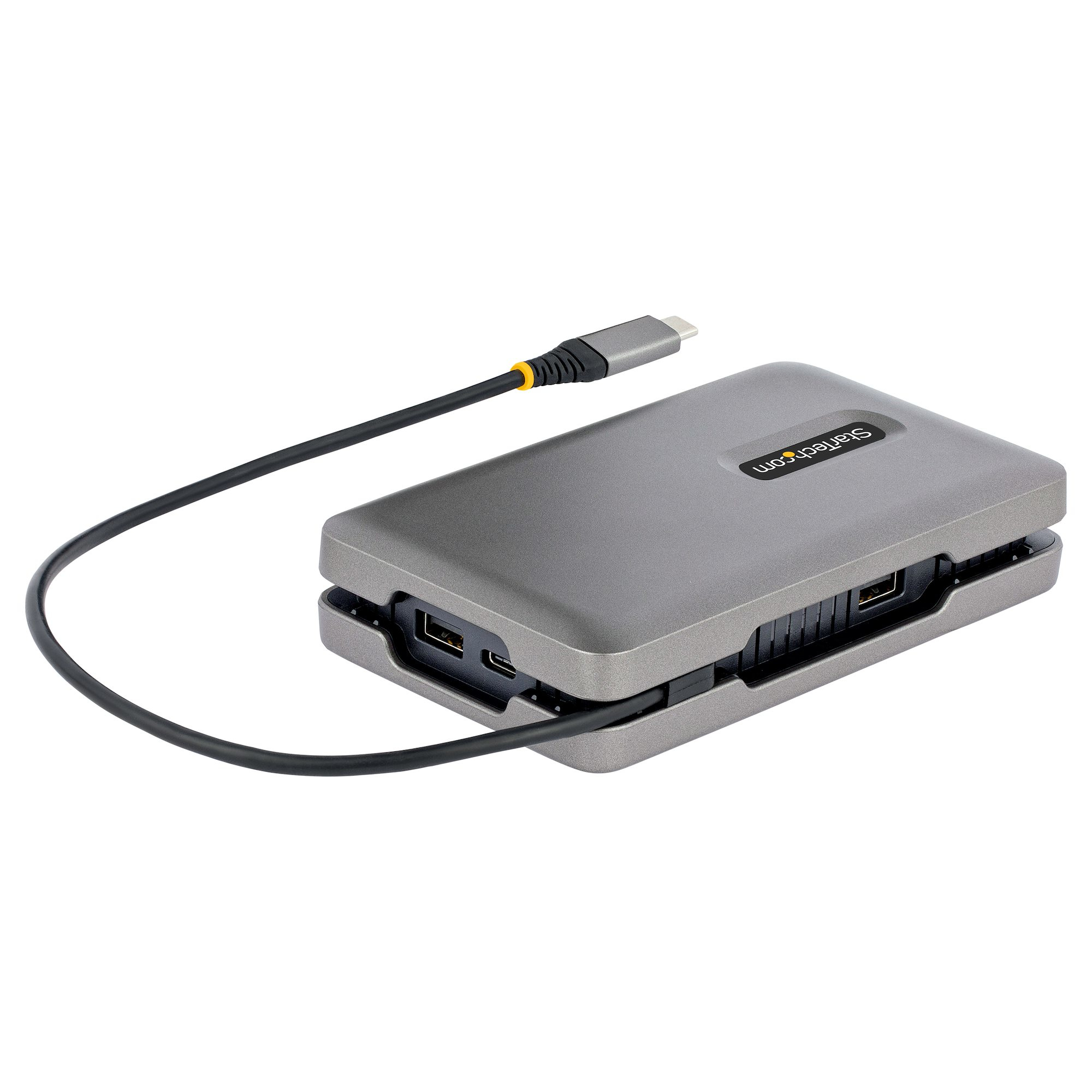

StarTech.com USB-C Dual Monitor Multiport Adapter up to 4K
StarTech.com

USB-C Dual Monitor Multiport Adapter up to 4K

60Hz USB-C DP Alt Mode Video Output & HDMI 2.0, or 1080p VGA, 100W PD Pass-Through, USB Type C Mini D

Model DKM31C3HVCPDEAN 065030887014

55 specifications
  • ConnectivityWired
  • Weight170 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeUSB
  • Other operating systems supportedChromeOS
See all specifications

Overview

Connectivity
Wired
Weight
170 g
Colour
Grey
Ethernet LAN
Yes
Power source type
USB
Other operating systems supported
ChromeOS
Brand
StarTech.com
Model
DKM31C3HVCPD
Part number
DKM31C3HVCPD
EAN / UPC
065030887014
Also known as
StarTech.com USB-C Dual Monitor Multiport Adapter up to 4K 60Hz USB-C DP Alt Mode Video Output & HDMI 2.0, or 1080p VGA, 100W PD Pass-Through, USB Type C Mini D

Specifications

55 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1

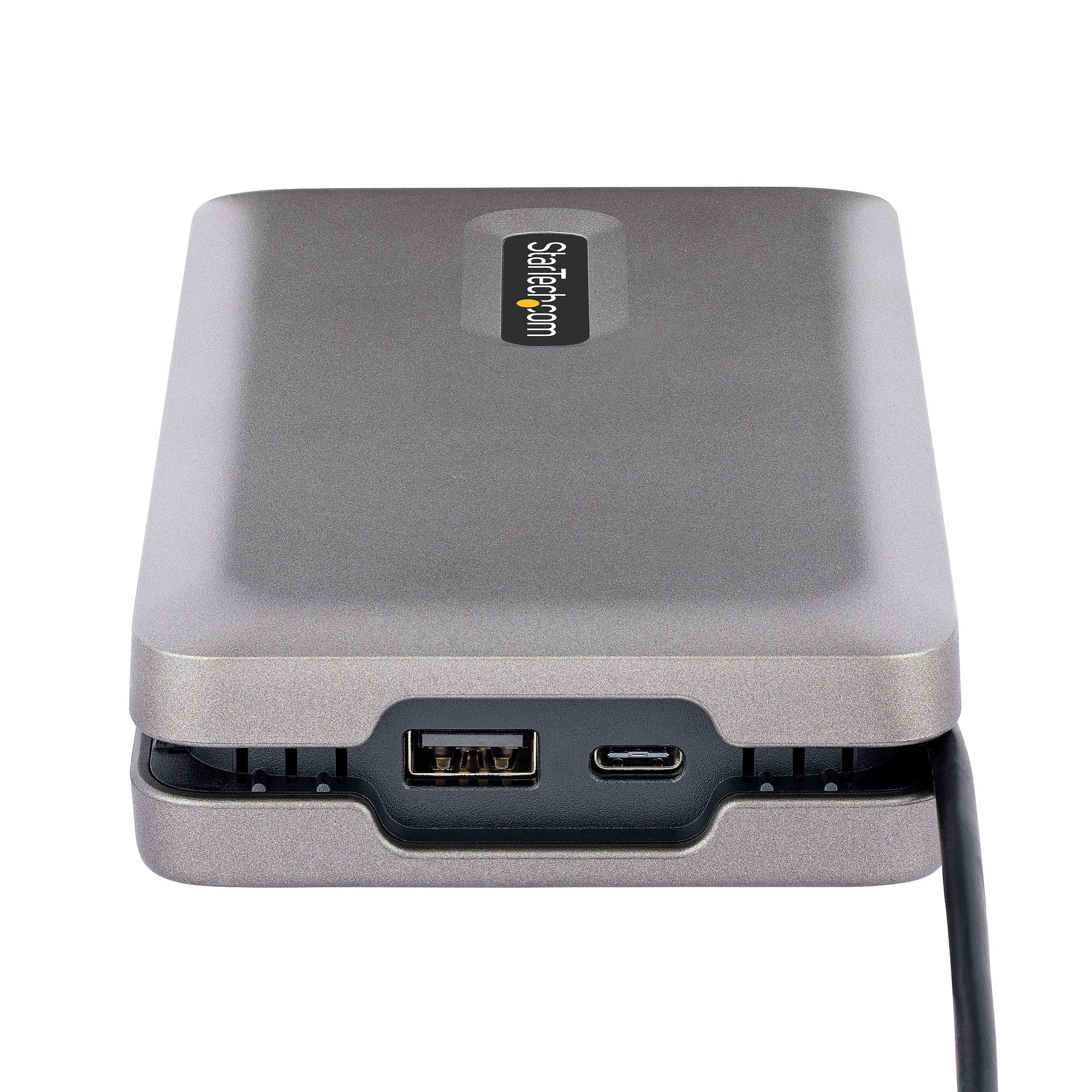

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W

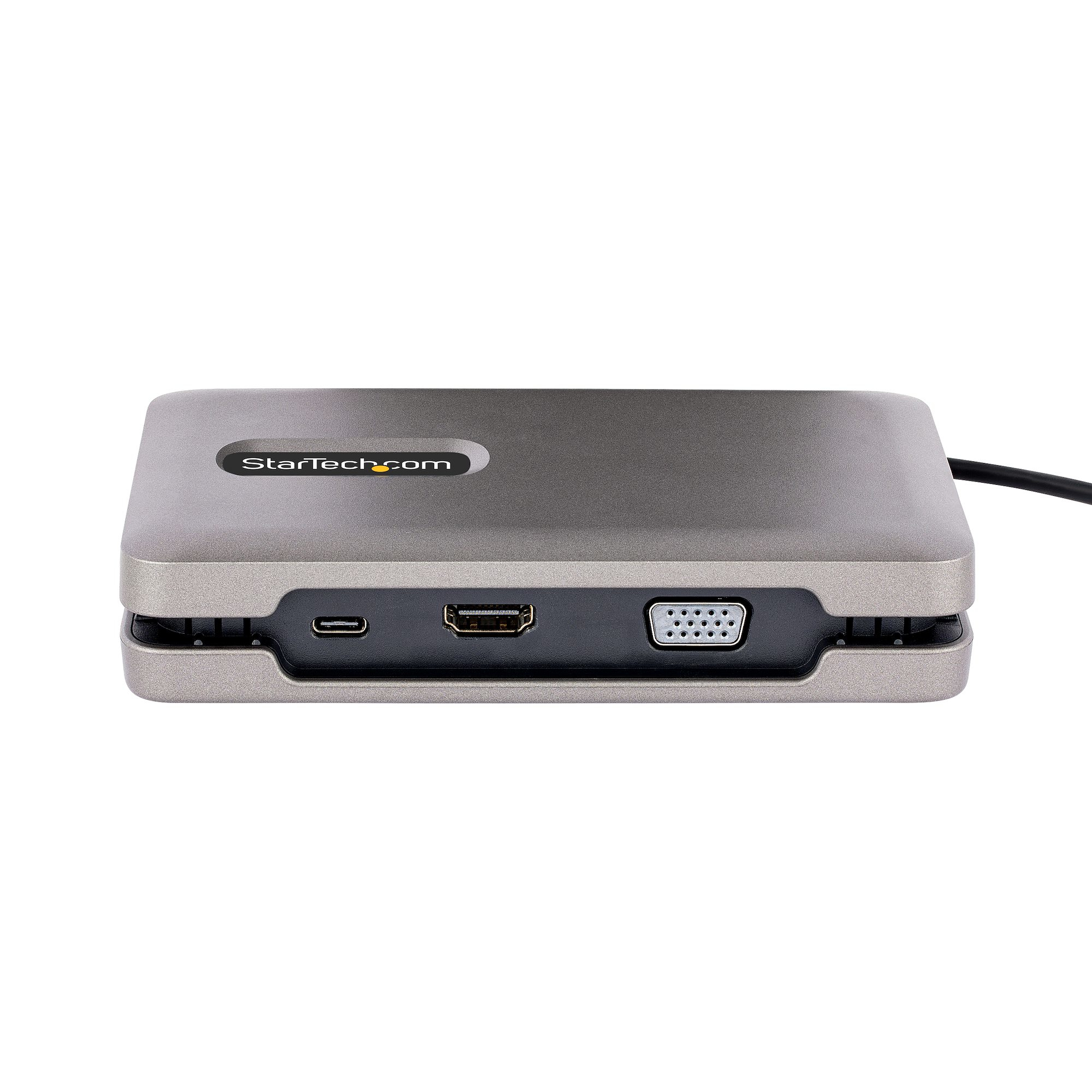

HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
Microphone inNo
Headphone outputs0
DC-in jackNo
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes

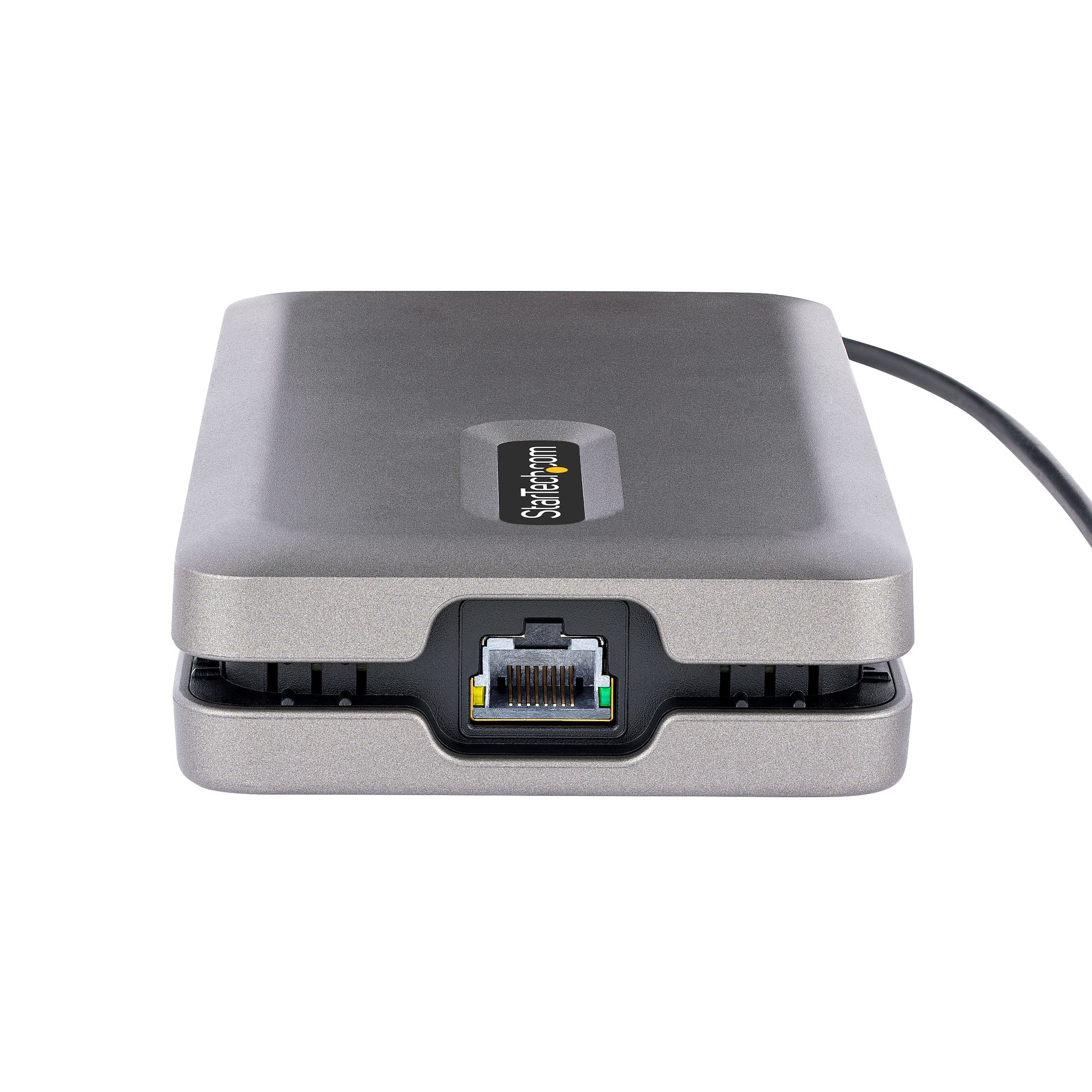

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum analog resolution1920 x 1200 pixels
Maximum refresh rate60 Hz
LED indicatorsActivity, Link
UASP supportYes
High Dynamic Range 10 (HDR10)Yes

Power

Power source typeUSB
Power consumption (typical)12 W
Wireless chargingNo

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width83 mm
Depth144 mm
Height28 mm
Weight170 g

Packaging data

Package width144 mm
Package depth207 mm
Package height38 mm
Package weight160 g

Packaging content

Quick start guideYes

Technical details

Compliance certificatesCE, RoHS

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height330 mm
Master (outer) case length230 mm
Master (outer) case width425 mm
Products per master (outer) case20 pc(s)

Other features

Cable length0.25 m
ChipsetGenesys Logic - GL3590, Genesys Logic - GL9510-UFP, Genesys Logic - GL9510-DFP, Realtek - RTD2142, Realtek - RTL8153
