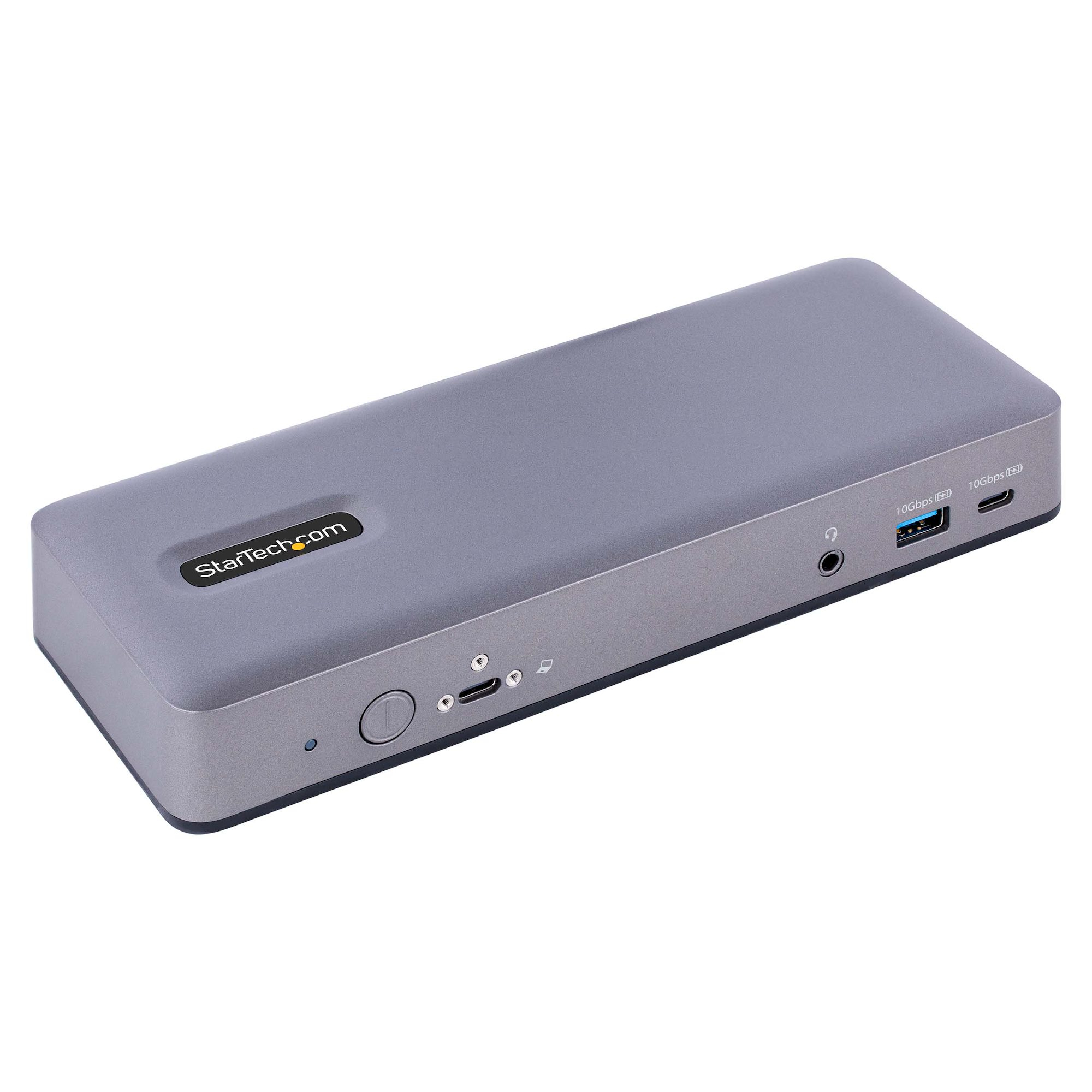

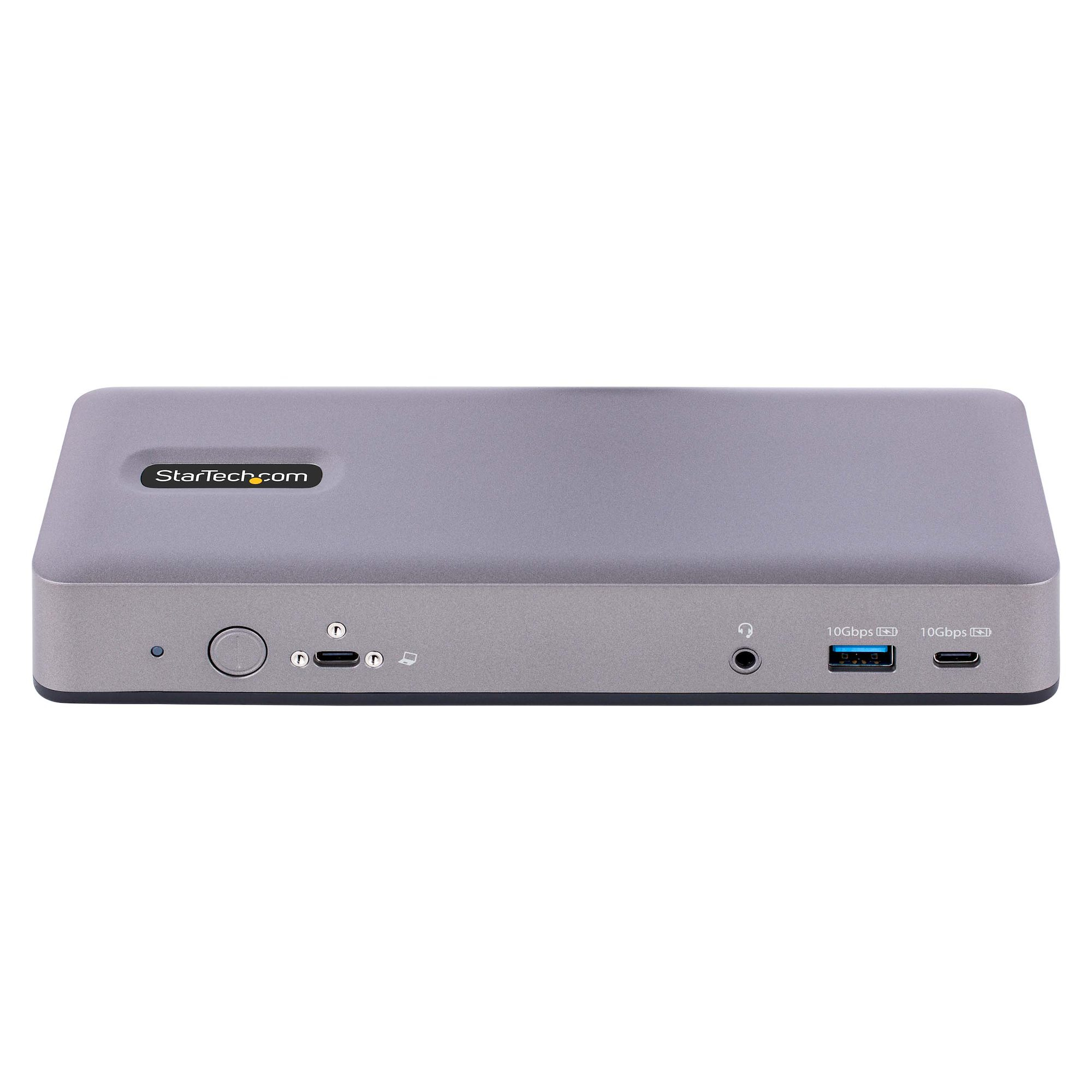

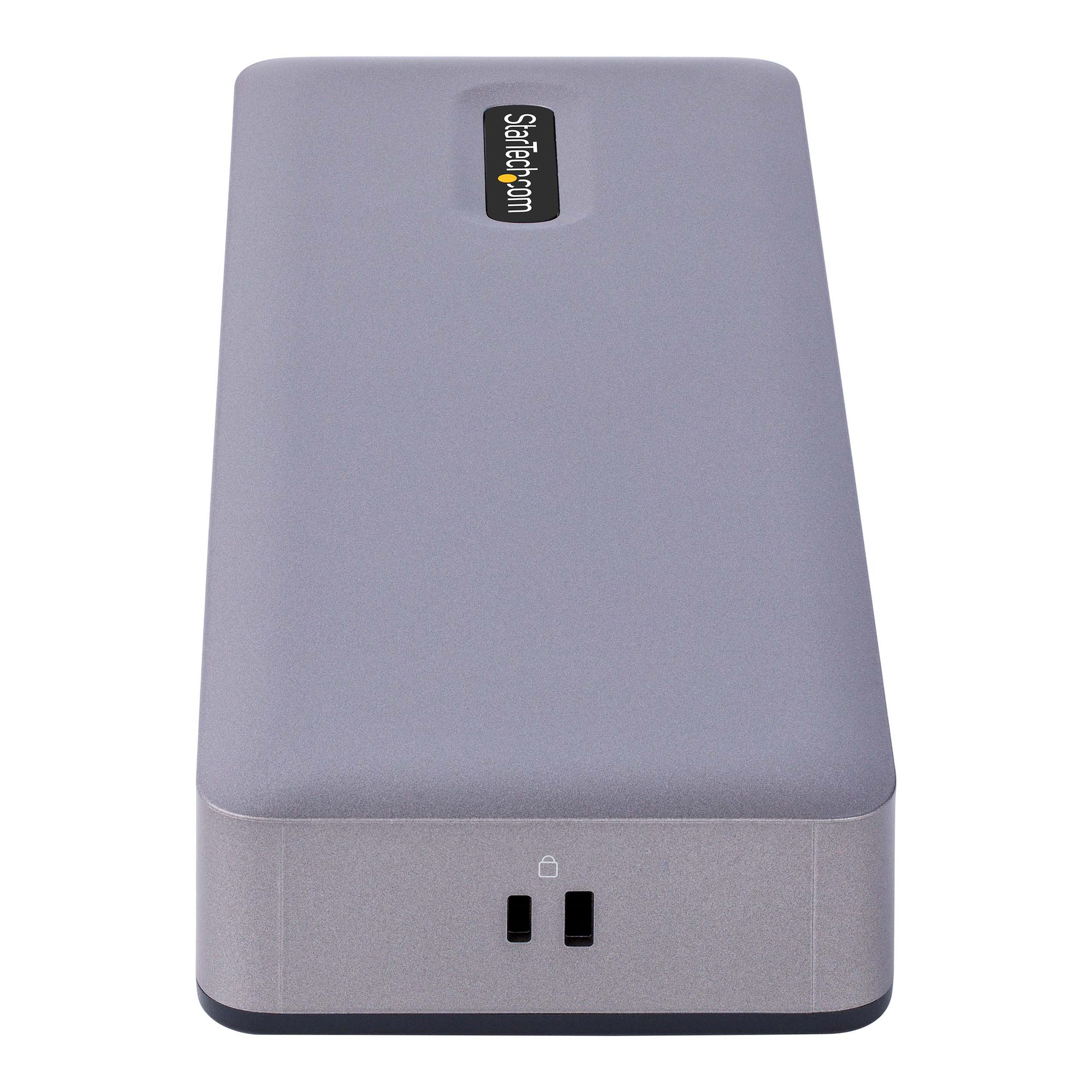

StarTech.com USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock
StarTech.com

USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock

3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio

Model DK31C3MNCRUEEAN 065030898133

55 specifications
  • ConnectivityWired
  • Ethernet LANYes
  • Card reader integratedNo
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)0 - 40 °C
  • Width80 mm
See all specifications

Overview

Connectivity
Wired
Ethernet LAN
Yes
Card reader integrated
No
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 40 °C
Width
80 mm
Brand
StarTech.com
Model
DK31C3MNCRUE
Part number
DK31C3MNCRUE
EAN / UPC
065030898133
Also known as
StarTech.com USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock - 3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio

Specifications

55 specifications in 12 groups

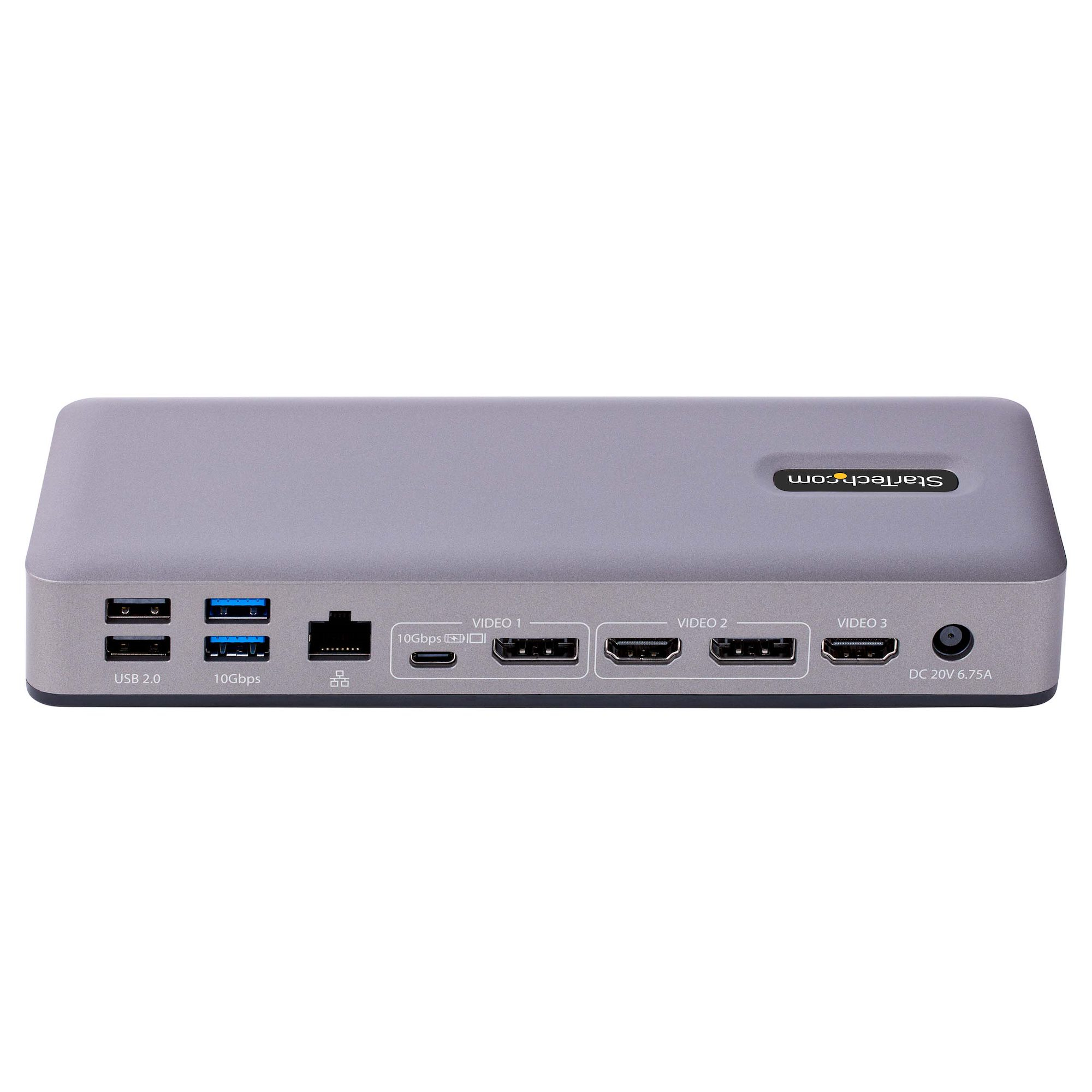

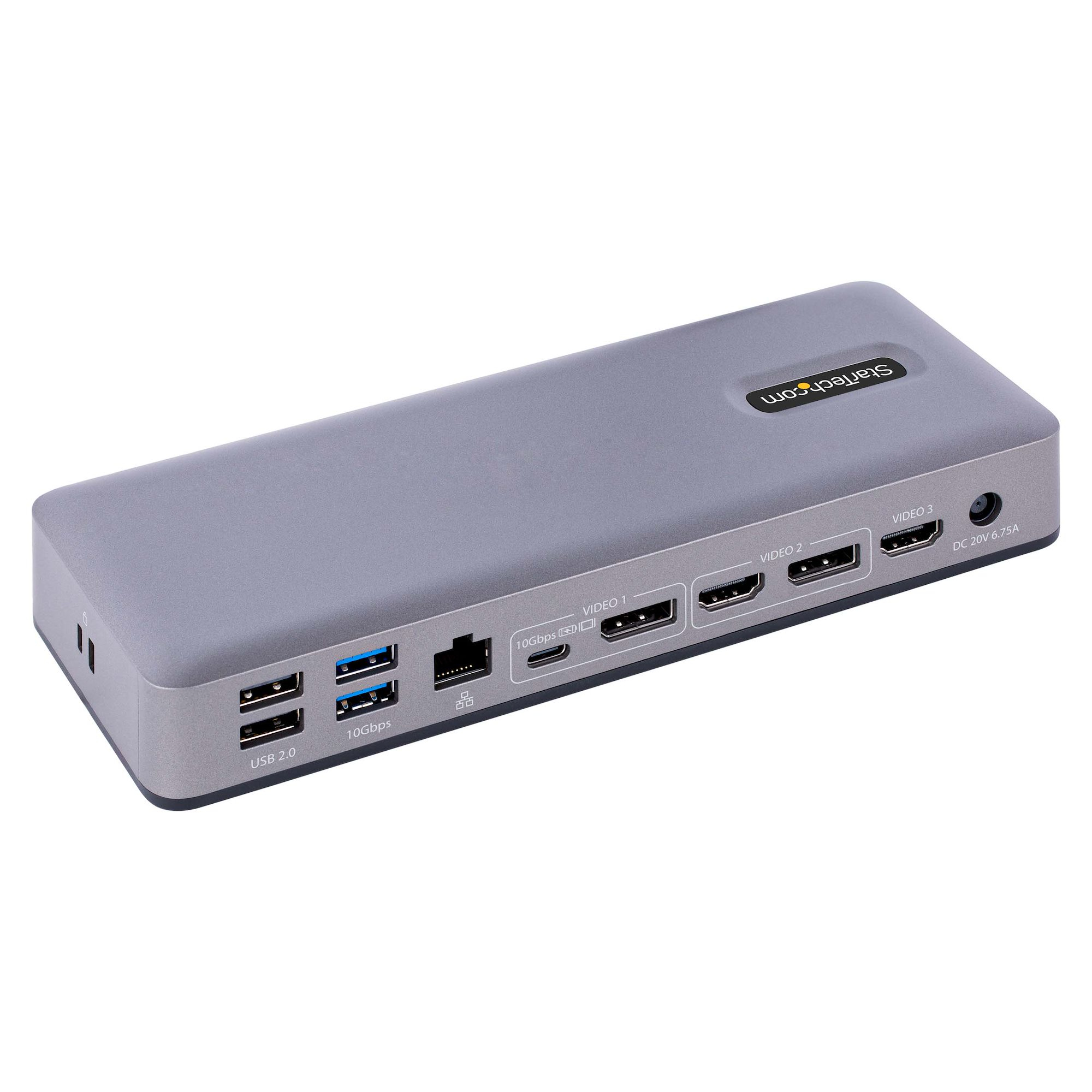

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to60 W
HDMI ports quantity2
HDMI version2.0b
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Card reader integratedNo
Data transfer rate10 Gbit/s
HD type5K Ultra HD
Maximum digital resolution5120 x 2880 pixels
Maximum refresh rate60 Hz

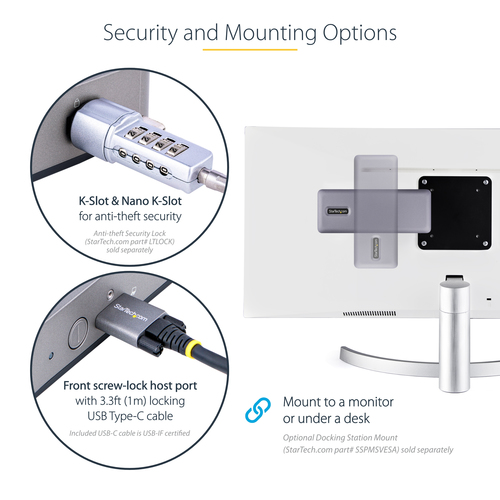

Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsNetwork, Power

Power

AC input voltage100 - 240 V
Input current2.37 A
Output current6.75 A
Output voltage20 V
Power consumption (typical)135 W
Compatible power plug typesEU, UK
Wireless chargingNo

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%

Sustainability

Sustainability complianceYes

Weight & dimensions

Width80 mm
Depth210 mm
Height32 mm

Packaging data

Package width147 mm
Package depth297 mm
Package height90 mm

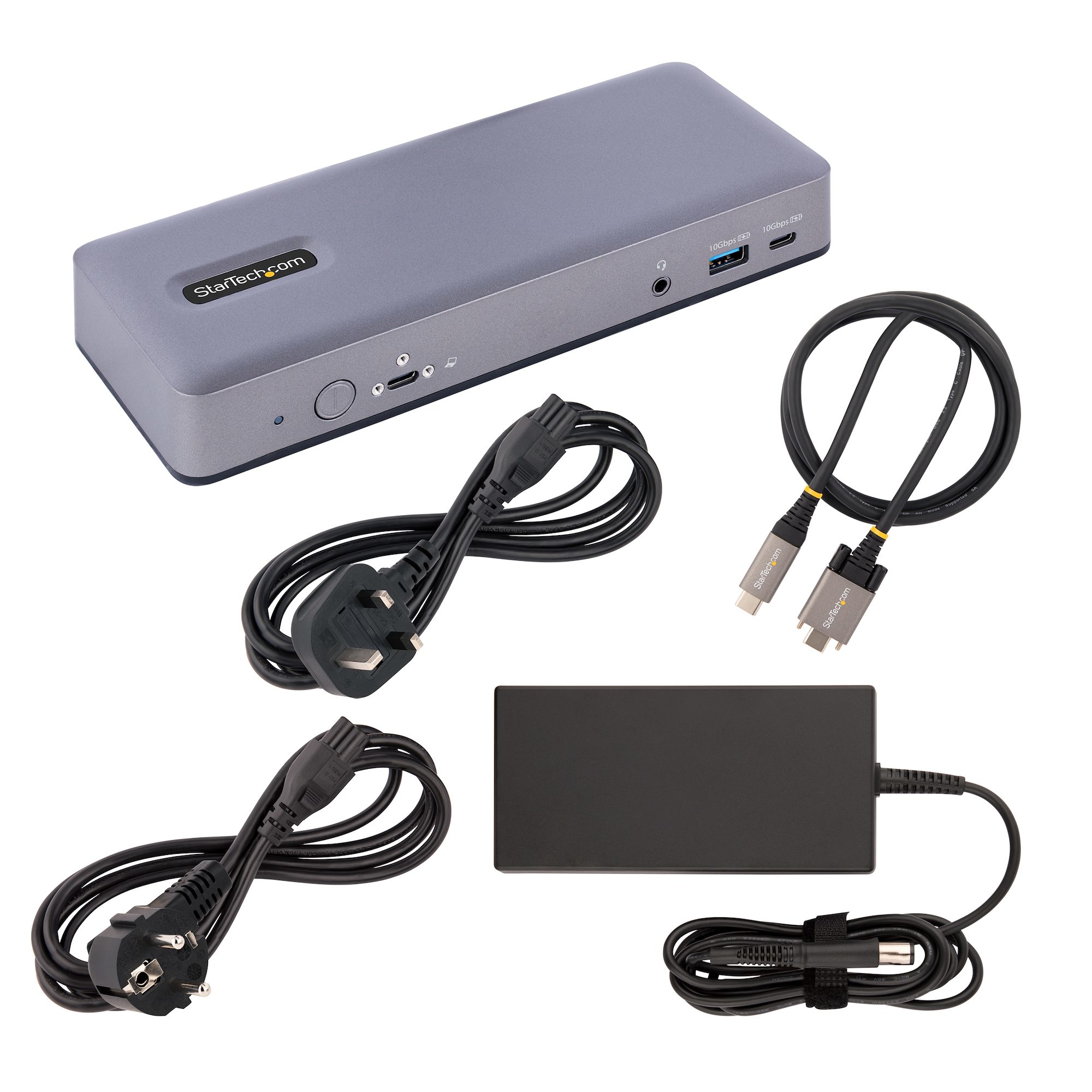

Packaging content

AC adapter includedYes
Cables includedUSB Type-C to USB Type-C
Quick start guideYes

Technical details

Compliance certificatesCE, RoHS

Logistics data

Master (outer) case height314 mm
Master (outer) case length480 mm
Master (outer) case width310 mm
Products per master (outer) case10 pc(s)

Other features

ChipsetSynaptics - VMM5320, Realtek -RTS5420, Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822 Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B
