StarTech.com USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock
StarTech.com

USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock

3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio

Model DK31C3MNCREAN 065030891967

59 specifications
  • ConnectivityWired
  • ColourGrey
  • Ethernet LANYes
  • Power source typeDC
  • Other operating systems supportedChromeOS
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Colour
Grey
Ethernet LAN
Yes
Power source type
DC
Other operating systems supported
ChromeOS
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
DK31C3MNCR
Part number
DK31C3MNCR
EAN / UPC
065030891967
Also known as
StarTech.com USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock - 3x 4K30 / 2x 4K60 - 7-Port USB Hub - 60W Power Delivery - GbE - 3.5mm Audio

Specifications

59 specifications in 13 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to60 W
HDMI ports quantity2
HDMI version2.0b
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate10 Gbit/s
HD type5K Ultra HD
Maximum digital resolution5120 x 2880 pixels
Maximum refresh rate60 Hz
Number of displays supported3
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsActivity, Power

Power

Power source typeDC
AC input voltage100 - 240 V
Input current2.37 A
Output current6.75 A
Output voltage20 V
Power consumption (typical)135 W
Compatible power plug typesJP, US

Software

Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%

Sustainability

Sustainability complianceYes

Weight & dimensions

Width80 mm
Depth210 mm
Height32 mm

Packaging data

Package width150 mm
Package depth300 mm
Package height94 mm
Package weight253 g

Packaging content

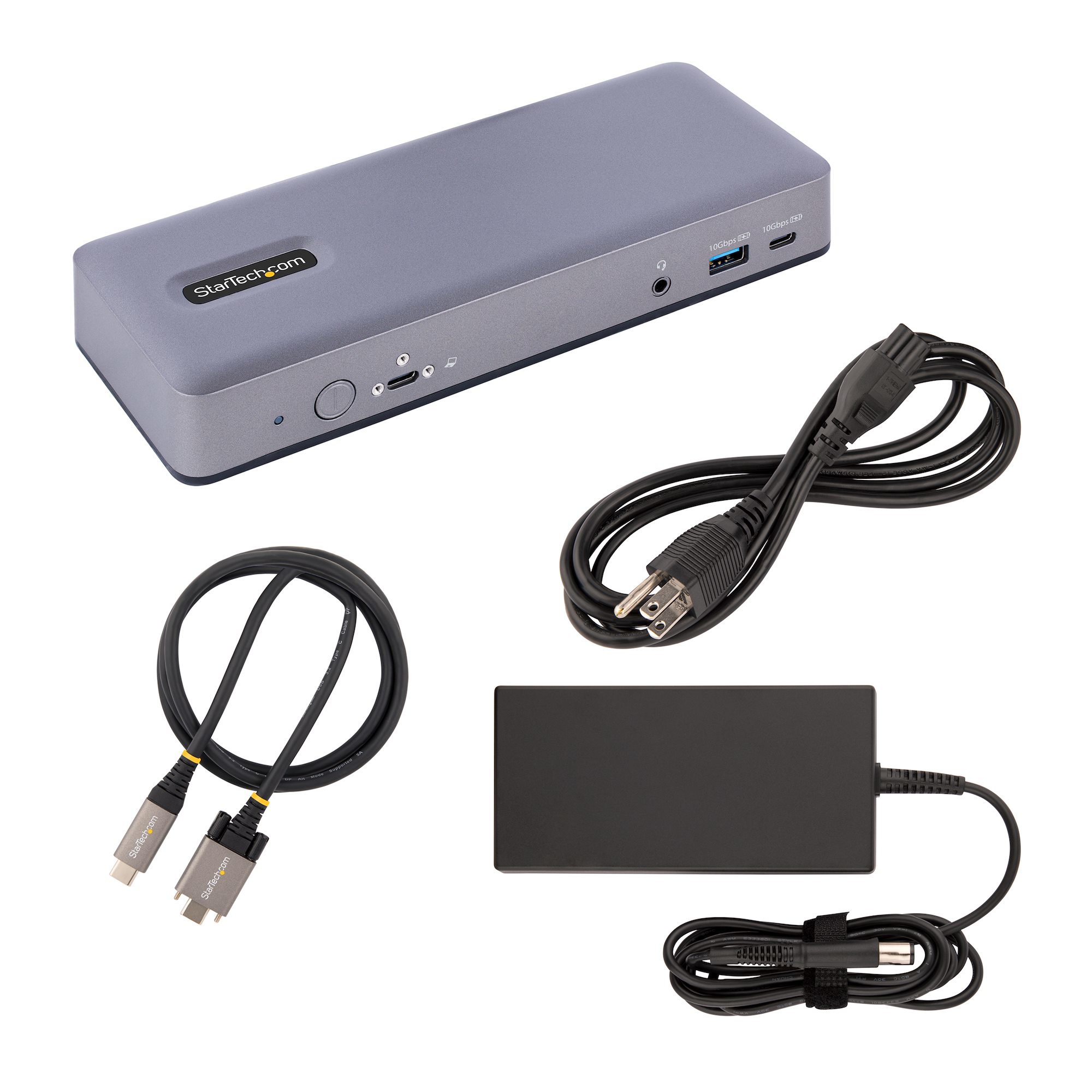

AC adapter includedYes
Cables includedUSB Type-C to USB Type-C
Quick start guideYes

Technical details

Compliance certificatesCE, RoHS

Logistics data

Master (outer) case height328 mm
Master (outer) case length320 mm
Master (outer) case width487 mm
Products per master (outer) case10 pc(s)

Other features

ChipsetSynaptics - VMM5320, Realtek -RTS5420 Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822, Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B
