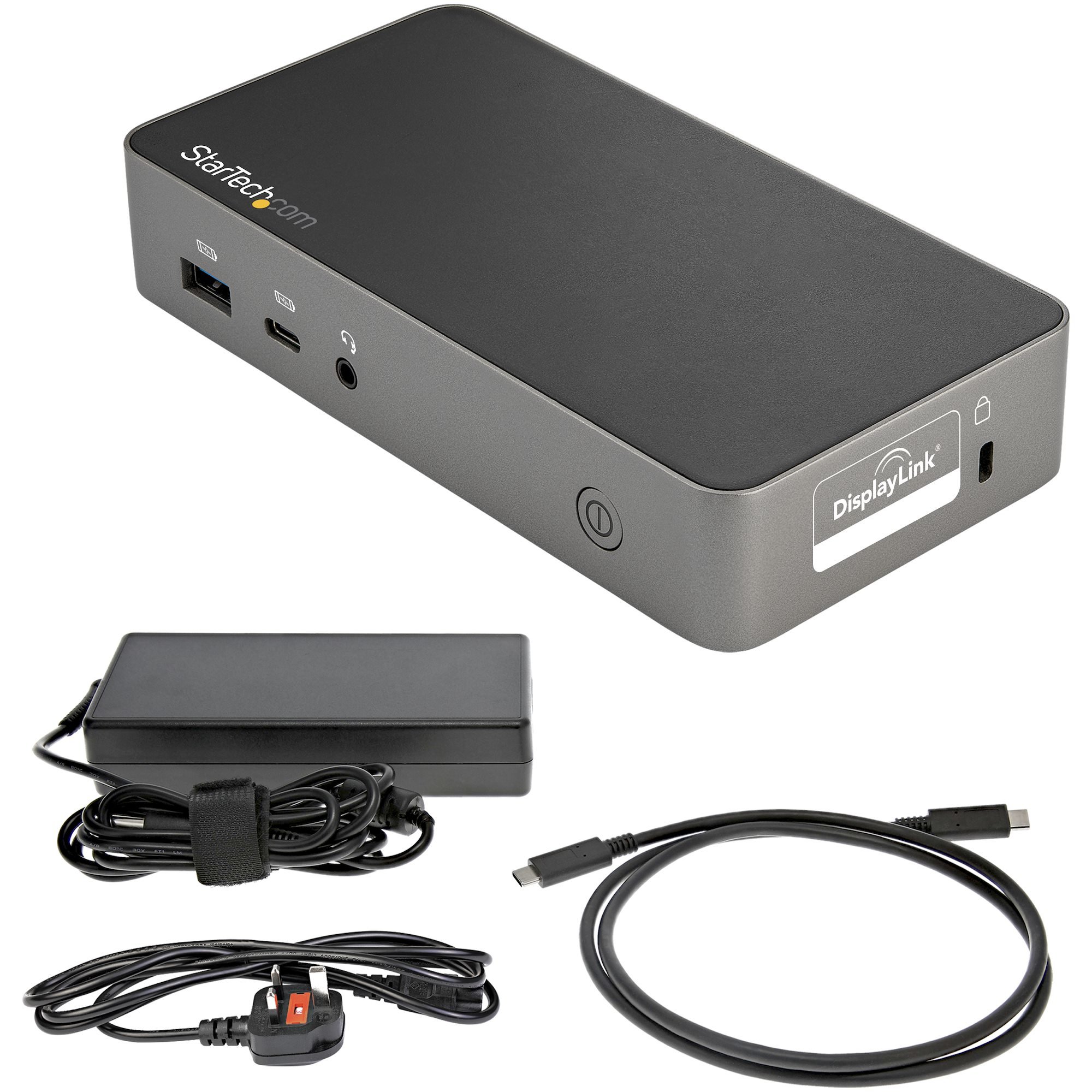

USB-C Dock - Dual Monitor 1080p HDMI Laptop Docking Station
65W Power Delivery - 1x USB-C, 3x USB-A, Ethernet - Dual Video Display USB 3.1 Gen 1
Model DK30CHHPDUKEAN 065030883481
54 specifications
- ConnectivityWired
- Weight310 g
- ColourBlack, Silver
- Ethernet LANYes
- AC input voltage100 - 240 V
- Other operating systems supportedChromeOS
Overview
- Connectivity
- Wired
- Weight
- 310 g
- Colour
- Black, Silver
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Other operating systems supported
- ChromeOS
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- DK30CHHPDUK
- Part number
- DK30CHHPDUK
- EAN / UPC
- 065030883481
- Also known as
- StarTech.com USB-C Dock - Dual Monitor 1080p HDMI Laptop Docking Station - 65W Power Delivery - 1x USB-C, 3x USB-A, Ethernet - Dual Video Display USB 3.1 Gen 1
Specifications
54 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 1920 x 1200 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output current | 4.5 A |
| Output voltage | 20 V |
| Power plug type | Type N |
| Compatible power plug types | UK |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 155 mm |
| Height | 30 mm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 234 mm |
| Package height | 82 mm |
| Package weight | 1.07 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-C |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 165 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case width | 245 mm |
| Products per master (outer) case | 4 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | DisplayLink DL3900, Realtek RTS5423, Realtek RTS5411E |
