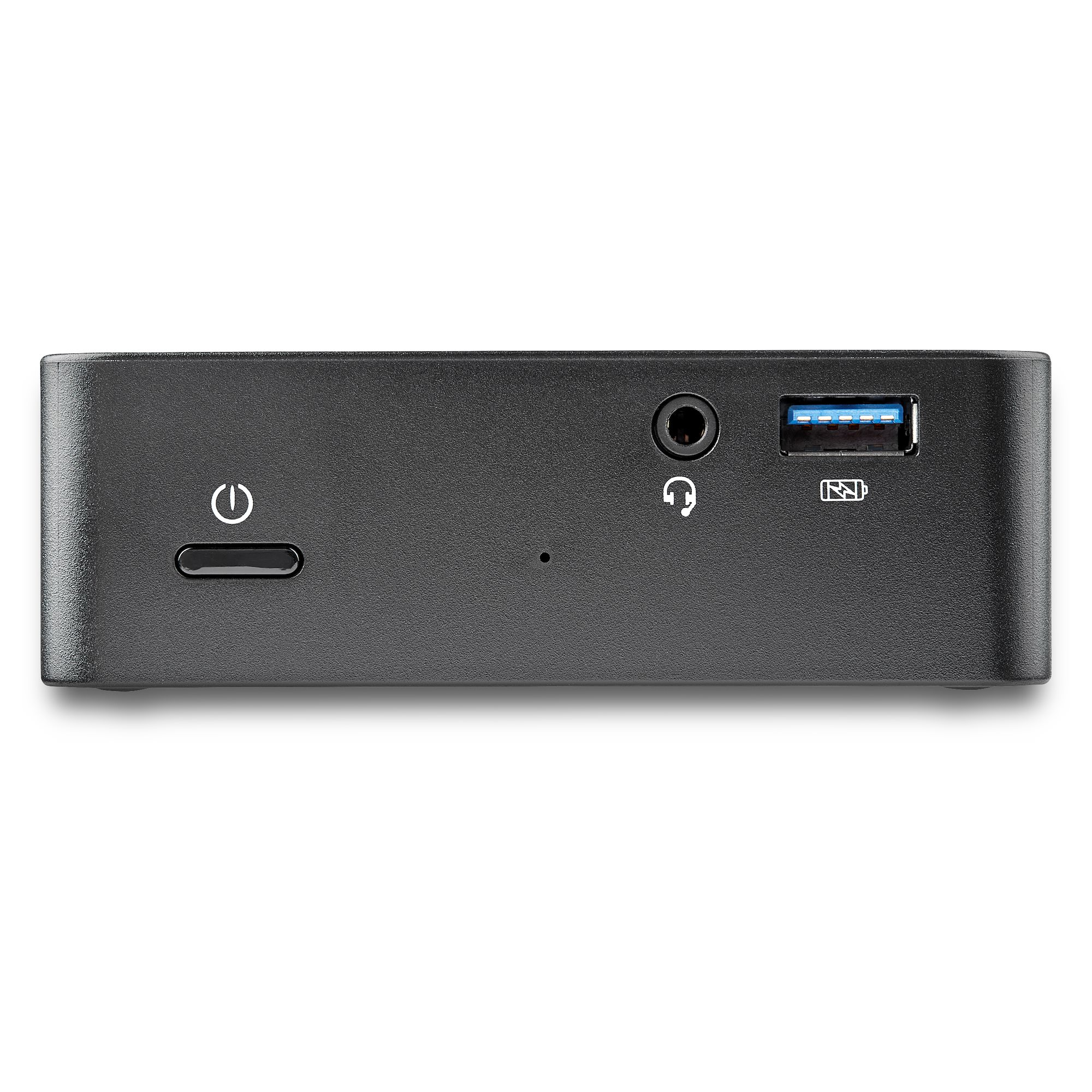

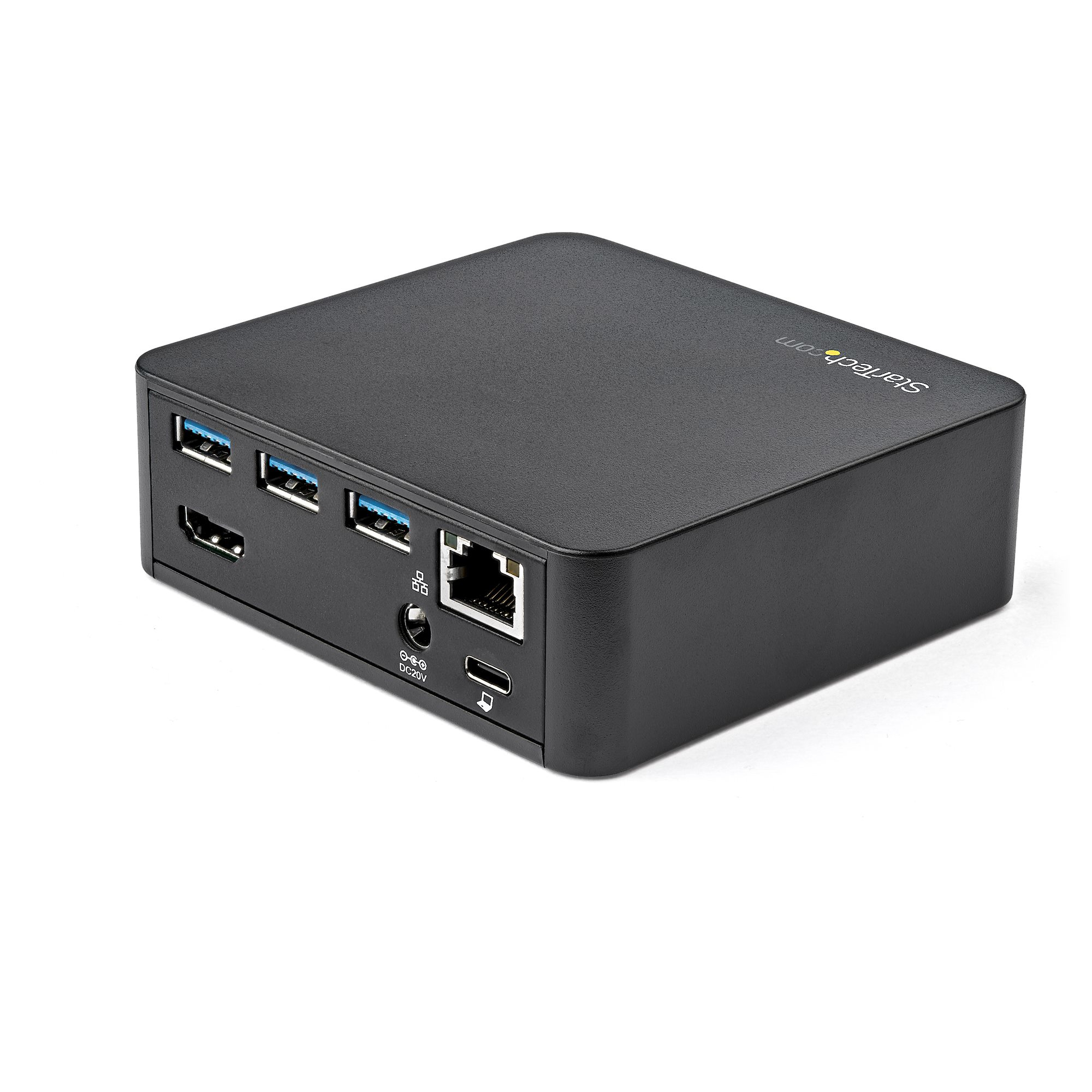

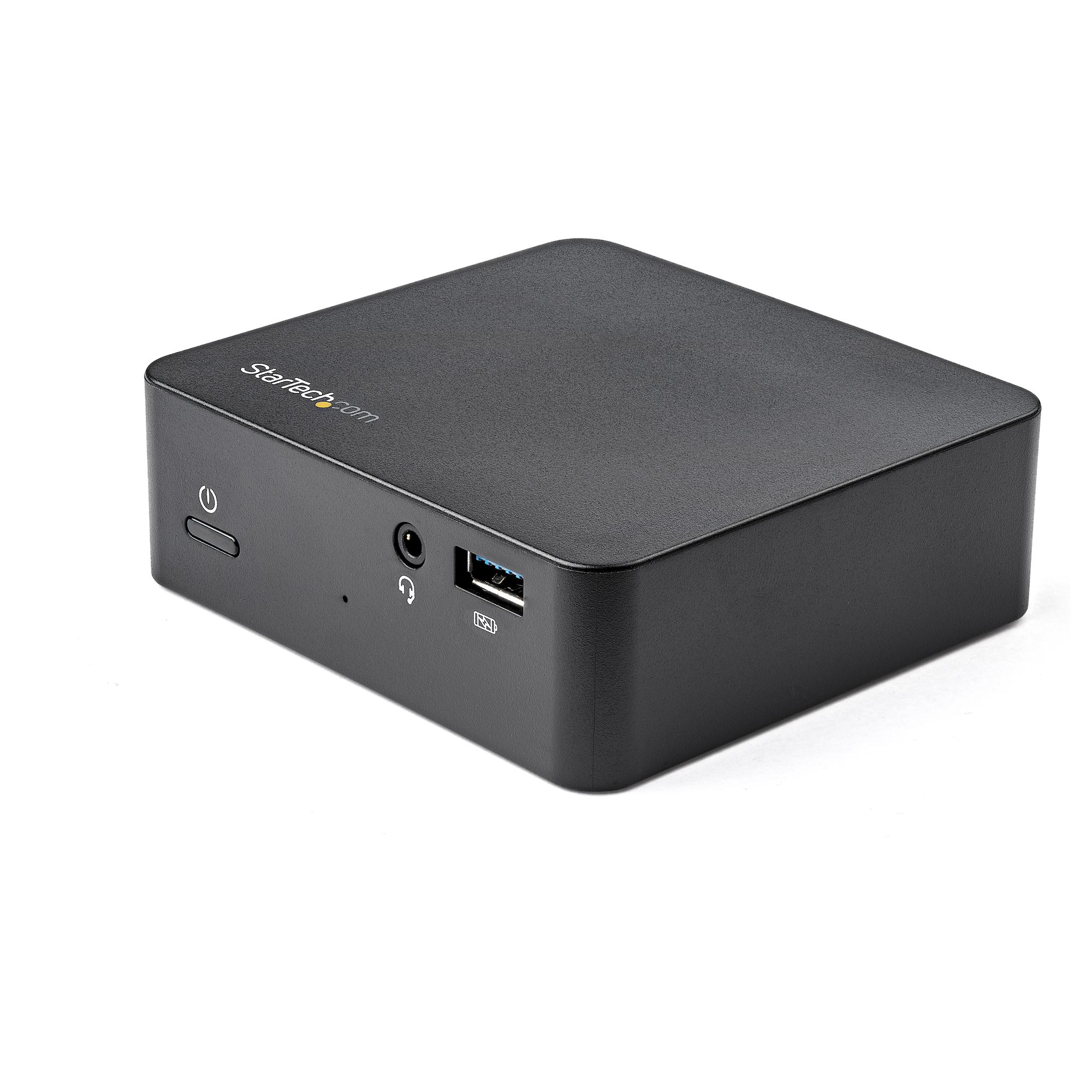

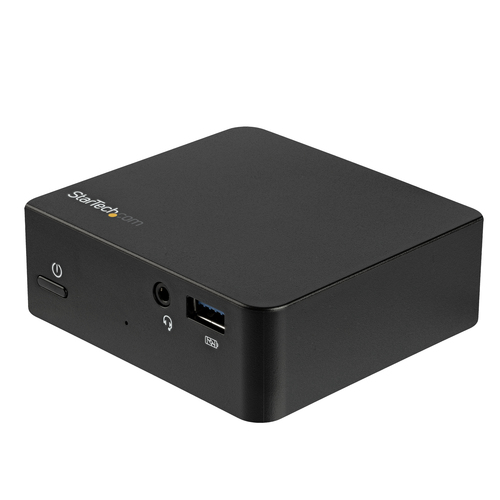

StarTech.com USB-C Dock - Single Monitor 4K

StarTech.com USB-C Dock - Single Monitor 4K

30Hz HDMI Laptop Docking Station with 85W Power Delivery, 4pt USB 3.0 Hub, Gb Ethernet, Audio - Compact USB 3.1 Gen

Model DK30CHDPDEAN 065030875608

54 specifications
  • ConnectivityWired
  • Weight200 g
  • ColourBlack
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
200 g
Colour
Black
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
DK30CHDPD
Part number
DK30CHDPD
EAN / UPC
065030875608
Also known as
StarTech.com USB-C Dock - Single Monitor 4K 30Hz HDMI Laptop Docking Station with 85W Power Delivery, 4pt USB 3.0 Hub, Gb Ethernet, Audio - Compact USB 3.1 Gen

Specifications

54 specifications in 12 groups

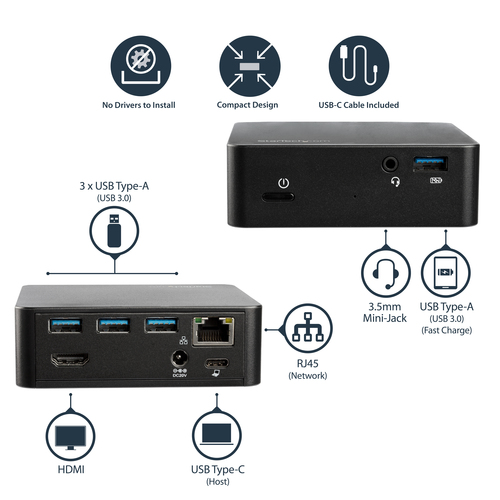

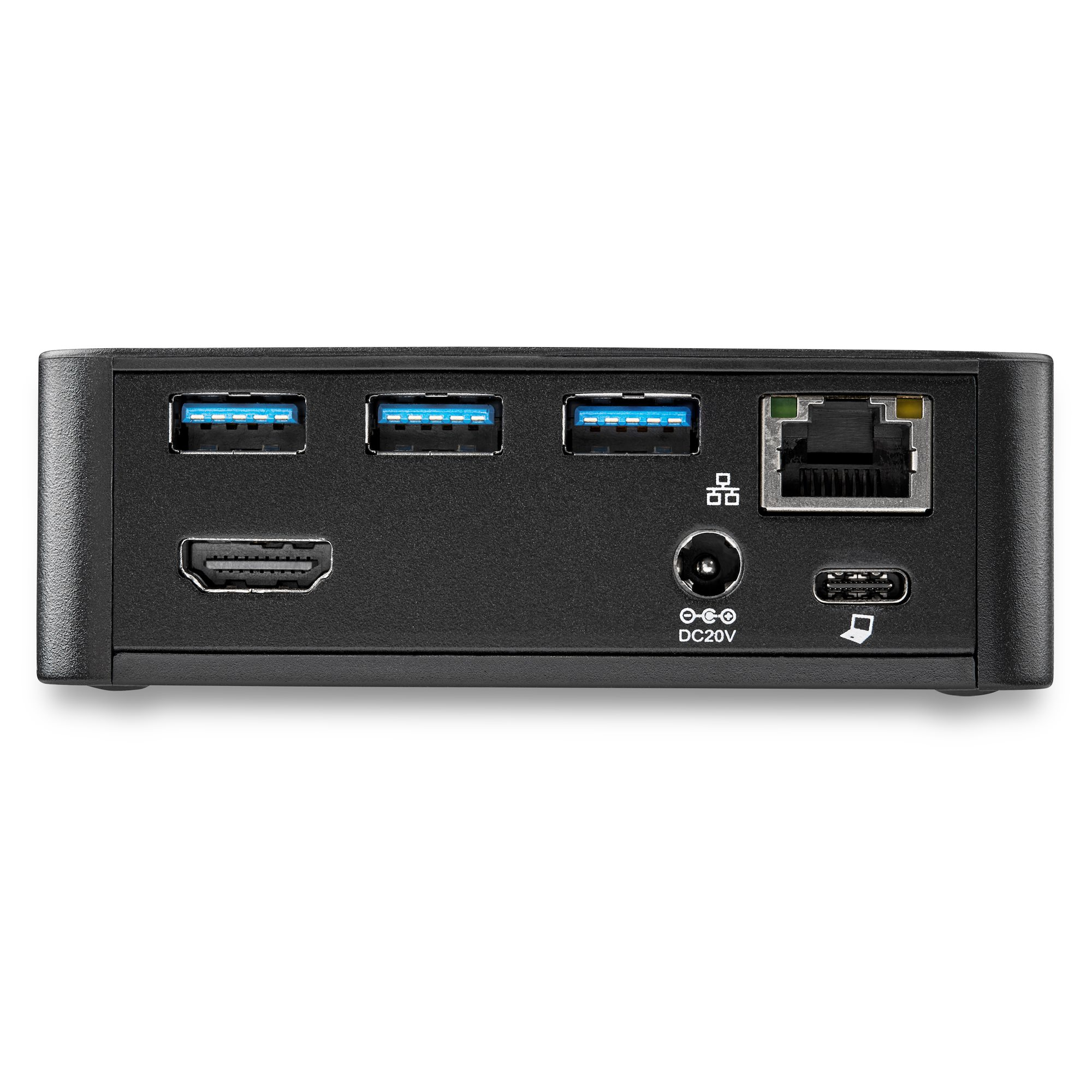

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB Power Delivery (USB PD)Yes
USB Power Delivery revision2.0
USB Power Delivery up to85 W
HDMI ports quantity1
Headphone outputs1
Headphone connectivity3.5 mm

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G supportNo
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution4096 x 2160 pixels
On/off switchYes
Housing materialPlastic
UASP supportYes
CertificationCE, FCC, REACH

Power

AC input voltage100 - 240 V
Input current2 A
Output current5 A
Output voltage20 V
Power consumption (typical)100 W
Power plug typeType N
Compatible power plug typesAU, JP, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 95%

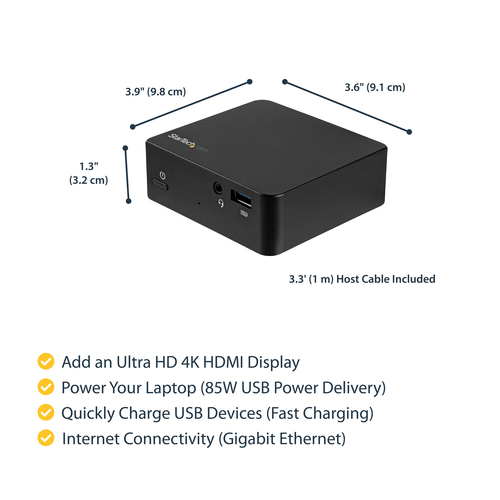

Weight & dimensions

Width91 mm
Depth98 mm
Height32 mm
Weight200 g

Packaging data

Package width185 mm
Package depth165 mm
Package height95 mm
Package weight1 kg

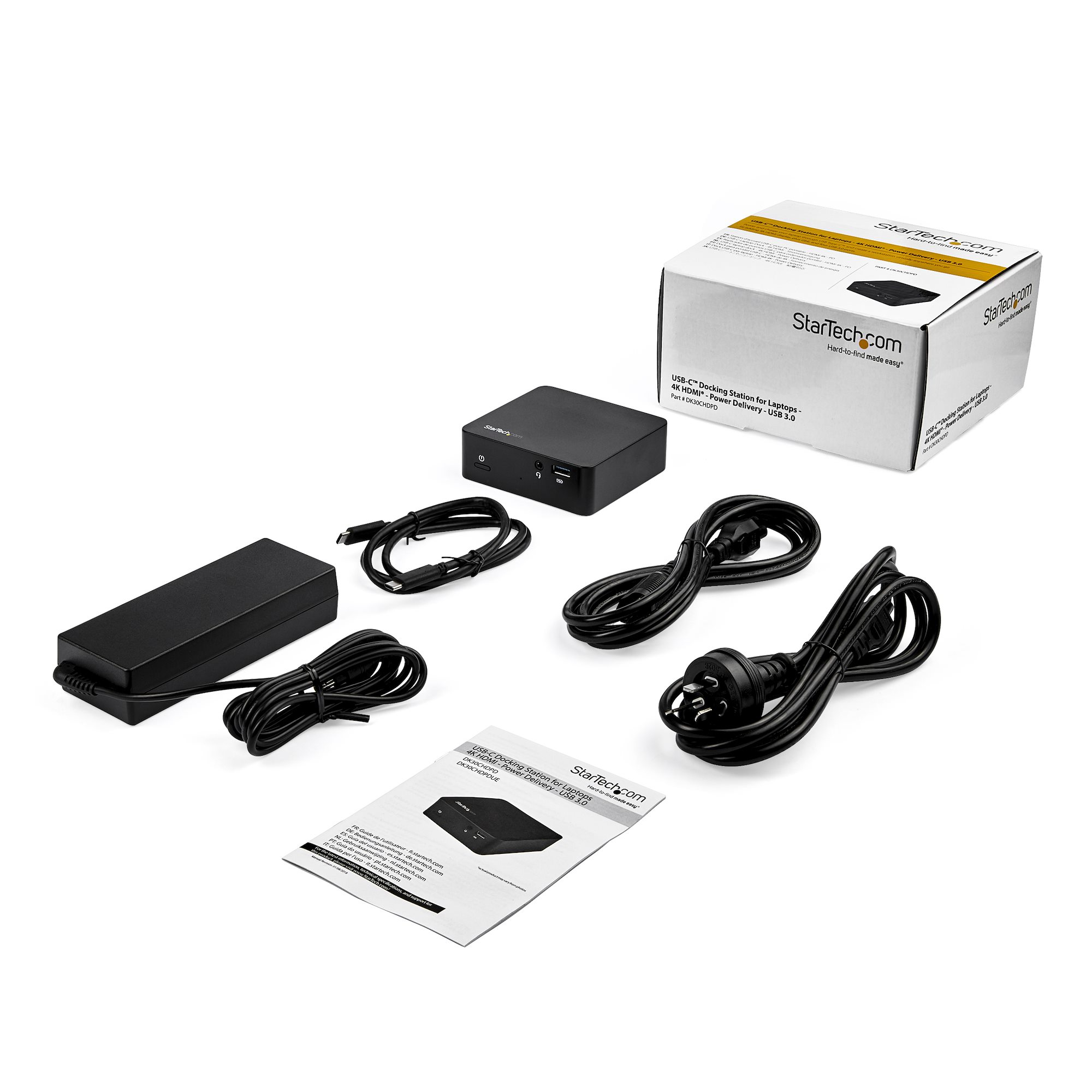

Packaging content

Cables includedUSB Type-C
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case height360 mm
Master (outer) case length310 mm
Master (outer) case width200 mm
Products per master (outer) case6 pc(s)

Other features

ChipsetParade - PS176, Realtek - RTL8153, Realtek - RTS5411, C-Media - CM6533
