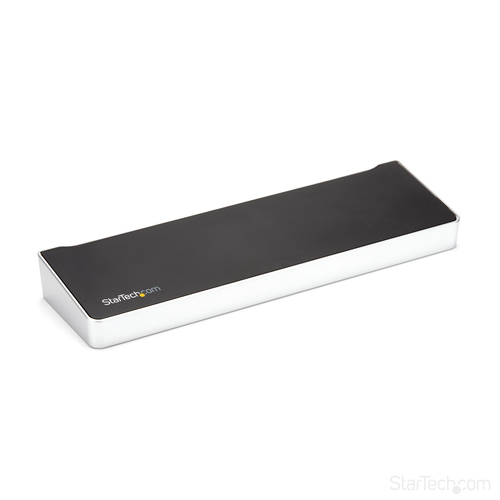

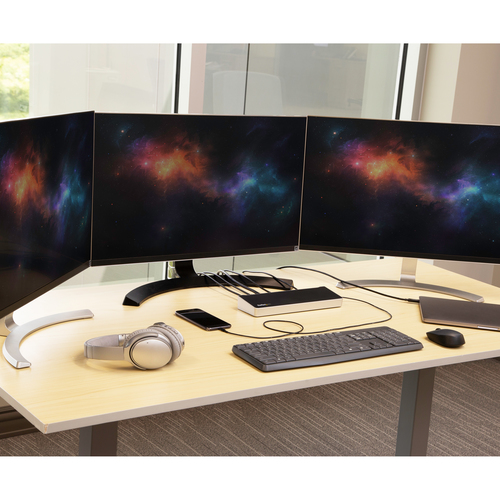

StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort

60W Power Delivery, 5x USB 5Gbps Hub - TAA

Model DK30CH2DPPDEAN 065030867672

60 specifications

ConnectivityWired
Weight385 g
ColourBlack, Silver
Ethernet LANYes
AC input voltage100 - 240 V
Operating temperature (T-T)0 - 60 °C

See all specifications

Overview

Connectivity: Wired
Weight: 385 g
Colour: Black, Silver
Ethernet LAN: Yes
AC input voltage: 100 - 240 V
Operating temperature (T-T): 0 - 60 °C

Brand: StarTech.com
Category: Laptop Docks & Port Replicators
Model: DK30CH2DPPD
Part number: DK30CH2DPPD
EAN / UPC: 065030867672
Also known as: StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 60W Power Delivery, 5x USB 5Gbps Hub - TAA

Specifications

60 specifications in 12 groups

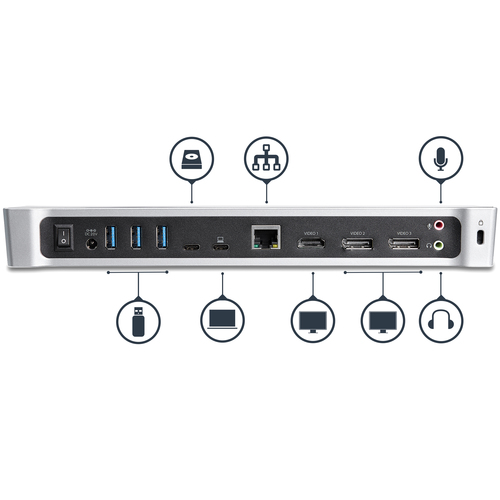

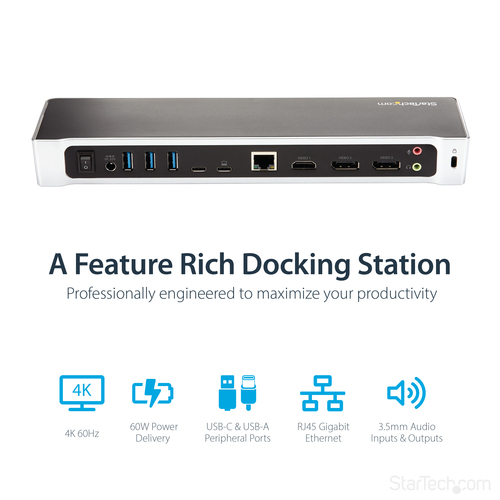

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes

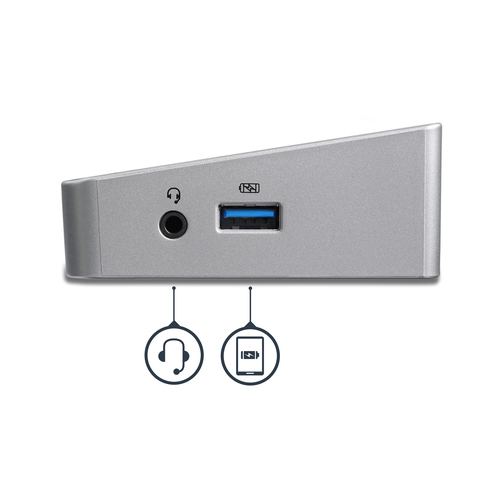

Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Specification	Value
Product colour	Black, Silver
Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	4096 x 2160 pixels
Cable lock slot	Yes
On/off switch	Yes
Housing material	Plastic
UASP support	Yes
Brand compatibility	Any brand
Certification	CE, FCC, TAA, REACH

Power

Specification	Value
AC input voltage	100 - 240 V
Input current	2 A
Power supply	60 W
Output current	6 A
Output voltage	20 V
Power plug type	Type N
Compatible power plug types	AU, JP

Software

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Specification	Value
Width	82 mm
Depth	270 mm
Height	34 mm
Weight	385 g

Packaging data

Specification	Value
Package width	161 mm
Package depth	296 mm
Package height	71 mm
Package weight	1.4 kg

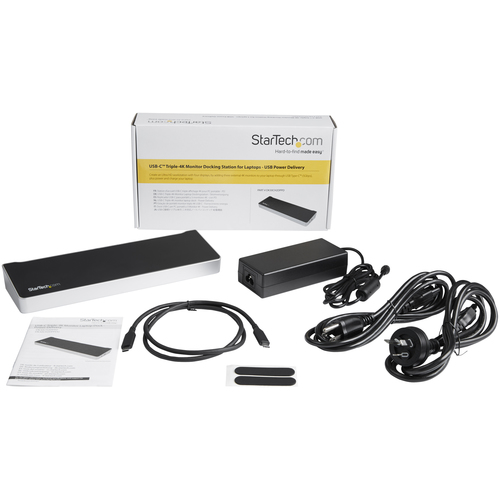

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	USB Type-C
Manual	Yes

Technical details

Specification	Value
Compliance certificates	RoHS

Logistics data

Specification	Value
Master (outer) case height	382 mm
Master (outer) case length	370 mm
Master (outer) case width	318 mm
Products per master (outer) case	10 pc(s)

Other features

Specification	Value
Chipset	DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176
Number of microphone inputs	1
