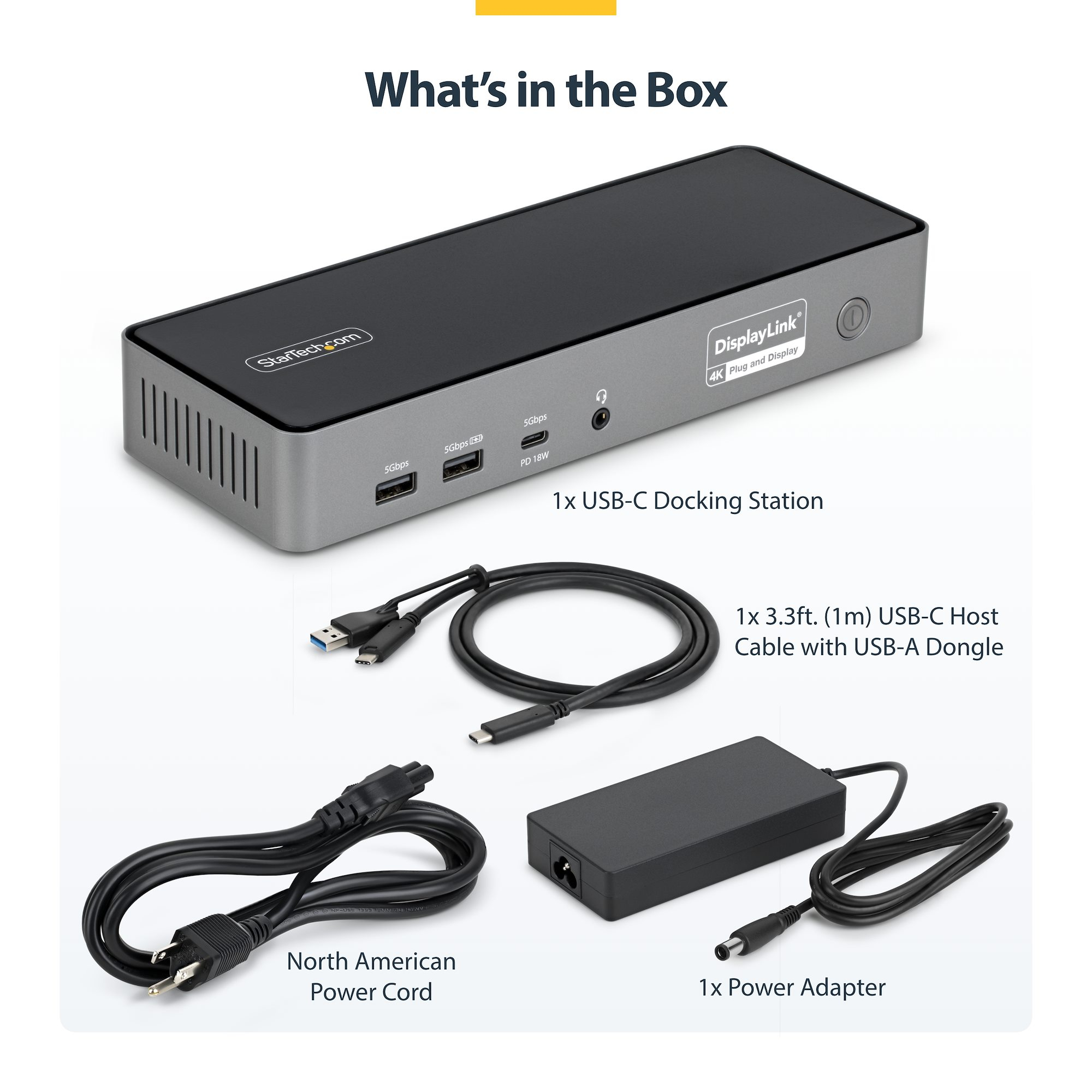

StarTech.com Triple-Monitor USB-C Docking Station
StarTech.com

Triple-Monitor USB-C Docking Station

140W Laptop Charging Dock for MacBook Pro and Windows, 4K 60Hz HDMI or DisplayPort, TAA

Model DK30C2DPEPRNEAN 065030911245

62 specifications
  • ConnectivityWired
  • Weight400 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeDC
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
400 g
Colour
Grey
Ethernet LAN
Yes
Power source type
DC
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
DK30C2DPEPRN
Part number
DK30C2DPEPRN
EAN / UPC
065030911245
Also known as
StarTech.com Triple-Monitor USB-C Docking Station, 140W Laptop Charging Dock for MacBook Pro and Windows, 4K 60Hz HDMI or DisplayPort, TAA

Specifications

62 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
HDMI ports quantity2
HDMI version2.1
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Wake-on-LAN readyYes
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Number of displays supported3
Cable lock slotYes
Cable lock slot typeKensington, Nano, Wedge
On/off switchYes
LED indicatorsYes
UASP supportYes

Power

Power source typeDC
AC input voltage100 - 240 V
Input current2.5 A
Output current10.5 A
Output voltage20 V
Power consumption (max)210 W
Power plug typeType M

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Mac operating systems supportedMac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supportedYes
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width84 mm
Depth232.5 mm
Height37 mm
Weight400 g

Packaging data

Package width169 mm
Package depth251 mm
Package height90 mm
Package weight1.2 kg

Packaging content

AC adapter includedYes
Cables includedAC, USB Type-C
User guideYes

Technical details

Compliance certificatesFederal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Logistics data

Master (outer) case height300 mm
Master (outer) case length395 mm
Master (outer) case width315 mm
Products per master (outer) case6 pc(s)

Other features

ChipsetDisplayLink - DL6950, Genesys Logic - GL5911, Genesys Logic - GL5910, Genesys Logic - GL3590, Realtek - RTL8156B
