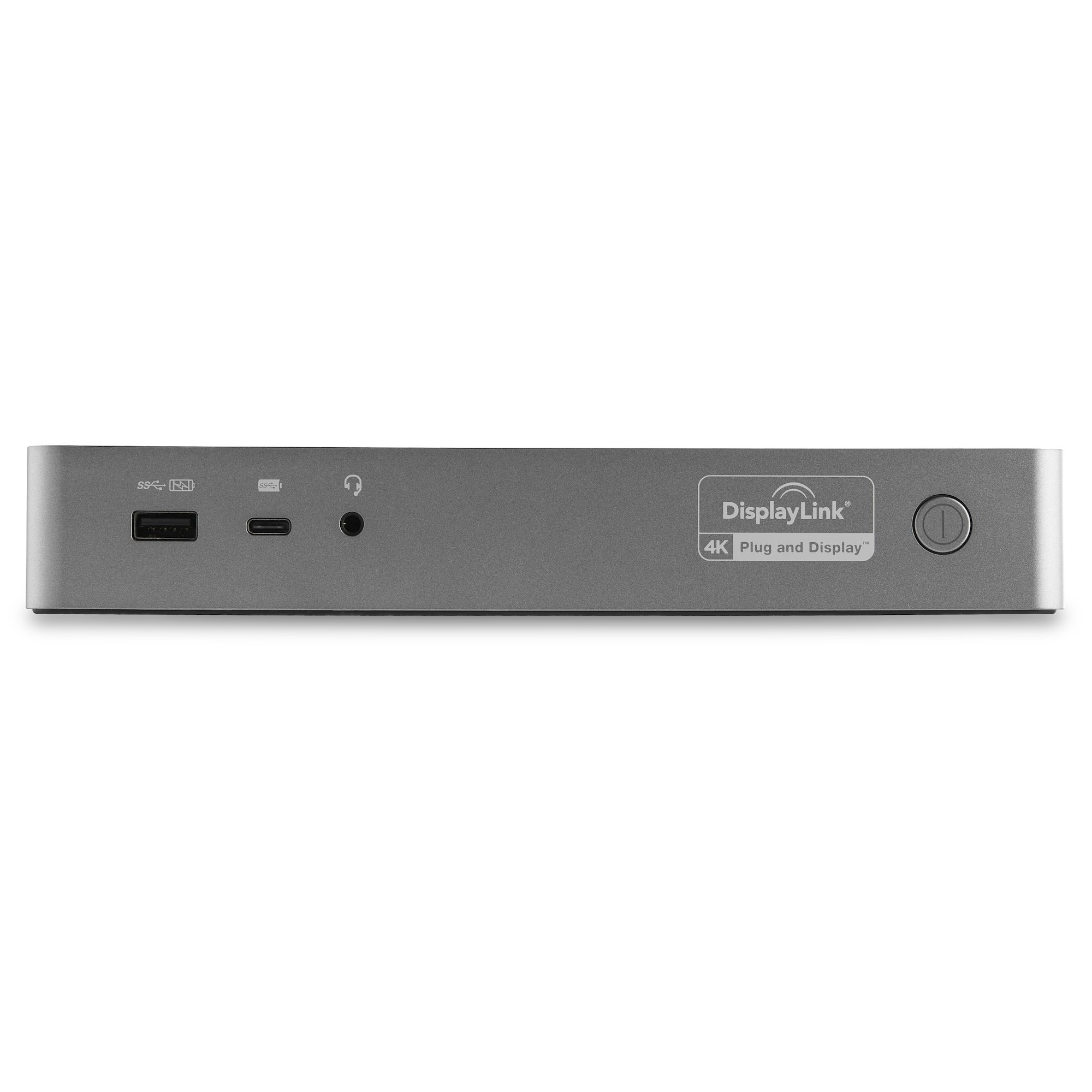

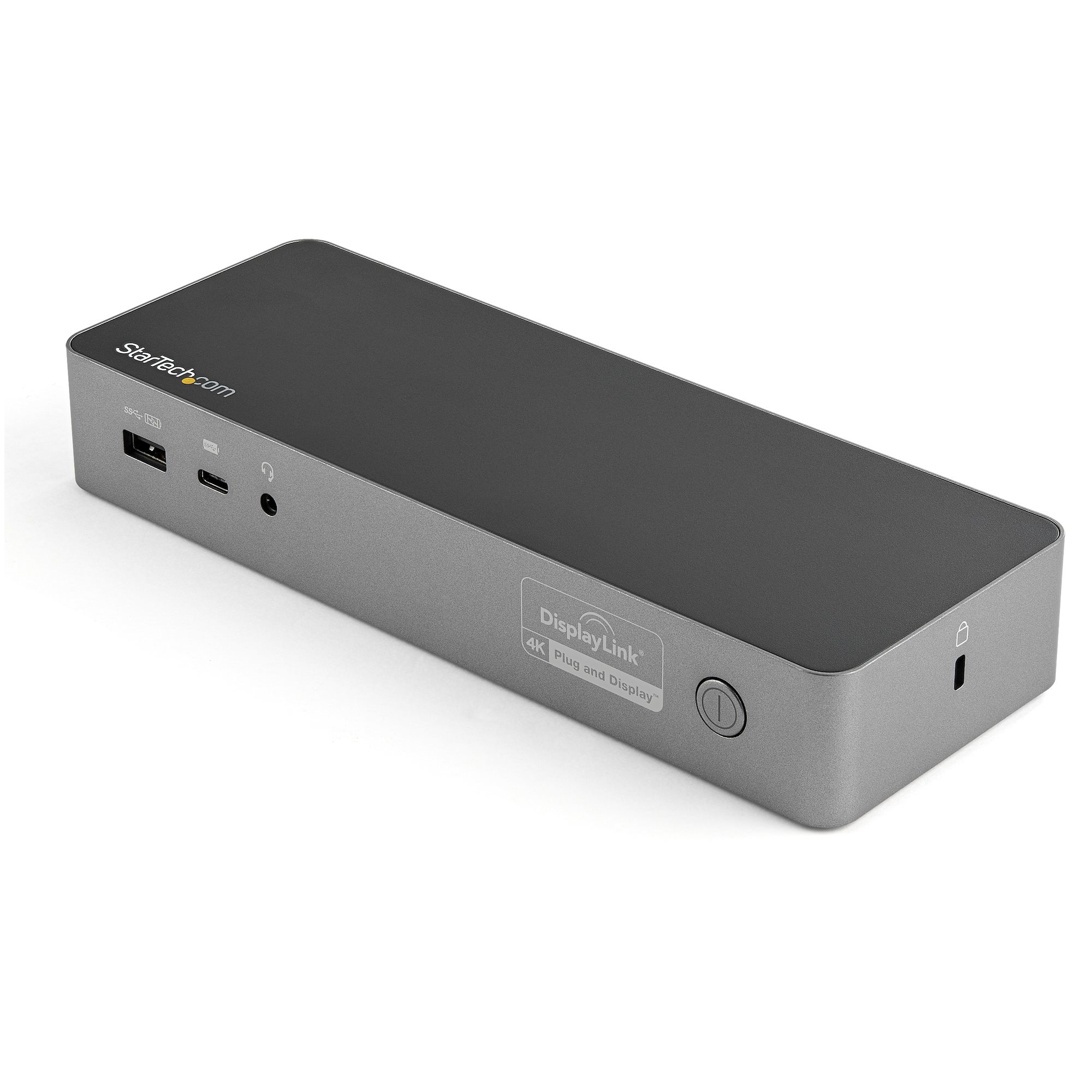

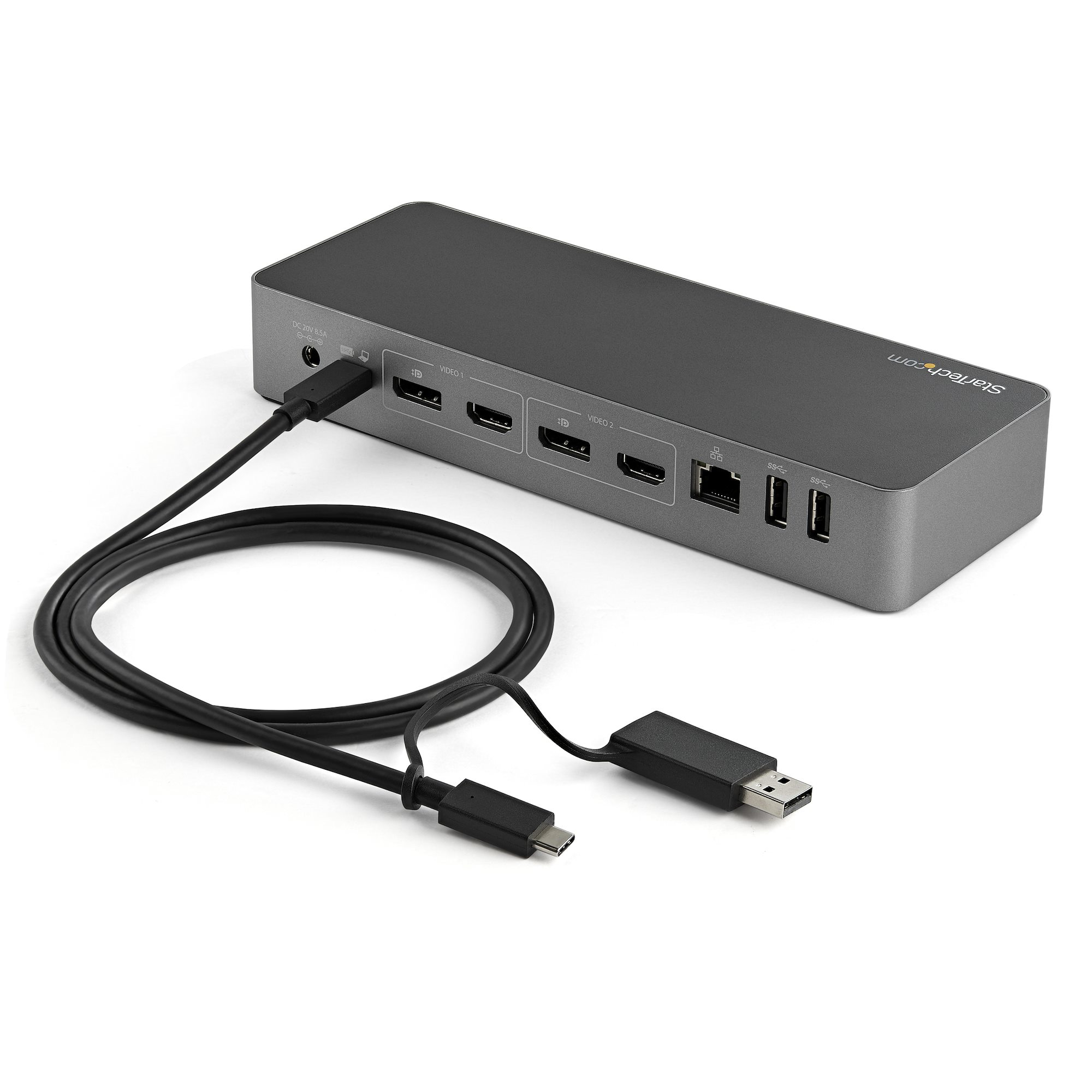

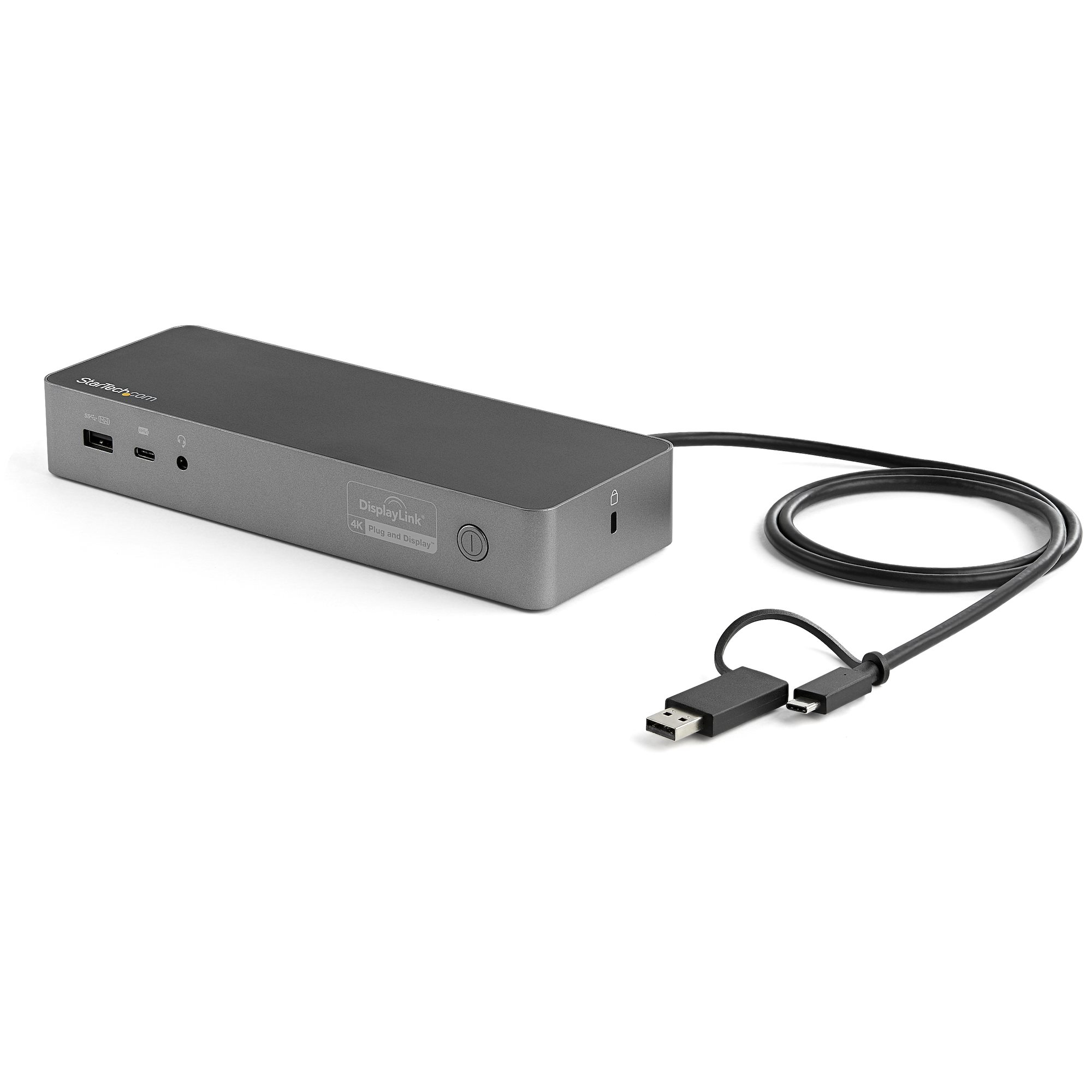

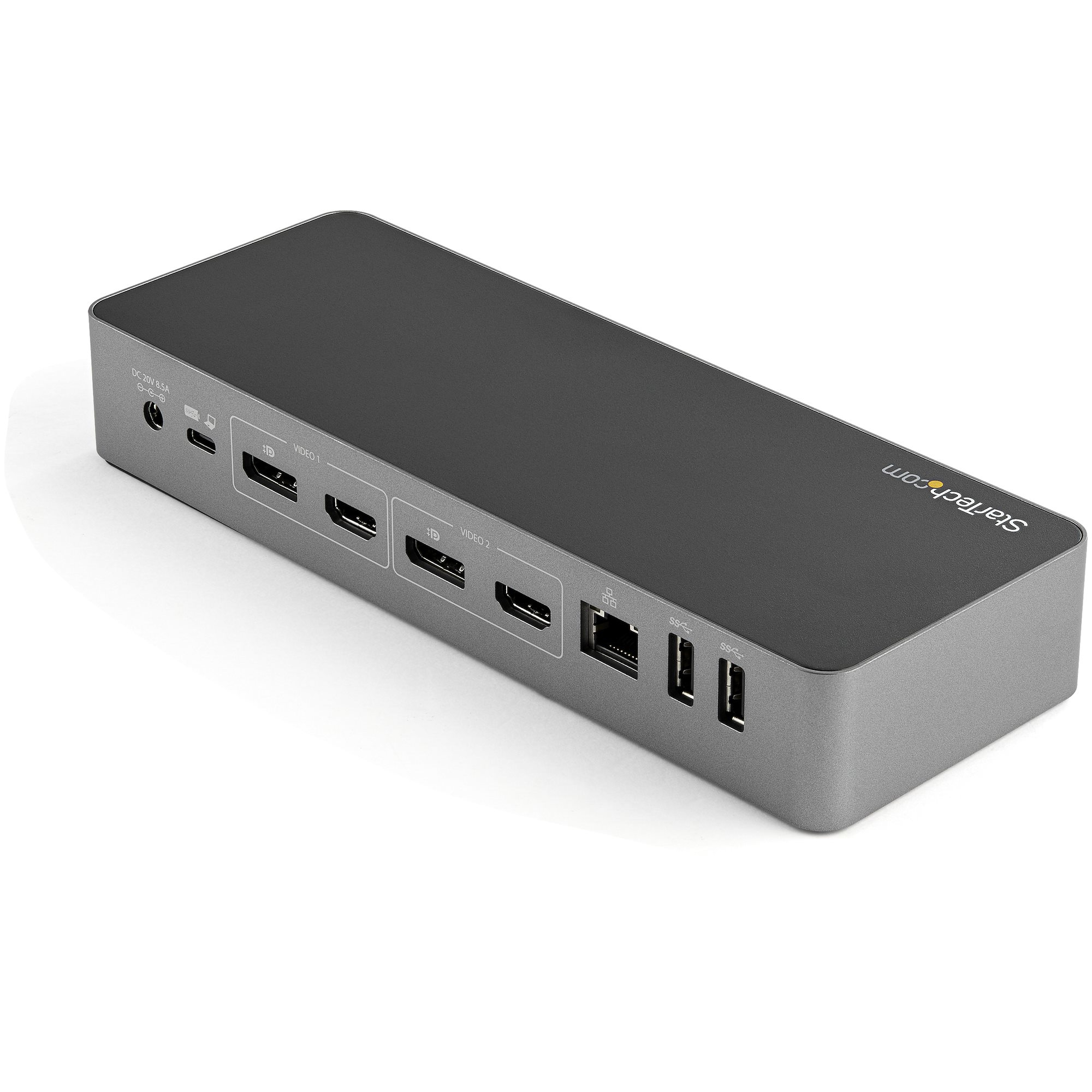

StarTech.com Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI
StarTech.com

Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI

100W PD, Mac / Windows / Chrome OS, 4x USB 5Gbps Hub, GbE

Model DK30C2DPEPEAN 065030879972

61 specifications
  • ConnectivityWired
  • Weight280 g
  • ColourBlack, Grey
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)0 - 50 °C
See all specifications

Overview

Connectivity
Wired
Weight
280 g
Colour
Black, Grey
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 50 °C
Brand
StarTech.com
Model
DK30C2DPEP
Part number
DK30C2DPEP
EAN / UPC
065030879972
Also known as
StarTech.com Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI, 100W PD, Mac / Windows / Chrome OS, 4x USB 5Gbps Hub, GbE

Specifications

61 specifications in 12 groups

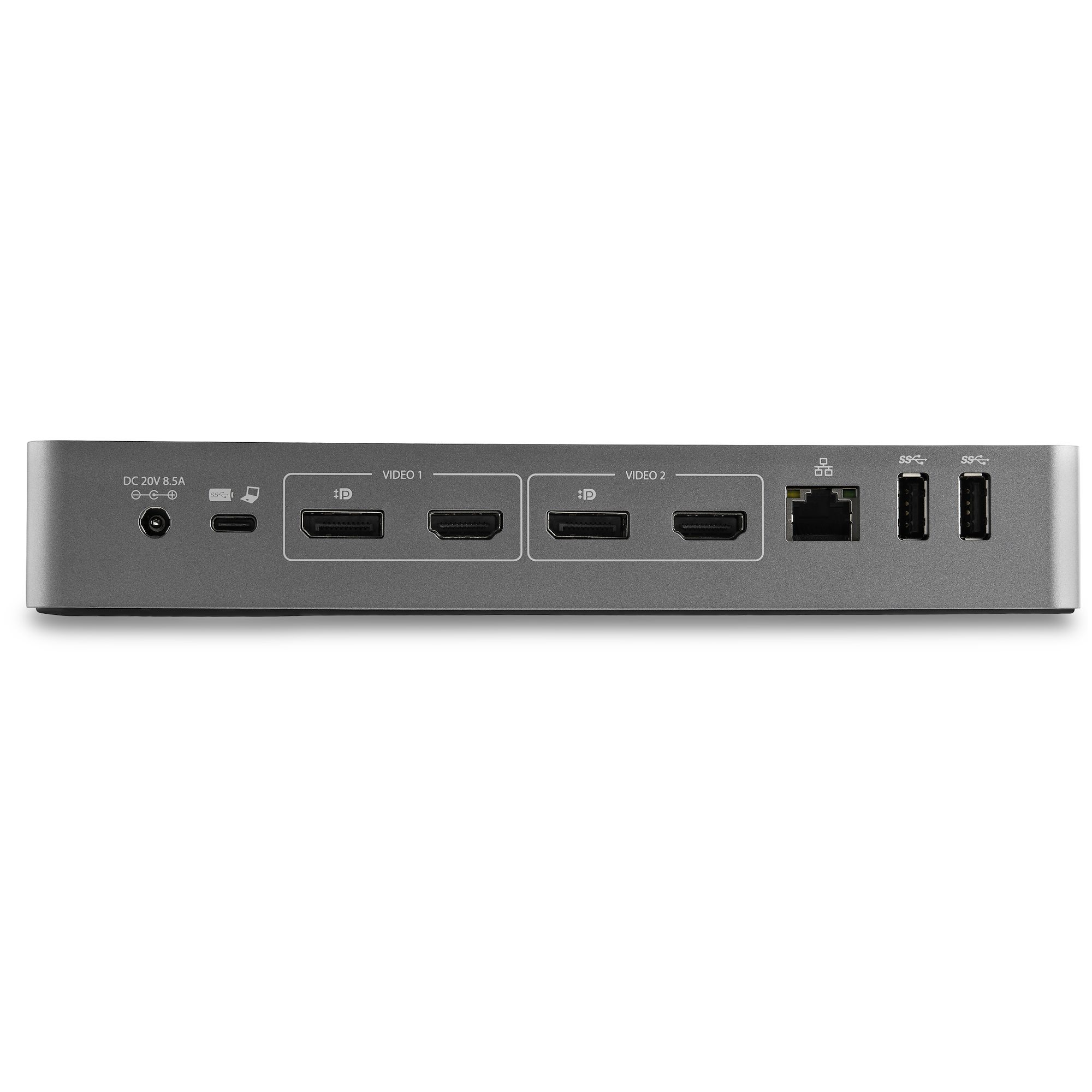

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W
HDMI ports quantity2
DisplayPorts quantity2
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G supportNo
Full duplexYes

Performance

Product colourBlack, Grey
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution5120 x 2880 pixels

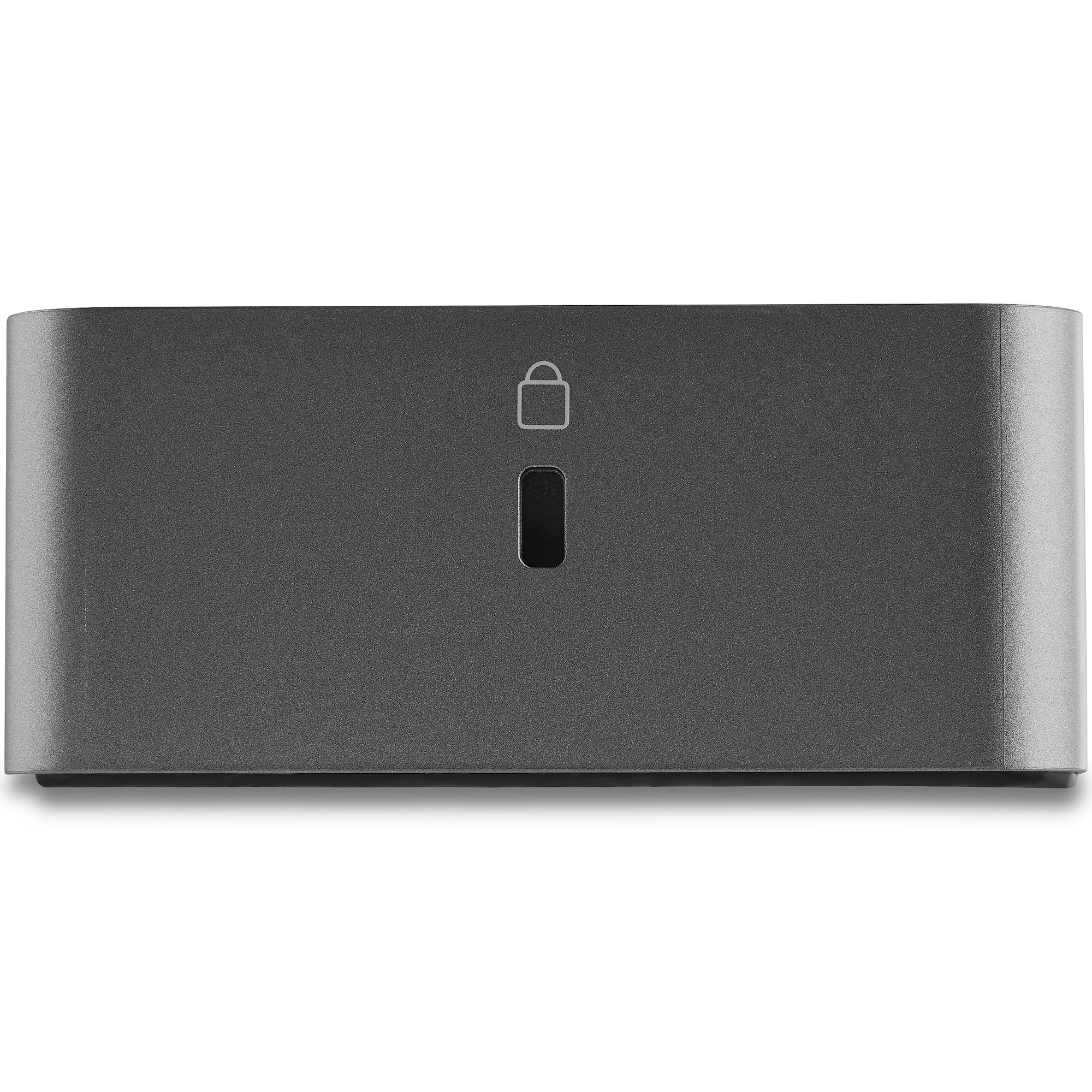

Cable lock slotYes
Cable lock slot typeKensington
On/off switchYes
Housing materialPlastic
UASP supportYes
CertificationCE, FCC, REACH

Power

AC input voltage100 - 240 V
Input current2.5 A
Power supply typeExternal
Output current8.5 A
Output voltage20 V
Power consumption (typical)170 W
Power plug typeType N
Compatible power plug typesAU, JP, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width80 mm
Depth220 mm
Height30 mm
Weight280 g

Packaging data

Package width278 mm
Package depth161 mm
Package height108 mm
Package weight1.3 kg

Packaging content

AC adapter includedYes

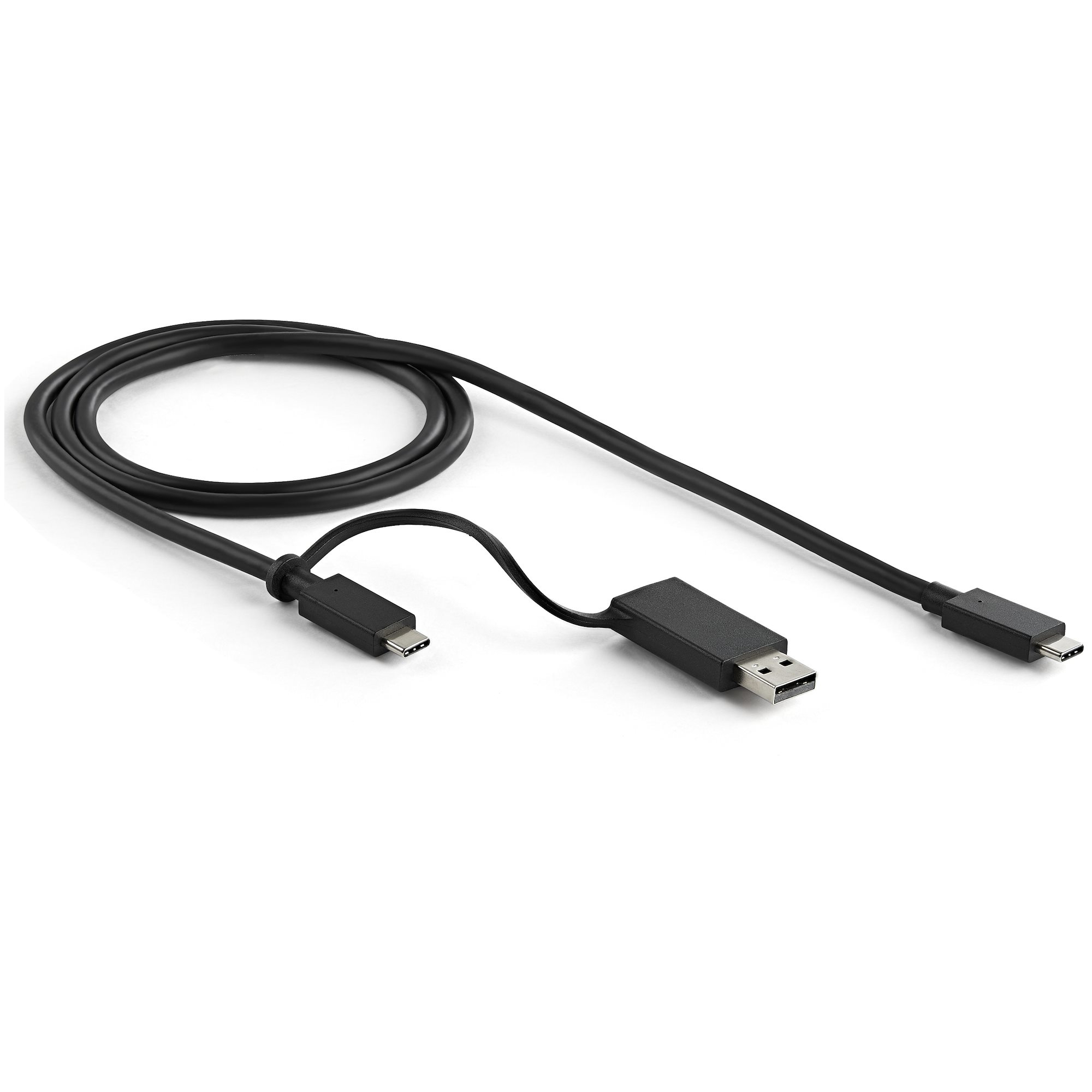

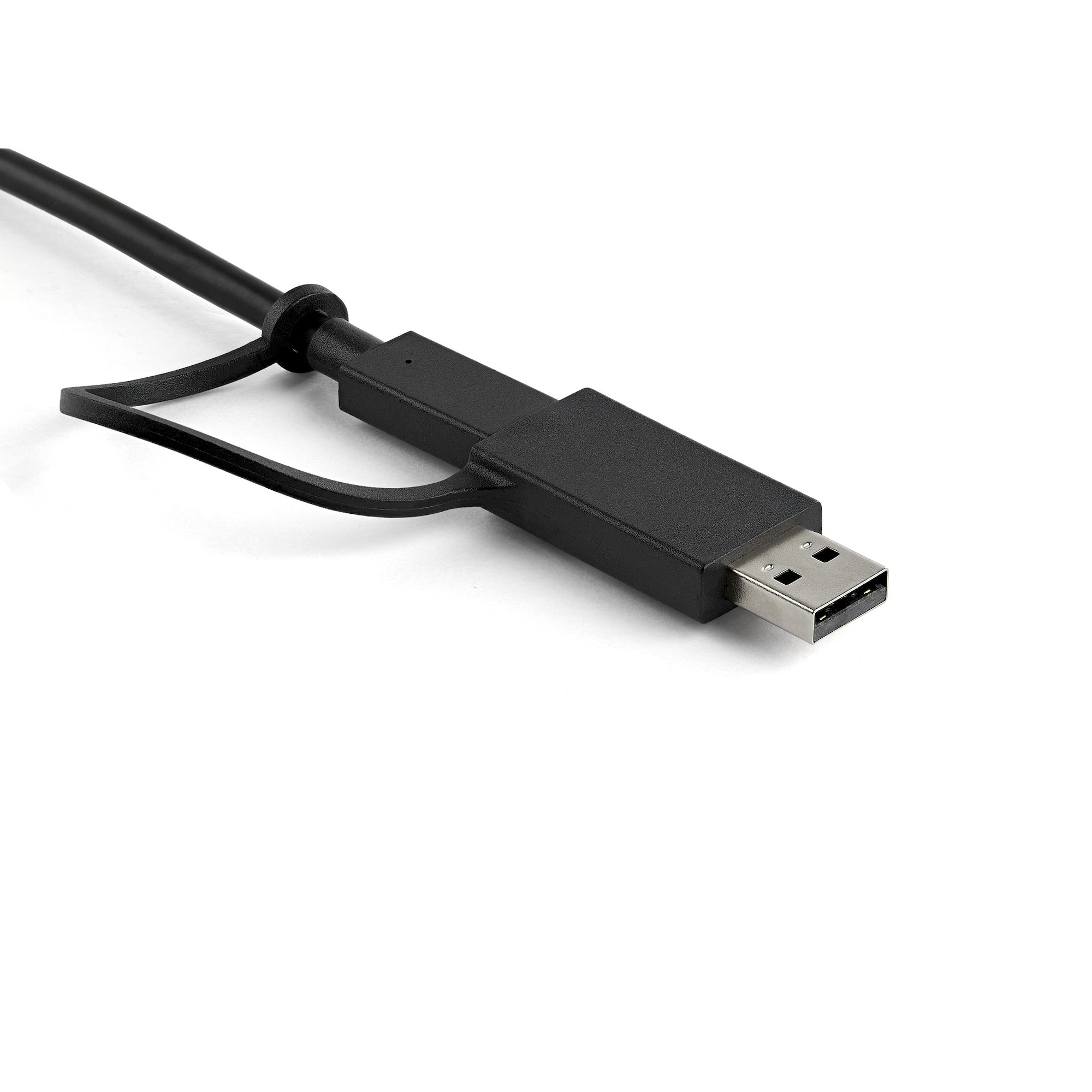

Cables includedUSB Type-C
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case height248 mm
Master (outer) case length299 mm
Master (outer) case width510 mm
Products per master (outer) case6 pc(s)
Products per shipping (inner) case6 pc(s)

Other features

ChipsetDisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E
