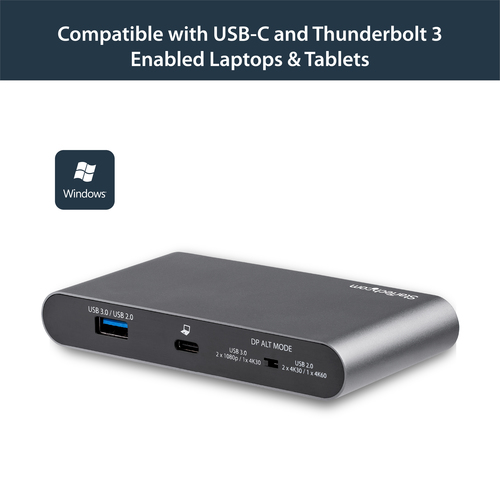

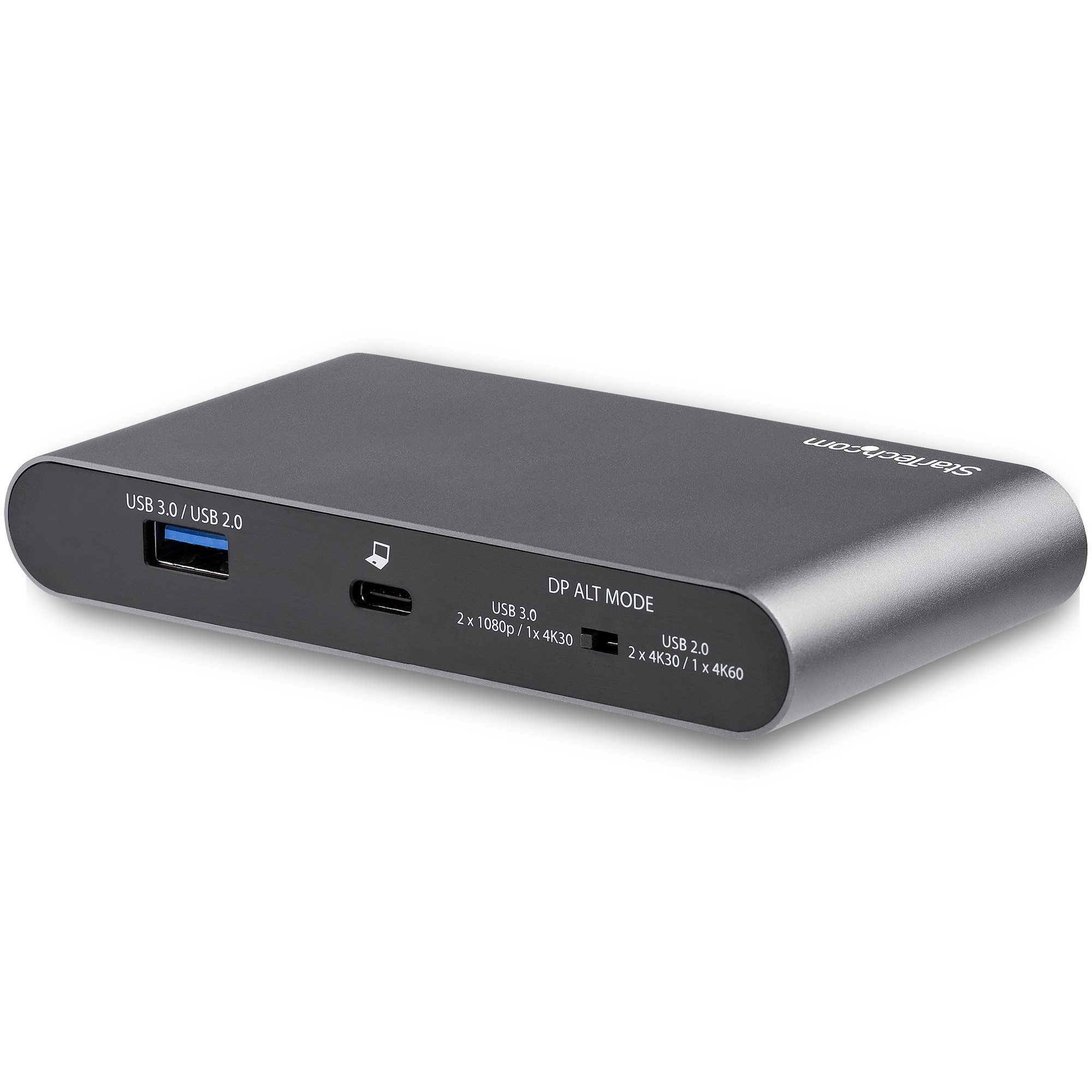

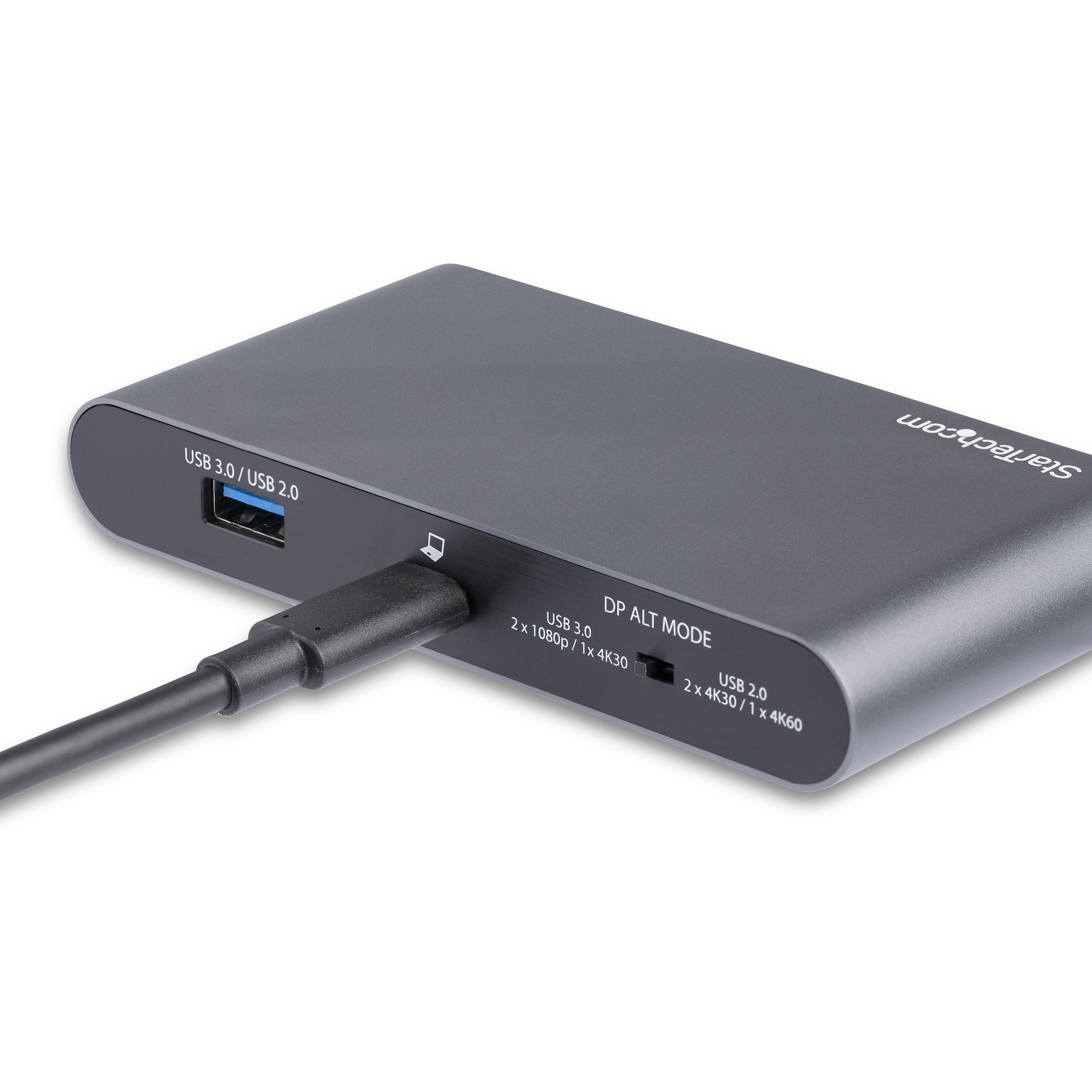

USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station
100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multi
Model DK30C2DAGPDEAN 065030878746
53 specifications
- ConnectivityWired
- Weight150 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 50 °C
Overview
- Connectivity
- Wired
- Weight
- 150 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- DK30C2DAGPD
- Part number
- DK30C2DAGPD
- EAN / UPC
- 065030878746, 3540260184043
- Also known as
- StarTech.com USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multi
Specifications
53 specifications in 12 groups

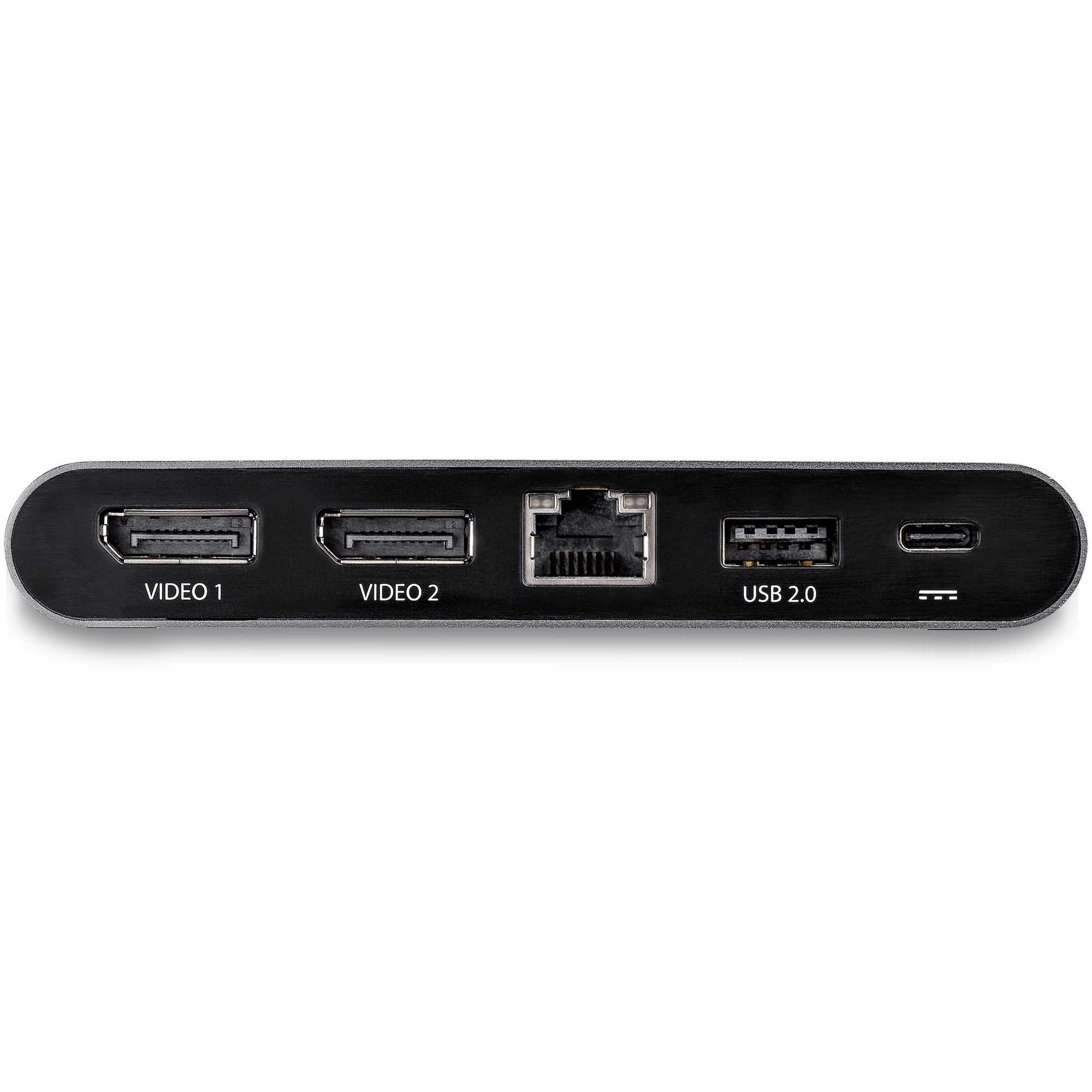

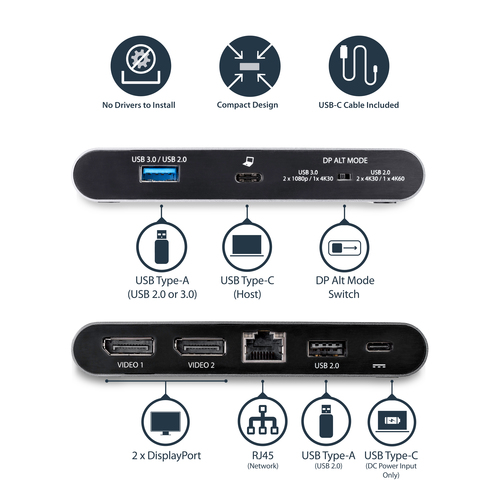

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Housing material | Plastic |
| UASP support | Yes |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power supply | 100 W |
| Power consumption (typical) | 15 W |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 120 mm |
| Height | 18.8 mm |
| Weight | 150 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 208 mm |
| Package height | 42 mm |
| Package weight | 300 g |
Packaging content
| Specification | Value |
|---|---|

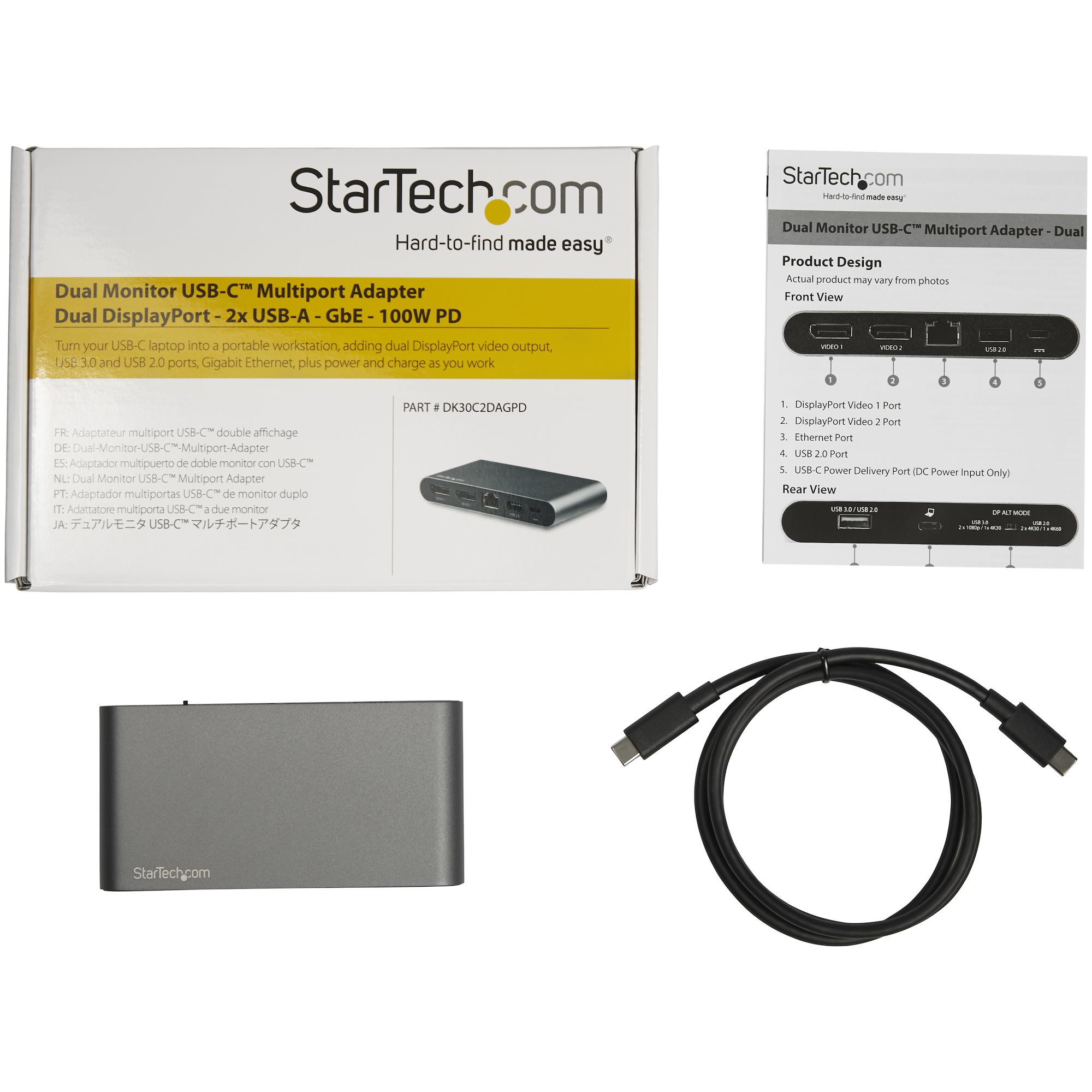

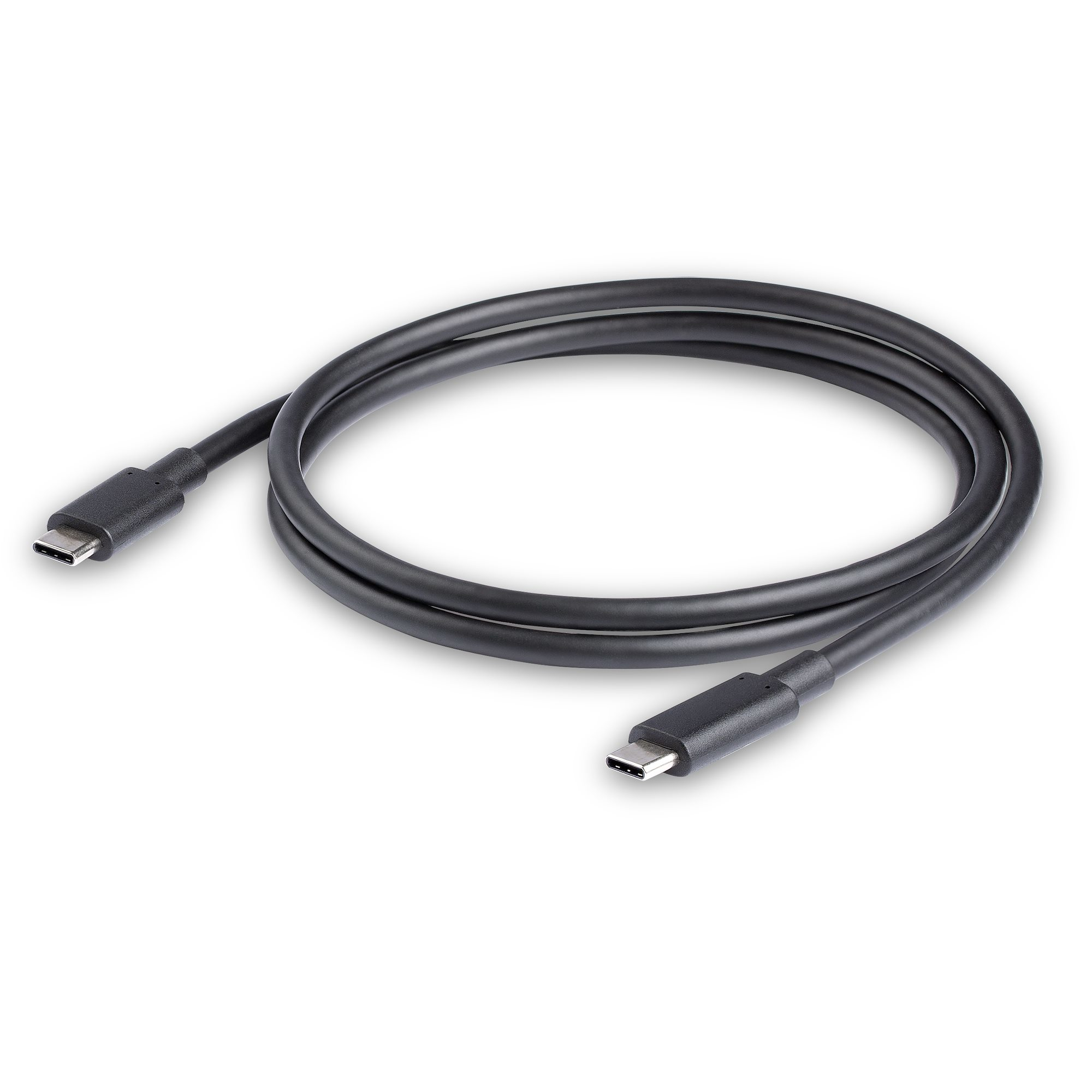

| Cables included | USB Type-C |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case width | 310 mm |
| Products per master (outer) case | 24 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153 |
