StarTech.com DVI Dual-Monitor Docking Station for USB-C Laptops - Includes USB-C to A Adapter, HDMI, and VGA Adapters

StarTech.com DVI Dual-Monitor Docking Station for USB-C Laptops - Includes USB-C to A Adapter, HDMI, and VGA Adapters

Model DK30BACDDEAN 065030865906

54 specifications
  • ConnectivityWired
  • Weight285 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating temperature (T-T)0 - 50 °C
See all specifications

Overview

Connectivity
Wired
Weight
285 g
Colour
Black, Silver
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating temperature (T-T)
0 - 50 °C
Brand
StarTech.com
Model
DK30BACDD
Part number
DK30BACDD
EAN / UPC
065030865906, 5057454493495
Also known as
StarTech.com DVI Dual-Monitor Docking Station for USB-C Laptops - Includes USB-C to A Adapter, HDMI, and VGA Adapters

Specifications

54 specifications in 11 groups

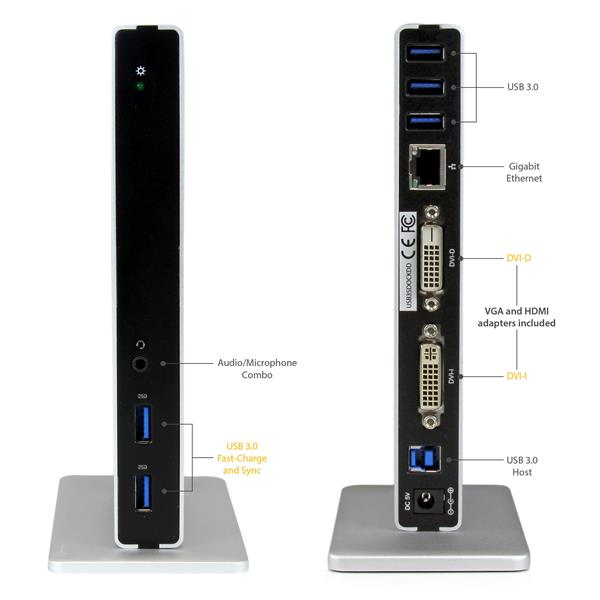

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
HDMI ports quantity0
DVI-I ports quantity1
DVI-D ports quantity1
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution2048 x 1152 pixels
Maximum analog resolution2048 x 1152 pixels
Housing materialAluminium, Plastic
LED indicatorsPower
UASP supportYes
Brand compatibilityAny brand
CertificationCE, FCC

Power

AC input voltage100-240 V
Input current0.8 A
Output current4 A
Output voltage5 V
Power consumption (typical)20 W
Power plug typeType M
Compatible power plug typesJP, EU, UK, US

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 85%

Weight & dimensions

Width23 mm
Depth83 mm
Height178 mm
Weight285 g

Packaging data

Package width164 mm
Package depth227 mm
Package height76 mm
Package weight1 kg

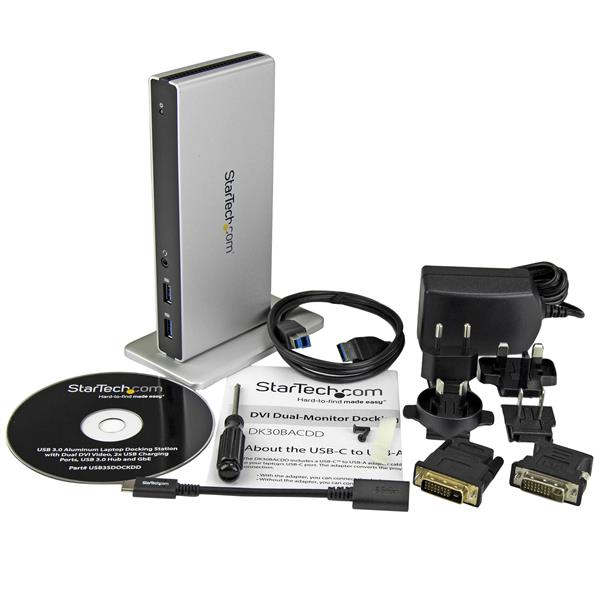

Packaging content

AC adapter includedYes
Cables includedUSB
Drivers includedYes
Quick start guideYes
Stand includedYes

Technical details

Compliance certificatesRoHS

Other features

ChipsetDisplayLink - DL-3900, Genesys Logic - GL3520
