StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Ty
StarTech.com

USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Ty

Model DK30ADDEAN 065030871440

60 specifications
  • ConnectivityWired
  • Weight291 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • Power source typeAC
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
291 g
Colour
Black, Silver
Ethernet LAN
Yes
Power source type
AC
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
DK30ADD
Part number
DK30ADD
EAN / UPC
065030871440
Also known as
StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Ty

Specifications

60 specifications in 12 groups

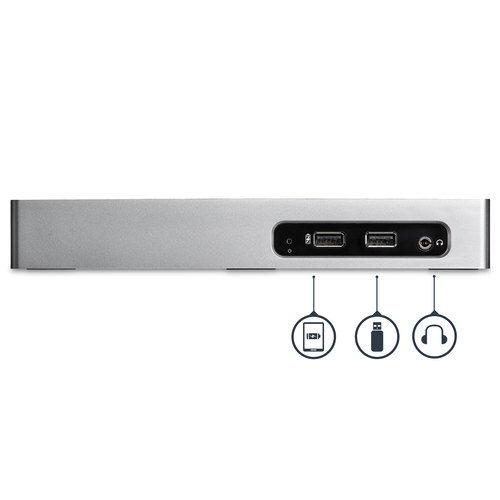

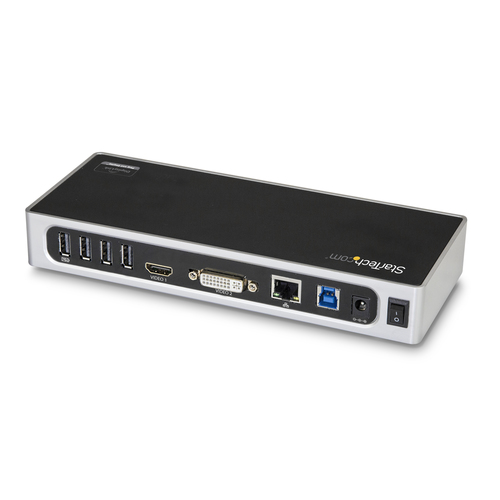

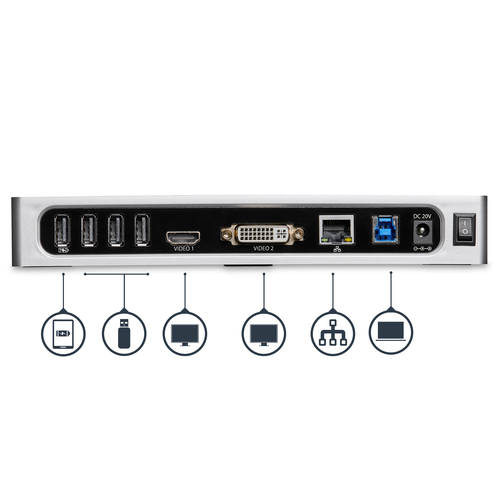

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
HDMI ports quantity1
DVI-I ports quantity1
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution2048 x 1152 pixels
Number of displays supported2
On/off switchYes
Housing materialPlastic
LED indicatorsPower
UASP supportYes
Brand compatibilityAny brand
CertificationCE, FCC, DisplayLink, REACH

Power

Power source typeAC
AC input voltage100 - 240 V
Input current1 A
Output current2 A
Output voltage20 V
Power consumption (typical)40 W
Power plug typeType N
Compatible power plug typesAU, EU, JP, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%

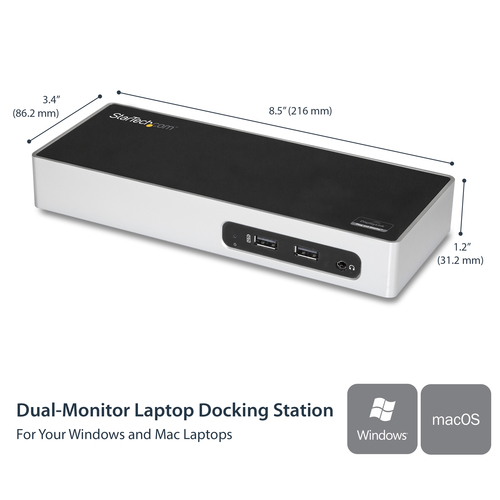

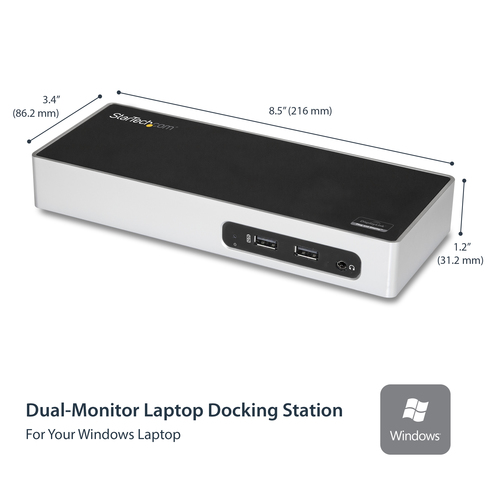

Weight & dimensions

Width86.2 mm
Depth216 mm
Height31 mm
Weight291 g

Packaging data

Package width140 mm
Package depth307 mm
Package height60 mm
Package weight800 g

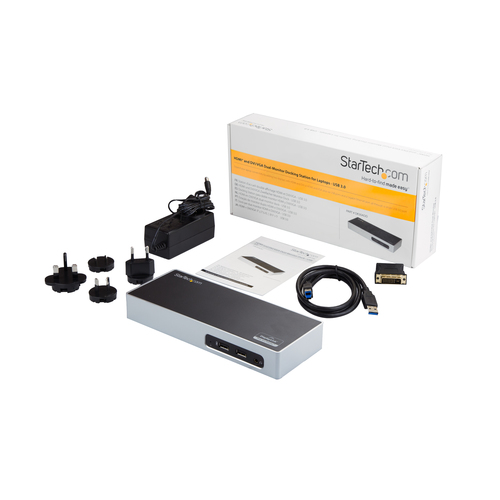

Packaging content

AC adapter includedYes
Cables includedUSB
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height295 mm
Master (outer) case length325 mm
Master (outer) case width315 mm
Products per master (outer) case10 pc(s)

Other features

Cable length1 m
ChipsetDisplayLink - DL-3900, VIA/VLI - VL813
