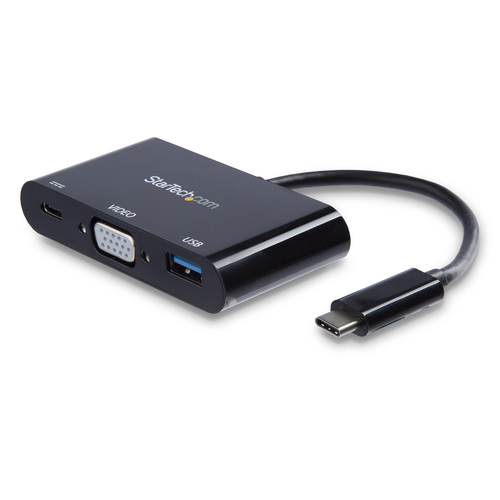

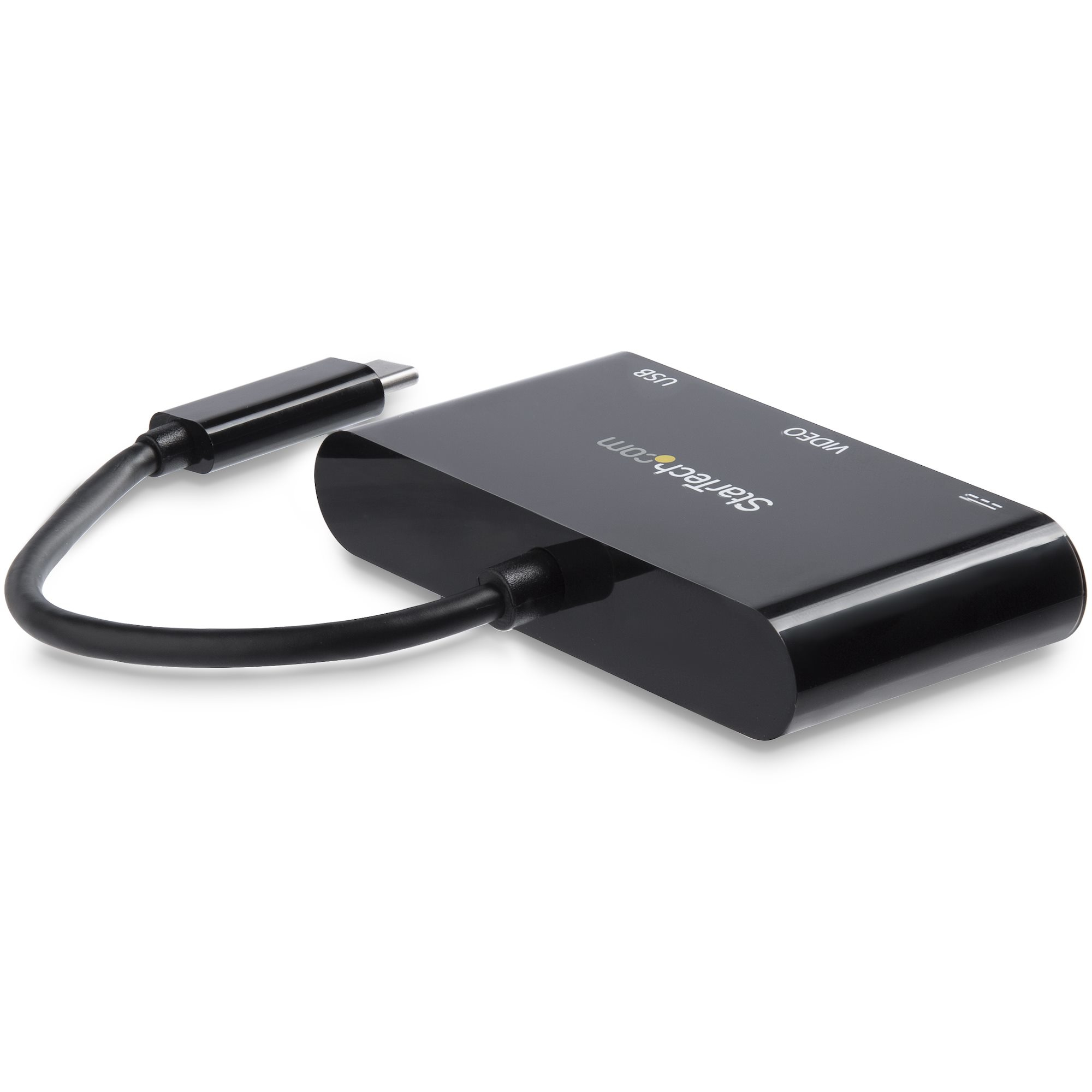

StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port
60W PD
Model CDP2VGAUACPEAN 065030866293
41 specifications
- ConnectivityWired
- Weight39 g
- ColourBlack
- Ethernet LANNo
- Power source typeUSB
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 39 g
- Colour
- Black
- Ethernet LAN
- No
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- CDP2VGAUACP
- Part number
- CDP2VGAUACP
- EAN / UPC
- 065030866293
- Also known as
- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port - 60W PD
Specifications
41 specifications in 11 groups

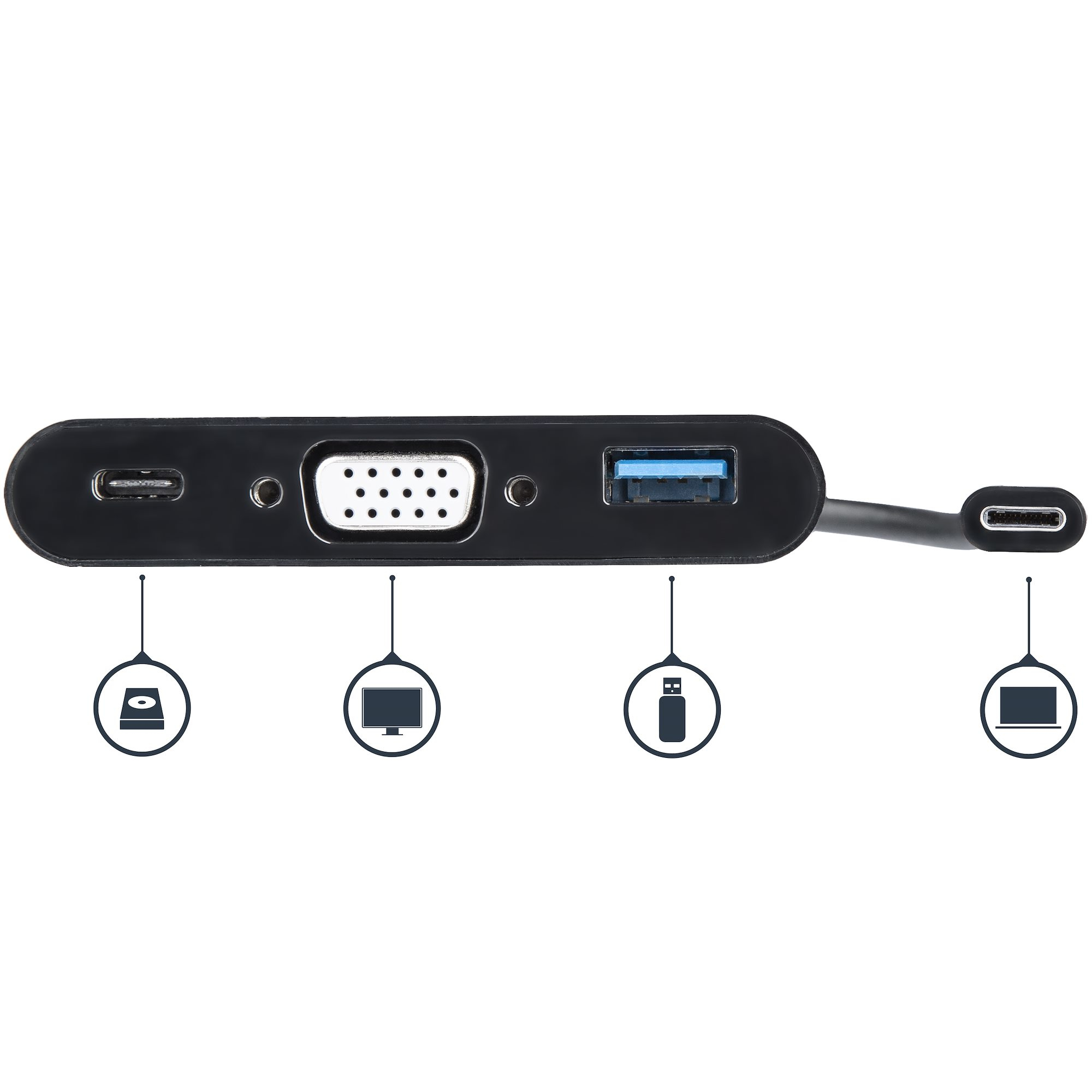

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |

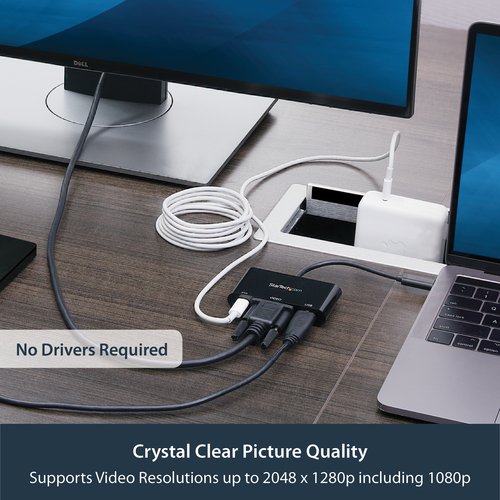

| Maximum analog resolution | 2048 x 1280 pixels |
| Housing material | Plastic |
| UASP support | Yes |
| Brand compatibility | Any brand |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |

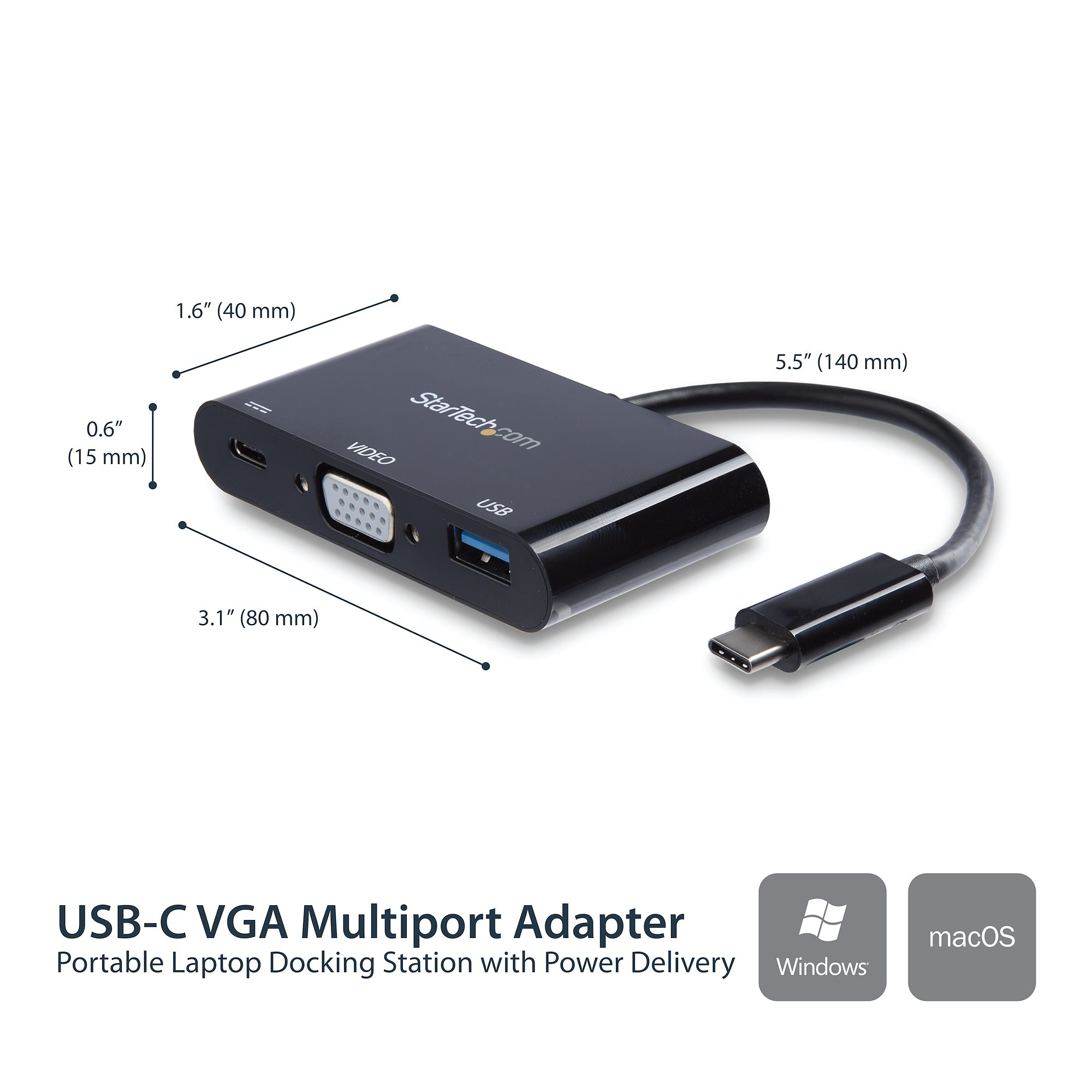

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 80 mm |
| Height | 15 mm |
| Weight | 39 g |

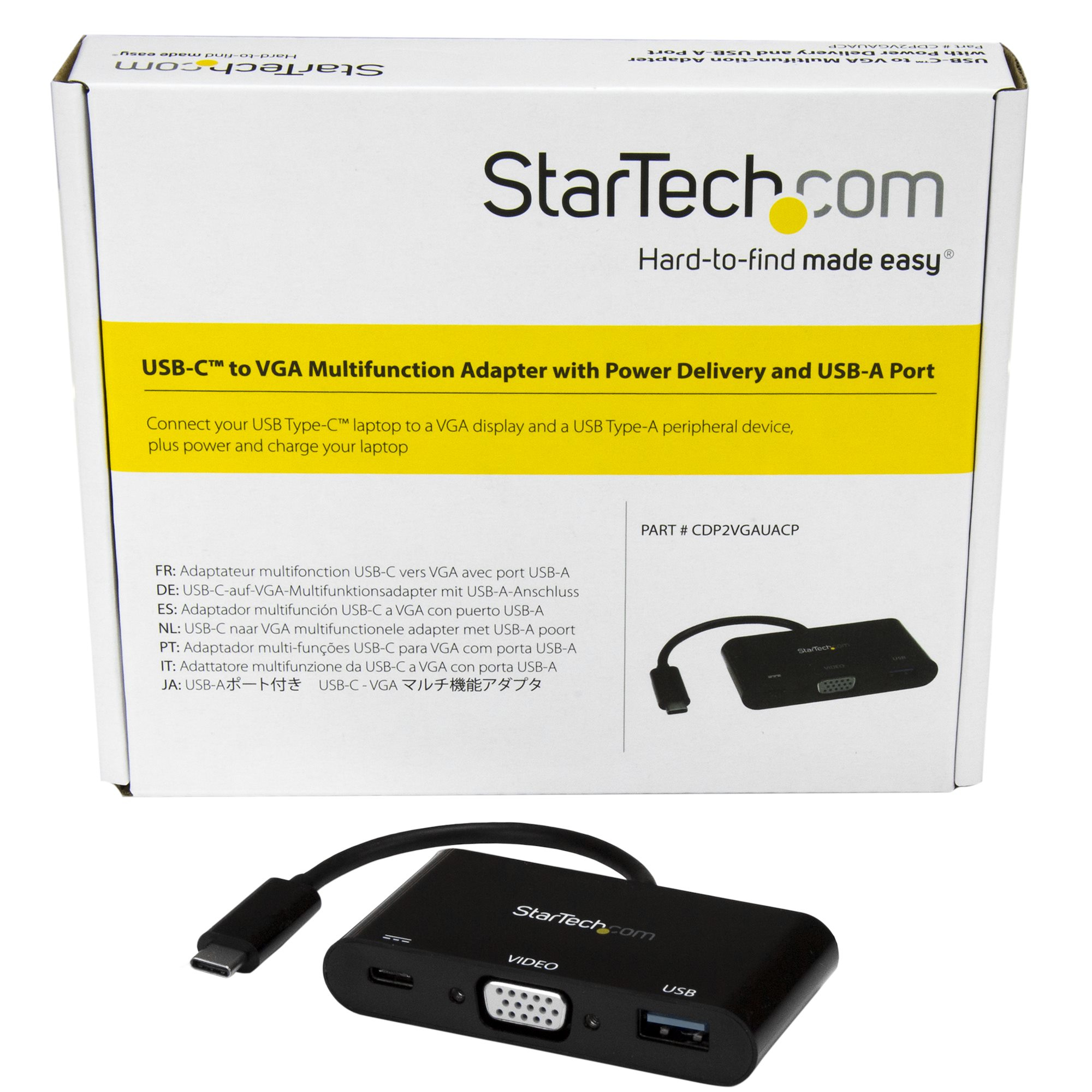

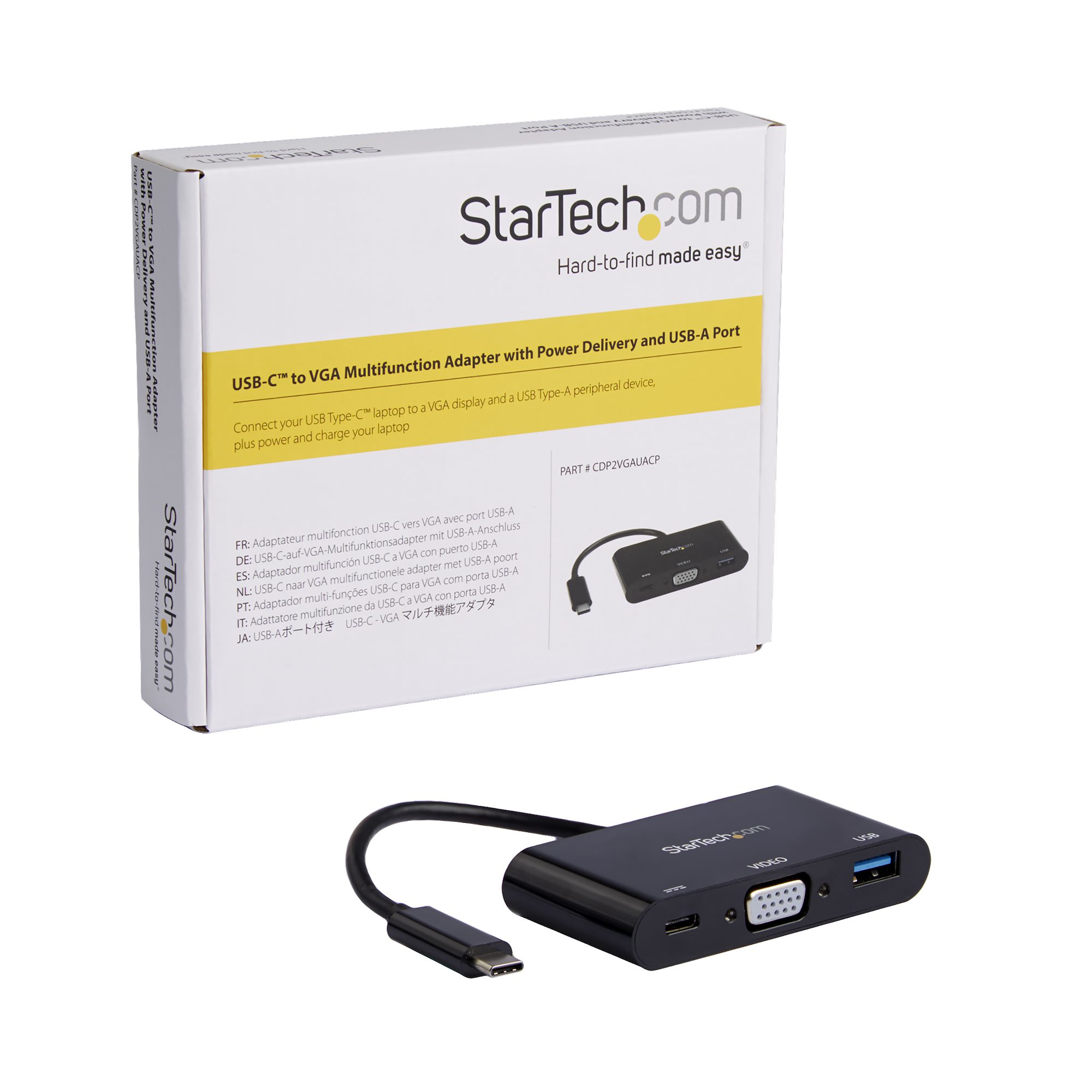

Packaging data
| Specification | Value |
|---|---|
| Package width | 144 mm |
| Package depth | 171 mm |
| Package height | 33 mm |
| Package weight | 109 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 324 mm |
| Master (outer) case length | 532 mm |
| Master (outer) case width | 338 mm |
| Products per master (outer) case | 60 pc(s) |
Other features
| Specification | Value |
|---|---|

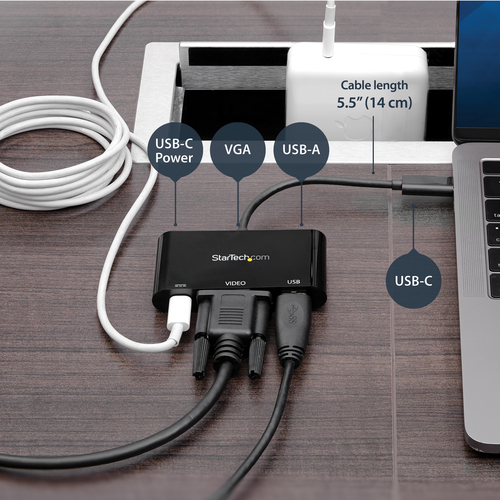

| Cable length | 0.14 m |
| Chipset | VIA/VLI - VL100, VIA/VLI - VL210, NXP - PTN3355 |
Compare StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port

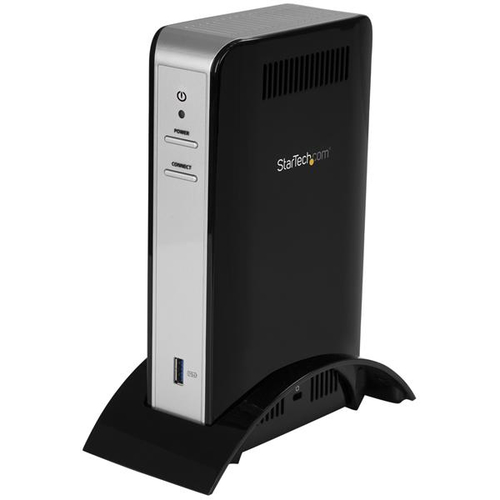

Compare any products- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port vsStarTech.com Dual Monitor USB-C DockCompare specs
- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port vsStarTech.com Dual Monitor USB-C DockCompare specs

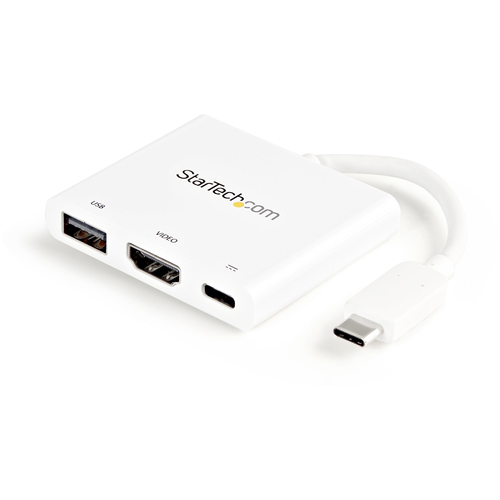

- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port vsStarTech.com USB-C Multiport Adapter with HDMI - USB 3.0 PortCompare specs
- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port vsStarTech.com USB-C Multiport Adapter with HDMI - USB 3.0 PortCompare specs
- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port vsLenovo 03X6898 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-A BlackCompare specs

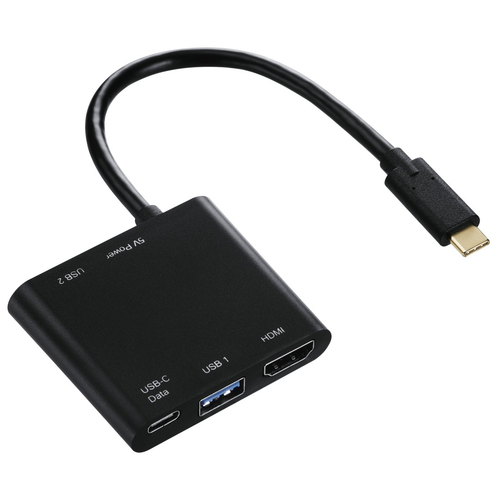

- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port vsHama 00135729 laptop dock/port replicator BlackCompare specs

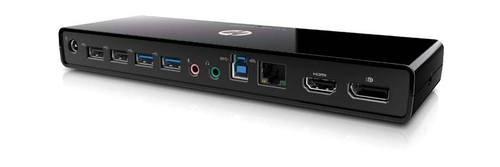

- StarTech.com USB-C VGA Multiport Adapter - USB 3.0 Port vsHP 3005pr USB3 Port ReplicatorCompare specs
