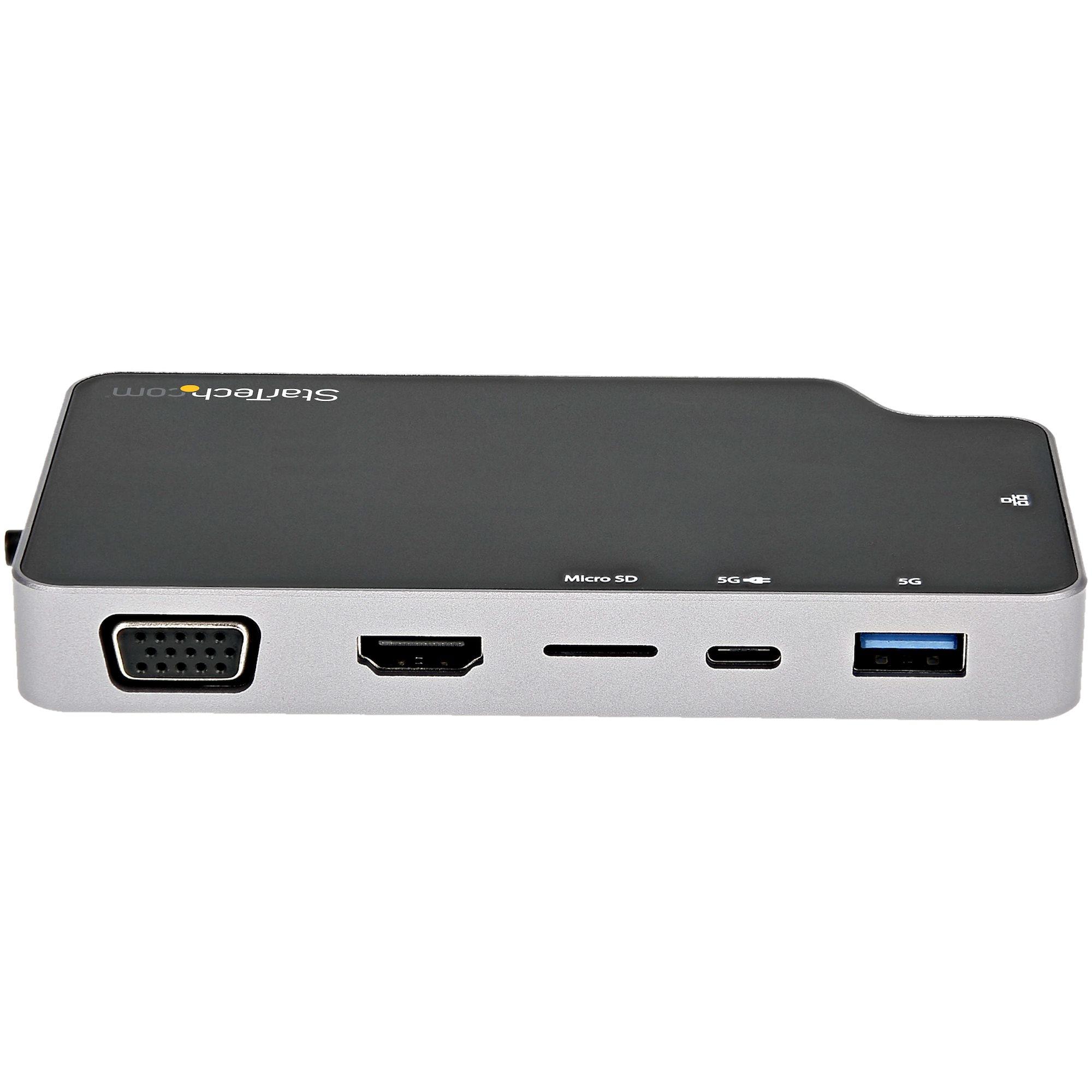

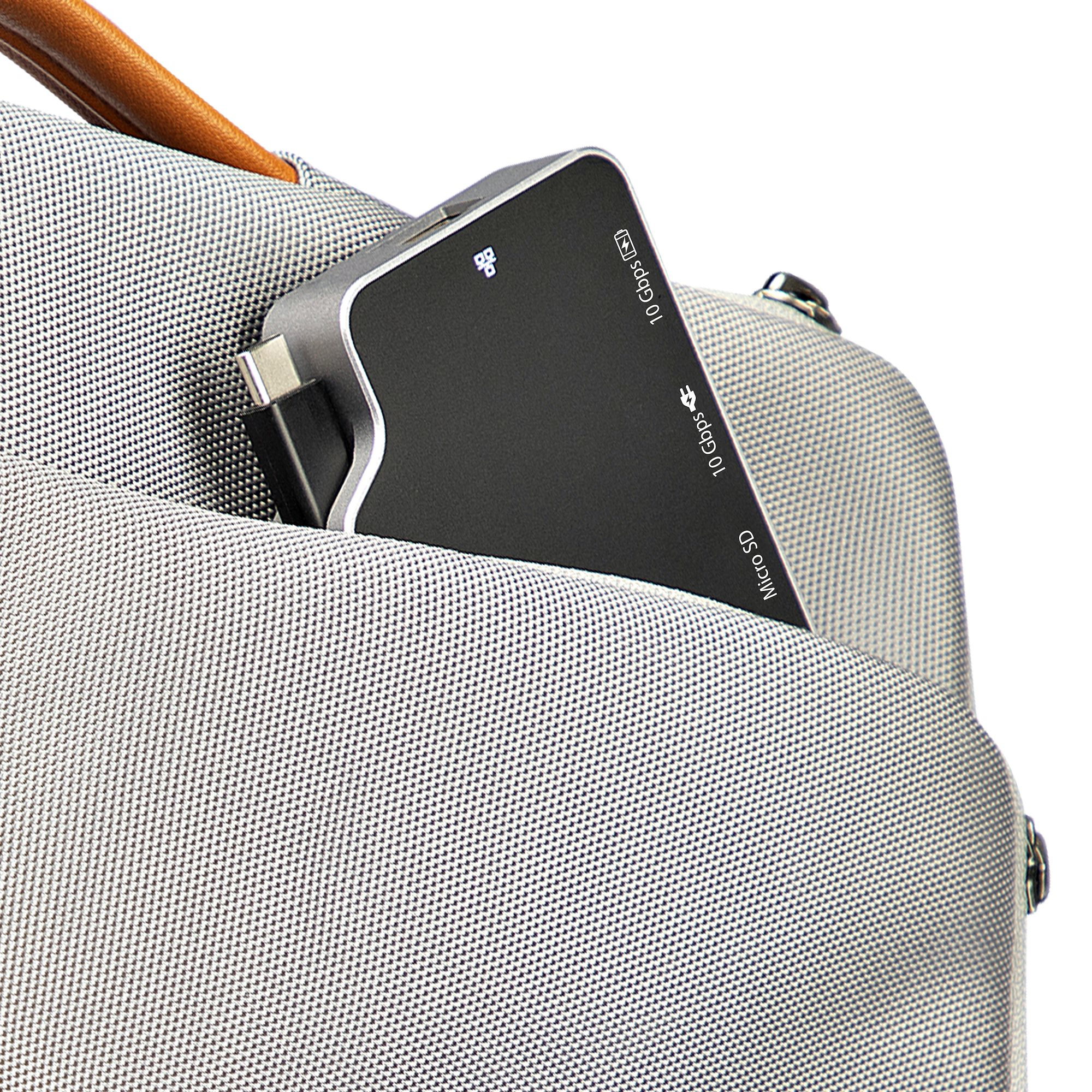

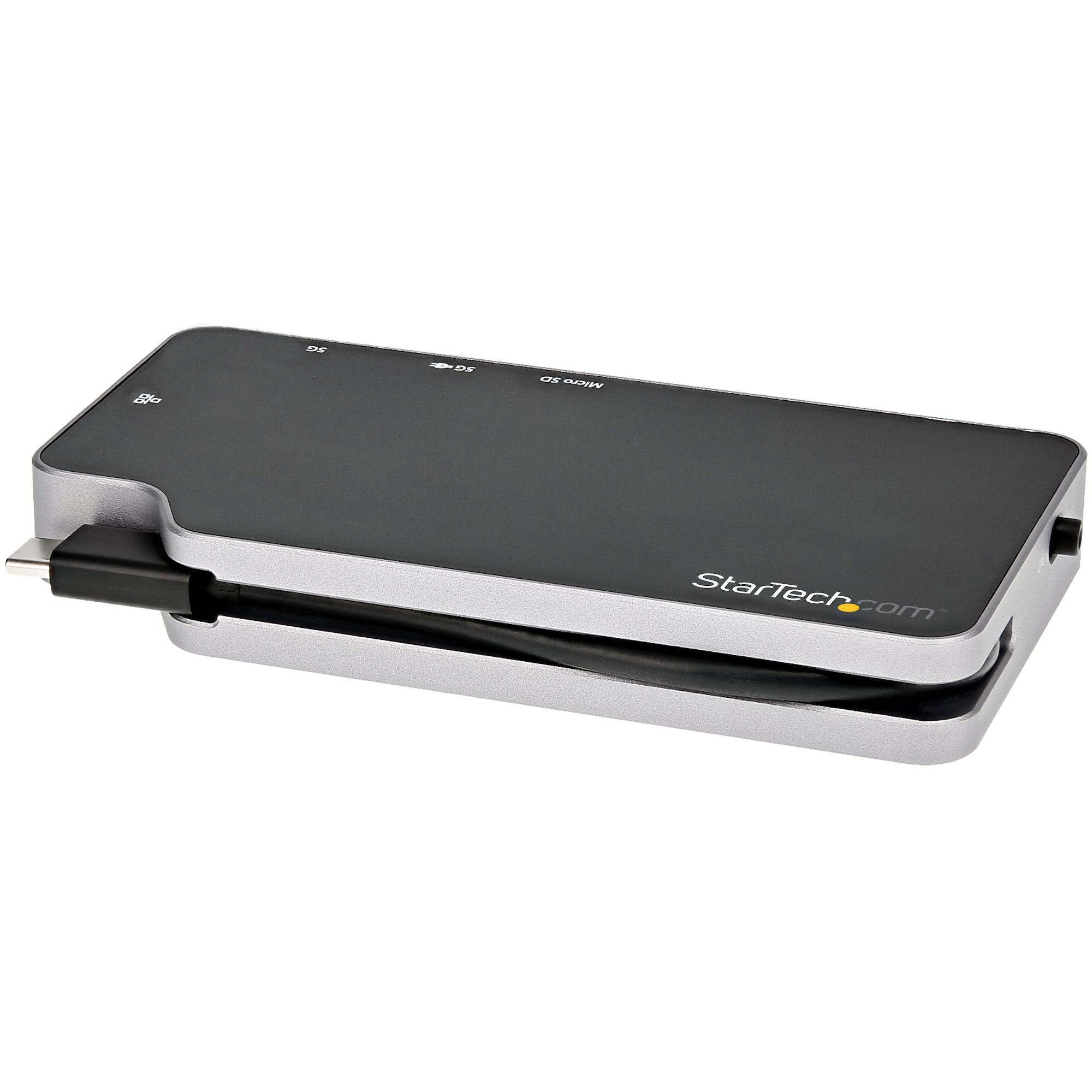

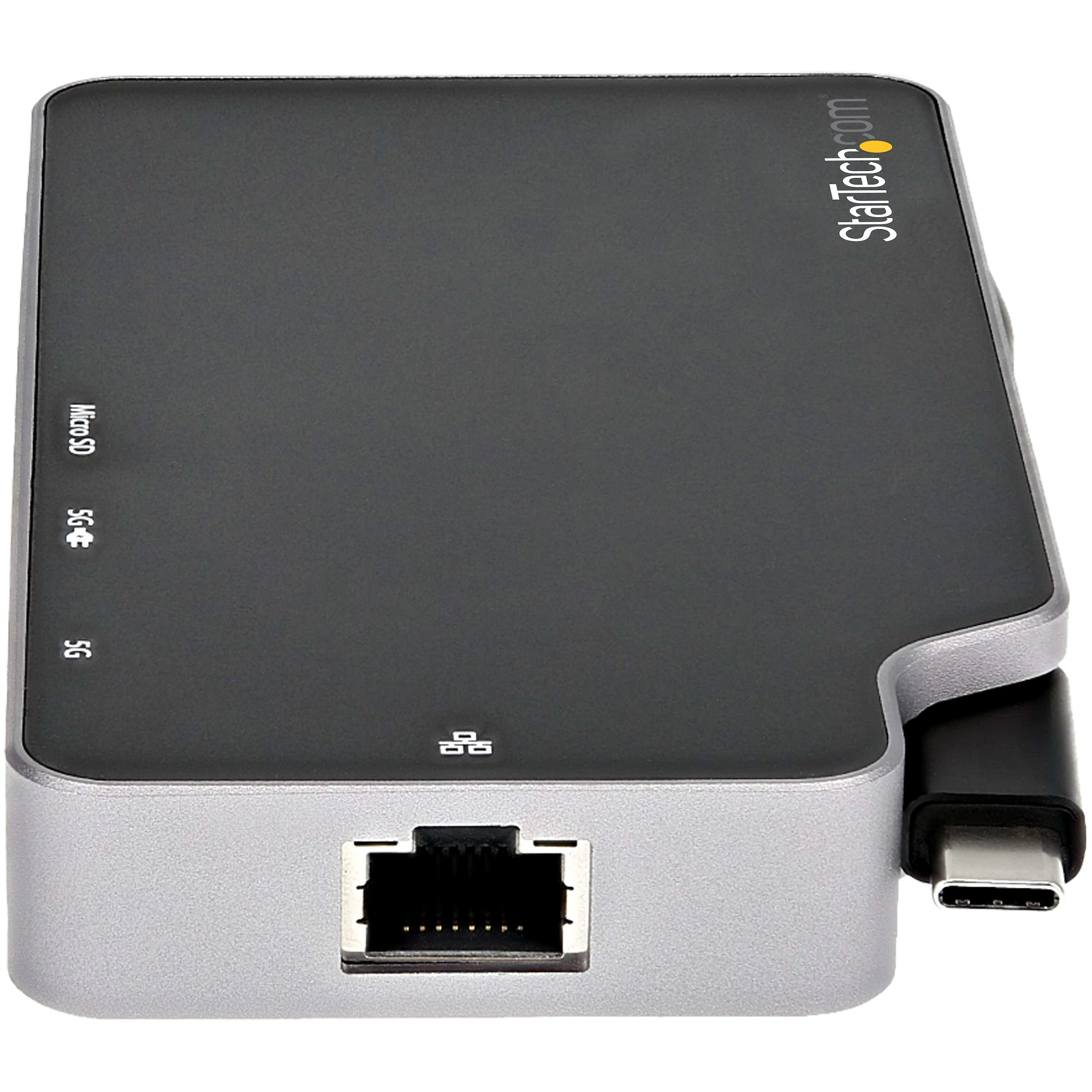

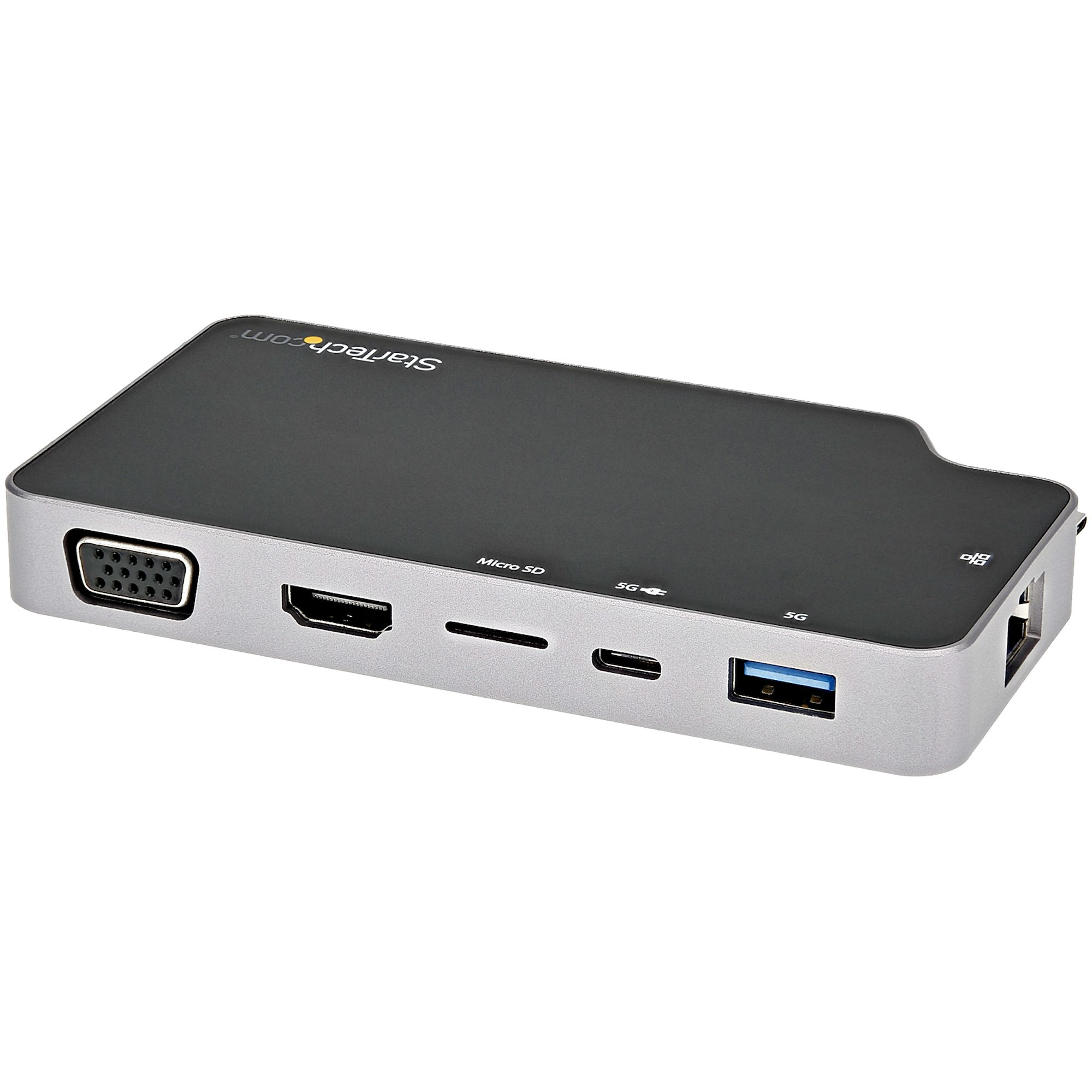

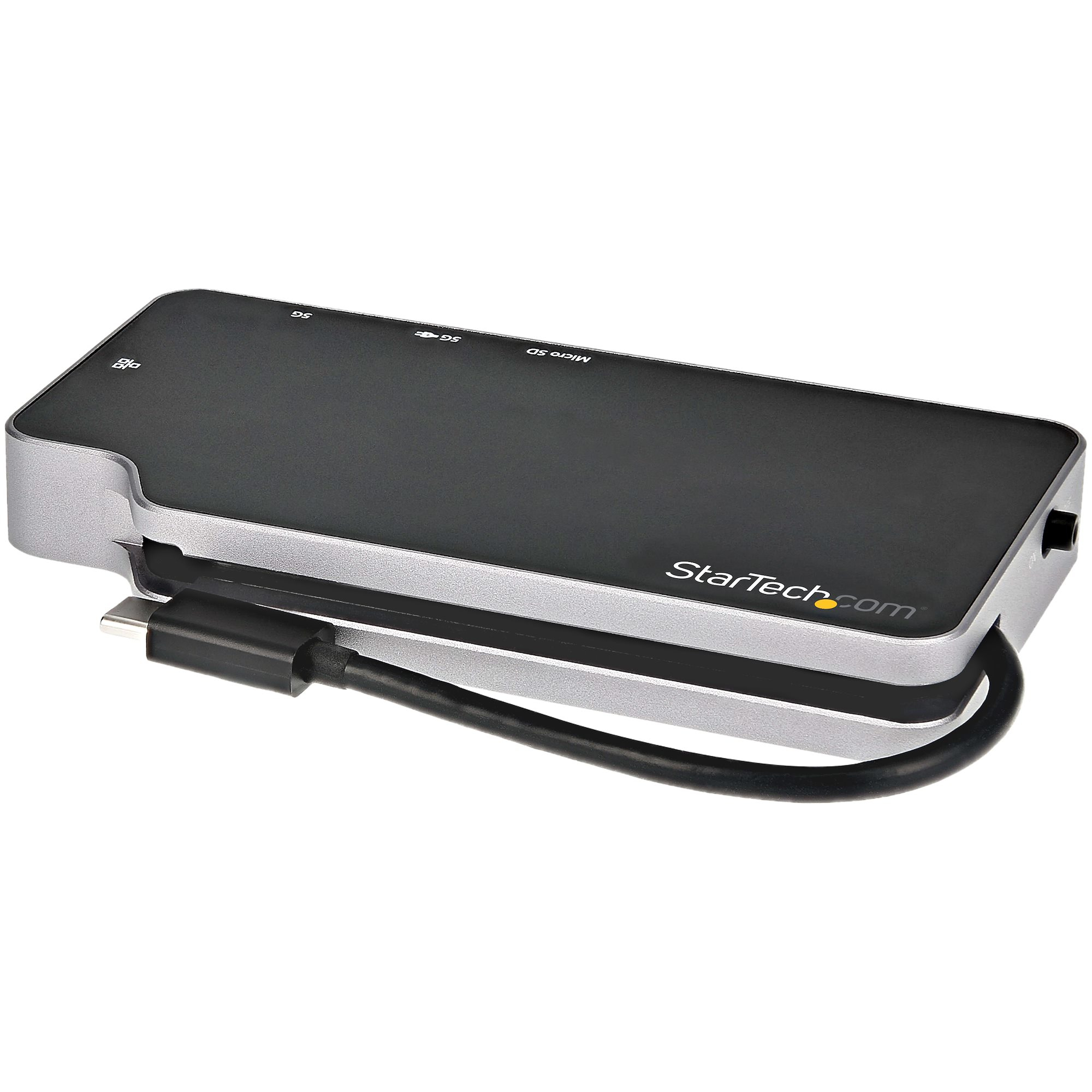

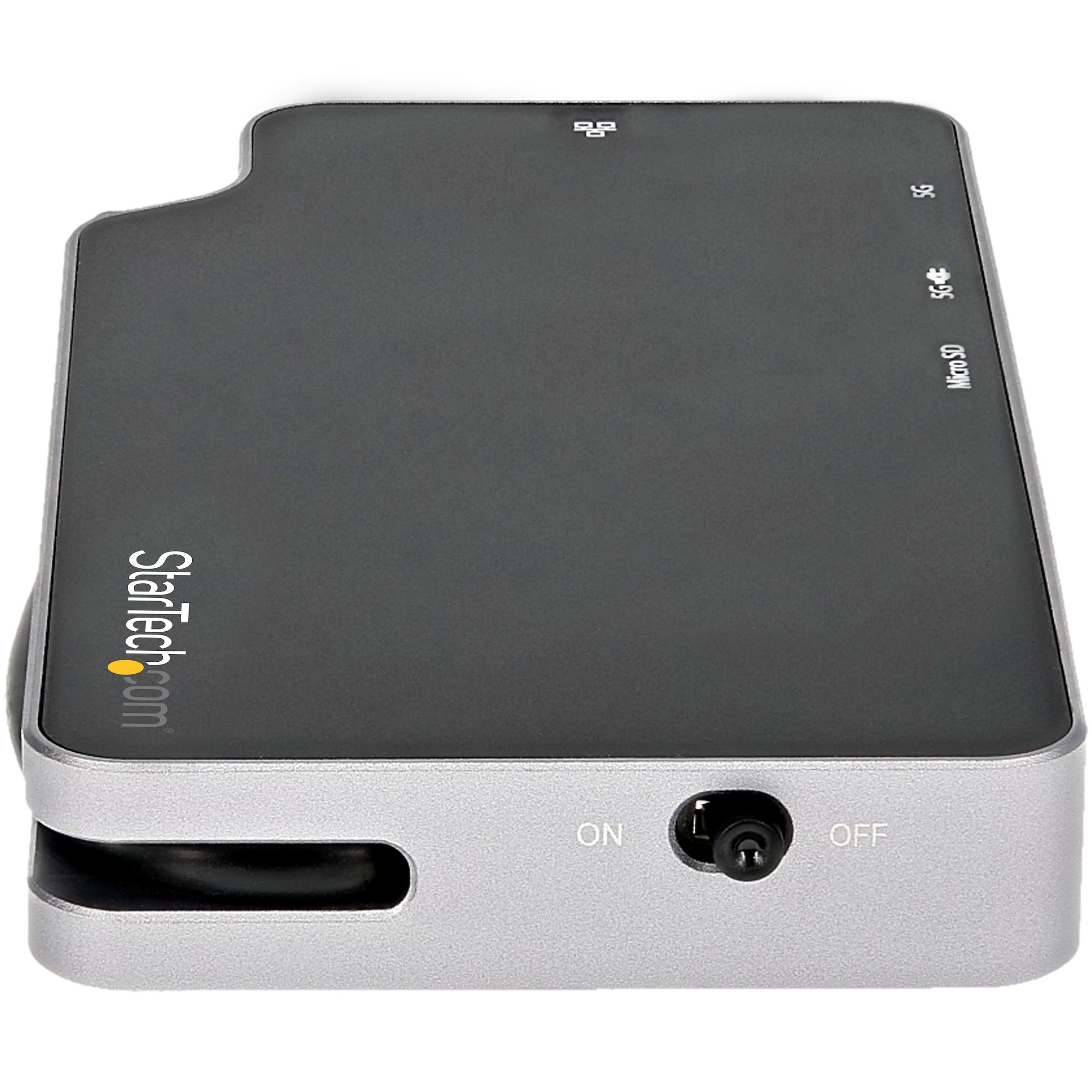

StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with
StarTech.com

USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with

100W Power Delivery Pass-through, 2-Port 10Gbps USB Hub, MicroSD, GbE - USB 3.1 Gen 2

Model CDP2HVGUASPDEAN 065030875493

51 specifications
  • ConnectivityWired
  • Weight124.3 g
  • ColourBlack, Grey
  • Ethernet LANYes
  • Power consumption (typical)15 W
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Connectivity
Wired
Weight
124.3 g
Colour
Black, Grey
Ethernet LAN
Yes
Power consumption (typical)
15 W
Operating temperature (T-T)
0 - 70 °C
Brand
StarTech.com
Model
CDP2HVGUASPD
Part number
CDP2HVGUASPD
EAN / UPC
065030875493
Also known as
StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with 100W Power Delivery Pass-through, 2-Port 10Gbps USB Hub, MicroSD, GbE - USB 3.1 Gen 2

Specifications

51 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity1
VGA (D-Sub) ports quantity1
Microphone inNo
Headphone outputs0

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u

Performance

Product colourBlack, Grey
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Number of displays supported1
Housing materialAluminium, Plastic
LED indicatorsYes
CertificationCE, FCC, RoHS

Power

Power consumption (typical)15 W

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width125 mm
Depth68 mm
Height16 mm
Weight124.3 g

Packaging data

Package width142 mm
Package depth170 mm
Package height30 mm
Package weight138.3 g

Packaging content

Quick start guideYes

Logistics data

Harmonized System (HS) code84733020
Master (outer) case height440 mm
Master (outer) case length331 mm
Master (outer) case width473 mm
Products per master (outer) case70 pc(s)

Other features

Cable length0.13 m
ChipsetRealtek - RTD2141DS, Realtek - RTS5423, Realtek - RTL8153B, Realtek - RTS5306
