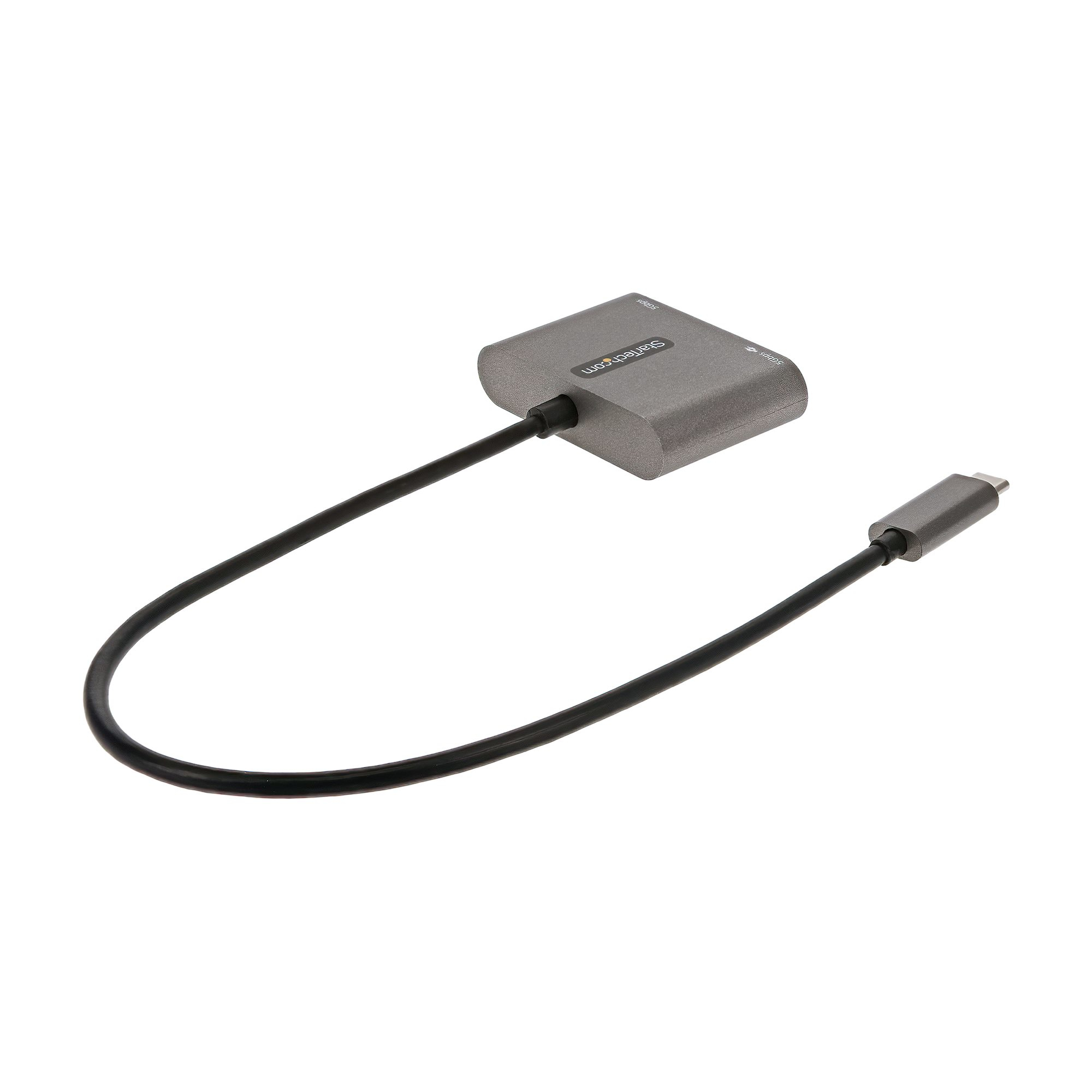

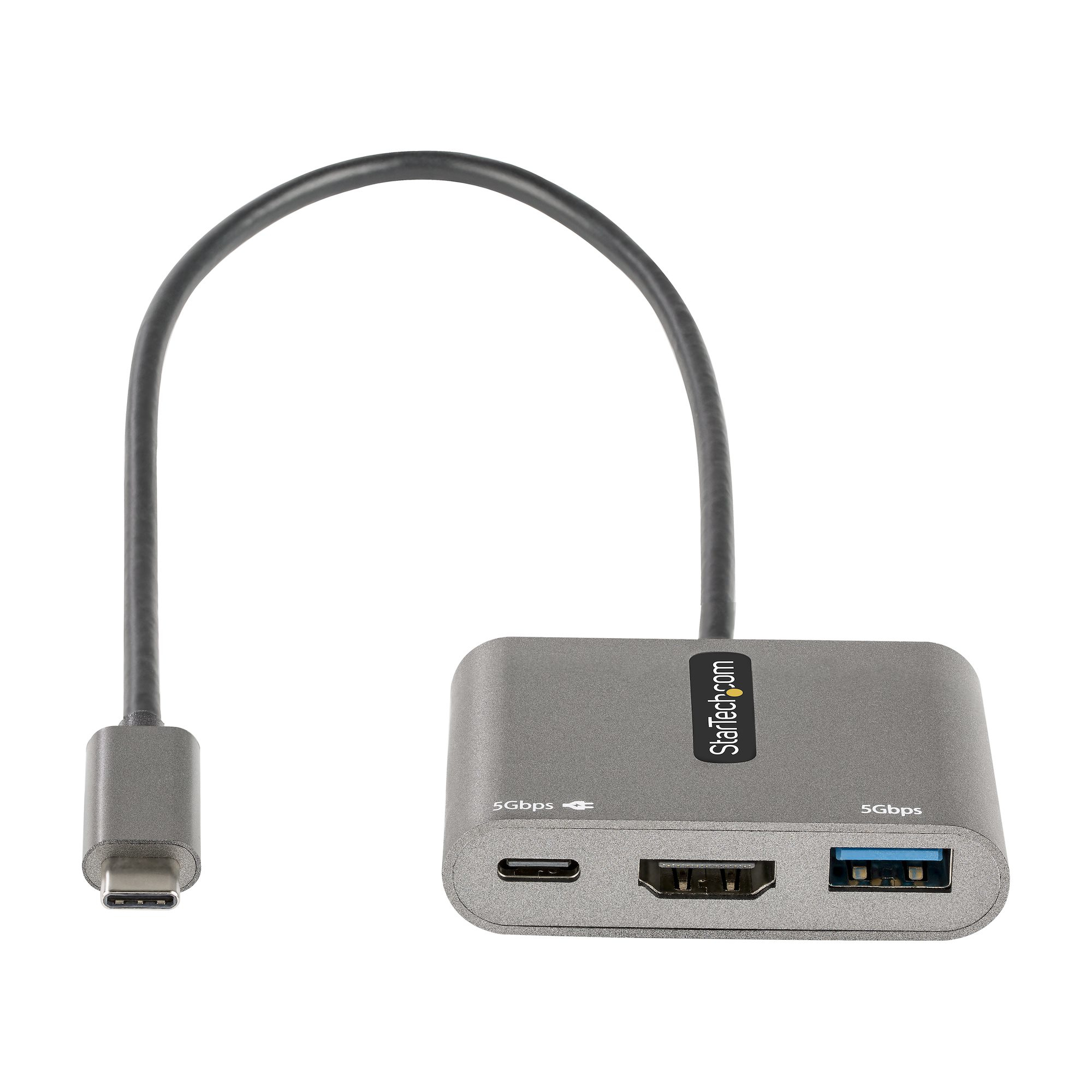

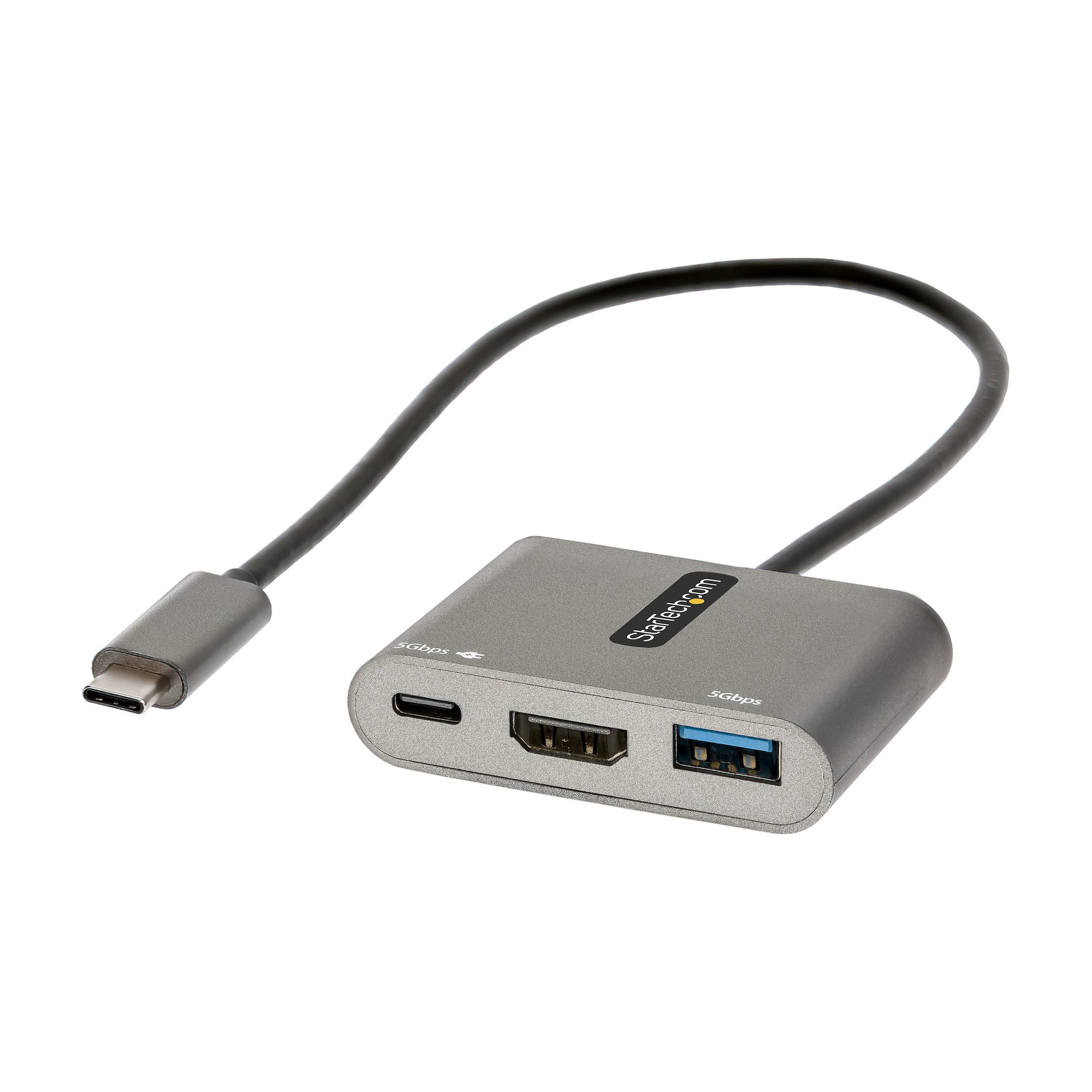

USB C Multiport Adapter, USB-C to HDMI 4K Video
100W PD Pass-Through, USB 3.0 Hub 5Gbps (1xType-C/1xA), USB-C Mini Dock, USB-C Travel Dock, Portab
Model CDP2HDUACP2EAN 065030892520
44 specifications
- ConnectivityWired
- Weight102 g
- ColourGrey
- Ethernet LANNo
- Power source typeUSB
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 102 g
- Colour
- Grey
- Ethernet LAN
- No
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- CDP2HDUACP2
- Part number
- CDP2HDUACP2
- EAN / UPC
- 065030892520
- Also known as
- StarTech.com USB C Multiport Adapter, USB-C to HDMI 4K Video, 100W PD Pass-Through, USB 3.0 Hub 5Gbps (1xType-C/1xA), USB-C Mini Dock, USB-C Travel Dock, Portab
Specifications
44 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 1 |
| Housing material | Plastic |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 8 W |
| Wireless charging | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 60 mm |
| Height | 10 mm |
| Weight | 102 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 174 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 102 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 60 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.34 m |
| Chipset | VIA/VLI - VL817, VIA/VLI - VL103, Parade - PS176 |
