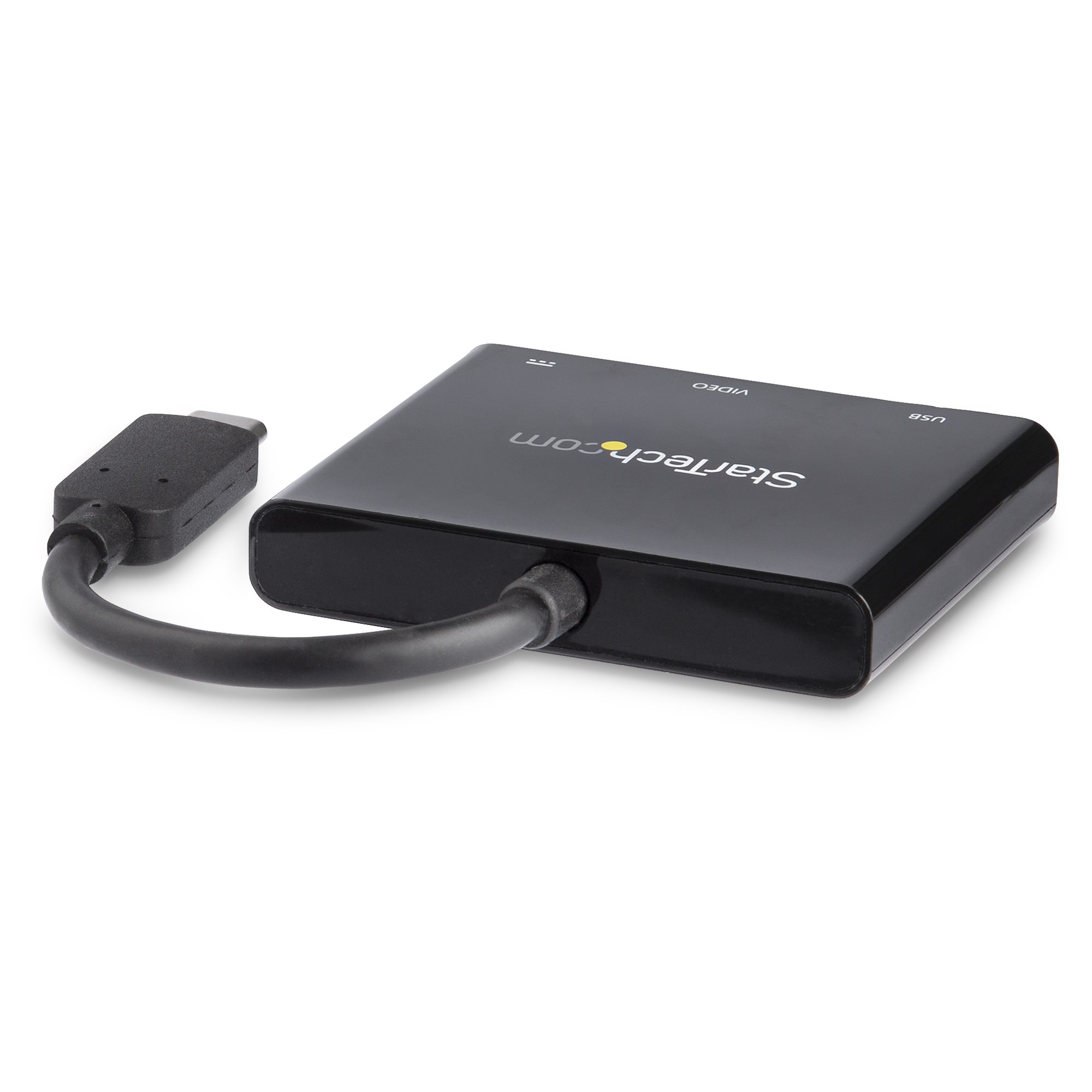

USB-C Multiport Adapter with HDMI - USB 3.0 Port
60W PD - Black
Model CDP2HDUACPEAN 065030866286
40 specifications
- ConnectivityWired
- Weight35 g
- ColourBlack
- Ethernet LANNo
- Power source typeUSB
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 35 g
- Colour
- Black
- Ethernet LAN
- No
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- CDP2HDUACP
- Part number
- CDP2HDUACP
- EAN / UPC
- 065030866286
- Also known as
- StarTech.com USB-C Multiport Adapter with HDMI - USB 3.0 Port - 60W PD - Black
Specifications
40 specifications in 11 groups

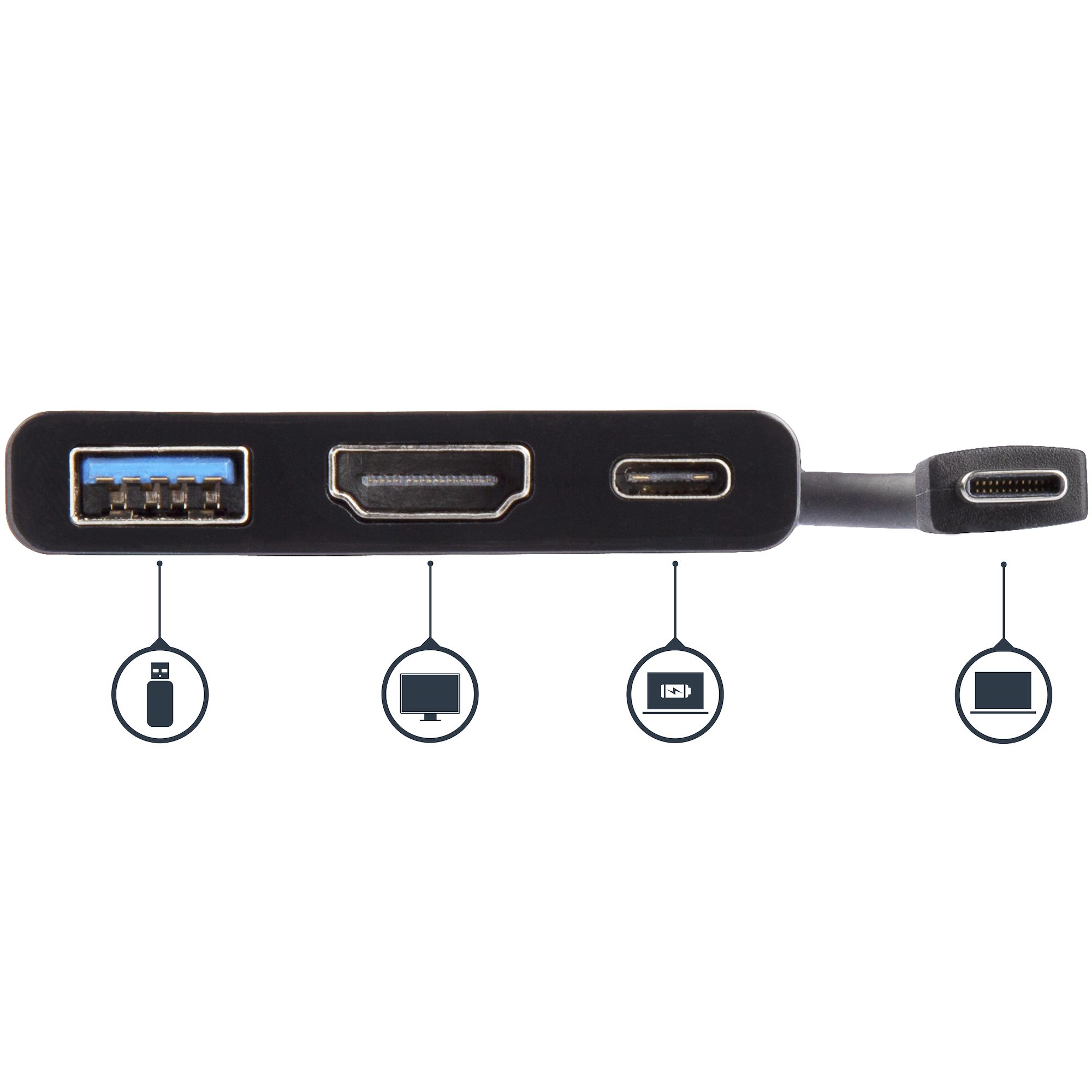

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Housing material | Plastic |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power supply | 60 W |
| Wireless charging | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |

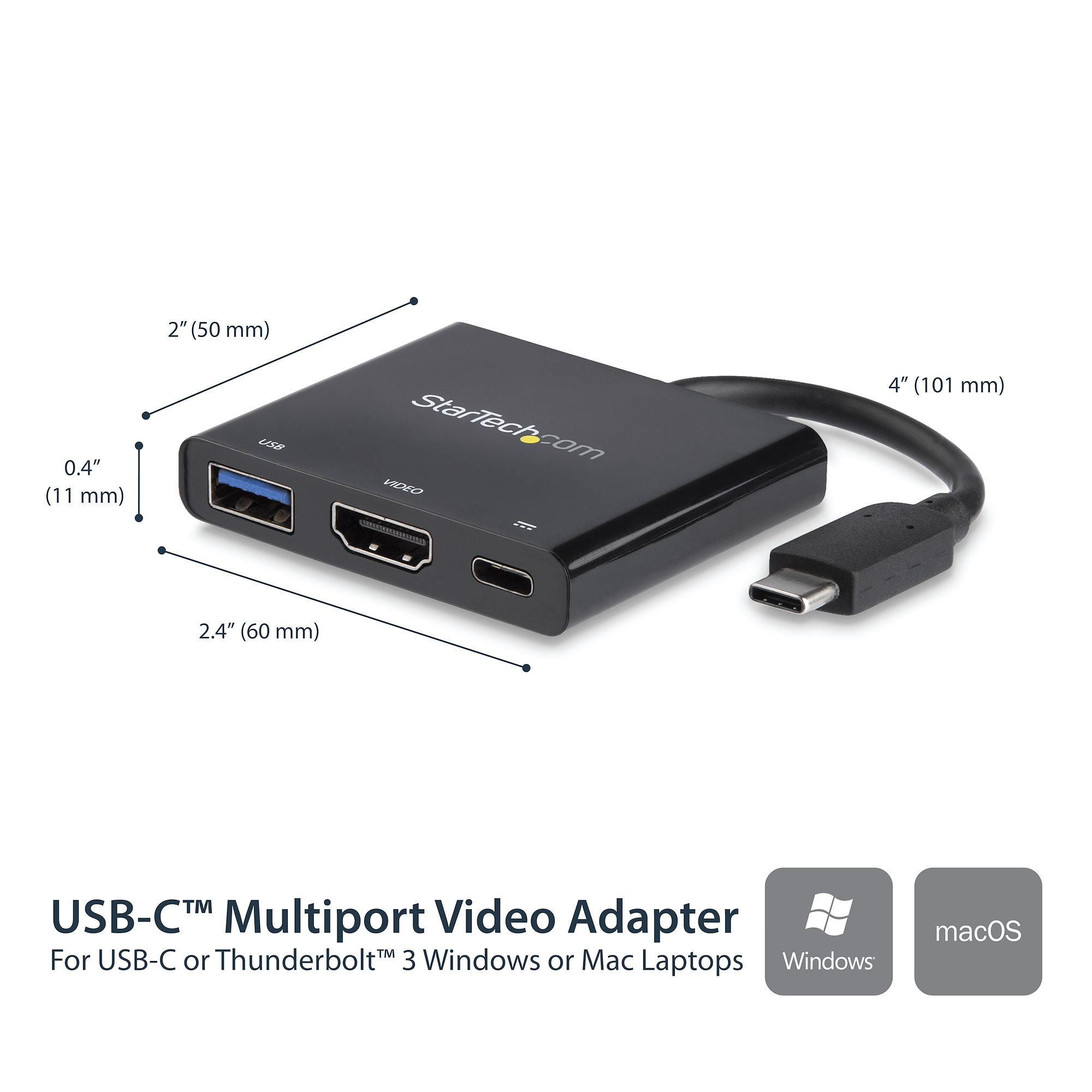

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 60 mm |
| Height | 11 mm |
| Weight | 35 g |

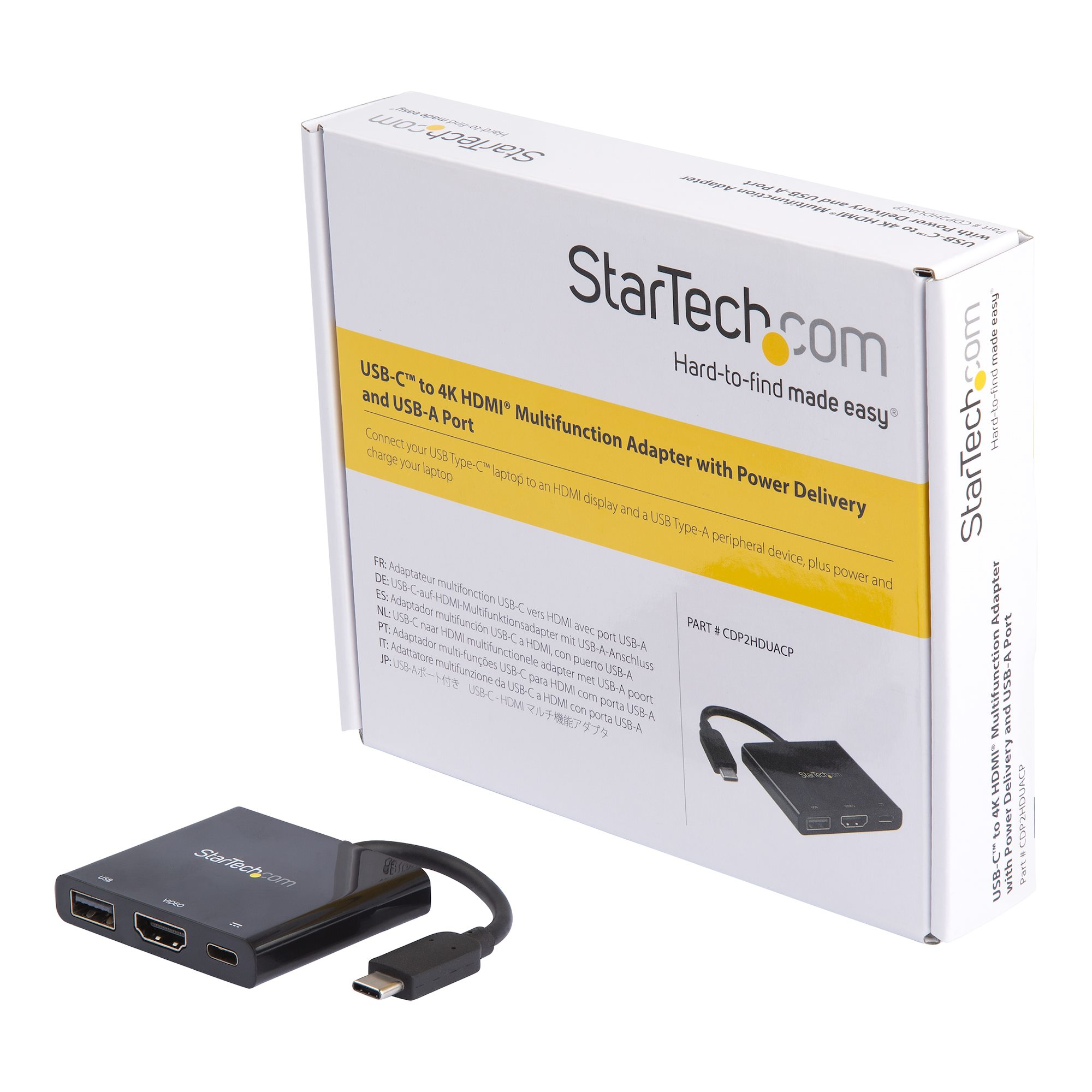

Packaging data
| Specification | Value |
|---|---|
| Package width | 146 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 118 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 319 mm |
| Master (outer) case length | 362 mm |
| Master (outer) case width | 358 mm |
| Products per master (outer) case | 40 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.1 m |
| Chipset | VIA/VLI - VL100, VIA/VLI - VL210, Parade - PS176 |
