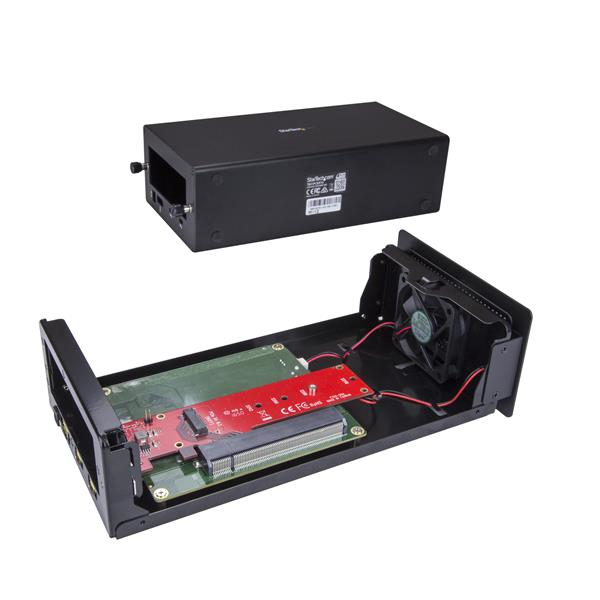

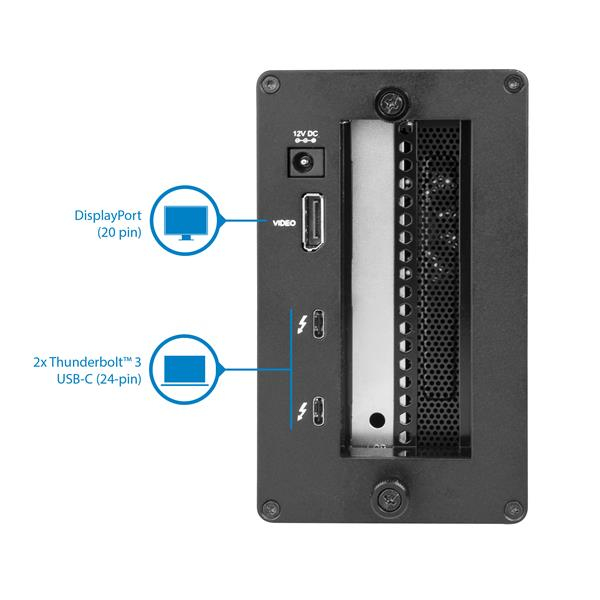

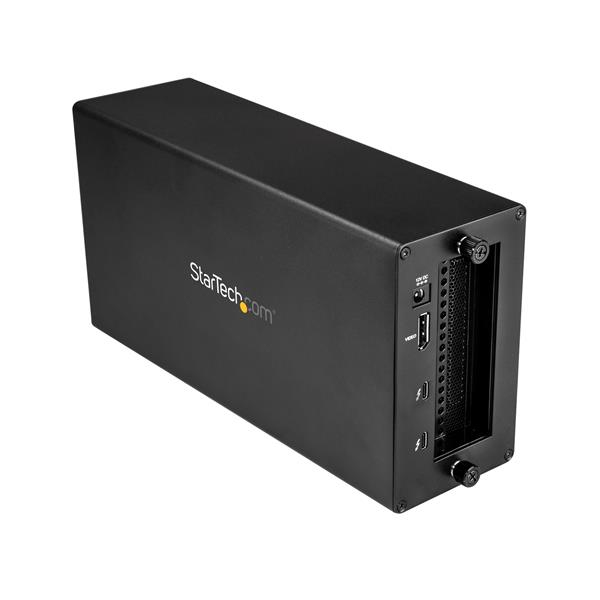

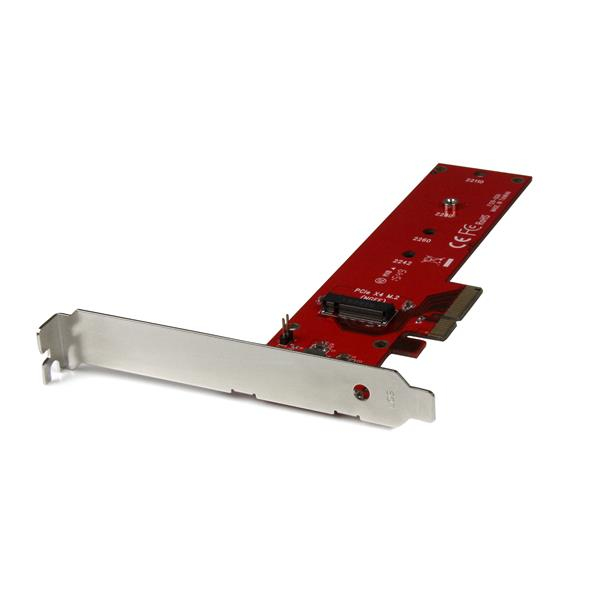

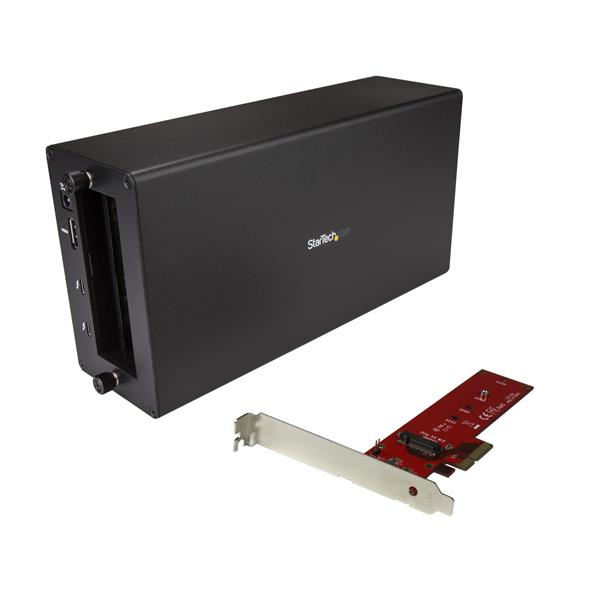

StarTech.com Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card

StarTech.com Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card

Model BNDTB4M2E1EAN 065030879132

47 specifications
  • ConnectivityWired
  • Weight1.6 kg
  • ColourBlack
  • Ethernet LANNo
  • Built-in fanYes
  • Number of HDDs supported1
See all specifications

Overview

Connectivity
Wired
Weight
1.6 kg
Colour
Black
Ethernet LAN
No
Built-in fan
Yes
Number of HDDs supported
1
Brand
StarTech.com
Model
BNDTB4M2E1
Part number
BNDTB4M2E1
EAN / UPC
065030879132
Also known as
StarTech.com Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card

Specifications

47 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
HDMI ports quantity0
DisplayPorts quantity1
Microphone inNo
Headphone outputs0
DC-in jackYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0

Performance

Product colourBlack
Card reader integratedNo
Supported SSD sizesM.2
Data transfer rate40 Gbit/s
Housing materialAluminium, Steel
LED indicatorsPower
Plug and PlayYes
CertificationCE, FCC

Cooling

Built-in fanYes

Storage

Number of HDDs supported1

Power

AC input voltage100 - 240 V
Input current2 A
Output current5.417 A
Output voltage12 V
Power consumption (typical)65 W
Power plug typeType N
Compatible power plug typesAU, EU, JP, UK, US

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width142 mm
Depth280 mm
Height82 mm
Weight1.6 kg

Packaging data

Package width290 mm
Package depth360 mm
Package height145 mm
Package weight3.6 kg

Packaging content

AC adapter includedYes
Cables includedThunderbolt
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

Cable length0.5 m
ChipsetIntel - Alpine Ridge DSL6540
PCI slotPCI-E x4
Maximum port bandwidth3.94
