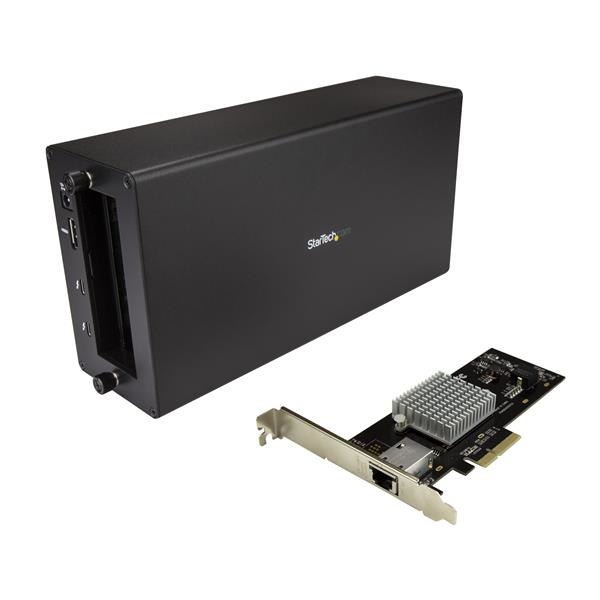

StarTech.com Thunderbolt 3 to 10GbE NIC Chassis + Card

StarTech.com Thunderbolt 3 to 10GbE NIC Chassis + Card

Model BNDTB10GIEAN 065030879118

66 specifications
  • ConnectivityWired
  • Noise24.55 dB
  • Weight1.6 kg
  • ColourBlack
  • Ethernet LANYes
  • AC input voltage100 - 240 V
See all specifications

Overview

Connectivity
Wired
Noise
24.55 dB
Weight
1.6 kg
Colour
Black
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Brand
StarTech.com
Model
BNDTB10GI
Part number
BNDTB10GI
EAN / UPC
065030879118
Also known as
StarTech.com Thunderbolt 3 to 10GbE NIC Chassis + Card

Specifications

66 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
HDMI ports quantity0
DisplayPorts quantity1
Thunderbolt 3 ports quantity2
Microphone inNo
Headphone outputs0
DC-in jackYes
PCI Express x16 slots1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates100,1000,2500,5000,10000 Mbit/s
Copper ethernet cabling technology10GBASE-T, 100BASE-T, 1000BASE-T
Networking standardsIEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Jumbo frames9000
Jumbo frames supportYes
Flow control supportYes
10G supportYes
Auto MDI/MDI-XYes
Full duplexYes
VLAN taggingYes

Performance

Product colourBlack
Card reader integratedNo
Data transfer rate40 Gbit/s
Housing materialAluminium, Steel
Rubber feetYes
CertificationCE, FCC

Cooling

Built-in fanYes
Number of fans1 fan(s)
Bearing typeSleeve bearing
Fan diameter9.2 cm
Noise level24.55 dB
Maximum airflow14.06 cfm

Power

AC input voltage100 - 240 V
Input current2 A
Output current5.417 A
Output voltage12 V
Power consumption (max)65 W
Power plug typeType N
Compatible power plug typesAU, EU, JP, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width142 mm
Depth280 mm
Height82 mm
Weight1.6 kg

Packaging data

Package width290 mm
Package depth360 mm
Package height145 mm
Package weight3.6 kg

Packaging content

AC adapter includedYes
Cables includedThunderbolt
Low-profile bracketYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

Cable length0.5 m
ChipsetIntel - Alpine Ridge DSL6540
PCI Express connectorYes
PCI slotPCI-E x4
Maximum port bandwidth3.94
