Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K
60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps,
Model 215N-TB5USB4DOCKEAN 065030923101
57 specifications
- ConnectivityWired
- Weight545 g
- ColourGrey
- Ethernet LANYes
- Output current9 A
- Mac operating systems supportedMac OS X 15.0 Sequoia
Overview
- Connectivity
- Wired
- Weight
- 545 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Output current
- 9 A
- Mac operating systems supported
- Mac OS X 15.0 Sequoia
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 215N-TB5USB4DOCK
- Part number
- 215N-TB5USB4DOCK
- EAN / UPC
- 065030923101
- Also known as
- StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps,
Specifications
57 specifications in 11 groups

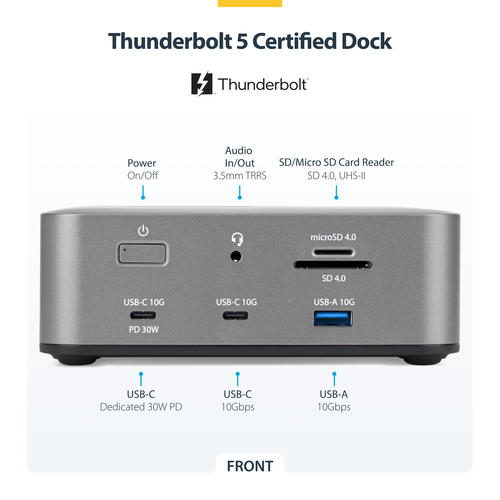

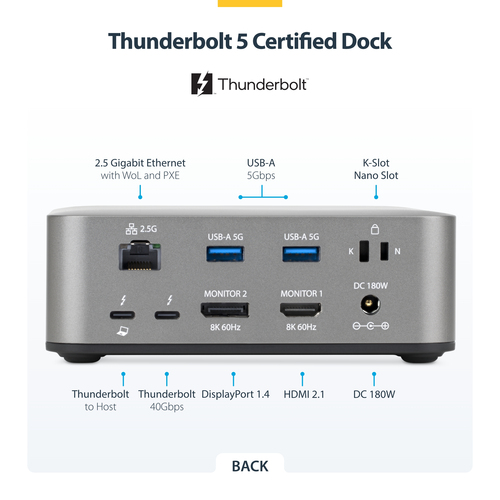

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt 5 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 144 Hz |

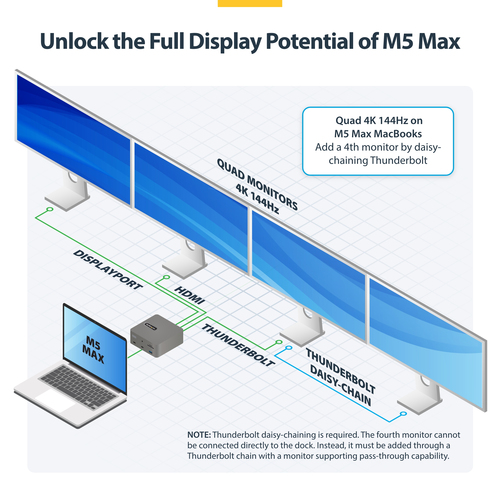

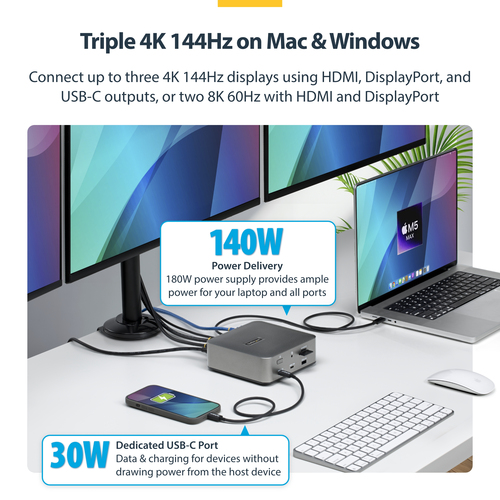

| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| Housing material | Plastic |
| LED indicators | Yes |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 9 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 50 mm |
| Weight | 545 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 302 mm |
| Package depth | 169 mm |
| Package height | 59 mm |
| Package weight | 1.5 kg |

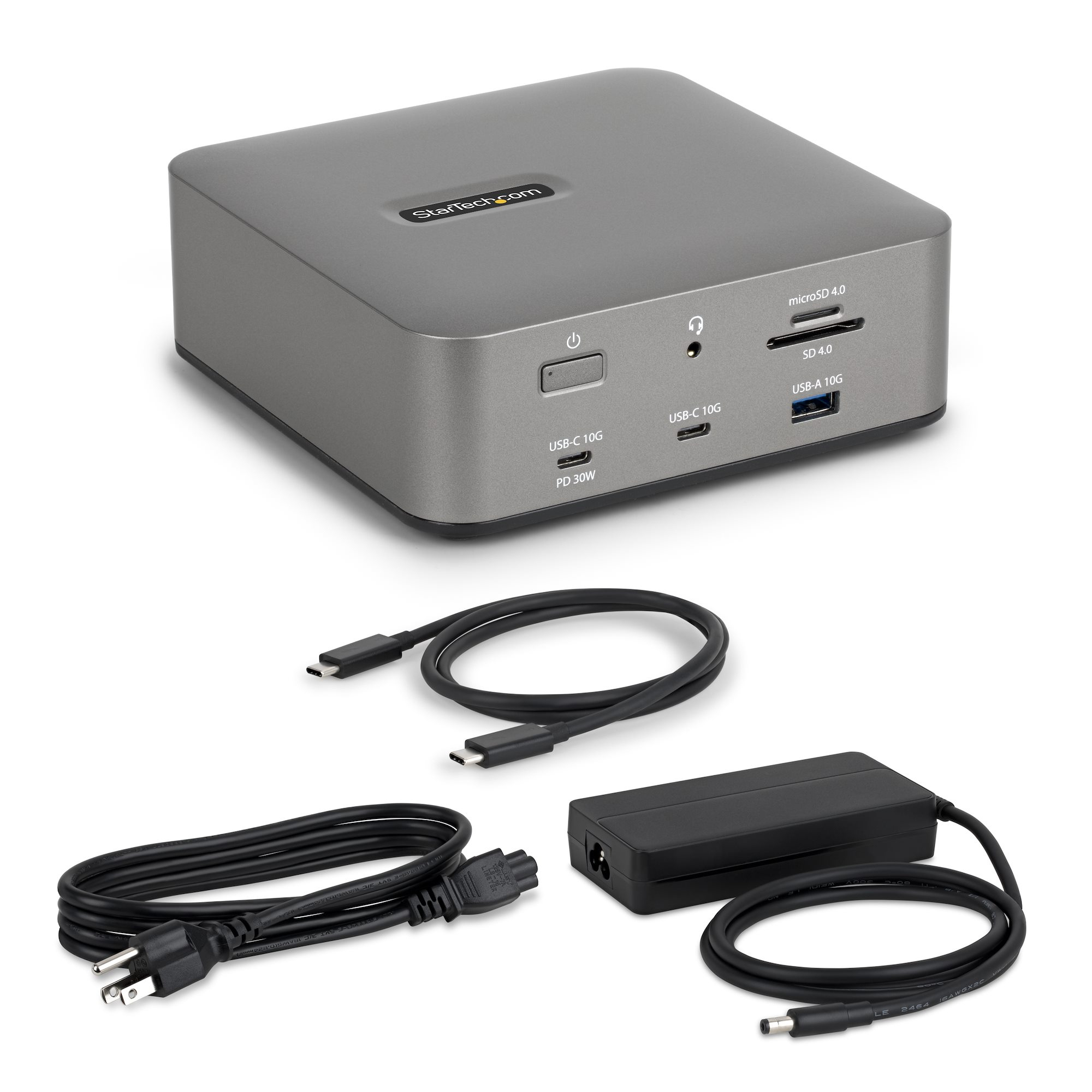

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| User guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 190 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 5 pc(s) |
