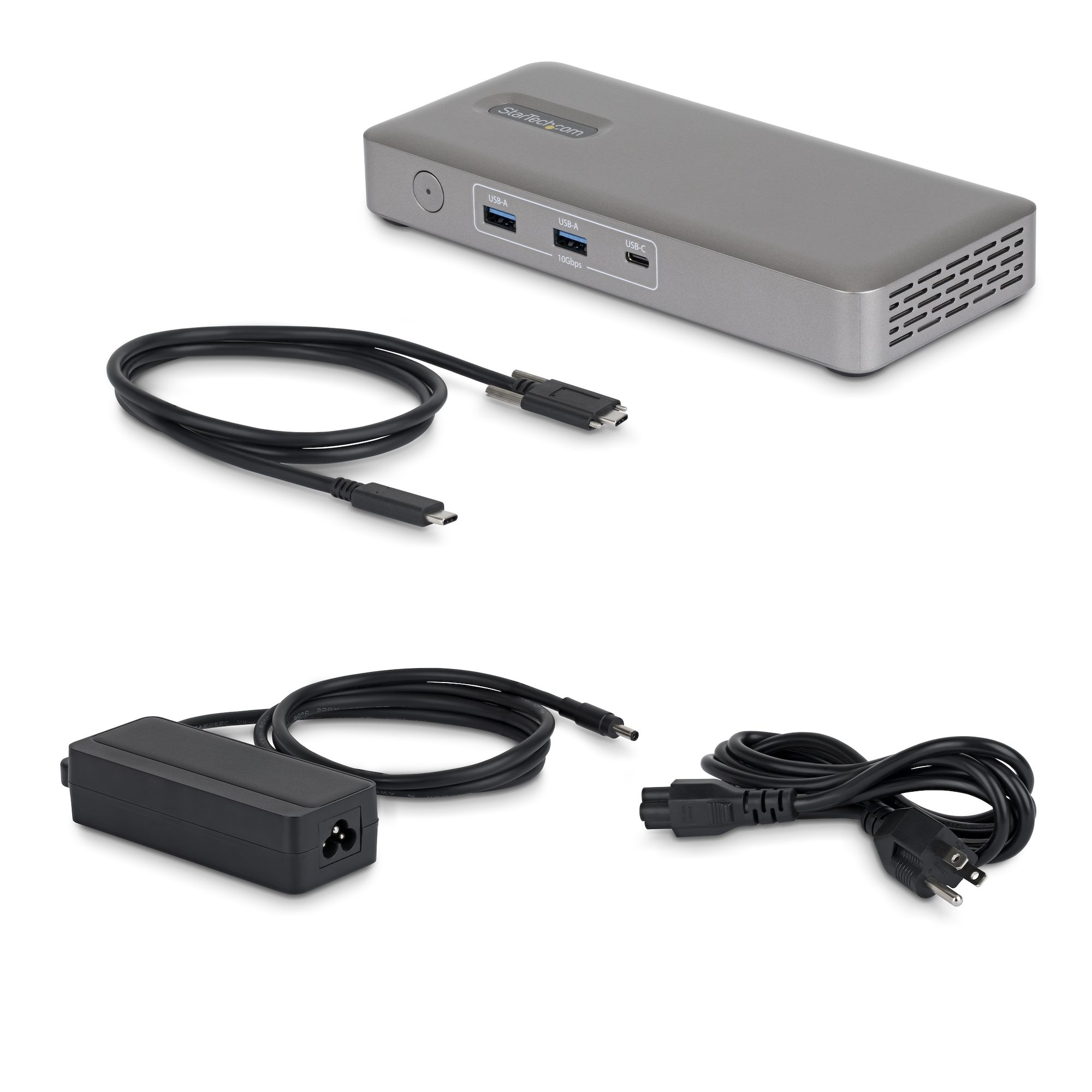

StarTech.com USB4 Docking Station, Driverless Dual 4K
StarTech.com

USB4 Docking Station, Driverless Dual 4K

144Hz for Mac and Windows, Universal USB-C Dock with DisplayPort, 100W PD and 2.5GbE

Model 208N-USB4-DOCKEAN 065030921688

61 specifications
  • ConnectivityWired
  • Weight300 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeDC
  • Linux operating systems supportedUbuntu 24.04 LTS
See all specifications

Overview

Connectivity
Wired
Weight
300 g
Colour
Grey
Ethernet LAN
Yes
Power source type
DC
Linux operating systems supported
Ubuntu 24.04 LTS
Brand
StarTech.com
Model
208N-USB4-DOCK
Part number
208N-USB4-DOCK
EAN / UPC
065030921688
Also known as
StarTech.com USB4 Docking Station, Driverless Dual 4K 144Hz for Mac and Windows, Universal USB-C Dock with DisplayPort, 100W PD and 2.5GbE

Specifications

61 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB4
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
HDMI ports quantity0
DisplayPorts quantity2
Microphone inNo
Headphone outputs0
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Wake-on-LAN readyYes
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate10 Gbit/s
HD type8K Ultra HD
Maximum digital resolution7680 x 4320 pixels
Maximum refresh rate240 Hz
Cable lock slotYes
Cable lock slot typeKensington, Nano, Noble, Wedge
On/off switchYes
Housing materialPlastic
LED indicatorsPower
Mean time between failures (MTBF)45663 h
UASP supportYes

Power

Power source typeDC
AC input voltage100 - 240 V
Input current2.5 A
Output current6.4 A
Output voltage21 V
Power consumption (typical)134.4 W
Compatible power plug typesUS
USB cable length1 m

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Mac operating systems supportedMac OS 26 Tahoe, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supportedUbuntu 24.04 LTS
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 85%

Weight & dimensions

Width80 mm
Depth190 mm
Height28.5 mm
Weight300 g

Packaging data

Package width275 mm
Package depth123 mm
Package height87 mm
Package weight1.1 kg

Packaging content

AC adapter includedYes
Cables includedUSB
ManualYes

Technical details

Compliance certificatesFederal Communications Commission (FCC), RoHS

Logistics data

Master (outer) case height210 mm
Master (outer) case length320 mm
Master (outer) case width500 mm
Products per master (outer) case5 pc(s)

Other features

ChipsetIntel - JHL8140, Infineon - CYPD5235-96BZXI, Parade - FL5500, Realtek - RTL8156B
