Thunderbolt 5 Universal Docking Station for Mac & Windows with Quad Monitors
StarTech.com

Thunderbolt 5 Universal Docking Station for Mac & Windows with Quad Monitors

140W Power Delivery, 120Gbps Bandwidth Boost, 2.5Gb Ethernet, USB-C &

Model 206UE-TB5USB4DOCKEAN 065030921879

58 specifications
  • ConnectivityWired
  • Weight730 g
  • ColourBlack, Grey
  • Ethernet LANYes
  • Output current9 A
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
730 g
Colour
Black, Grey
Ethernet LAN
Yes
Output current
9 A
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
206UE-TB5USB4DOCK
Part number
206UE-TB5USB4DOCK
EAN / UPC
065030921879
Also known as
StarTech.com Thunderbolt 5 Universal Docking Station for Mac & Windows with Quad Monitors, 140W Power Delivery, 120Gbps Bandwidth Boost, 2.5Gb Ethernet, USB-C &

Specifications

58 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 5
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery up to140 W
HDMI ports quantity2
HDMI version2.1
DisplayPorts quantity2
DisplayPort version1.4
Thunderbolt 5 ports quantity1
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Wake-on-LAN readyYes
Full duplexYes

Performance

Product colourBlack, Grey
Card reader integratedNo
Data transfer rate80 Gbit/s
HD type4K DCI
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate240 Hz
Number of displays supported4
Cable lock slotYes
Cable lock slot typeNano, Kensington
On/off switchYes
Housing materialPlastic
LED indicatorsLAN, Power, Link, Activity
UASP supportYes

Power

Output current9 A
Output voltage20 V
Power consumption (max)180 W
Compatible power plug typesUK, EU

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width92 mm
Depth243 mm
Height353 mm
Weight730 g

Packaging data

Package width262 mm
Package depth169 mm
Package height90 mm
Package weight1.1 kg

Packaging content

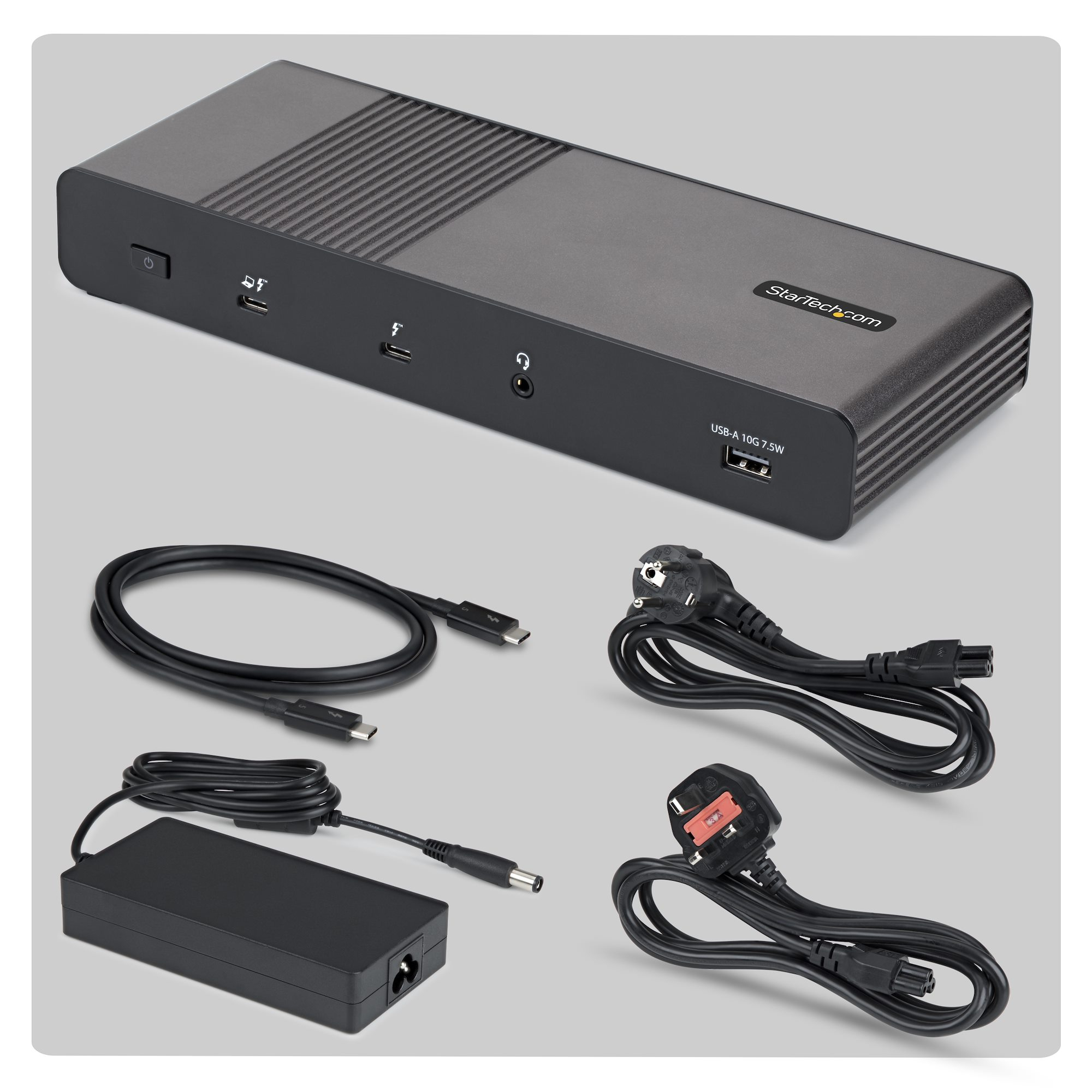

AC adapter includedYes
Cables includedThunderbolt

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case height300 mm
Master (outer) case length315 mm
Master (outer) case width395 mm
Products per master (outer) case6 pc(s)

Other features

ChipsetIntel - JHL9480 (Barlow Ridge), Synaptics - VMM6210, Synaptics - VMM6210, Infineon - CYPM1322, VIA Labs - VL822, VIA Labs - VL822, VIA Labs - VP226, VIA Labs - VP226, Realtek - RTL8156B, Fresco Logic - FL8501, Realtek - ALC4032
