USB-C Docking Station Triple 4K Displays (2x 4K
60Hz, 1x 4K 30Hz), 100W Power Delivery, 6 USB Ports (10Gbps), Gigabit Ethernet, DisplayPort + HDMI,
Model 199N-USBC-DOCKEAN 065030921800
58 specifications
- ConnectivityWired
- Weight300 g
- ColourGrey
- Ethernet LANYes
- AC input voltage100 - 240 V
- Linux operating systems supportedUbuntu 24.04 LTS
Overview
- Connectivity
- Wired
- Weight
- 300 g
- Colour
- Grey
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Linux operating systems supported
- Ubuntu 24.04 LTS
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 199N-USBC-DOCK
- Part number
- 199N-USBC-DOCK
- EAN / UPC
- 065030921800
- Also known as
- StarTech.com USB-C Docking Station Triple 4K Displays (2x 4K 60Hz, 1x 4K 30Hz), 100W Power Delivery, 6 USB Ports (10Gbps), Gigabit Ethernet, DisplayPort + HDMI,
Specifications
58 specifications in 12 groups

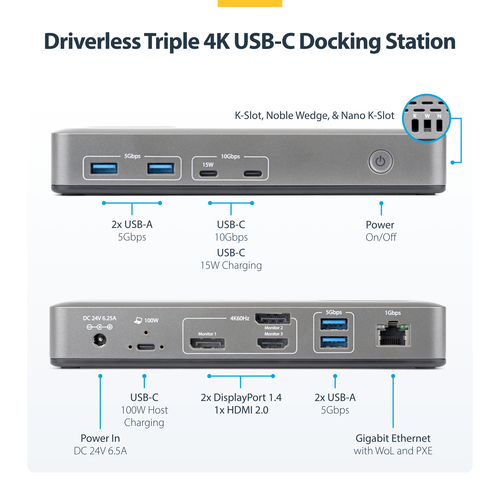

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano, Noble, Wedge |
| On/off switch | Yes |
| LED indicators | Power |
| Mean time between failures (MTBF) | 84290 h |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 6.25 A |
| Output voltage | 24 V |
| Power consumption (typical) | 150 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enter |
| Linux operating systems supported | Ubuntu 24.04 LTS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 79 mm |
| Depth | 190 mm |
| Height | 27 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 205 mm |
| Package height | 50 mm |
| Package weight | 1 kg |

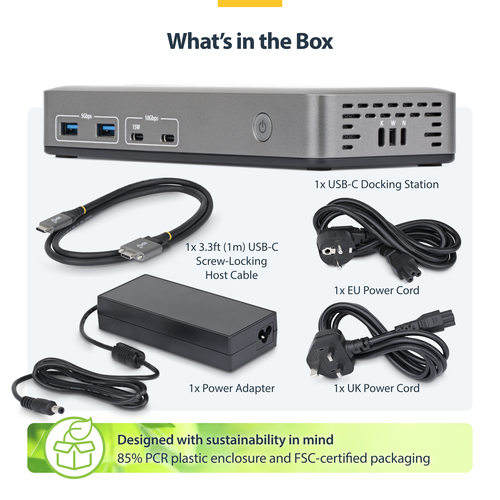

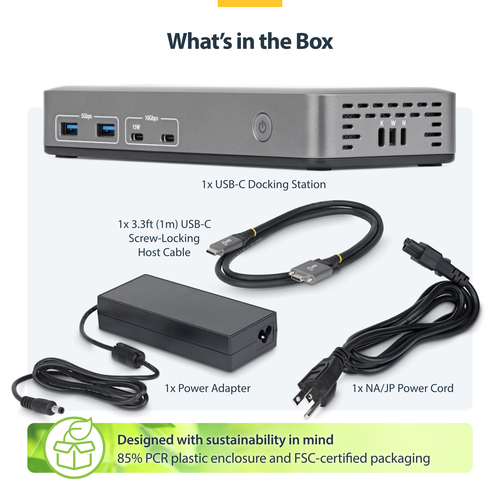

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-C |
| User guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 280 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case width | 430 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | VMM5320, VL103R, VL171, VL822, VP226, VL817, RTL8153E |
