Dual-Monitor USB-C Docking Station, HDMI, 4K
60Hz, 100W Laptop Charging, 1GbE, Driverless, Multi-Monitor Dock For Windows
Model 196N-USBC-DOCKEAN 065030921749
55 specifications
- ConnectivityWired
- Weight300 g
- ColourGrey
- Ethernet LANYes
- Power source typeDC
- Linux operating systems supportedUbuntu 24.04 LTS
Overview
- Connectivity
- Wired
- Weight
- 300 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Linux operating systems supported
- Ubuntu 24.04 LTS
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 196N-USBC-DOCK
- Part number
- 196N-USBC-DOCK
- EAN / UPC
- 065030921749
- Also known as
- StarTech.com Dual-Monitor USB-C Docking Station, HDMI, 4K 60Hz, 100W Laptop Charging, 1GbE, Driverless, Multi-Monitor Dock For Windows
Specifications
55 specifications in 12 groups

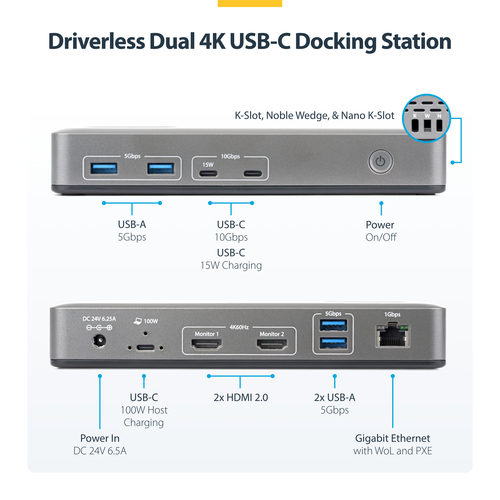

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 1 Gbit/s |

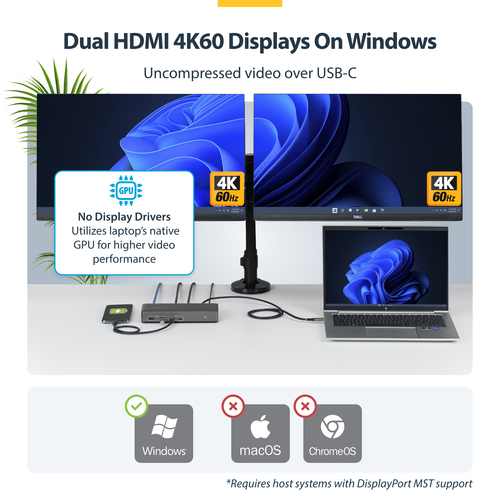

| Number of displays supported | 2 |

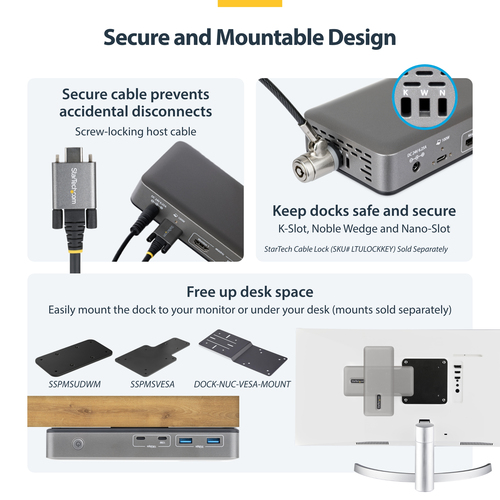

| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano, Noble, Wedge |
| On/off switch | Yes |
| Housing material | Plastic |
| LED indicators | Power |
| Plug and Play | Yes |

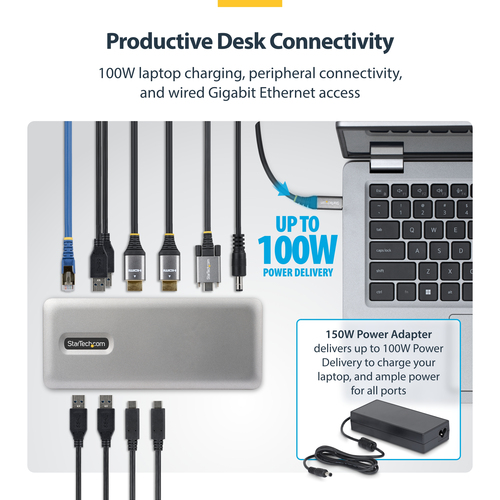

Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 6.25 A |
| Output voltage | 24 V |
| Power consumption (max) | 150 W |
| Power plug type | Type N |
| Compatible power plug types | US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Linux operating systems supported | Ubuntu 24.04 LTS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 79 mm |
| Depth | 190 mm |
| Height | 27 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 205 mm |
| Package height | 50 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| User guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 280 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case width | 430 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | VMM5220, VL103R, VL171, VL822Q8T, VP226, RTL8153E, VL817Q7S |
