Dual-Monitor USB-C Docking Station, 4K
StarTech.com

Dual-Monitor USB-C Docking Station, 4K

60Hz, HDMI or DisplayPort, 96W Laptop Charging, Gigabit Ethernet, Universal Smart Dock for Windows and macOS

Model 194N-USBC-SMARTDOCKEAN 065030917117

60 specifications
  • ConnectivityWired
  • Weight360 g
  • ColourGrey
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
360 g
Colour
Grey
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
194N-USBC-SMARTDOCK
Part number
194N-USBC-SMARTDOCK
EAN / UPC
065030917117
Also known as
StarTech.com Dual-Monitor USB-C Docking Station, 4K 60Hz, HDMI or DisplayPort, 96W Laptop Charging, Gigabit Ethernet, Universal Smart Dock for Windows and macOS

Specifications

60 specifications in 12 groups

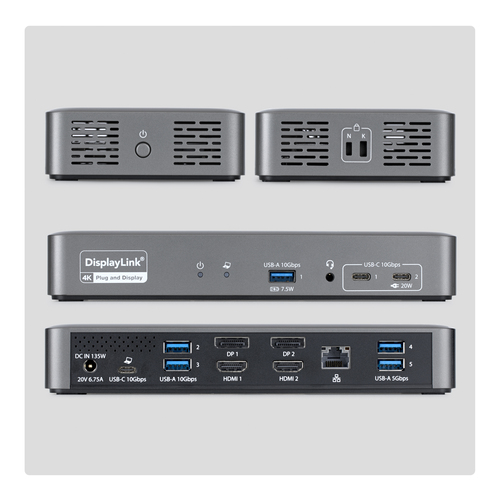

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery up to96 W
HDMI ports quantity2
DisplayPorts quantity2
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Number of displays supported2
Cable lock slotYes
Cable lock slot typeNano, Kensington
On/off switchYes
Housing materialPlastic
LED indicatorsYes
Mean time between failures (MTBF)10000 h
UASP supportYes

Power

AC input voltage100 - 240 V
Input current1.9 A
Output current6.75 A
Output voltage20 V
Power consumption (max)135 W
Compatible power plug typesUS

Software

Windows operating systems supportedWindows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enter
Mac operating systems supportedMac OS X 15.0 Sequoia, Mac OS X 14.0 Sonoma, Mac OS 26 Tahoe, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 11.1 Big Sur, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supportedYes
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width95 mm
Depth202 mm
Height32 mm
Weight360 g

Packaging data

Quantity per pack1 pc(s)
Package width140 mm
Package depth255 mm
Package height90 mm
Package weight1.1 kg

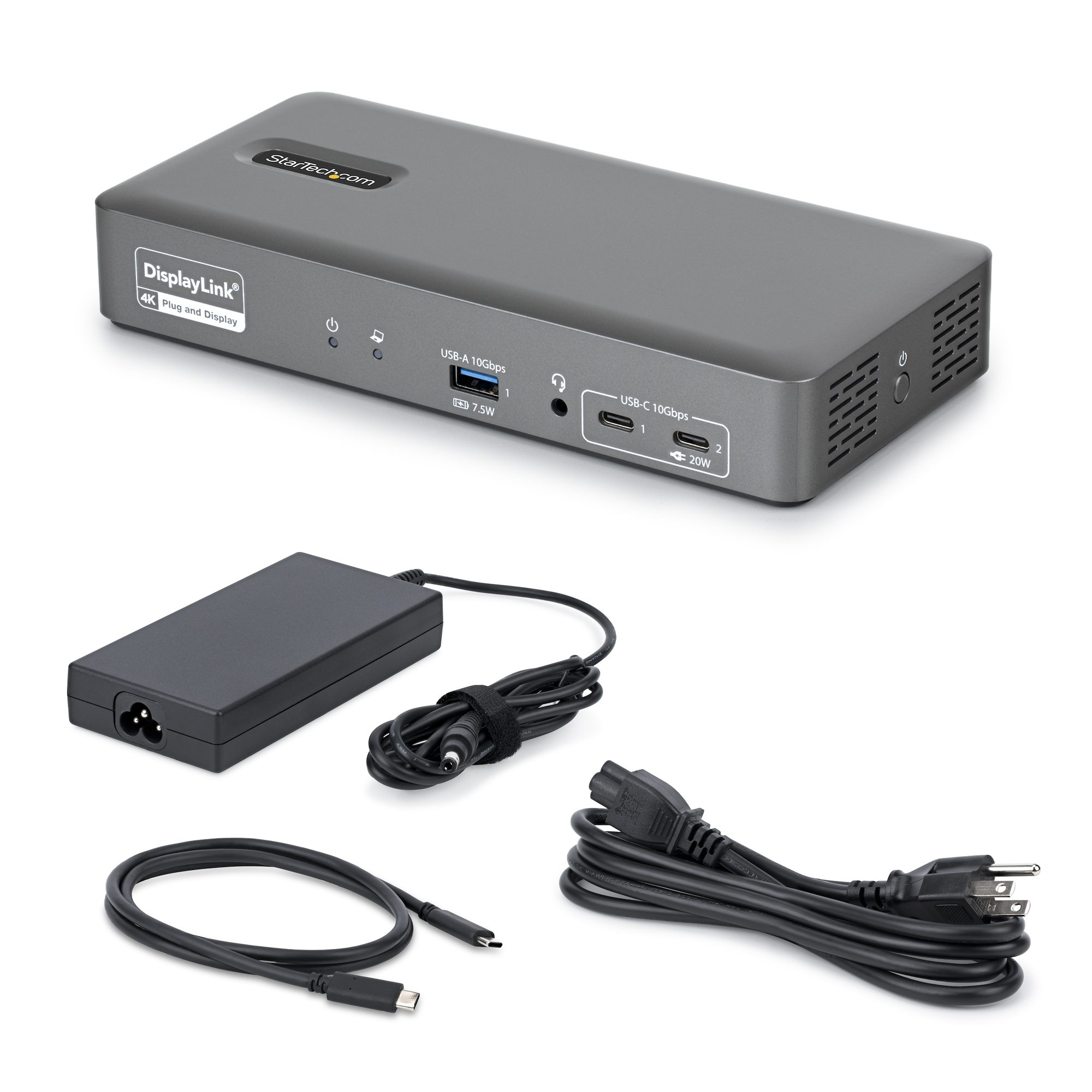

Packaging content

Cables includedUSB Type-C

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC)

Logistics data

Master (outer) case height270 mm
Master (outer) case length470 mm
Master (outer) case width287 mm
Products per master (outer) case10 pc(s)

Other features

ChipsetDisplayLink - DL-6950, VIA Labs - VL108, VIA Labs - VL822, VIA Labs - VL817, VIA Labs - VL122, Realtek - RTL8153B
