StarTech.com 10-in-1 USB-C to Dual-DisplayPort Multiport Adapter
StarTech.com

10-in-1 USB-C to Dual-DisplayPort Multiport Adapter

100W Power Delivery Charging, 2x 4K 60Hz, 5-Port 5Gbps Hub, Gigabit Ethernet, Type-C Mini Dock

Model 189B-USBC-MULTIPORTEAN 065030917100

48 specifications
  • ConnectivityWired
  • Weight100 g
  • ColourGrey
  • Ethernet LANYes
  • Output voltage5 V
  • Operating temperature (T-T)0 - 70 °C
See all specifications

Overview

Connectivity
Wired
Weight
100 g
Colour
Grey
Ethernet LAN
Yes
Output voltage
5 V
Operating temperature (T-T)
0 - 70 °C
Brand
StarTech.com
Model
189B-USBC-MULTIPORT
Part number
189B-USBC-MULTIPORT
EAN / UPC
065030917100
Also known as
StarTech.com 10-in-1 USB-C to Dual-DisplayPort Multiport Adapter, 100W Power Delivery Charging, 2x 4K 60Hz, 5-Port 5Gbps Hub, Gigabit Ethernet, Type-C Mini Dock

Specifications

48 specifications in 11 groups

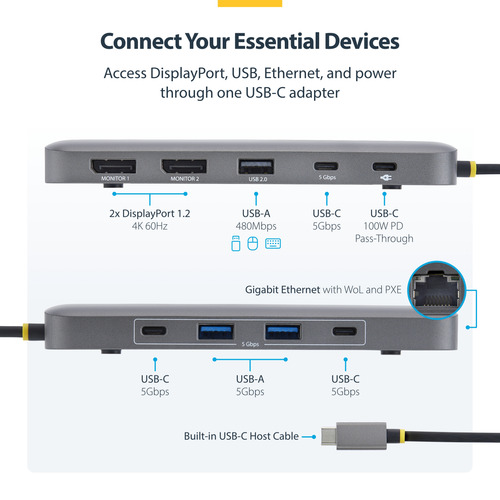

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity1
USB 2.0 Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity3
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W
HDMI ports quantity0

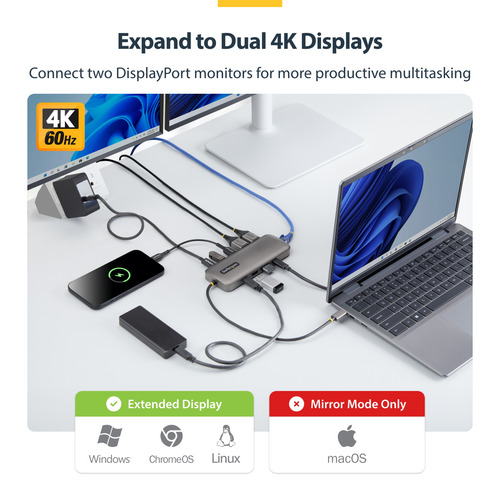

DisplayPorts quantity2
DisplayPort version1.2
Microphone inNo
Headphone outputs0

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate5 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Housing materialPlastic
Mean time between failures (MTBF)103855 h

Power

Output voltage5 V
Power consumption (typical)15 W
USB cable length0.3 m

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Linux operating systems supportedYes
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)10 - 70 °C
Operating relative humidity (H-H)10 - 85%

Weight & dimensions

Width55 mm
Depth150 mm
Height16.5 mm
Weight100 g

Packaging data

Package width193 mm
Package depth117 mm
Package height24 mm
Package weight190 g

Packaging content

User guideYes

Logistics data

Master (outer) case height270 mm
Master (outer) case length425 mm
Master (outer) case width540 mm
Products per master (outer) case80 pc(s)

Other features

ChipsetSynaptics - VMM5220, VIA - VL103, VIA - VL817S, Realtek - RTL8153E
